Zero #8194 Door Bottom, Aluminum Casing with .375" Neoprene Lip

Zero #8194 Gaps between the bottom of doors and the floor surface below are easily remedied with a door bottom sweep. This high quality aluminum version is fitted with a neoprene rubber lip seal that will prevent infiltration of air, light, drafts, smoke and dust. Available in options of anodized finishes and length is custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information
    • SKU
      ZR8194AA|DB
    • Market price:$5.65
      • save 5%
    • Starting price: Price: $5.37 per foot


    Gaps between the bottom of door and the floor surface below can negatively affect the ability of your door to block infiltration of sound, light, drafts, air, dust and smoke. A properly sealed door prevents unnecessary energy usage and can significantly lower your utility bills.

    A door bottom gap can be easily remedied with a door bottom sweep. This smoke rated door bottom is easily applied to the door. It is made of high quality aluminum and fitted with a durable solid neoprene rubber seal, which can seal small gaps up to .375". The rubber remains flexible in extreme weather conditions, and is an ideal option for an exterior door. The casing is anodized, ensuring color will last through frequent usage with minimal wear and tear.

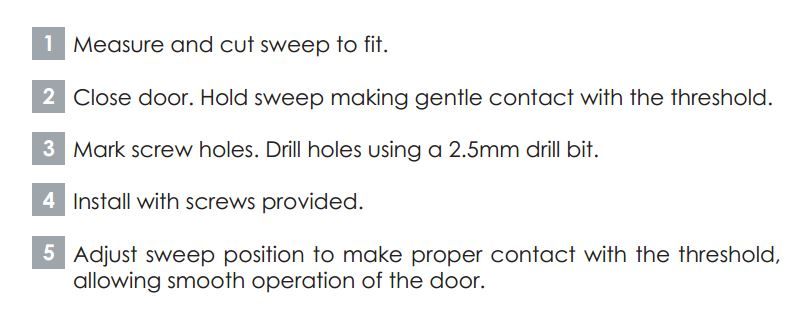

    Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year warranty against defects in material and workmanship.
    Click here to view our full
    Warranty Policy.

    Product can also be purchased with a rain drip cap, see our Zero International #8197 Rain Drip Door Bottom with Neoprene Lip Seal.

      • SKU
        ZR8194AA|DB
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      8194
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Metal Door, Wooden Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Surface Mounted

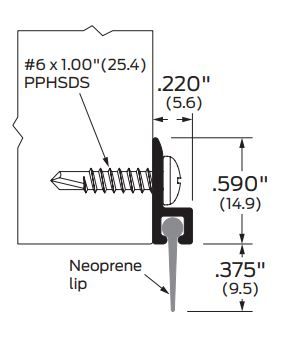

    • Dimensions
      • Seal Height
        .375'' Height
      • Total Height
        .965" Height
      • Additional Dimensions
        Door seal is .220" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

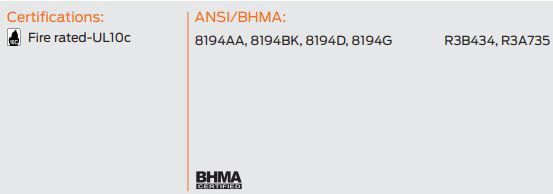

    • Compliance Details
      • Compliance Details
        Fire Rated
      • ANSI Designation
        R3B434
      • Warranty
        1 Year Limited Warranty

    compliance details
