Rockwood 19 Bottom Fire Bolt For Wood Doors
Rockwood's 19 Bottom Fire Bolt is for wood doors. Mechanism activates when door is subjected to 230°F. Made of stainless steel, this bolt is available in Satin Stainless Steel finish only. See below for additional details.
PRICED PER PIECE-See full product details and specs in the tabs below

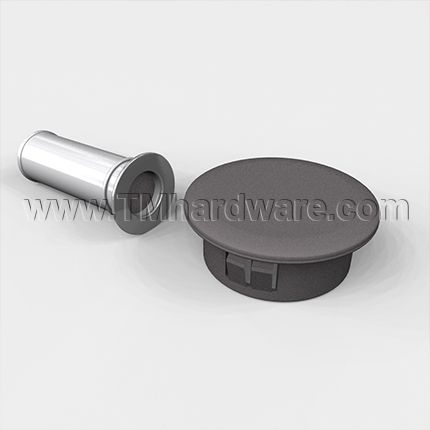

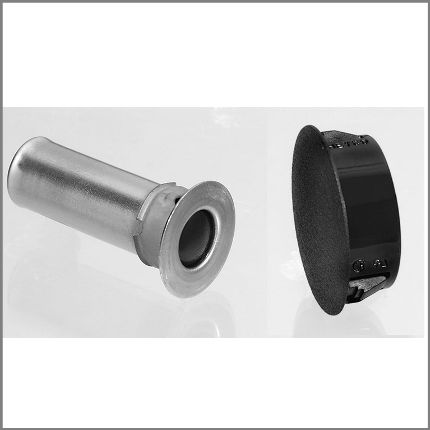

Rockwood's 19 Bottom Fire Bolt is for use on wood doors.
Materials: Stainless Steel
Available Finishes: Satin Stainless Steel-US32D/630 (BHMA Code)
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Installation: Fire bolt is installed to the bottom section of your metal door. See product specs for installation instructions.

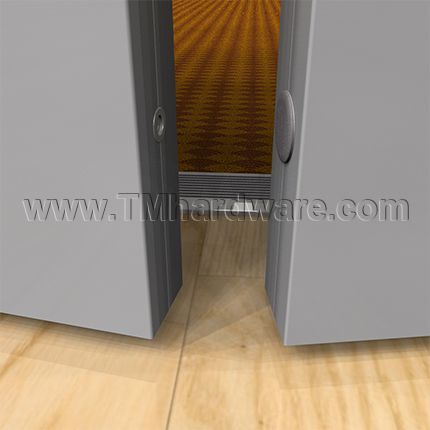

How It Works: When door is subjected to 230°F the plug and gray plastic cover will melt, allowing the bolt to project, locking the leaves together.
Important, Please Note: The fire bolt will project during a fire. Do not cover with any edge mounted door hardware.
Features:
- Eliminates the bottom automatic flush bolt and dust proof strike.
- UL listed only when used with automatic top bolt.
Bolt Size: 13/16" x 1-9/16"
Plug Size: 1-13/64" diameter
Weight: .1 lbs
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.

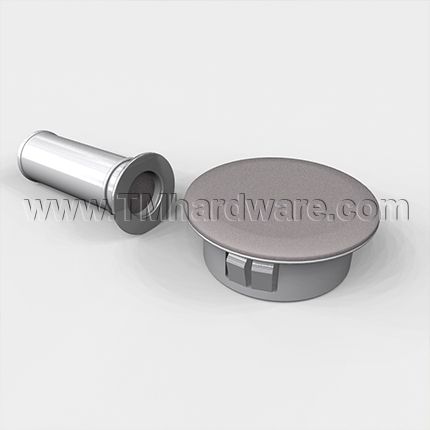

Click here to view all our Rockwood 18 Bottom Fire Bolt for Wood Doors.
