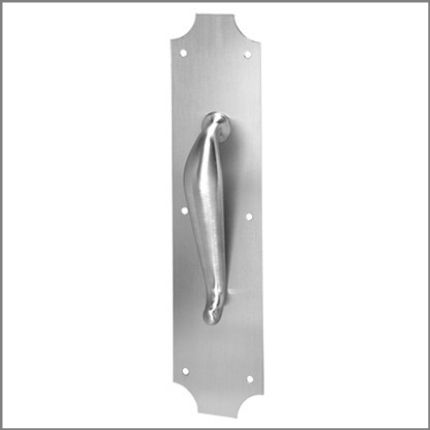

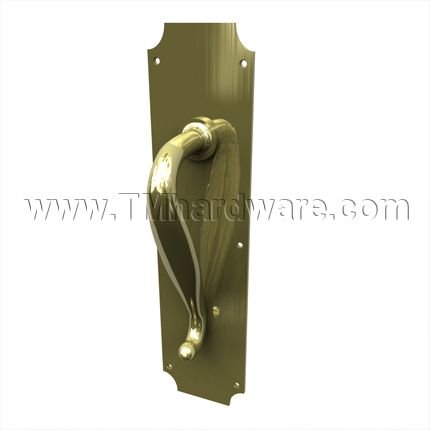

Rockwood 147x77 Pull Plate, Cast Brass Pull Plate With Inverted Corners

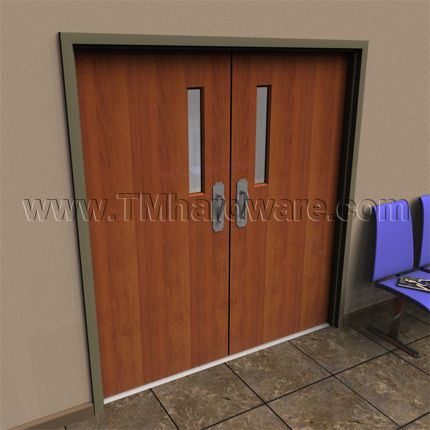

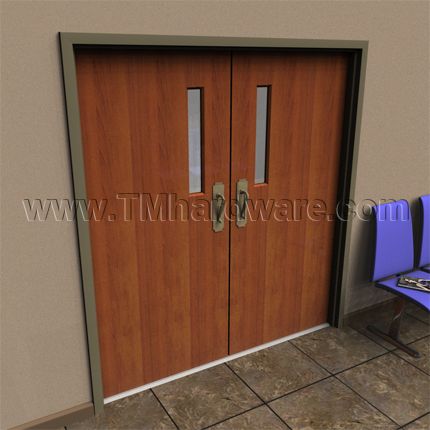

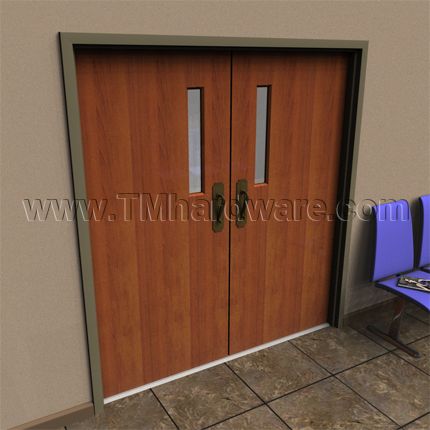

Rockwood 147x77 standard weight pull plate has an elegant design, consisting of inverted corners, and is ideal for use on architectural doors in high traffic areas. Variations of plate sizes and finishes are available for any door of your choice. For details and options, see below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RK147x77B_US4
    • Market price:$212.00
      • save 10%
    • Starting price: Price: $190.80 per item


    Rokwood 147x77 standard weight pull plate series is architectural grade and long lasting. They are all for standard doors (1.75" thick), but can be custom made for any door of your choice. These elegant door pull plates are great for all standard doors, especially those in high traffic areas.

    Materials: Cast Brass

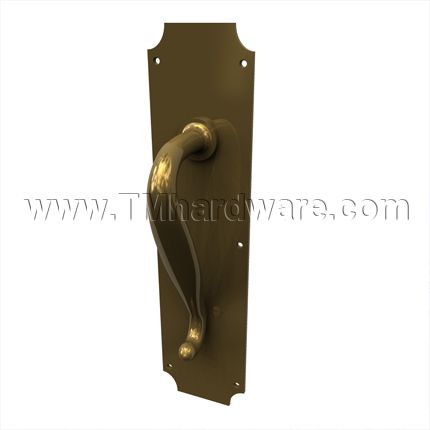

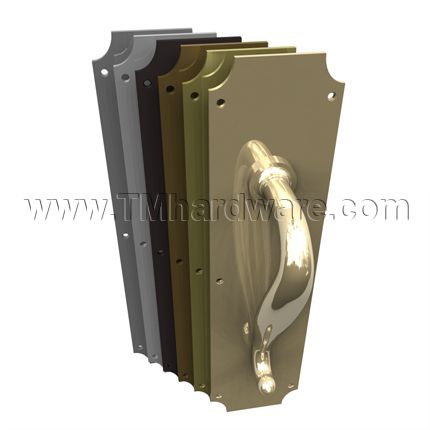

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: US3 LIFETIME-guaranteed no tarnish polished brass for outdoor use. Dark Oxidized Satin Bronze, equivalent-This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Options: For details and pricing, see options tab.

    • Engraving
    • Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)
    • Back to back mounting in pairs, Types 5, 13
    • Concealed mounting single pulls, Types 6, 6R, 8

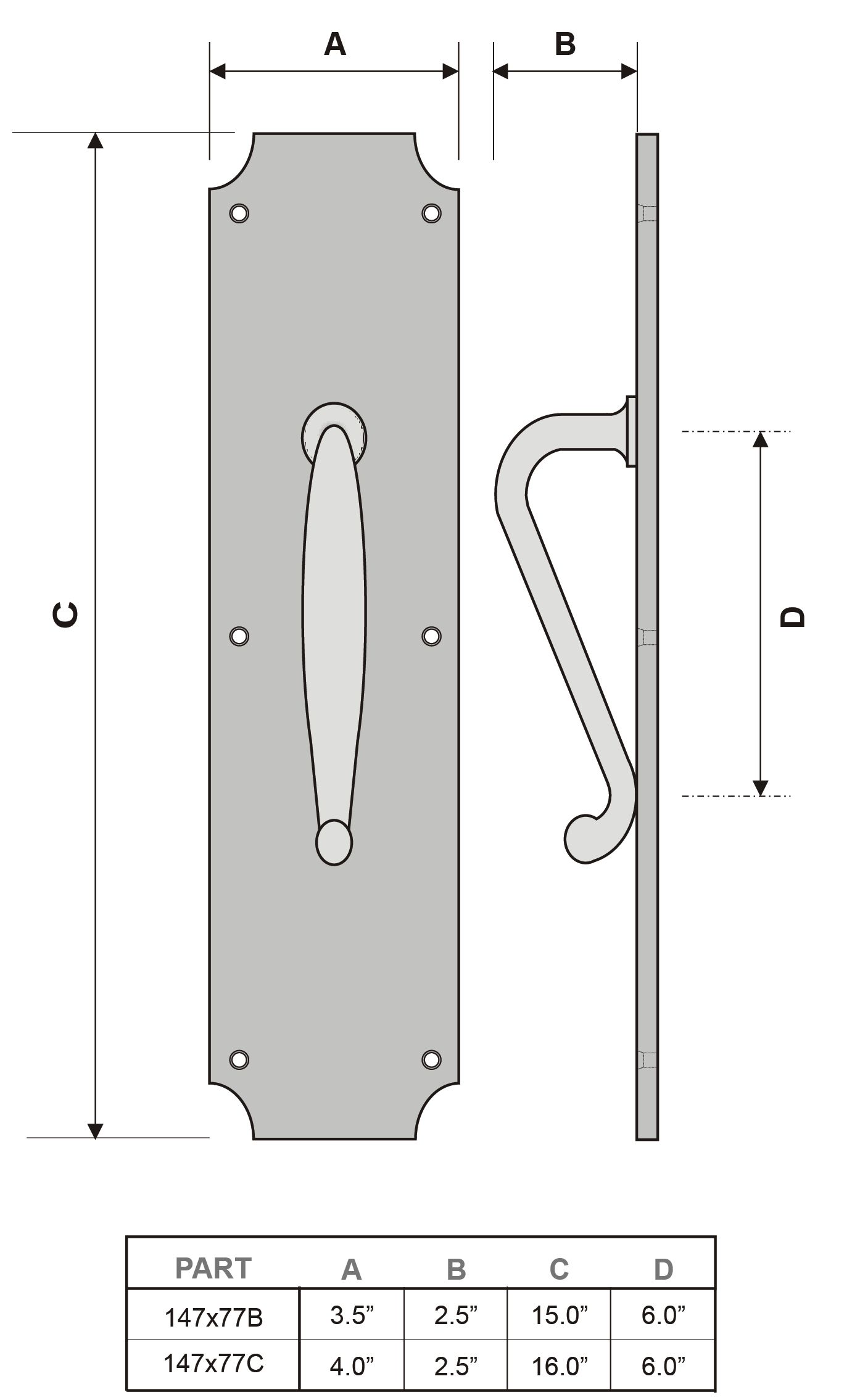

    Sizes: 2 sizes (chart-inches)

      Product #   CTC   Size   Weight
      147x77B   6   3.5 x 15   2.1 lbs
      147x77C   6   4 x 16   2.2 lbs

    Fastener: #6 x 5/8" OH SMS and 1/4-20 x 2-1/4" thru bolt and finish washer (standard 1.75" door). Included.

    Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view our Rockwood 147x76 Elegant Pull Plate.

      • SKU
        RK147x77B_US4
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      147x77B, 147x77C
    • Size
      3.5" x 15" (147x77B), 4" x 16" (147x77C)
    • Cut-Out
      None, CFC, CFTT
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D)

    If you have any questions on our options, please contact us or call us at 845-388-1300.

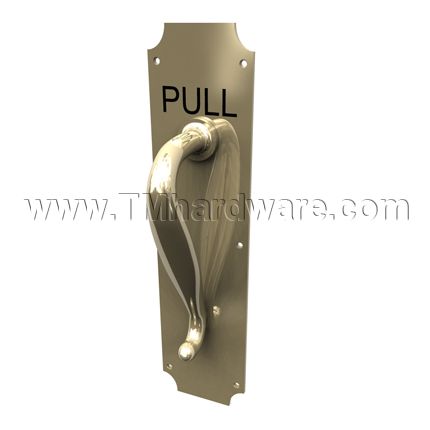

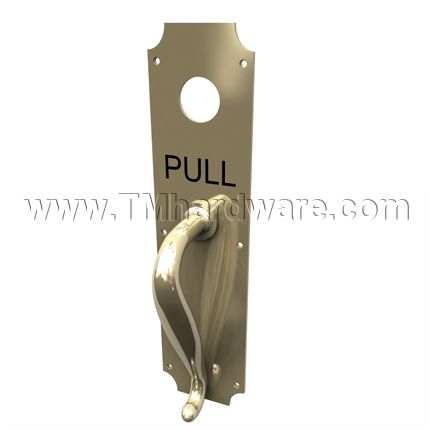

     ENGRAVING

    Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-388-1300.

    Price per engraving: $16.00 ($19.20 for Stainless Steel)

    Adhesive mounting is available for $6.40

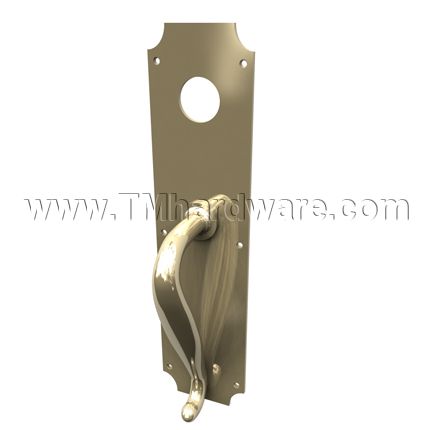

     CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

    Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns.

    Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed.

    Price per cutout: $1.60

     MOUNTING TYPES


    Back to Back




    Concealed (Single)

    Aside from the standard mounting option (with the included fasteners), there are another 5 mounting types available for this specific door pull:


    1. Type 5-Back to Back (pair)
    add $8.40
    2. Type 13-Back to Back (pair)
    add $14.70
    3. Type 6-Concealed
    add $8.40
    4. Type 6R-Concealed
    add $10.50
    5. Type 8-Concealed
    add $8.40








    Note: This option is available for order through our office only. To order, please contact us or call us at 845-388-1300.

    To view more details on these mounting types, see Mounting Types for Door Pulls.



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • LIFETIME PVD Polished Brass-US3 LIFETIME
    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626

    ​Pull Plate complies with ANSI A156.6: J405
