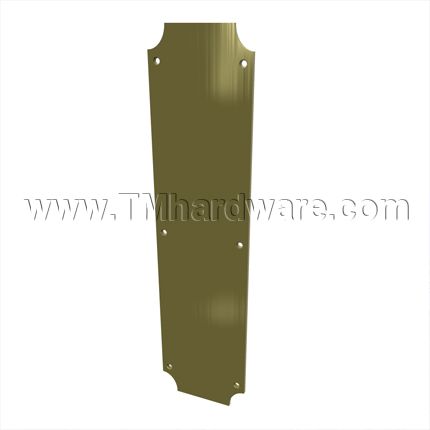

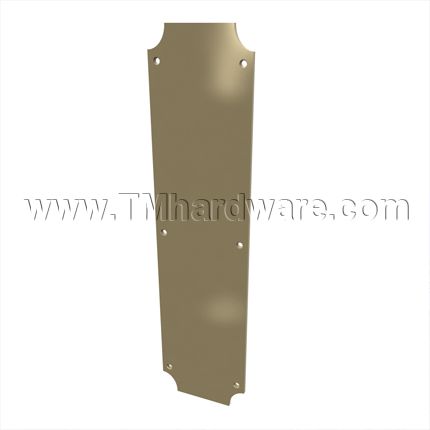

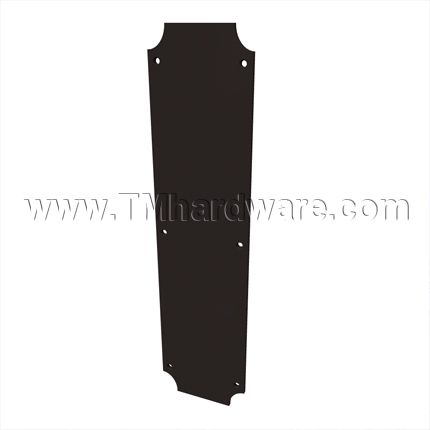

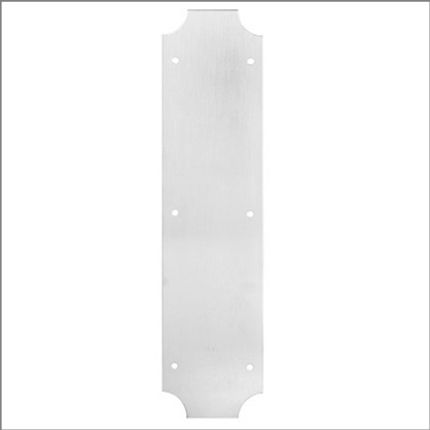

Rockwood 77 Push Plate, Decorative Inverted Corner, Standard Guage .050" Thick
Rockwood's 77 high quality push plate, has decorative inverted corners and is standard gauge. Product provided with beveled edge for added security. Available in two sizes, and a variety of finishes. See details and options below.
PRICED PER PIECE

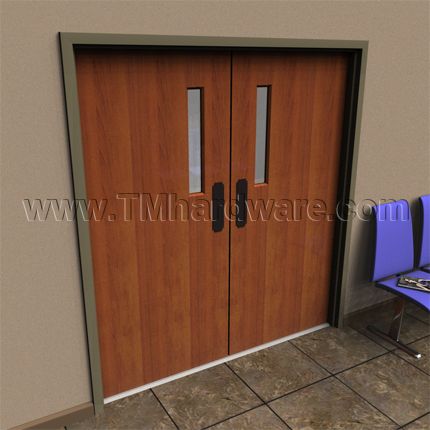

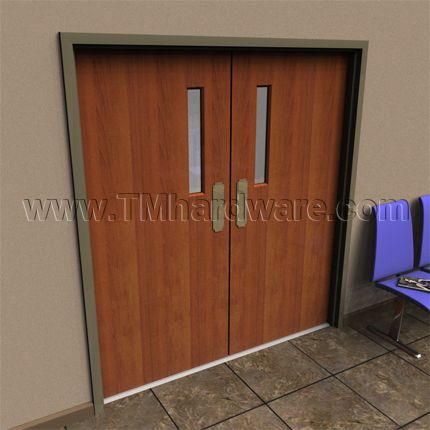

Rockwood's 77Â push plate series is commercial grade and long lasting. It is standard guage (.050" thick), has inverted corners and beveled edges. It is great for use on any door of your choice, particularly doors in high traffic areas.Â
Materials:Â Brass, Bronze

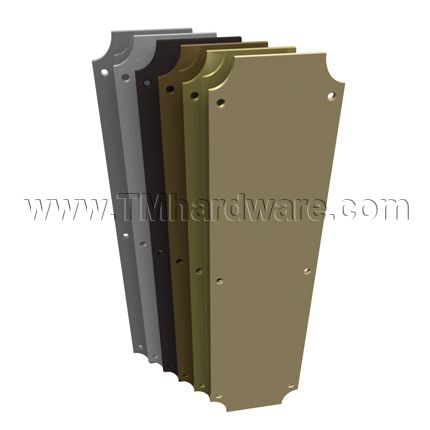

Finishes:Â Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome (All finishes comply with BHMA codes. See Product Data for compliance details.)
A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Features: Four beveled edges.
Options:Â For details and pricing, see options tab.
- TORX - security torx screws
- SA - self adhesive mounting-1/16" double face foam tape (no screw holes)
- Engraving
- Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)
Sizes:Â 2 available sizes (chart)
 Product # |  Size (Inches) |  Weight |
 77B |  3-1/2 x 15 |  0.9 lbs |
 77C |  4 x 16 |  1.0 lbs |
Fastener:Â #6 x 5/8" OH SMS. Included.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view Rockwood 80 Semi Circle Shaped Push Plate.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPN77
-
Size3-1/2" x 15" (77B), 4" x 16" (77C)
-
OptionsNone, 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
-
EngravingNone, Push, Pull, Men, Women
- Finishes
-
FinishSatin Brass (US4), Polished Brass (US3), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D)
-
To order products with more than one option, please contact us or call us at 845-388-1300.
 TORX SCREWS |
|
Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used. Push plate needs a total of six screws. Size: #6 x 5/8" Oval Head SMS |
|
 SELF-ADHESIVE MOUNTING |
|
1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation. |
|

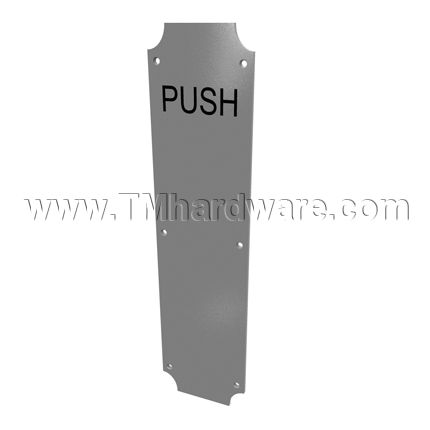

 ENGRAVING |
|
Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order custom engravings, and for details and pricing please contact us or call us at 845-388-1300. |
|

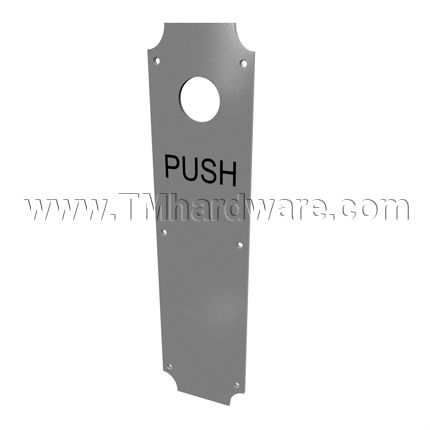

 CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS |
|

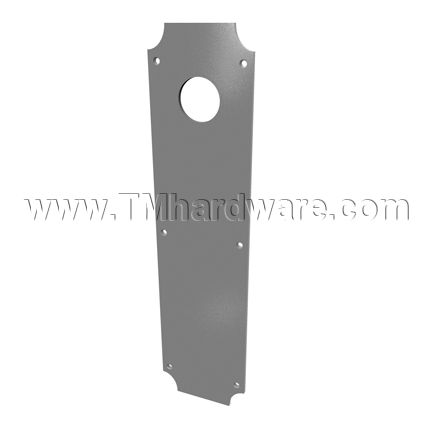

Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns. Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed. |
Â

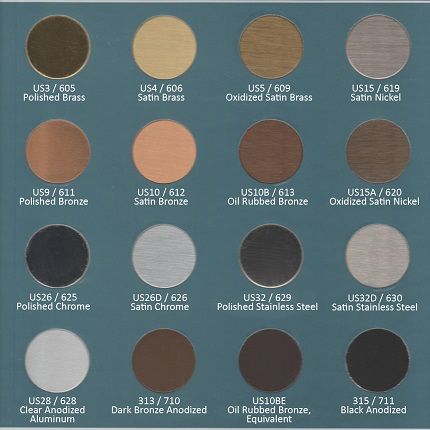

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/625

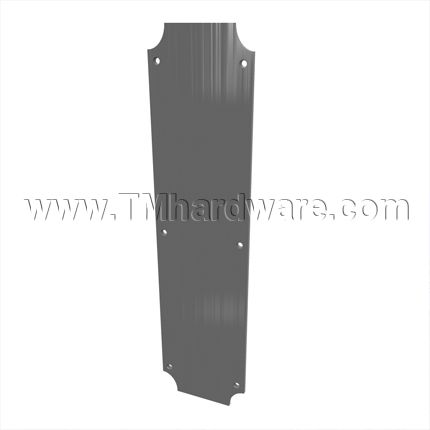

- Satin Chrome-US26D/626
​Push Plate complies with ANSI A156.6: J301
