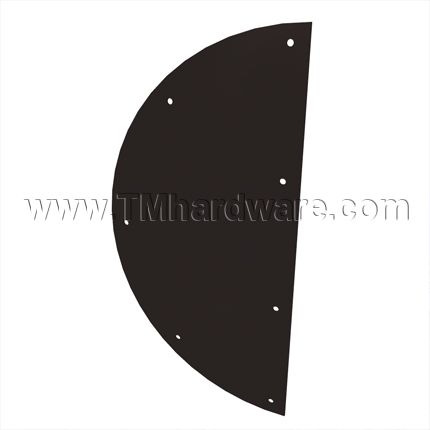

Rockwood 80 Push Plate, Semi Circle Design, Standard Guage .050" Thick

Rockwood's 80 high quality push plate has a semi circle design and is standard gauge. Push Plates have beveled edge for added security. Available in three sizes and a variety of finishes. See details and options below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RK80 US28
    • Market price:$67.00
      • save 10%
    • Starting price: Price: $60.30 per item

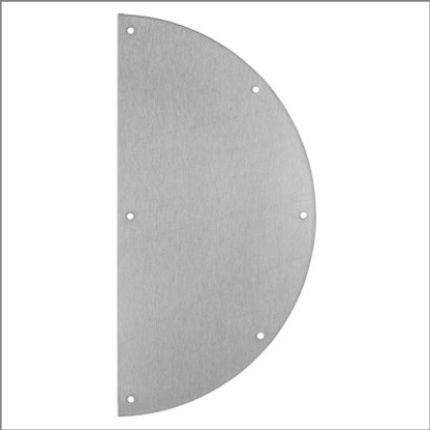

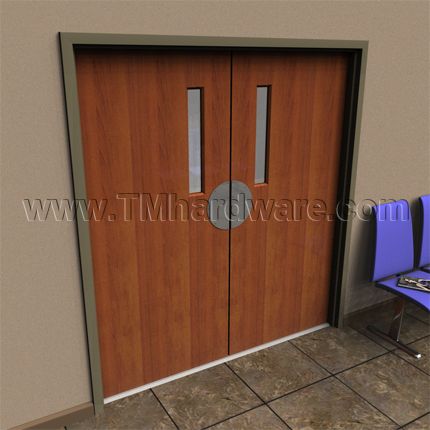

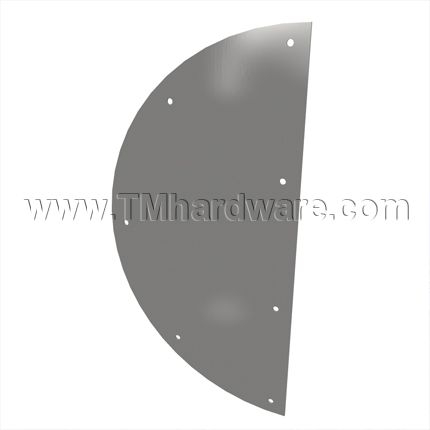

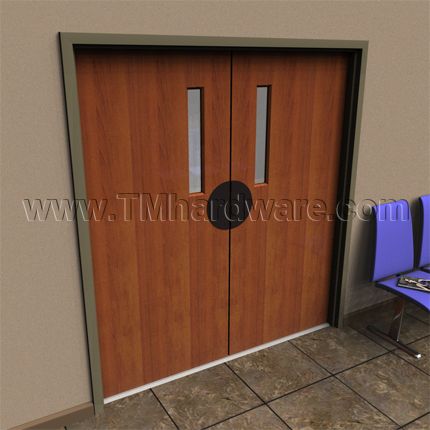

    Rockwood's 80 semi circle commercial grade and long lasting push plate, Is standard gauge (.050" thick), has beveled edges and a neat rounded design. This push plate is great for use on any door of your choice, particularly doors in high traffic areas.

    Materials: Aluminum, Brass, Bronze, Stainless Steel

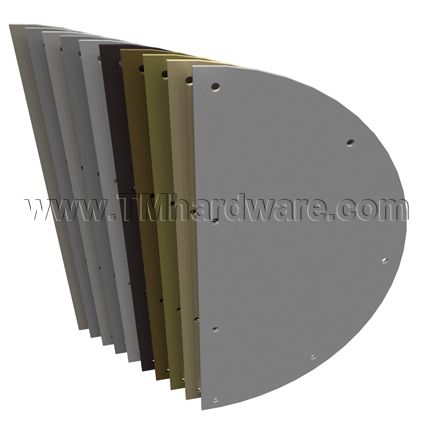

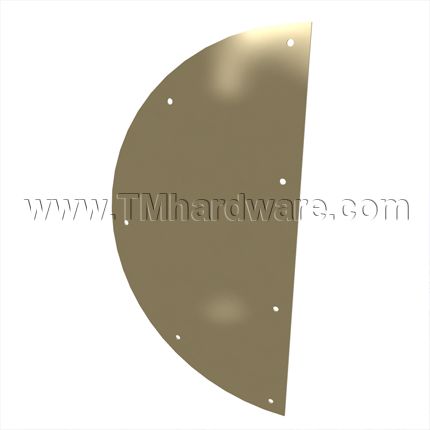

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Clear Anodized Aluminum; Polished Stainless; Satin Stainless; Stainless Steel Microshield;Satin 316 Alloy; (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32 - Enhanced corrosion resistance of stainless steel. 316 Alloy-Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Options: For details and pricing, see options tab.

    • TORX - security torx screws
    • SA - self adhesive mounting-1/16" double face foam tape (no screw holes)

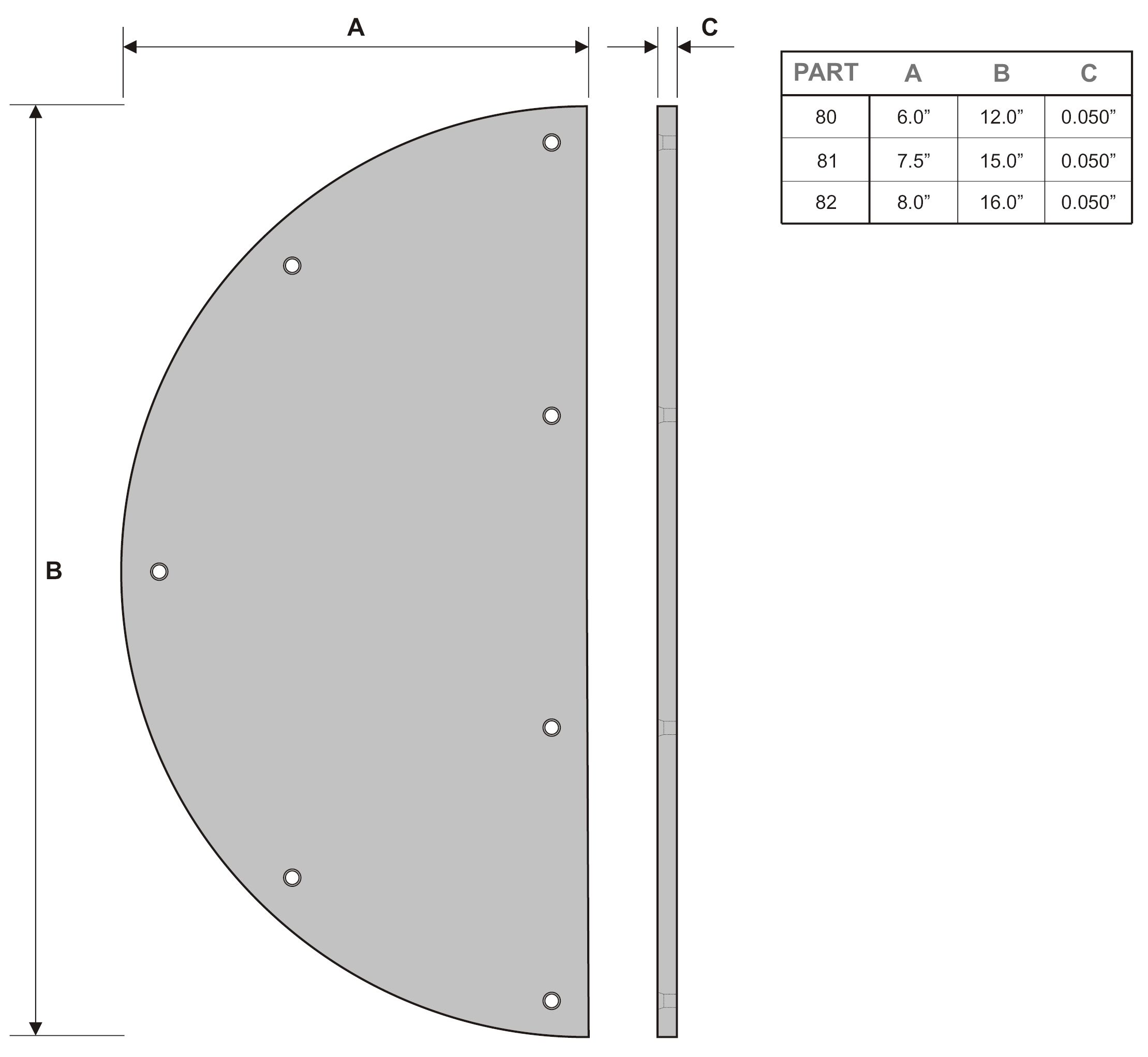

    Sizes: 3 available sizes (chart)

      Product #   Size (Inches)   Weight
      80   6 x 12   1.4 lbs
      81    7.5 x 15   1.6 lbs
      82   8 x 16   1.8 lbs

    Fastener: #6 x 5/8" OH SMS. Included.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view Rockwood's 84 Push Plate with a Unique Irregular Shape.

      • SKU
        RK80 US28
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      80-81-82
    • Size
      6" x 12" (80), 7.5" x 15" (81), 8" x 16" (82)
    • Options
      None, 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Satin Stainless Steel (US32D), Polished Stainless Steel (US32), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin, 316 Alloy Stainless Steel, Polished



    To order products with more than one option, please contact us or call us at 845-388-1300.

     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Push plate needs a total of six screws.

    Size: #6 x 5/8" Oval Head SMS

    Priced per 6 screws: Stainless Steel-$4.80      Brass Plated-$16.20

     SELF-ADHESIVE MOUNTING

    1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation.

    Price: Up to 12" Height-$15.00     12"-48" Height-$32.00

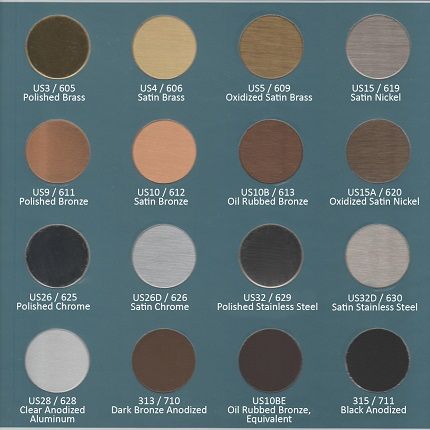

    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626
    • Clear Anodized-US28/628
    • Stainless Steel, Polished-US32/629
    • Stainless Steel, Satin-US32D/630
    • Satin Microshield Coated-US32DMS
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Push Plate complies with ANSI A156.6: J301
