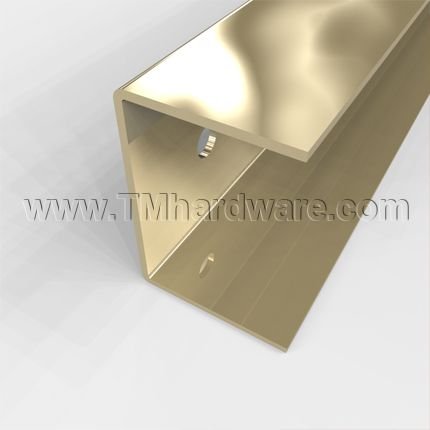

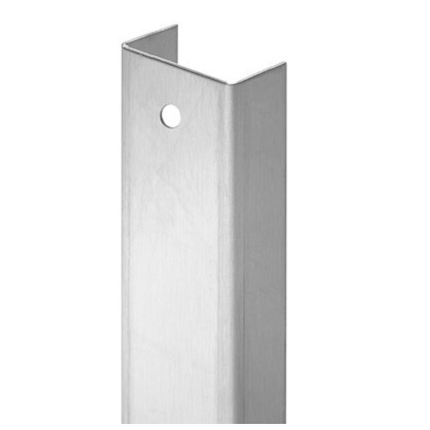

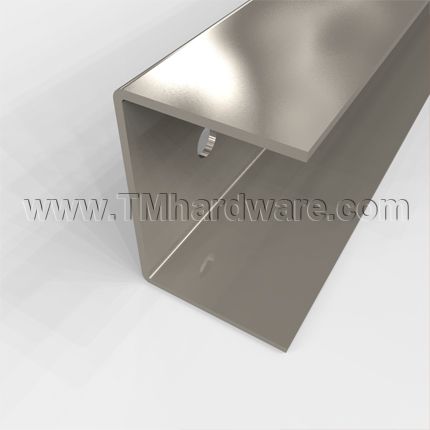

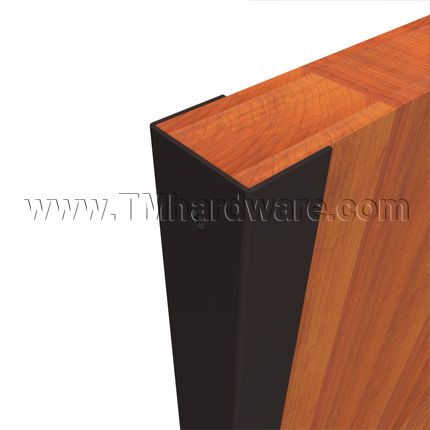

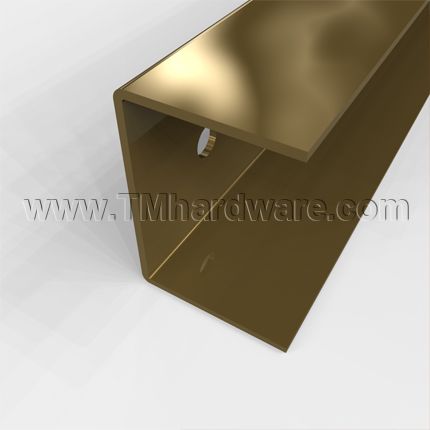

Rockwood 306, Non-Mortise Door Edge, 90° U-Shaped, 1-3/4" Doors, up to 8FT
Rockwood's 90° U Shaped Non-Mortised Door Edge is designed to protect the corners of the door. Designed for doors 1-3/4" thick, and square doors. Door Edge Size 1-3/4" x 1-1/4". Available in a variety of finishes and lengths up to 96".
PRICED PER PIECE-See full product details and specs in the tabs below
Rockwood's 90° U Shaped Non-Mortised Door Edge features:
Design: U Shaped Design, for square doors

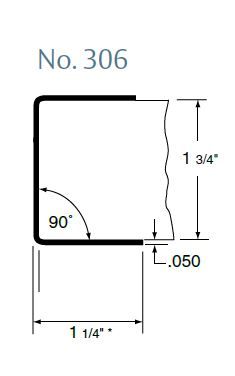

Dimensions: 1-3/4" x 1-1/4" x specify length up to 96" (Larger lengths can be purchased through our office)
Fastener: #6 x 5/8" FH SMS included
Thickness: Designed doors 1-3/4" thick. Custom sized doors can be purchased through our office.
Door Type: Designed for wood and Metal Doors.Choose from options above.
Material: .050" Brass, Bronze, Stainless Steel

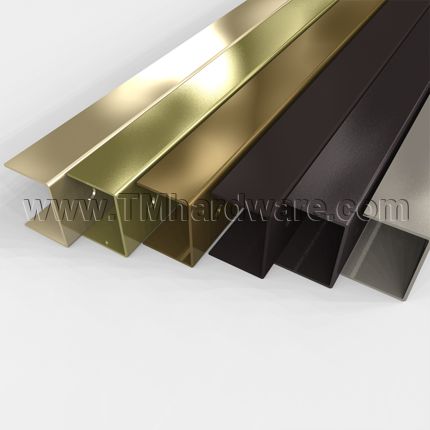

Finishes: See options above, See Rockwood Color Chart for a detailed list of Rockwood finishes.
Cutouts: Cutouts for flush bolts, lock strikes, locks, and hinges available (Can be purchased through our office)
Compliance Details: UL fire rated listed for stainless steel, brass and bronze. For use on wood or plastic faced fire doors rated up to and including 1-1/2 hours or hollow metal, steel covered, composite type fire doors rated up to and including 3 hours. Specify UL Labeling Required in options when ordering.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.
Click Here to view our Rockwood 90° U Shaped Non-Mortised Door Edge with Astragal
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNR306-RKW
-
UL LabelingNone Required, UL Labeling Required
-
Door TypeWood Door, Metal Door
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D), 316 Alloy Stainless Steel, Satin, Microshield Stainless Steel, Satin
-
