NGP 165N Door Gasket, .9375" Aluminum Casing with .3125" Neoprene Sponge Seal

NGP 165N Door Gasket, .9375" Aluminum Casing with .3125" Neoprene Sponge Seal

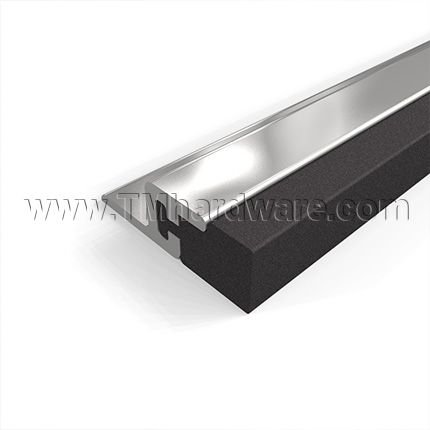

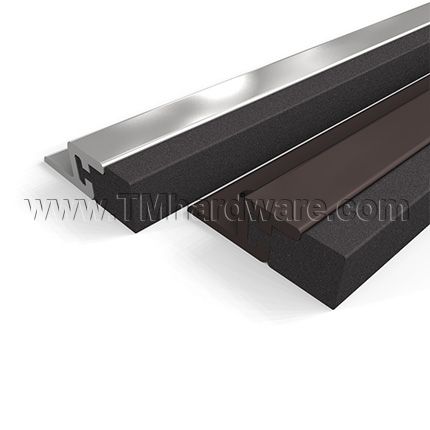

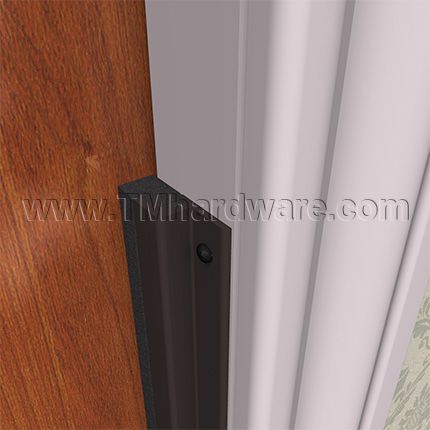

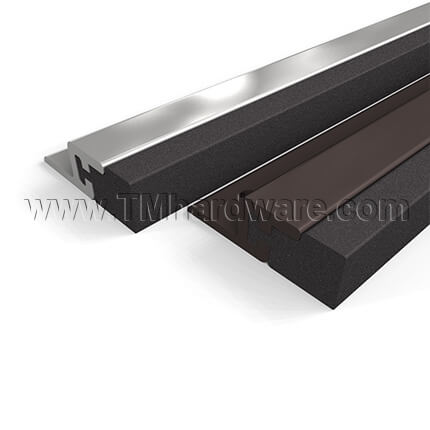

Product specs of NGP 165N Door Gasket NGP 165N Door Gasket, .9375" Aluminum Casing with .3125" Neoprene Sponge Seal NGP 165N Door Gasket, .9375" Aluminum Casing with .3125" Neoprene Sponge Seal in Anodized Aluminum Finish NGP 165N Door Gasket, .9375" Aluminum Casing with .3125" Neoprene Sponge Seal in DKB Finish applied to perimeter of door

NGP 165N Door Gasket is fitted with a .3125" neoprene sponge seal, which seals the gap under and around doors. Casing measures .9375" in height. Available in two anodized finishes and length is custom cut to size.

See full product details and specs in the tabs below.


Price: $5.05
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP 165N Door Gasket Key Features:

Casing Height: 15/16" (.9375")

Seal Height: 5/16" (.3125")

Total Width: 13/32" (.40625")

Total Height: 1-1/4" (1.25")

Retainer Material: Aluminum alloy 6063, T5 temper.

Seal Material: Black Neoprene Sponge. Seal has very good abrasion resistance, tensile strength, memory, resistance to ozone, sunlight and aging.

Compliance Details: UL Listed; ANSI/BHMA Certified; Air Infiltration Rated; Smoke and Draft Control certified; Positive Pressure Rated.

Temperature Range: -20°F to 200°F

Finishes: Anodized Aluminum, Dark Bronze Anodized

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

Mounting Options:

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

For additional door gaskets, see our NGP 108N Door Gasket, 1" Aluminum Casing with .5" Neoprene Sponge Seal

Product Specs
Compliance Details

Anodized Aluminum complies with ANSI/BHMA US28 / 628
