Rockwood 102x70 Pull Plate, Standard Weight

Rockwood 102x70 Pull Plate, Standard Weight

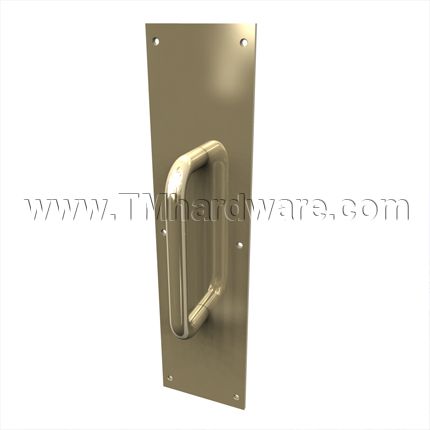

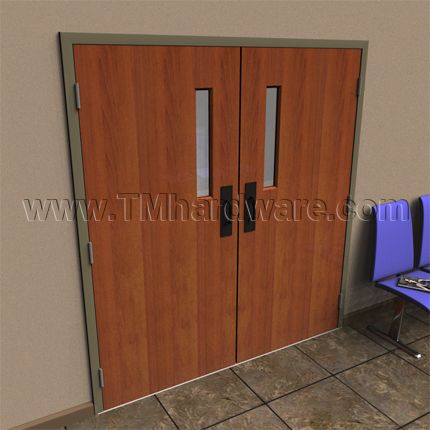

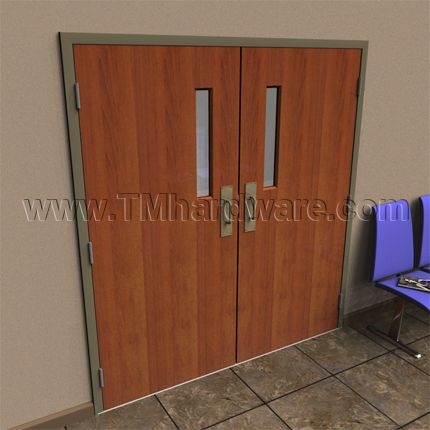

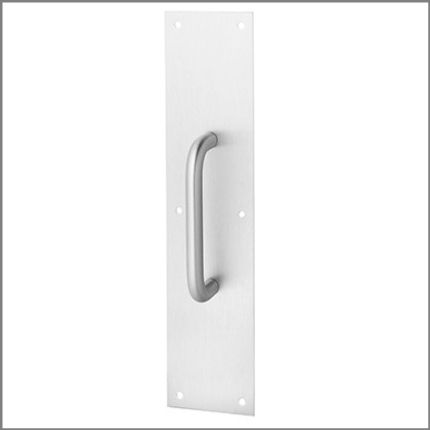

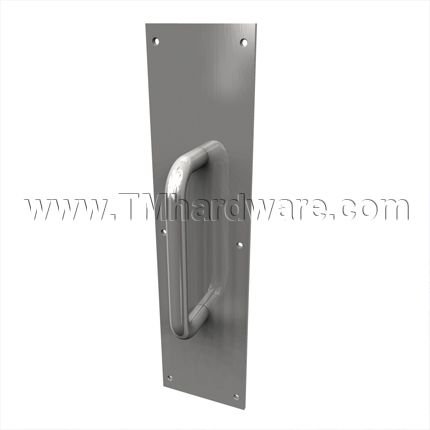

Polished Brass Oil Rubbed Bronze Clear Anodized Aluminum Engraving Cutout Engraved and Cutout Actual Image of Rockwood 102x70B Rockwood Finishes
0.0

Rockwood 102x70 standard weight pull plate is ideal for use on architectural doors in high traffic areas. Many variations of material, pull diameter sizes, plate sizes and finishes are available to fit any door of your choice. For details and options, see below.

Some variants qualify for QUICK SHIP! See shipping tab for details.

Market price: $57.00
save 50%
Price: $28.50
CTC Length
Finish
Barrier Free Grip
Cut-Out
Qty
Save to wishlist
Made in USA
SKU R105x70B US28_QS
Options Back to Back Mounting; Concealed Mounting; Barrier Free Grip; Engraving; CFC/CFTT
Shipping See Shipping Tab Below
Description

Rockwood 102x70, 105x70, 106x70, 107x70 (B & C) standard weight pull plate series is architectural grade and long lasting. They are all for standard doors (1.75" thick), but can be custom made for any door of your choice. These door pull plates are great for all standard doors, especially those in high traffic areas.

Materials: Aluminum, Brass, Bronze, Stainless Steel

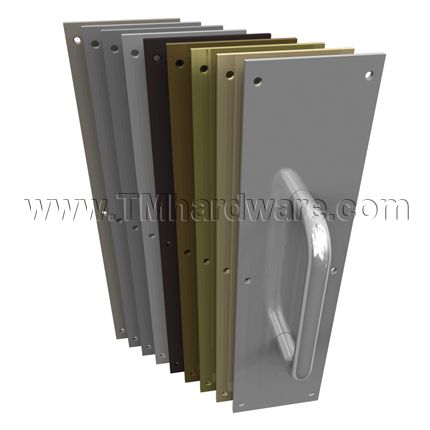

Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Clear Anodized Aluminum; Stainless Steel, Polished; Stainless Steel, Satin; Satin Microshield Coated; Polished 316 Alloy; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32​ - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

Options: For details and pricing, see options tab.

  • 2.5" Barrier free clearance
  • Engraving
  • Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)
  • Back to back mounting in pairs, Types 5, 13
  • Concealed mounting single pulls, Types 6, 6R, 8

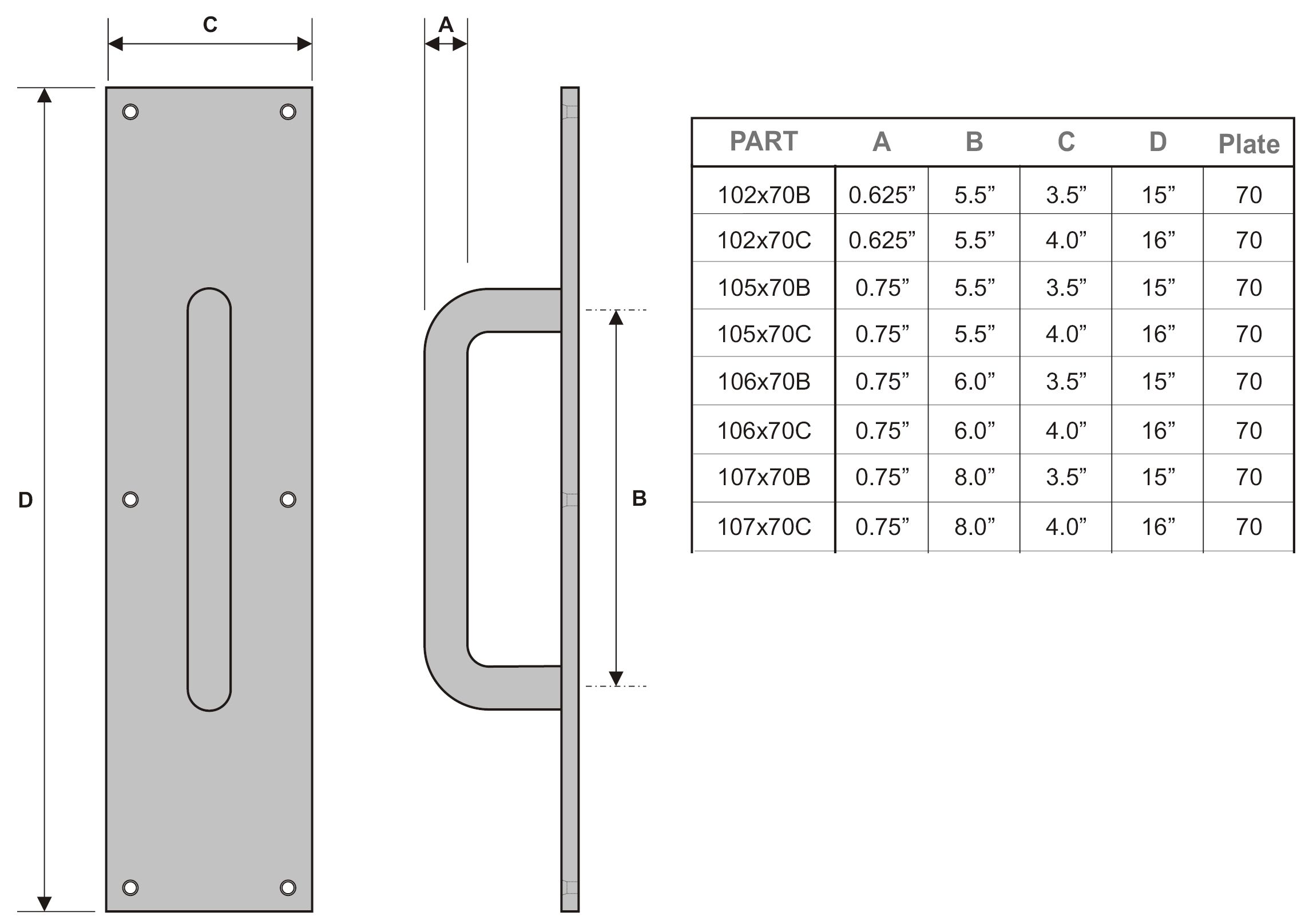

Sizes: 8 sizes (chart-inches)

  Product #   Diameter   CTC   Plate   Size   Weight
  102x70B   0.625   5.5   70B   3.5 x 15   1.8 lbs
  102x70C   0.625   5.5   70C   4 x 16   1.9 lbs
  105x70B   0.75   5.5   70B   3.5 x 15   2.1 lbs
  105x70C   0.75   5.5   70C   4 x 16   2.2.lbs
  106x70B   0.75   6   70B   3.5 x 15   2.2 lbs
  106X70C   0.75   6   70C   4 x 16   2.3 lbs
  107x70B   0.75   8   70B   3.5 x 15   2.4 lbs
  107x70B   0.75    8   70C   4 x 16   2.5 lbs

Fastener: #6 x 5/8" and 1/4-20 x 2-1/4" thru bolt and finish washer (standard 1.75" door). Included.

Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in workmanship and materials.

Click here to view our Full Warrany Policy.

Click here to view all our Rockwood 122x70 Pull Plates with a Flat Door Pull.

Product Specs
Options

To order products with more than one option, please contact us or call us at 845-352-3200.

 BARRIER FREE GRIP

Feature on pull bar which means that the clearance between the bar and the door or plate is large enough to easily slip your hand into it.

Clearance for Barrier Free Grip is 2.5" for this product.

Price: $8.40

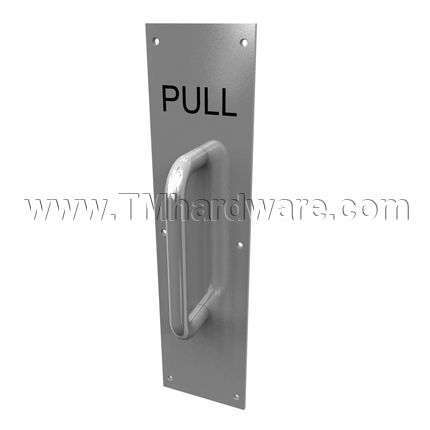

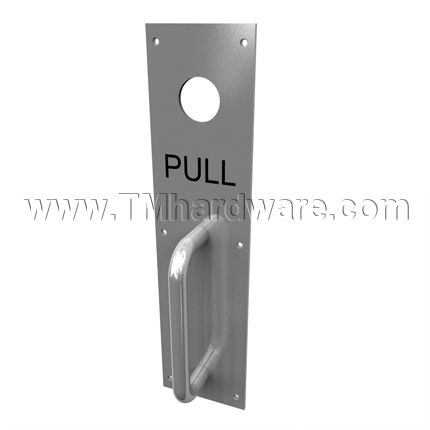

 ENGRAVING

Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-352-3200.

Price per engraving: $20.00 ($24.00 for Stainless Steel)

Adhesive mounting is available for $8.00

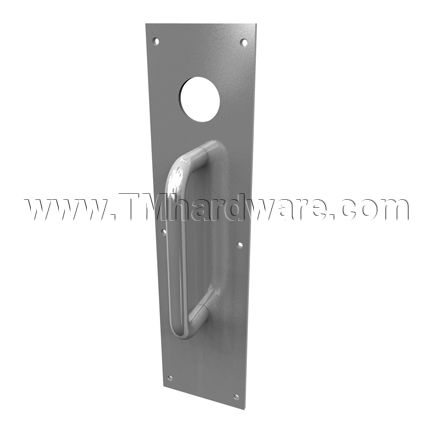

 CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns.

Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed.

Price per cutout: $3.00

 MOUNTING TYPES


Back to Back




Concealed (Single)

Aside from the standard mounting option (with the included fasteners), there are another 5 mounting types available for this specific door pull:


1. Type 5-Back to Back (pair)
add $8.40
2. Type 13-Back to Back (pair)
add $14.70
3. Type 6-Concealed
add $8.40
4. Type 6R-Concealed
add $10.50
5. Type 8-Concealed
add $8.40








Note: This option is available for order through our office only. To order, please contact us or call us at 845-388-1300.

To view more details on these mounting types, see Mounting Types for Door Pulls.



Compliance Details

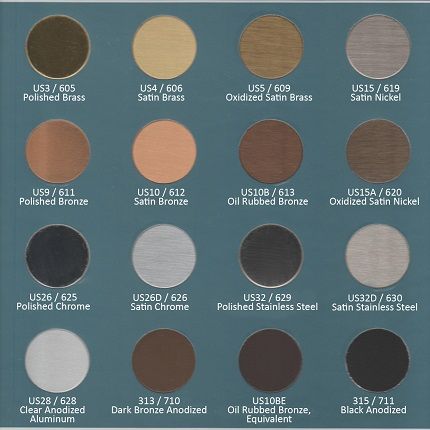

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

  • Polished Brass-US3/605
  • Satin Brass-US4/606
  • Satin Bronze-US10/612
  • Satin Oil Rubbed Bronze-US10B/613
  • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
  • Polished Chrome-US26/625
  • Satin Chrome-US26D/626
  • Clear Anodized Aluminum-US28/628
  • Polished Stainless Steel-US32/629
  • Satin Stainless Steel-US32D/630
  • Satin Microshield Coated-US32DMS
  • Polished 316 Alloy-US32316
  • Satin 316 Alloy-US32D316

​Pull Plate complies with ANSI A156.6: J405
