Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick

Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick
Rockwood Company

Rockwood's 70 standard gauge and square cornered high quality push plate. Available in many sizes, weights and finishes. See details and options below.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick - QuickShip

PRICED PER PIECE


See tabs below for additional information
    • Weight
      0.9 lbs
    • SKU
      RK70A_US32D
    • Market price:$11.50
      • save 10%
    • Starting price: Price: $10.35 per item

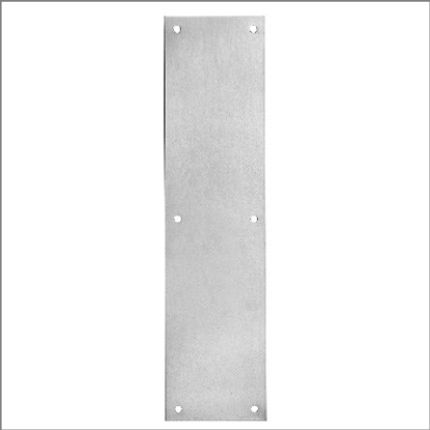

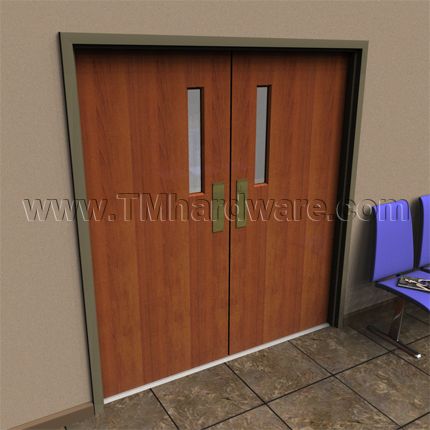

    Rocwood's 70 commercial grade and long lasting push plate, is standard gauge (.050" thick), square cornered and contains a beveled edge. This push plate is great for use on any door of your choice, particularly doors in high traffic areas.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick - QuickShip

    Materials: Aluminum, Brass, Bronze, Stainless Steel

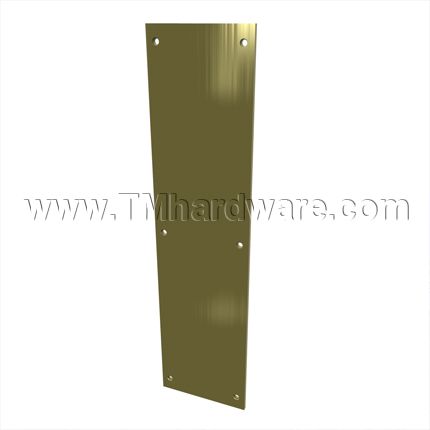

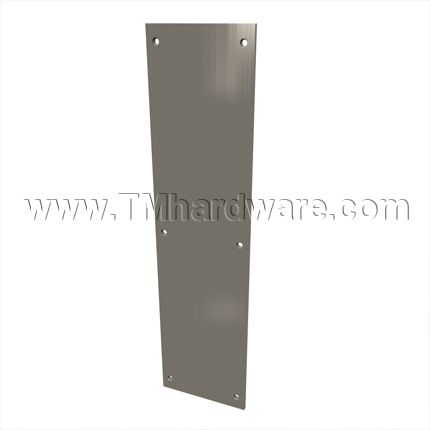

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Clear Anodized Aluminum; Polished Stainless; Satin Stainless; Satin Microshield Coated; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32 - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Options: For details and pricing, see options tab.

    • TORX - security torx screws
    • SA-self adhesive mounting-1/16" double face foam tape (no screw holes)
    • Engraving
    • Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

    Sizes: 6 sizes available (chart)

      Product #  Size (Inches)  Weight
      70A  3 x 12  0.7 lbs
      70B  3-1/2 x 15  0.9 lbs
      70C   4 x 16  1.0 lbs
      70E
    		  6 x 16  1.5 lbs
      70F  8 x 16   2.0 lbs
      70G  4 x 20  1.3 lbs

    Fastener: #6 x 5/8" OH SMS. Included.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view our Rockwood 70RC standard Guage, Round Cornered Push Plate.

      • Weight
        0.9 lbs
      • SKU
        RK70A_US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      70
    • Size
      3" x 12" (70A), 3-1/2" x 15" (70B), 4" x 16" (70C), 6" x 16" (70E), 8" x 16" (70F), 4" x 20" (70G)
    • Options
      Sheet Metal Screws (Standard), 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Satin Chrome (US26D), Satin Stainless Steel (US32D), Oil Rubbed Bronze (US10B), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Polished, 316 Alloy Stainless Steel, Satin



    To order products with more than one option, please contact us or call us at 845-388-1300.

     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Push plate needs a total of six screws.

    Size: #6 x 5/8" Oval Head SMS

    Priced per 6 screws: Stainless Steel-$4.80      Brass Plated-$16.20

     SELF-ADHESIVE MOUNTING

    1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation.

    Price: Up to 12" Height-$15.00     12"-48" Height-$32.00

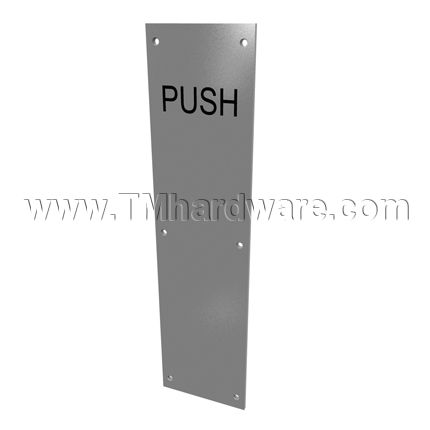

     ENGRAVING

    Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-388-1300.

    Price per engraving: $16.00 ($19.20 for Stainless Steel)

    Adhesive mounting is available for $6.40

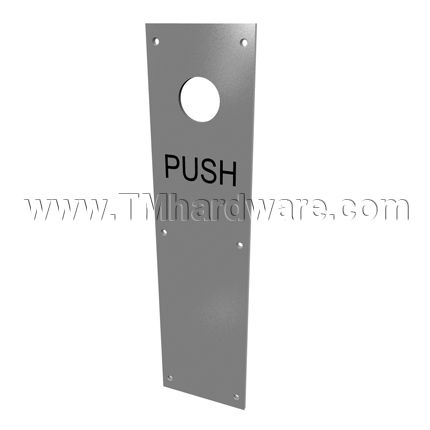

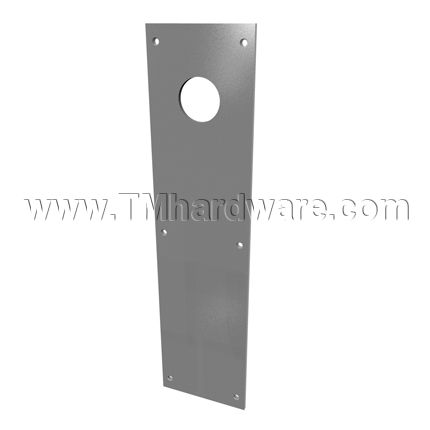

     CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

    Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns.

    Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed.

    Price per cutout: $1.60



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626
    • Clear Anodized-US28/628
    • Stainless Steel, Polished-US32/629
    • Stainless Steel, Satin-US32D/630
    • Satin MicroShield® Coated-US32MS
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Push Plate complies with ANSI A156.6: J301
