Locinox Drop Bolt VSA, Self-Locking, Adjustable

This model is a self-locking drop bolt that is auto locked between the gate wings after closing the gate. The drop bolt is easy to retrofit and adjusts to gate profiles 1-1/2" thick or larger. Available in a choice of materials and finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      LCVSA-K-9005QF1BL
    • Market price:$52.77
      • save 20%
    • Starting price: Price: $42.22 per item

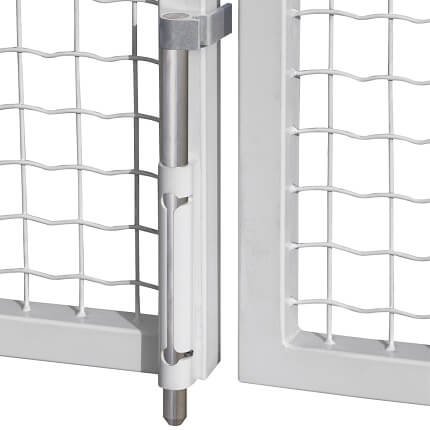

    This self-locking drop bolt is auto locked between the gate wings after closing the gate.

    Material: Aluminum head block and housing

    • VSA: Aluminum pin
    • VSF: Hot dip galvanized pin

    Profile: This drop bolt is fit for square gate frames with a minimum thickness of 1-1/2."

    Please note, this drop bolt requires an adapter plate (6403) when installed on round chain link fences. A combined package of a drop bolt for round frames and an adapter plate can be purchased, choose from the dropdown above.

    Body: Lock hardware that gets mounted to the gate.

    Bolt: Drop rod that gets bolted into the ground to secure the gate closed.

    Features:

    • Self-locking between the leaves
    • Easy to retrofit on existing gates
    • Fast and easy installation with Quick Fix anchor bolts (included)
    • Surface mounted for easy access and installation
    • 100% mechanical
    • Tested at 500,000 movements

    Applications:

    • Residential - private homes, multi family living
    • Commercial - businesses, construction zones
    • Facilities - schools, prisons, airports
    • Transportation - parking lots, bike parks
    • Recreation - playgrounds, amusement parks, sports stadiums, swimming pools

    Gate Hardware: This drop bolt is compatible with all Locinox Gate Locks and Gate Closers. The locks and closers can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 3 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Locinox Drop Bolt KEYDROP, Key Lockable, Adjustable.

      • SKU
        LCVSA-K-9005QF1BL
    • QuickShip
      Yes
    • Manufacturer
      Locinox
    • MPN
      VSA-K-ALUMQF1BL; VSA-K-9005QF1BL; VSF-K-ALUMQF1BL; VSF-K-9005QF1BL
    • Product Details
      • Lock Type
        Mechanical Lock, Drop Bolt
      • Operation
        Self-Locking
      • Material
        Aluminum Pin, Hot Dip Galvanized Pin

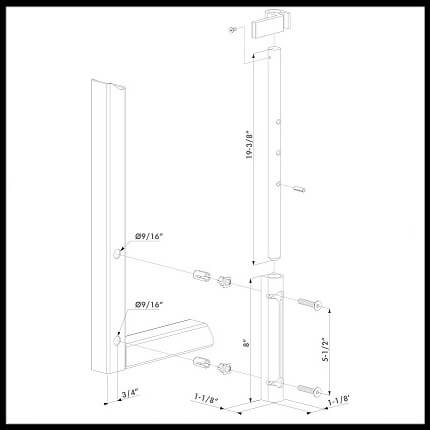

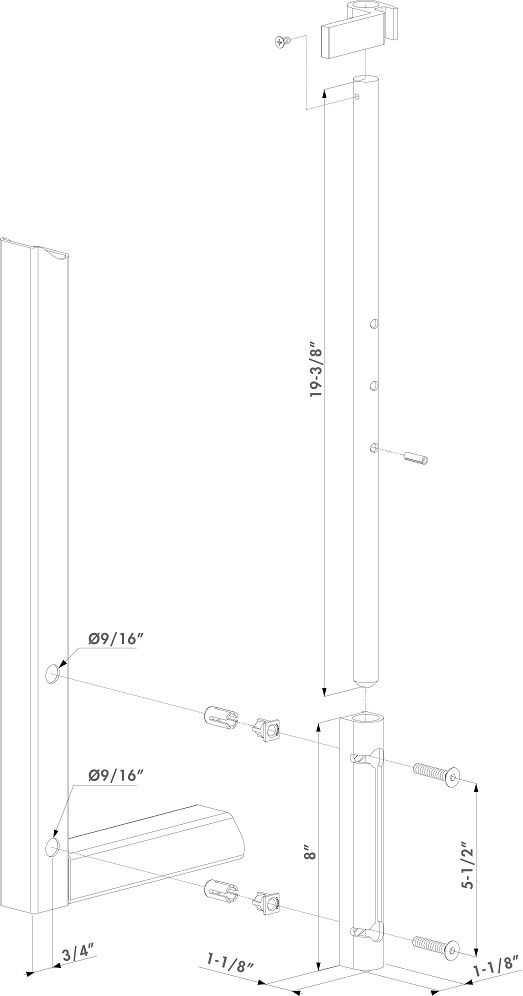

    • Dimensions
      • Gate Lock Dimensions
        Body: 1-1/8" L x 1-1/8" W x 8" H
        Bolt: 19-3/8" H
      • Throw
        5-1/2" Throw
      • Distance Between Mounting Holes
        5-1/2" Distance
      • Profile Dimensions
        1-1/2" Minimum
      • Height Adjustability
        4" Adjustability
    • Installation
      • Door Type
        Flat / Square Gate Frames, Round Gate Frames
      • Quick Fix Installation
        Yes
    • Finishes
      • Finish
        Silver Powder Coat, Black
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Additional options are available, please contact us for details and pricing:

    • OGS: Ground stop and catch for double gates, recommended in combination with the VSA and VSF drop bolts.
    • EGS: In ground catch and receiver for drop bolts, designed to put in concrete.
