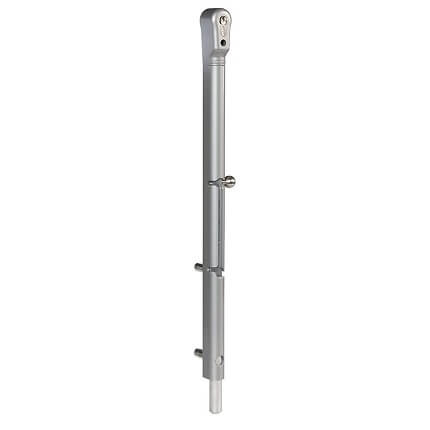

Locinox Drop Bolt KEYDROP, Key Lockable, Adjustable
This model is a key lockable drop bolt that enables you to lock the drop bolt in the open or closed position. The drop bolt is easily interchangeable with a standard drop bolt and adjusts to gate profiles 1-1/4" thick or larger. Available in a choice of finishes, choose from the dropdown below.
See full product details and specs in the tabs below.
PRICED PER PIECE
This key lockable drop bolt can be locked with a key in the open or closed position.
Profile: This drop bolt is fit for square gate frames with a minimum thickness of 1-1/4."
Please note, this drop bolt requires an adapter plate (6403) when installed on round chain link fences. A combined package of a drop bolt for round frames and an adapter plate can be purchased, choose from the dropdown above.
Body: Lock hardware that gets mounted to the gate.
Bolt: Drop rod that gets bolted into the ground to secure the gate closed.
Features:
- Lockable drop bolt with cylinder
- The gate can be locked in open or closed position
- Possible to match same key as gate lock
- Fast and easy installation with Quick Fix anchor bolts (included)
- Same drilling pattern as standard drop bolts
- Surface mounted for easy access and installation
- Height adjustability in 3 positions: 2" / position
- 100% mechanical
- Tested at 500,000 movements
Applications:
- Residential - private homes, multi family living
- Commercial - businesses, construction zones
- Facilities - schools, prisons, airports
- Transportation - parking lots, bike parks
- Recreation - playgrounds, amusement parks, sports stadiums, swimming pools
Installation: For details on how to install this drop bolt, see our Installation Instructions.
Gate Hardware: This drop bolt is compatible with all Locinox Gate Locks and Gate Closers. The locks and closers can be ordered separately through our site.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
This product has a 3 year warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click here to view our Locinox Power Box PB-1, Transformer Housing, Aluminum.
-
QuickShipYes
-
ManufacturerLocinox
-
MPNKEYDROP
- Product Details
-
Lock TypeMechanical Lock, Drop Bolt
-
OperationKey
-
MaterialStainless Steel
-

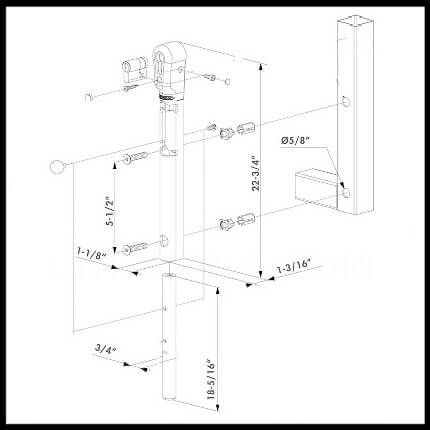

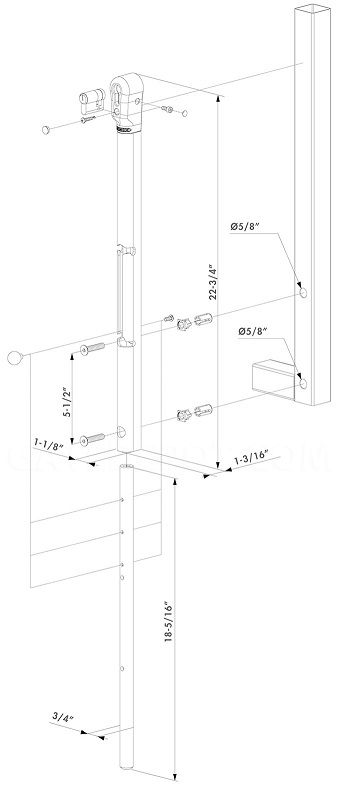

- Dimensions
-
Gate Lock DimensionsBody: 1-1/8" L x 1-3/16" W x 22-3/4" H
Bolt: 18-5/16" H -
Throw5-1/2" Throw
-
Distance Between Mounting Holes5-1/2" Distance
-
Profile Dimensions1-1/4" Minimum
-
Height Adjustability4" Adjustability
-
- Installation
-
Door TypeFlat / Square Gate Frames, Round Gate Frames
-
Quick Fix InstallationYes
-
- Finishes
-
FinishSilver Powder Coat, Black
-
- Compliance Details
-
Warranty2 Year Limited Warranty
-
Additional options are available, please contact us for details and pricing:
- OGS: Ground stop and catch for double gates, recommended in combination with the KEYDROP drop bolt.
- EGS: In ground catch and receiver for drop bolts, designed to put in concrete.
