Locinox Gate Hinge DINO, 2 Way Adjustable, 180° Opening Angle, For Gates up to 330 lbs - SOLD IN PAIRS

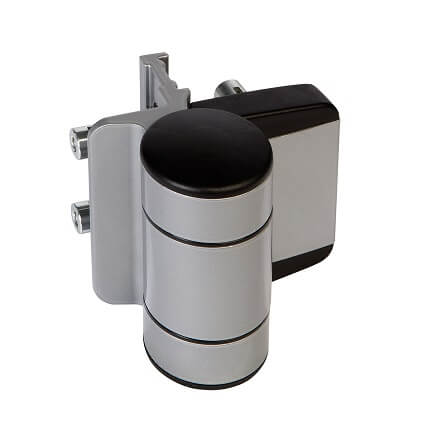

This model is a double bearing gate hinge that features two way adjustment. The hinge has a 180° opening angle and supports gates up to 5' wide and 330 lbs. Available in a choice of finishes, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PAIR

See tabs below for additional information
    • SKU
      LCDINO-ZILV-PAIR
    • Market price:$76.99
      • save 20%
    • Starting price: Price: $61.59 per set


    Hinges support the weight of the gate and ensure that it opens and closes smoothly. This double bearing gate hinges feature two way adjustment.

    Features:

    • Double stainless steel bearings guarantee a smooth opening and closing of the gate.
    • Two way adjustment:
      • 3/4" vertical adjustment
      • 3/4" horizontal adjustment
    • For right handed and left handed gates
    • Fast and easy installation with Quick Fix anchor bolts (included)
    • Vandal proof
    • Powder coat aluminum housing – guarantees full protection against any weather conditions.
    • Resistant to extreme weather conditions with the stainless steel hinge axle.
    • Compatible with the MAMMOTH-180 gate closer.

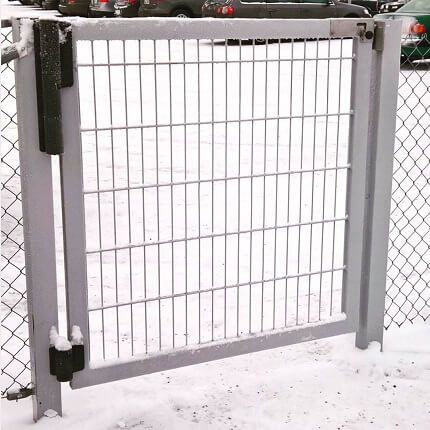

    • Can be fitted on round chain link fences with optional brackets. The CLB-MAMMOTH brackets can be purchased separately through our site.

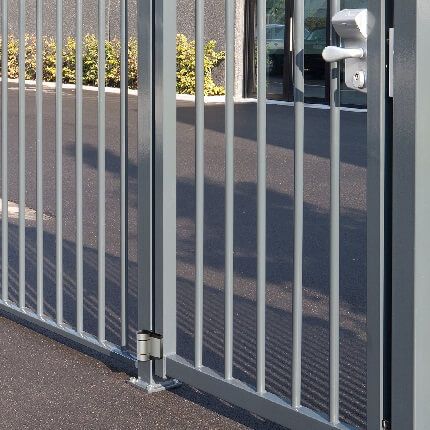

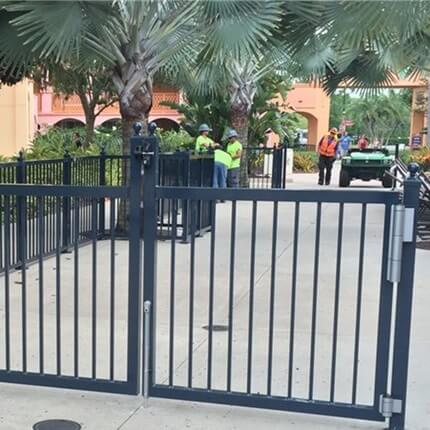

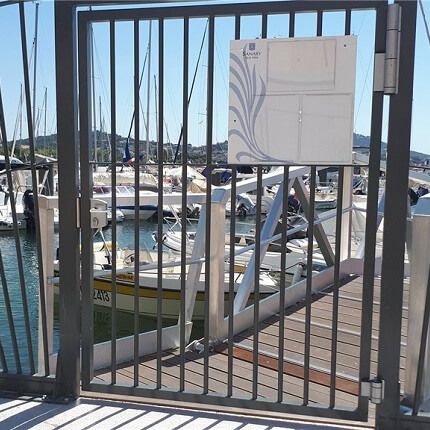

    Applications:

    • Residential - private homes, multi family living
    • Commercial - businesses, construction zones
    • Facilities - schools, prisons, airports
    • Transportation - parking lots, bike parks

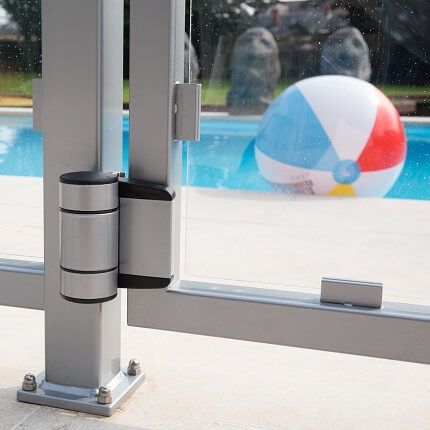

    • Recreation - playgrounds, amusement parks, sports stadiums, swimming pools

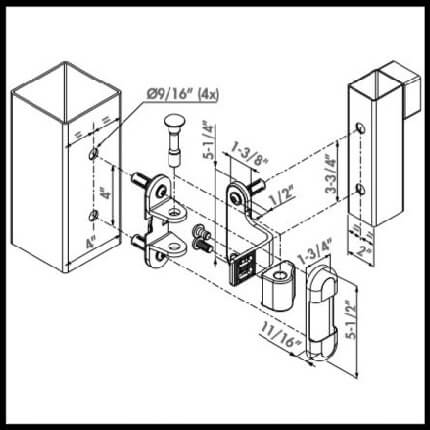

    Installation: Quick Fix - bolts that expand against the inside of the post or gate frame. Each Quick Fix bolt has 2,000 lbs holding force, guaranteeing a safe and durable installation. The necessary screws and templates for installation are included in this product.

    Gate Hardware: This gate hinge is compatible with all Locinox Gate Locks and Keeps. The locks and keeps can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 3 year warranty against defects in materials and workmanship.
     Click here to our Full Warranty Policy.

    Click here to view our Locinox Gate Hinge 3DM, 180° Opening, For Gates up to 330 lbs.

      • SKU
        LCDINO-ZILV-PAIR
    • QuickShip
      Yes
    • Manufacturer
      Locinox
    • MPN
      DINO-ZILV; DINO-9005
    • Product Details
      • Included Parts
        Hinge, Quick Fix Bolts
      • Material
        Stainless Steel

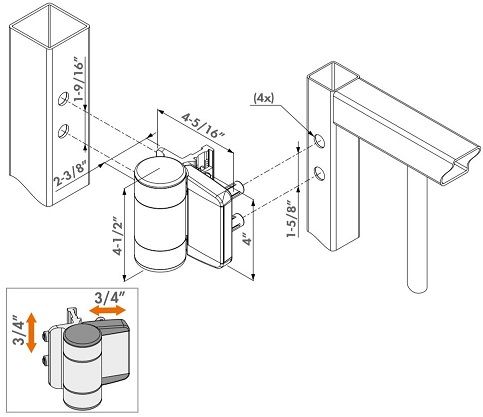

    • Dimensions
      • Hinge Dimensions
        4-5/16" L x 2-3/8" W x 4-1/2" H
      • Dimensional Adjustment
        Two way adjustment
      • Gap Between Gate and Post
        1/2" minimum gap
      • Opening Degree
        180° Opening
    • Installation
      • Door Material
        Aluminum Gate
      • Door Width
        Up to 60 inches
      • Door Weight
        Up to 330 lbs
      • Door Type
        Square Gate Frames, Round Gate Frames
      • Quick Fix Installation
        Yes
    • Special Features
      • Field Adjustable
        Yes
    • Finishes
      • Finish
        Silver Powder Coat, Black
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
