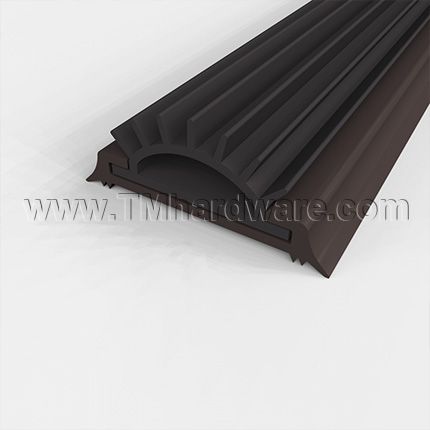

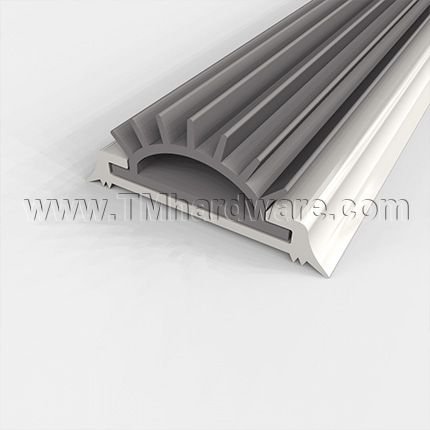

Pemko #208V Vinyl Top Thresholds with Aluminum Casing, 1.375” W, .5” H
Vinyl top thresholds function as both a doorway threshold and door bottom seal. For best results this is designed to be used on inswing doors with the door beveled 1/8" longer on the inside. This threshold is fitted with a fingered vinyl seal that can fill gaps up to 1/2". The retainer has a width of 1-3/8" and can be applied directly to the floor surface or above an existing threshold. Available in a selection of finishes and is custom cut to size.

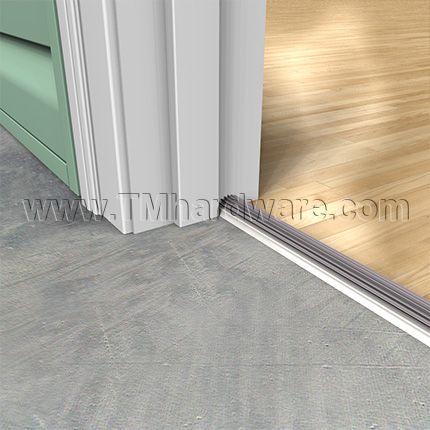

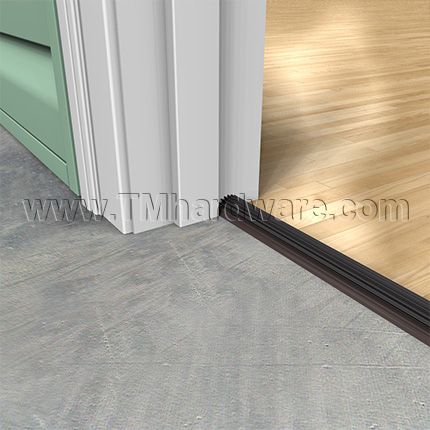

This Vinyl Top Threshold is a threshold and door bottom seal all in one. For best results this is designed to be used on inswing doors that is beveled 1/8" longer on the inside.
Upon closing, the door compresses the vinyl bulb to create a solid seal for beneath-the–door gaps. This inhibits the infiltration of drafts, fire, sound, light, moisture, and insects under the door and eliminates the need for door sweeps and door shoes. Product has a strong aluminum casing and is custom cut to size.
Key features of this product include:

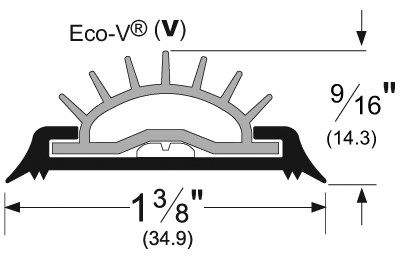

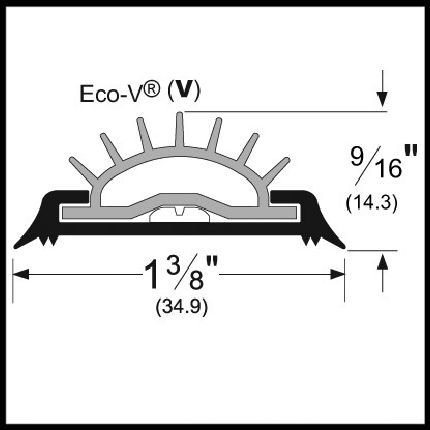

Dimensions: Retainer measures 1-3/8" (1.375") wide. It fills gaps from 1/4" - 1/2". Length is custom cut to size up to 104" (larger sizes available through our office.
Energy Conservation: A proper door seal such as this vinyl top threshold prevents the passage of outside drafts beneath the door, which significantly reduces energy waste and lowers the cost of cooling and heating.
Seal: The top seal is made of Flexible Vinyl with a fingered design that conforms well to surface irregularities.

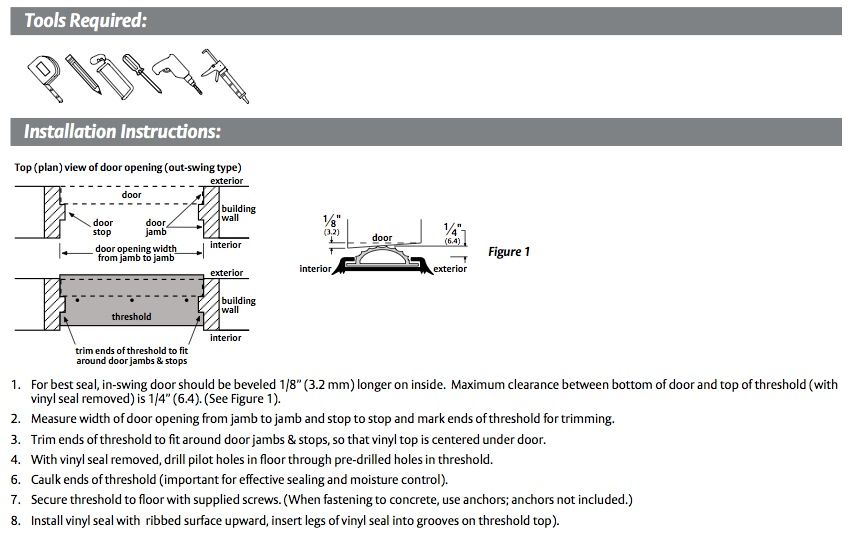

Installation: Installation guide and screws provided. Screws are colored to coordinate with casing.
Insert Replacements: The seal is manufactured from high quality material and will last through much usages, however, if a replacement is needed, it can be purchased here Fingered Vinyl Insert Replacement for Pemko Door Hardware #208
When installing into concrete, an Expansion Anchor is recommended.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
To see a vinyl top threshold with a greater width, please see our Vinyl Top Thresholds with Aluminum Casing, 3.25” W, .75” H
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN208_V
- Dimensions
-
Overall Height.5" Height
-
Overall Width1.375" Width
-
Threshold LengthCustom Cut to Size
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Top Threshold
-
Seal TypeVinyl Seal
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
