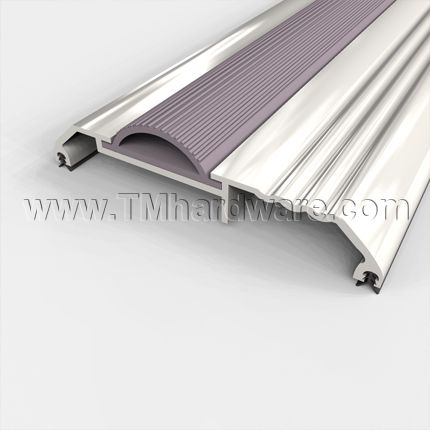

Pemko #206V Vinyl Top Thresholds with Aluminum Casing, 3.25” W, .75” H

Pemko #206V Vinyl Top Thresholds with Aluminum Casing, 3.25” W, .75” H
Pemko Manufacturing

Vinyl top thresholds function as both a threshold and a door bottom. This threshold for residential doorways is ideal for creating a smooth transition between rooms. The vinyl bulb functions as a superb door seal, thereby eliminating the need for door sweeps and door shoes. This product has a strong aluminum casing and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK206AV
    • Market price:$19.98
      • save 10%
    • Starting price: Price: $17.98 per foot

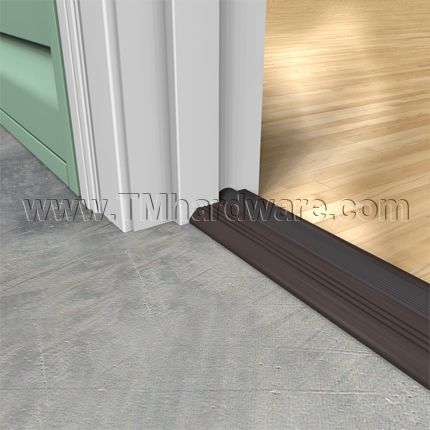

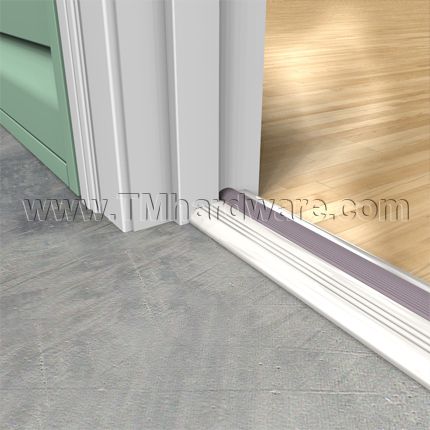

    This Vinyl Top Threshold for residential doorways is a threshold and door bottom seal all in one. Its modern design lends a contemporary look to any standard doorway. It permits a smooth transition between flooring surfaces.

    Upon closing, the door compresses the vinyl bulb to create a solid seal for beneath–the–door gaps. This inhibits the infiltration of drafts, fire, sound, light, moisture, and insects under the door and eliminates the need for door sweeps and door shoes. Product has a strong aluminum casing and is custom cut to size.

    Key features of this product include:

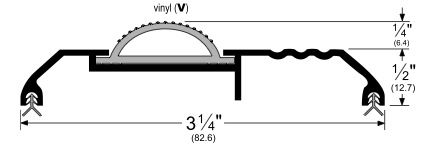

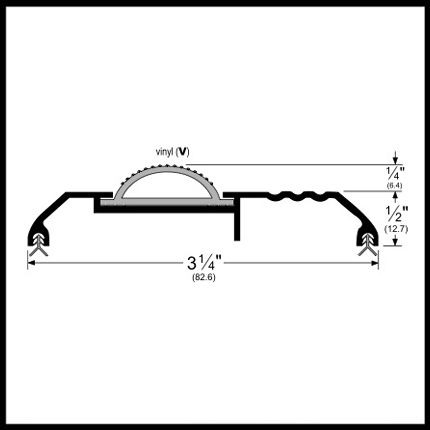

    Dimensions: The aluminum casing measures 3.25” wide and .5” tall. The compressible vinyl top seal extends an additional .25”, bringing the total height to .75" (see product specs). Maximum clearance between door and threshold is .25".

    Energy Conservation: A proper door seal such as this vinyl top threshold prevents the passage of outside drafts beneath the door, which significantly reduces energy waste and lowers the cost of cooling and heating.

    Aluminum Finish: Available in aluminum mill finish, dark bronze anodized aluminum, and gold anodized aluminum.

    Seal: The top seal is made of Flexible Vinyl, better known as PVC. Flexible PVC is a thermoplastic polymer material that is widely used in the construction industry largely because it is inexpensive and durable. The material has good chemical resistance to adhesives and most mild cleaning solutions but has limited ultraviolet and weather resistance.

    • Vinyl Top Thresholds improve weather seal of residential doorways
    • 3.25” wide and .75” Height
    • Available in aluminum mill finish and two anodized finishes
    • Durable PVC top seal
    • Length is custom cut to size

    Installation guide and screws provided. Screws are colored to blend unobtrusively with casing.

    Insert Replacements: The seal is manufactured from high quality material and will last through many usages, however, if a replacement is needed, see our Vinyl Bulb Insert Replacement for Pemko Doorway Threshold #206.

    When installing into concrete, an Expansion Anchor is recommended.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click here to view our Full Warranty Policy.

    To see a similar threshold with a greater height, please see our Vinyl Top Threshold with Aluminum Casing, 3.75” W, 1.125” H

      • SKU
        PK206AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      206_V
    • Dimensions
      • Overall Height
        .75" Height
      • Overall Width
        3.25" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Top Threshold
      • Seal Type
        Vinyl Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        GreenGuard Gold Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P206V Product Specs:

    Click to Print



    P206V Installation Guide:
