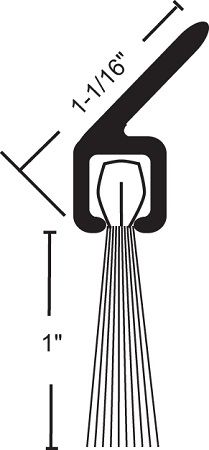

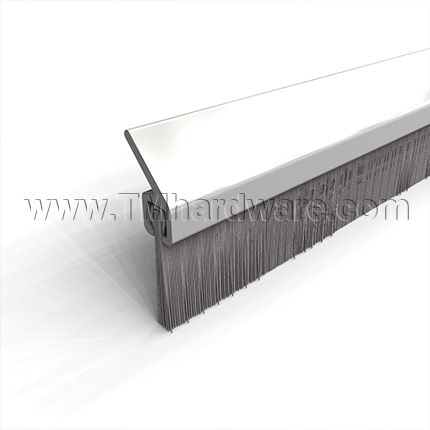

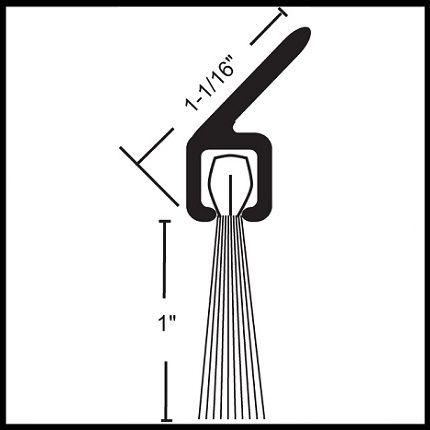

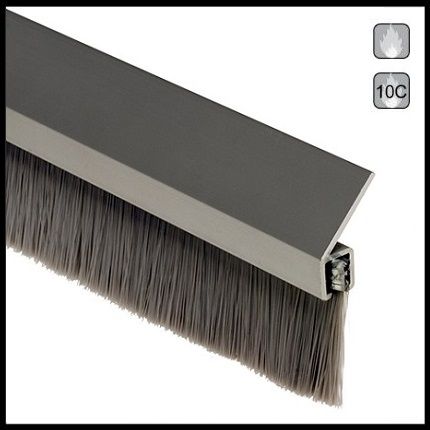

NGP D620 Door Sweep and Perimeter Gasket, 1.0625" Aluminum Casing with 1" Angled Nylon Brush

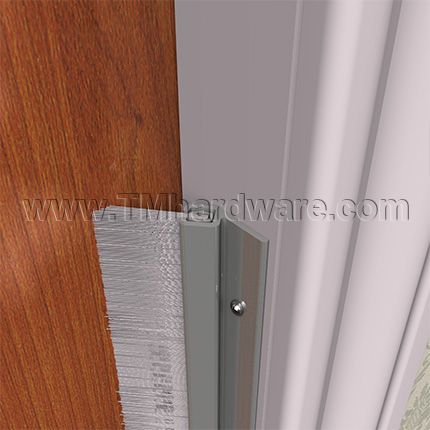

NGP D620 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.0625" H, while the angled brush portion has a height of 1". Available in various anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information
    • SKU
      NGD620A
    • Market price:$9.90
      • save 15%
    • Starting price: Price: $8.42 per foot


    NGP D620 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities.

    Brush Material: Black or Gray Angled Nylon Brush. Seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

    Mounting Options:

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

    Compliance Details: Reach and RoHS compliant; UL Certified; Positive Pressure Certified; For use on fire-rated metal doors up to 3 hours or wood doors up to 60 minutes, see Compliance Details tab for more information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    See also our NGP G622 Door Sweep or Perimeter Gasket with 1.5" Aluminum Casing and 1.75" Angled Nylon Brush.

      • SKU
        NGD620A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      D620
    • Mounting
      Screws, Screws + Adhesive
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -70°F to 425°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        1" Height
      • Total Height
        2-1/16" Height
    • Installation
      • Installation Screws
        #6 x 3/4" stainless steel sheet metal screws provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Bronze Finish
    • Compliance Details
      • Compliance Details
        Smoke Rated, UL Classified
      • Warranty
        3 Year Limited Warranty
    • Anodized Aluminum Complies with ANSI/BHMA codes US28 / 628
    • Reach and RoHS compliant
