Commercial Door Sweeps: Types, Applications & How to Choose

Commercial door sweeps help seal the gap beneath doors to reduce drafts, dust, moisture, light, and pest entry. The right sweep depends on the door construction, threshold, bottom gap, mounting method, and how often the door is used.

Commercial doors often have higher traffic and different installation requirements than residential doors, so choosing a sweep based only on its length or appearance can result in a poor fit. This guide covers the main types of commercial door sweeps and what to consider when selecting one for an exterior or commercial application.

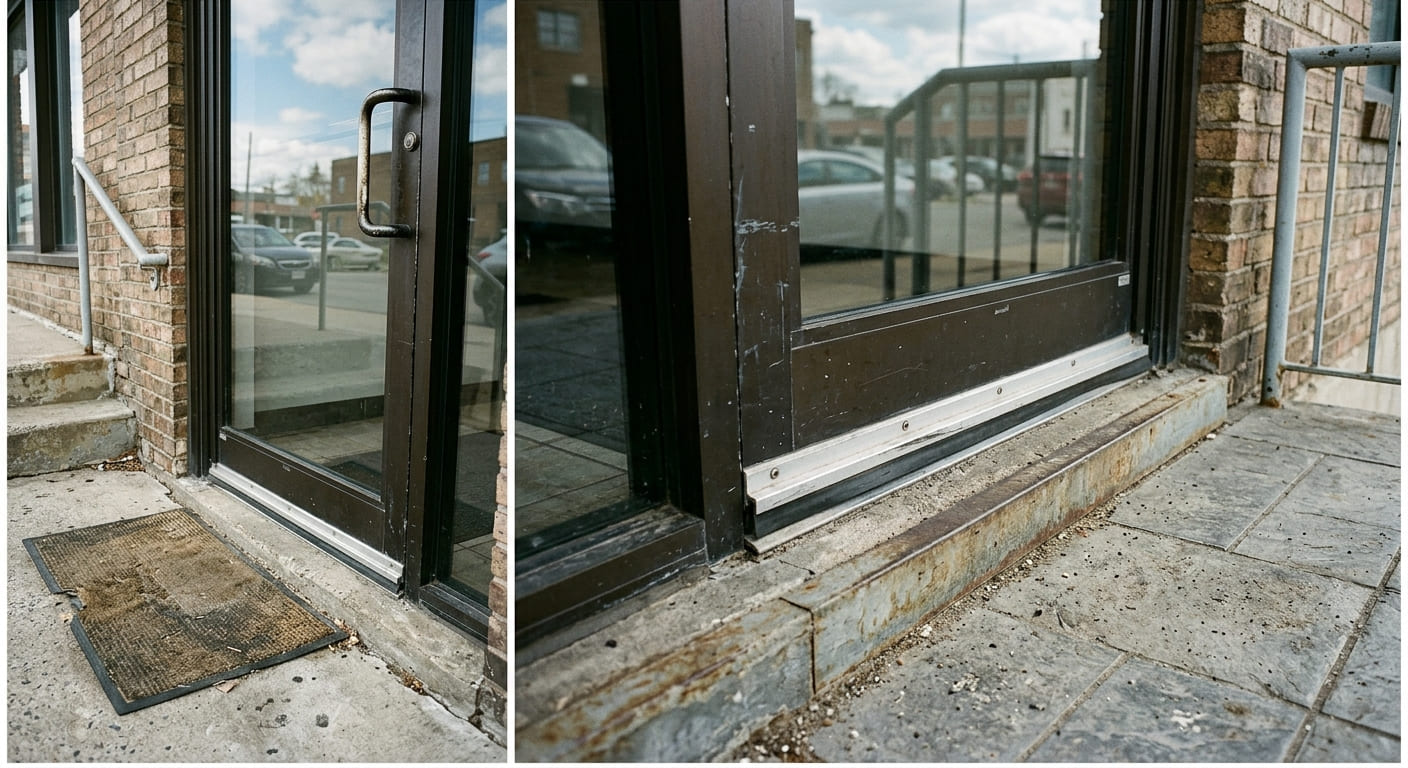

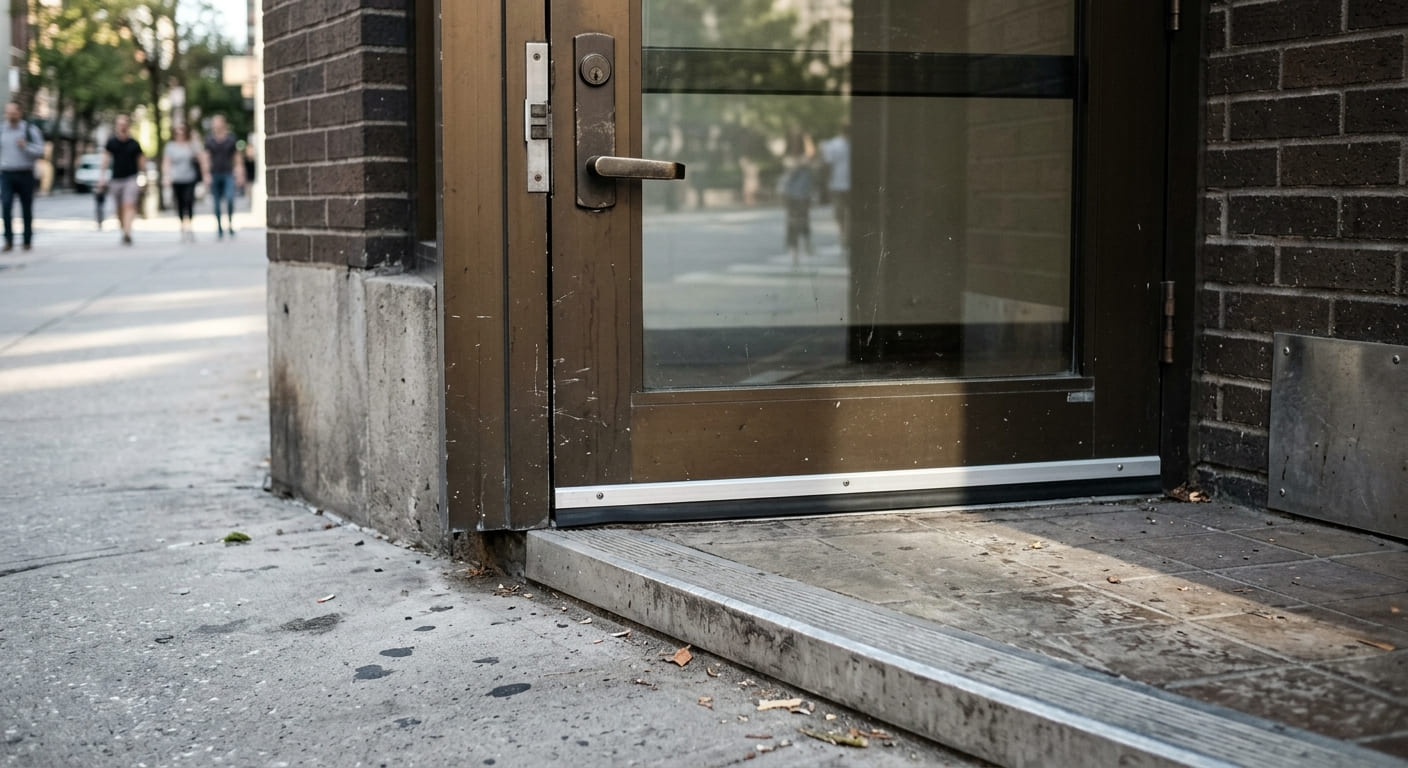

What Is a Commercial Door Sweep?

A commercial door sweep is a sealing component installed along the bottom of a door. It closes or reduces the gap between the door and the threshold or floor while allowing the door to open and close normally.

Commercial door sweeps are available in different materials and mounting configurations. Common options include rubber, brush, aluminum, mortised, and metal-based sweeps.

For a broad selection of door bottom sealing products, see our All Door Sweeps category.

Why Commercial Doors Need the Right Door Sweep

Commercial entrances may be opened and closed hundreds of times during normal operation. The door sweep needs to provide a seal without creating excessive friction or interfering with the door and threshold.

A properly selected commercial door sweep can help:

• Reduce drafts around the bottom of the door
• Limit dust and debris entering beneath the door
• Reduce light passing through the bottom gap
• Help limit moisture and weather infiltration on exterior doors
• Help block insects and other pests
• Maintain a more consistent seal as the door is used

The sweep is only one part of the complete door opening. The threshold, perimeter weatherstripping, door alignment, and bottom clearance should also be considered when diagnosing a sealing problem.

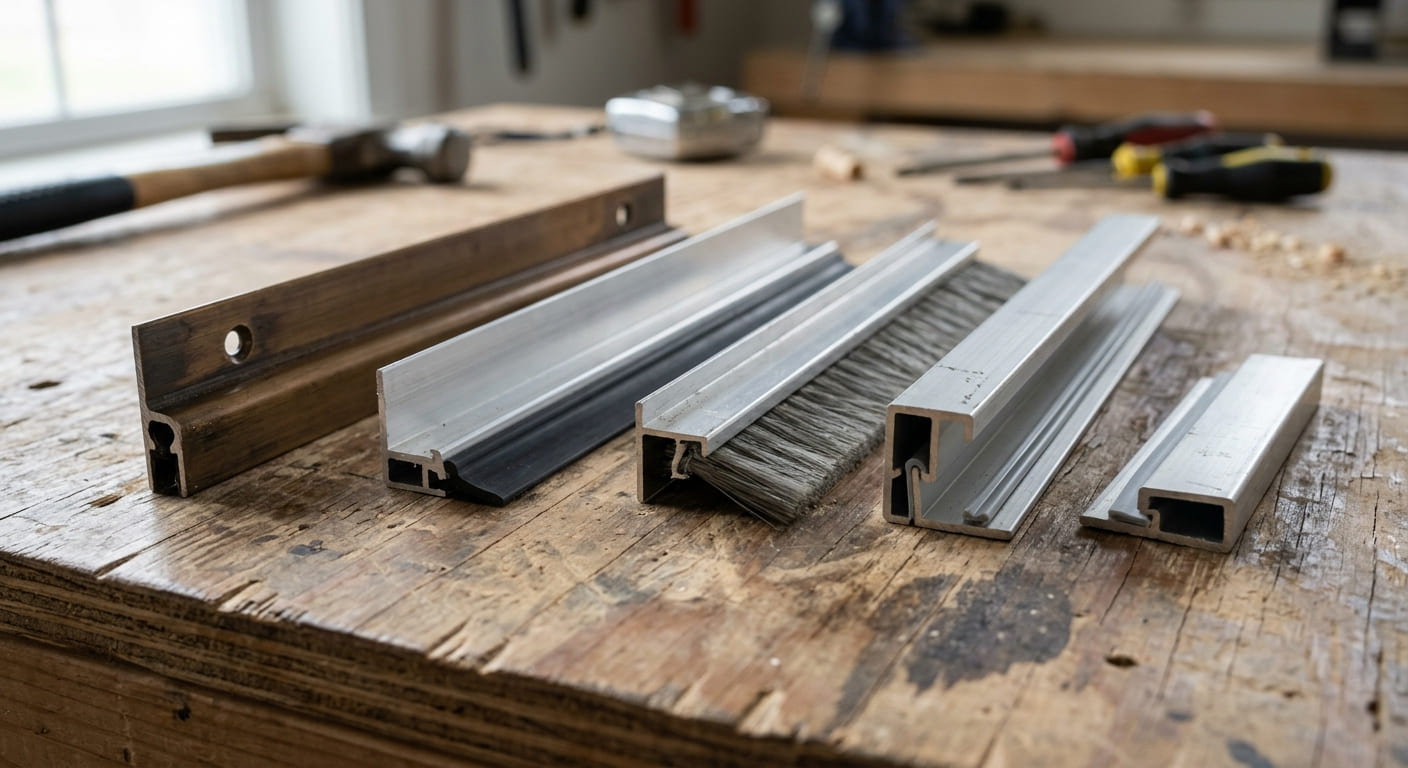

Types of Commercial Door Sweeps

Commercial door sweeps are available in several configurations. The best option depends on the door, threshold, gap, and application.

Rubber Door Sweeps

Rubber door sweeps use a flexible rubber sealing element attached to a metal or aluminum carrier. The rubber edge makes contact with the threshold or floor to close the bottom gap.

Rubber sweeps are a practical option when the door has a relatively consistent gap and the application requires a flexible bottom seal.

They can be used on many commercial and exterior doors where the threshold provides a suitable surface for the rubber seal to contact.

See our Rubber Door Sweeps category for available options.

Brush Door Sweeps

Brush door sweeps use rows of flexible bristles instead of a solid rubber sealing edge. The bristles can flex to accommodate some unevenness along the floor or threshold.

This makes brush sweeps useful for certain commercial applications where the floor is not perfectly even or where low resistance during door operation is important.

Brush sweeps are also available in heavy-duty commercial configurations for high-traffic doors and exterior applications.

Browse our Brush Door Sweeps category to compare available products.

Mortised Door Sweeps

Mortised door sweeps are installed into a prepared channel or recess in the underside of the door. The recessed installation keeps much of the sweep concealed when the door is closed.

These sweeps can be used on commercial, architectural, and custom doors where the door construction allows for a mortised installation.

Mortised options are available with different seal materials and configurations, including rubber and brush designs.

See our Mortised Door Sweeps category for available products.

Bronze Door Sweeps

Bronze door sweeps provide a metal-based option for door bottom sealing. They can be used where durability and the appearance of the door hardware are both considerations.

Bronze finishes can also be appropriate for architectural doors and commercial applications where the door hardware needs to match the surrounding finish.

View our Bronze Door Sweeps category for available options.

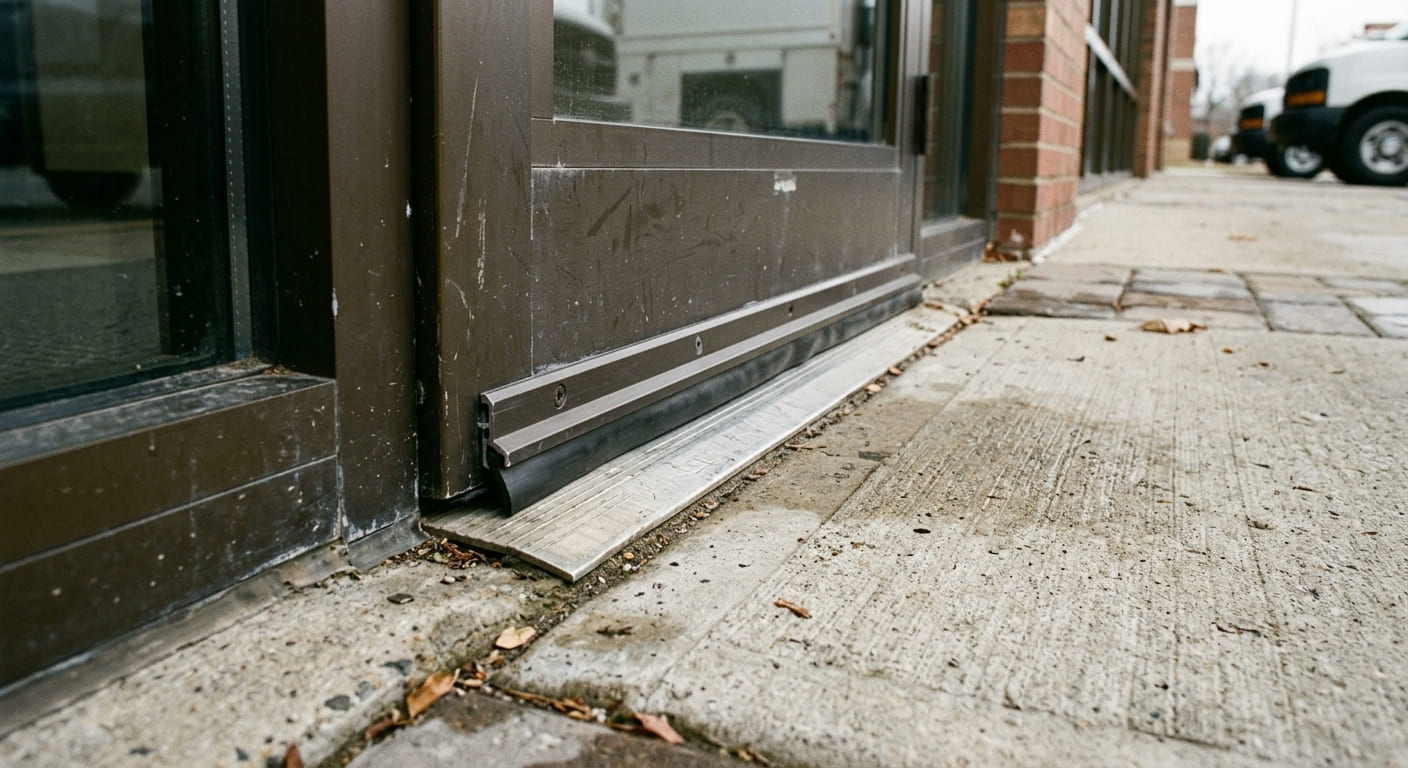

Commercial Door Sweeps for Exterior Doors

Exterior commercial doors are exposed to weather, temperature changes, moisture, dirt, and frequent use. A commercial exterior door sweep should therefore be selected based on both the door and the conditions around the entrance.

For exterior applications, check:

• The size of the gap beneath the door
• The type and condition of the threshold
• Whether the floor is level
• The door material and construction
• The mounting method available
• The amount of daily traffic
• The type of seal material required

A rubber or neoprene-style seal can provide continuous contact against a suitable threshold, while brush designs can accommodate certain uneven floor conditions. The product specifications should always be checked before selecting a sweep for a specific commercial entrance.

Heavy-Duty Door Sweeps for Commercial Applications

Heavy-duty door sweeps are designed for applications where the door is subject to frequent operation or where a more robust mounting and sealing system is needed.

They are commonly considered for:

• Commercial entrances
• Retail storefronts
• Office buildings
• Schools and institutional buildings
• Warehouses
• Industrial buildings
• Service entrances
• Other high-traffic commercial openings

When choosing a heavy-duty door sweep, look beyond the word "heavy-duty." Check the actual construction, seal material, mounting system, dimensions, and application listed for the product.

How to Choose a Commercial Door Sweep

Before ordering a commercial door sweep, compare the existing door and opening with the specifications of the replacement sweep.

1. Check the Door Type

Start by identifying the door construction. Commercial doors may be made from metal, wood, aluminum, or other materials, and the available mounting method can vary between doors.

The sweep needs to be compatible with the door and provide enough clearance for normal operation.

2. Measure the Door Width

Measure the width of the door where the sweep will be installed. Commercial sweeps are available in different lengths, and some products can be trimmed to fit depending on the design.

Do not assume that a standard door width is the correct sweep length. Measure the actual door before ordering.

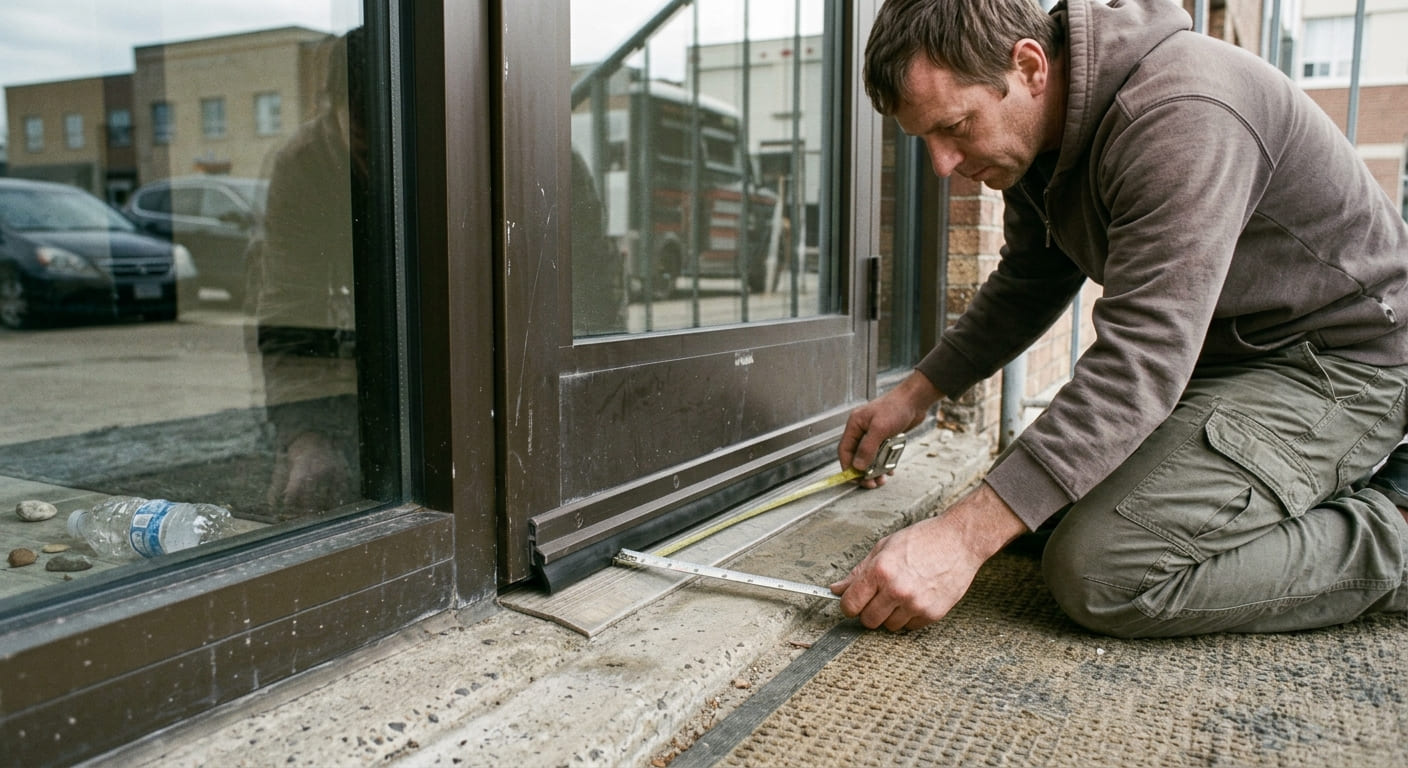

3. Measure the Bottom Gap

The gap between the bottom of the door and the threshold is one of the most important measurements when choosing a sweep.

A sweep that is too short may leave a gap underneath the door. A sweep that is too long may create excessive contact and interfere with the door closing.

For a detailed measurement guide, see How to Measure a Door Sweep for Replacement.

4. Check the Threshold

Look at the surface that the sweep will contact when the door is closed. A smooth and level threshold can work well with a continuous rubber seal, while an uneven surface may require a different sealing approach.

Also check whether the existing threshold is damaged, loose, or incorrectly positioned. Replacing the sweep alone may not solve a sealing problem if the threshold or door alignment is the underlying issue.

5. Identify the Mounting Method

Commercial door sweeps can be surface-mounted or recessed depending on the product and door construction.

Before ordering a replacement, identify how the existing sweep is attached. Look for mounting screws, an aluminum carrier, a recessed channel, or another mounting configuration.

If you are replacing an existing sweep and are unsure about its profile, see How to Identify a Door Sweep Profile for Replacement.

6. Choose the Seal Material

The seal material should match the conditions around the door.

• Rubber: A flexible option for many general sealing applications.
• Brush: Useful where bristles can accommodate some unevenness or where reduced contact resistance is needed.
• Neoprene and specialty rubber: Available for specific commercial and weather-sealing requirements.
• Bronze and other metal finishes: Useful where the door hardware finish and construction are important considerations.

7. Consider Traffic and Use

A commercial entrance with frequent daily traffic may require a different sweep than a low-use service door.

Consider how often the door opens, how the door operates, the condition of the threshold, and how much wear the sweep is likely to receive.

Commercial Door Sweep vs. Residential Door Sweep

The basic purpose of both types is similar: seal the gap beneath the door. The difference is usually in the construction, mounting method, available sizes, and intended application.

This does not mean every commercial door requires a heavy-duty sweep. The correct product depends on the actual door and opening conditions.

Common Commercial Applications for Door Sweeps

Office Buildings

Office entrances and interior commercial doors may use door sweeps to reduce drafts, dust, light, and air movement through the bottom of the door.

Retail Stores

Storefront and service doors often experience frequent opening and closing. The sweep should be selected to withstand normal traffic while maintaining contact with the threshold.

Schools and Institutional Buildings

Schools and other institutional buildings can have a large number of frequently used doors. The door sweep should match the door construction, threshold, and specific requirements of the opening.

Warehouses and Industrial Buildings

Industrial and warehouse doors may face dust, debris, pests, temperature changes, and uneven floor conditions. Brush or heavy-duty configurations may be considered depending on the opening.

Commercial Exterior Entrances

Exterior entrances need protection from outdoor conditions as well as daily traffic. Check the threshold, bottom gap, seal material, and mounting method before selecting an exterior commercial door sweep.

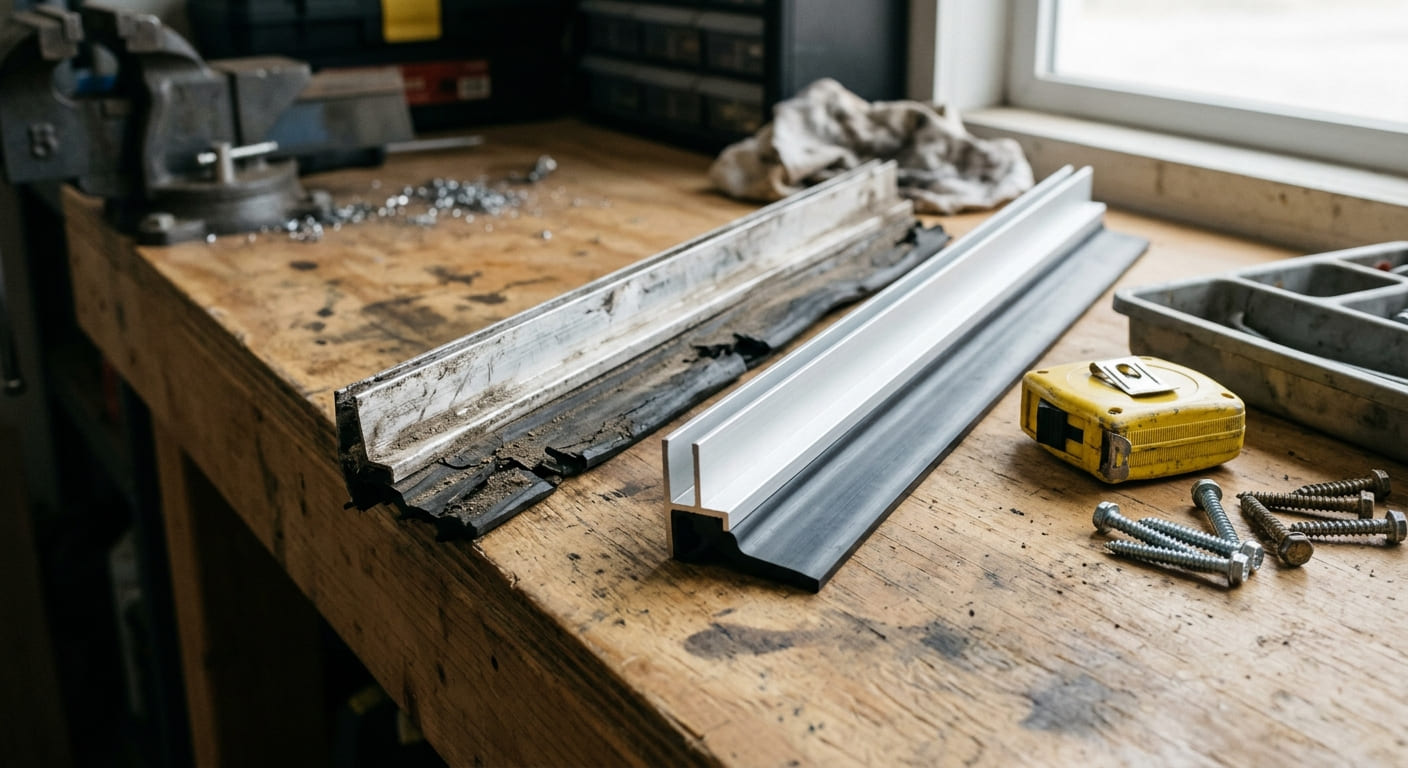

When Should a Commercial Door Sweep Be Replaced?

A commercial door sweep should be inspected when the bottom seal is no longer making the intended contact with the threshold or floor.

Common signs that a sweep may need replacement include:

• Visible daylight beneath the closed door
• Drafts coming through the bottom of the door
• Cracked, torn, or damaged rubber
• Flattened or missing brush bristles
• A loose or damaged mounting carrier
• Excessive wear along the sealing edge
• Water, dust, or debris entering beneath an exterior door

Before replacing the sweep, inspect the door and threshold as well. Door movement, threshold damage, or incorrect alignment can also affect the seal.

Common Mistakes When Choosing a Commercial Door Sweep

Choosing Only by Length

Length is important, but it is not the only specification. The profile, mounting method, seal material, height, and required gap coverage also need to match the application.

Ignoring the Threshold

The sweep and threshold work together. A sweep selected without considering the threshold may not provide the intended seal.

Using the Wrong Profile

A replacement sweep needs to match the way it attaches to the door. Always compare the existing profile and mounting method before ordering.

Using Too Much Sweep Contact

The sweep should seal the gap without creating unnecessary drag. Excessive contact can make the door difficult to operate and can increase wear on the sweep and door hardware.

Ignoring the Door Application

A sweep that works on a low-traffic interior door may not be the right choice for a busy commercial exterior entrance. Consider the actual operating conditions before selecting the product.

Commercial Door Sweep Selection Checklist

Before ordering a commercial door sweep, confirm:

• Door width
• Door material and construction
• Bottom gap
• Threshold type and condition
• Existing sweep profile
• Mounting method
• Seal material
• Interior or exterior application
• Expected traffic level
• Required finish and appearance
• Product-specific dimensions and installation requirements

Taking these measurements and checking the existing door bottom first can help prevent ordering a sweep that does not fit or seal correctly.

Frequently Asked Questions

What is a commercial door sweep?

A commercial door sweep is a seal installed along the bottom of a commercial door to reduce the gap between the door and threshold or floor. It can help limit drafts, dust, moisture, light, and pests from entering beneath the door.

What is the best type of commercial door sweep?

There is no single sweep that is right for every commercial door. The correct type depends on the door construction, bottom gap, threshold, mounting method, traffic, and application.

What is a heavy-duty door sweep?

A heavy-duty door sweep is designed for applications where a more durable construction or seal is needed, often because of frequent door operation or demanding commercial conditions. Always check the individual product specifications to determine whether it is suitable for your application.

Are brush door sweeps good for commercial doors?

Yes. Brush door sweeps are available for commercial applications and can be useful where the floor or threshold has some unevenness. The specific product should be matched to the door, gap, and application.

Can commercial door sweeps be used on exterior doors?

Yes. Many commercial door sweeps are designed for exterior applications. For an exterior commercial door, consider the weather exposure, threshold, gap, seal material, and expected traffic before choosing a product.

How do I measure a commercial door sweep?

Measure the door width, bottom gap, and existing sweep profile. Also check the threshold and mounting method. For more detailed instructions, read How to Measure a Door Sweep for Replacement.

How do I identify my existing commercial door sweep?

Check how the sweep attaches to the door, its profile, material, dimensions, and sealing element. Photos of the existing sweep can also help when comparing replacement products. See How to Identify a Door Sweep Profile for Replacement for more information.
