How to Identify a Door Sweep Profile

Finding the right replacement door sweep is easier when you identify the existing sweep profile before ordering. Door sweeps can look similar from the outside but use different mounting methods, shapes, materials, and sealing designs.

If your current door sweep is worn or damaged, do not rely on length alone. Check how the sweep attaches to the door, examine its profile, measure the important dimensions, and identify the type of sealing material. These details can help you find a replacement that fits the door correctly.

What Is a Door Sweep Profile?

A door sweep profile refers to the physical shape and construction of the sweep, including the part that attaches to the door and the sealing material that contacts the threshold or floor.

The profile can include the mounting channel, metal retainer, rubber seal, brush material, fins, flanges, or other components used to attach and seal the bottom of the door.

Two door sweeps may have a similar overall length but completely different profiles. If the mounting portion does not match the door, the replacement may not install correctly even when the length is right.

Why You Should Identify the Door Sweep Profile Before Buying

A door sweep needs to work with the bottom of the door and the available clearance above the threshold. Choosing a replacement based only on the door width can result in the wrong mounting style or sealing configuration.

Before ordering a replacement, check:

• How the sweep attaches to the door
• The shape of the existing profile
• The material used for the seal
• The width and depth of the mounting section
• The length of the existing sweep
• The gap beneath the door
• The type and condition of the threshold

For some door systems, the manufacturer or door model may also determine which sweep is compatible. Manufacturer replacement guides can list different sweep designs for specific door models, so check model information when it is available.

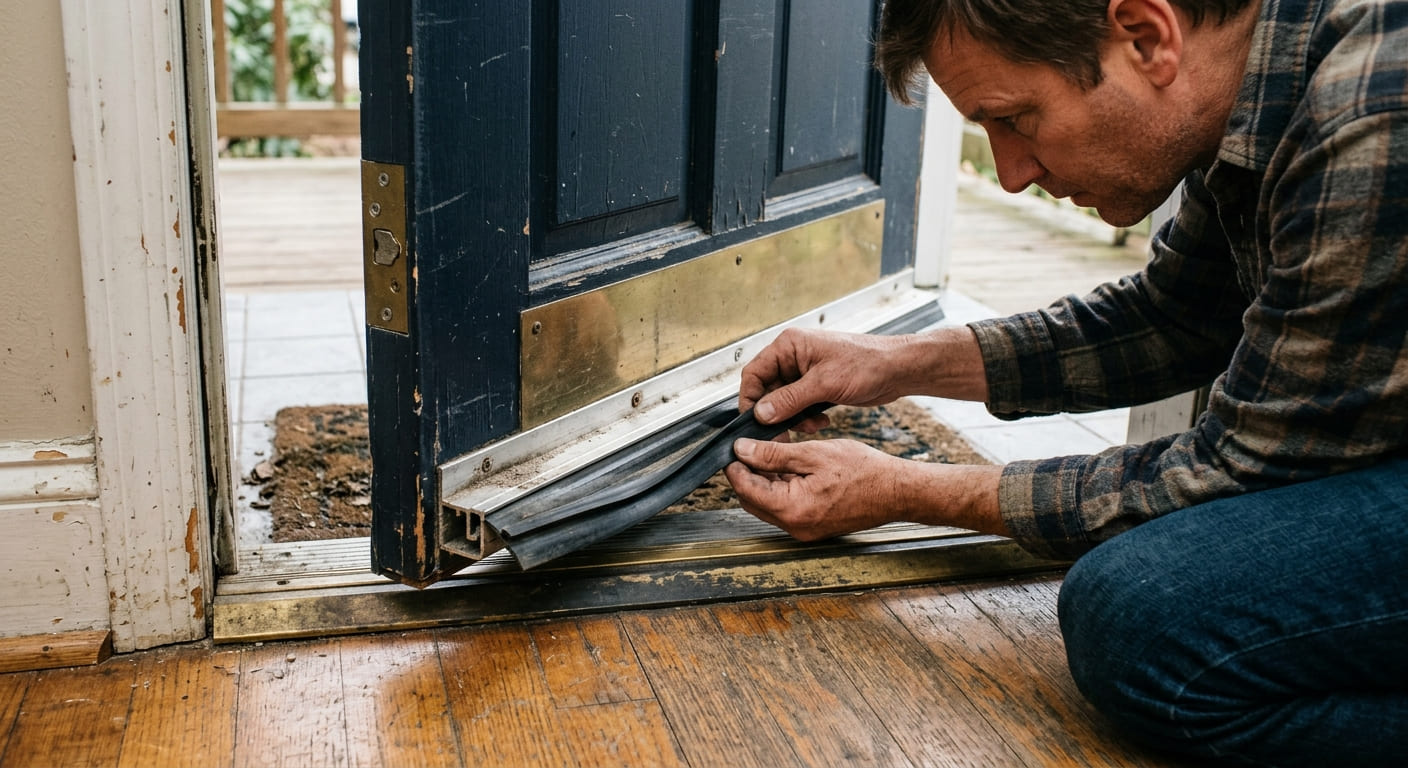

How to Identify a Door Sweep Profile

1. Look at How the Sweep Attaches to the Door

Start by looking closely at the bottom of the door. The attachment method is one of the easiest ways to narrow down the correct replacement.

Look for screws, mounting channels, grooves, clips, flanges, or other hardware holding the sweep in place.

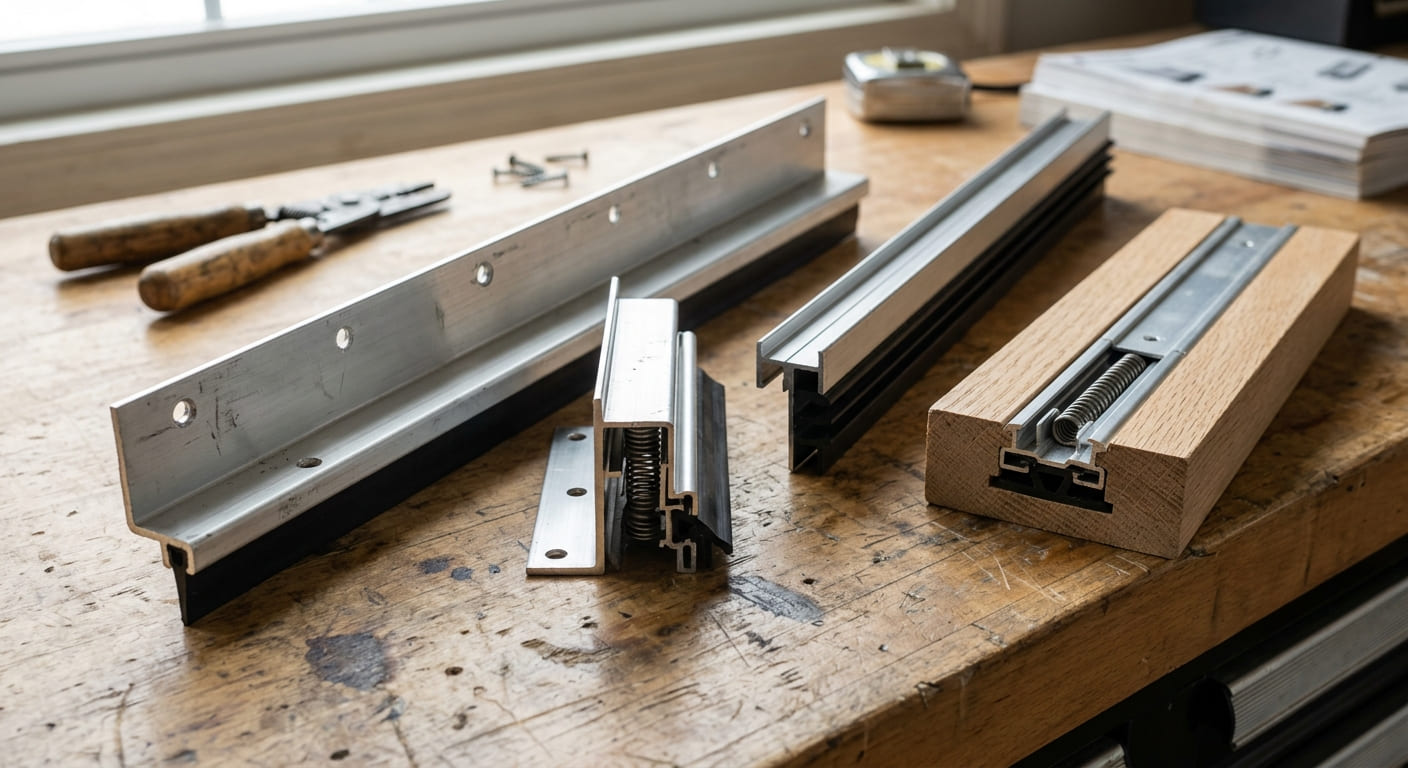

Common installation styles include:

• Surface-mounted sweeps
• Mortised or recessed sweeps
• Slide-in or channel-mounted sweeps
• Wraparound or U-shaped sweeps
• Brush sweeps
• Specialized automatic or concealed door bottoms

Do not assume that two sweeps with the same sealing material use the same mounting system. The mounting profile needs to match the door or existing hardware configuration.

2. Check for a Surface-Mounted Sweep

A surface-mounted sweep is installed directly onto the face or bottom portion of the door. Depending on the design, you may see an aluminum or metal retainer with screws holding the sweep in place.

Look at the inside or outside face of the door near the bottom edge and check for visible fasteners or a mounting strip.

If the existing sweep is surface mounted, measure the mounting section as well as the overall length before selecting a replacement.

3. Check for a Mortised or Recessed Sweep

A mortised sweep is designed to fit into a groove or prepared section in the bottom of the door. The mounting portion may be hidden when the sweep is installed.

If you remove the existing sweep, inspect the bottom of the door for a recessed channel or opening. Measure the width and depth of the channel and compare those measurements with the replacement product specifications.

TM Hardware offers a dedicated selection of Mortised Door Sweeps for applications using this type of configuration.

4. Check for a Channel or Slide-In Profile

Some door sweeps use a channel or track that holds the sealing material. The sealing insert may slide into the channel rather than being attached directly with individual screws.

Look closely at the bottom edge of the door and the ends of the sweep. If the seal can slide out of a track or carrier, measure the channel and the insert separately where necessary.

Taking a close-up photograph of the end of the existing sweep can also make profile identification easier when comparing replacement products.

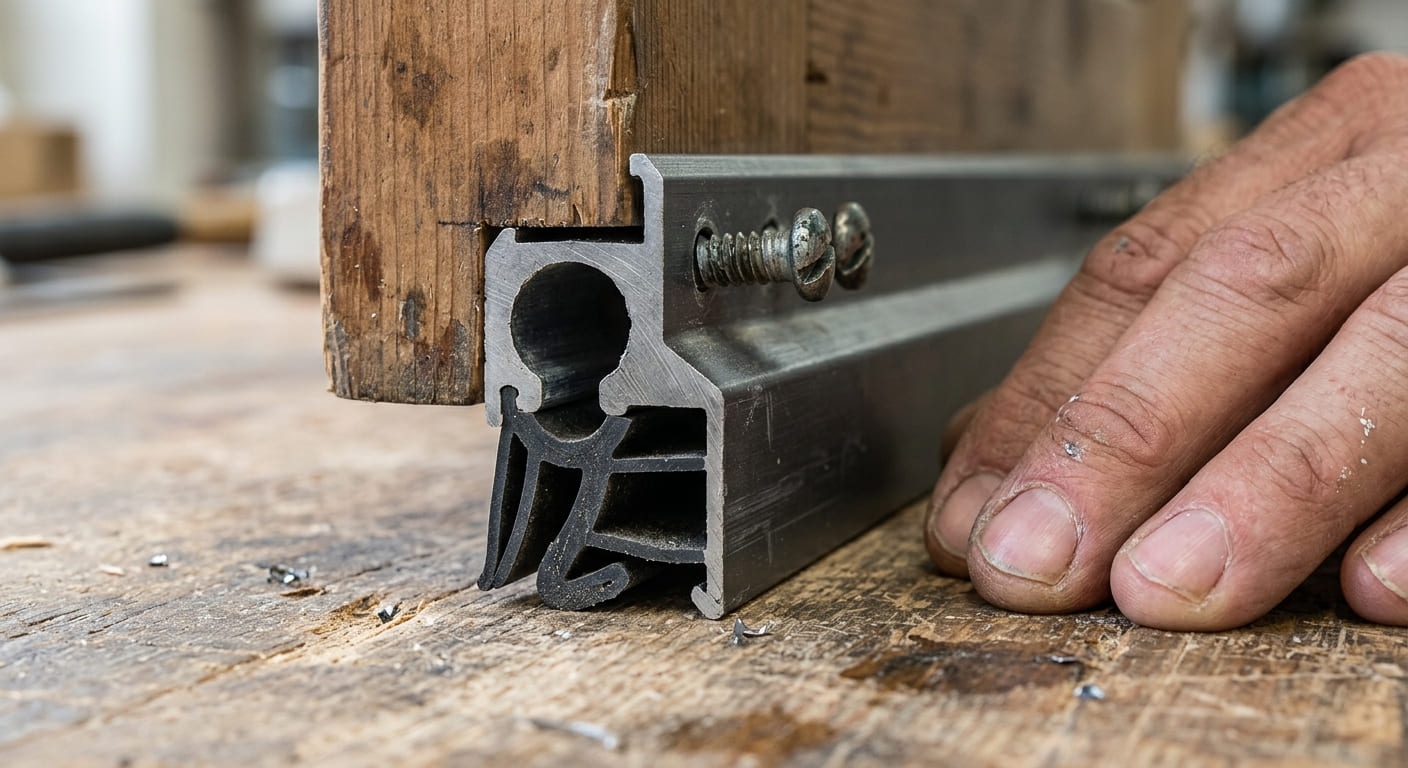

Look at the Shape of the Existing Sweep

Once you know how the sweep attaches, examine the actual shape of the profile.

Remove the sweep if it can be safely removed without damaging the door or hardware. Looking at the end of the sweep provides a much clearer view of its profile than looking at it while installed.

Pay attention to:

• Shape of the mounting channel
• Thickness of the mounting section
• Number and position of sealing fins
• Shape of the rubber or vinyl seal
• Brush attachment
• Metal retainer shape
• Overall height and depth

A side or end view can reveal details that are difficult to see when the sweep is attached to the door.

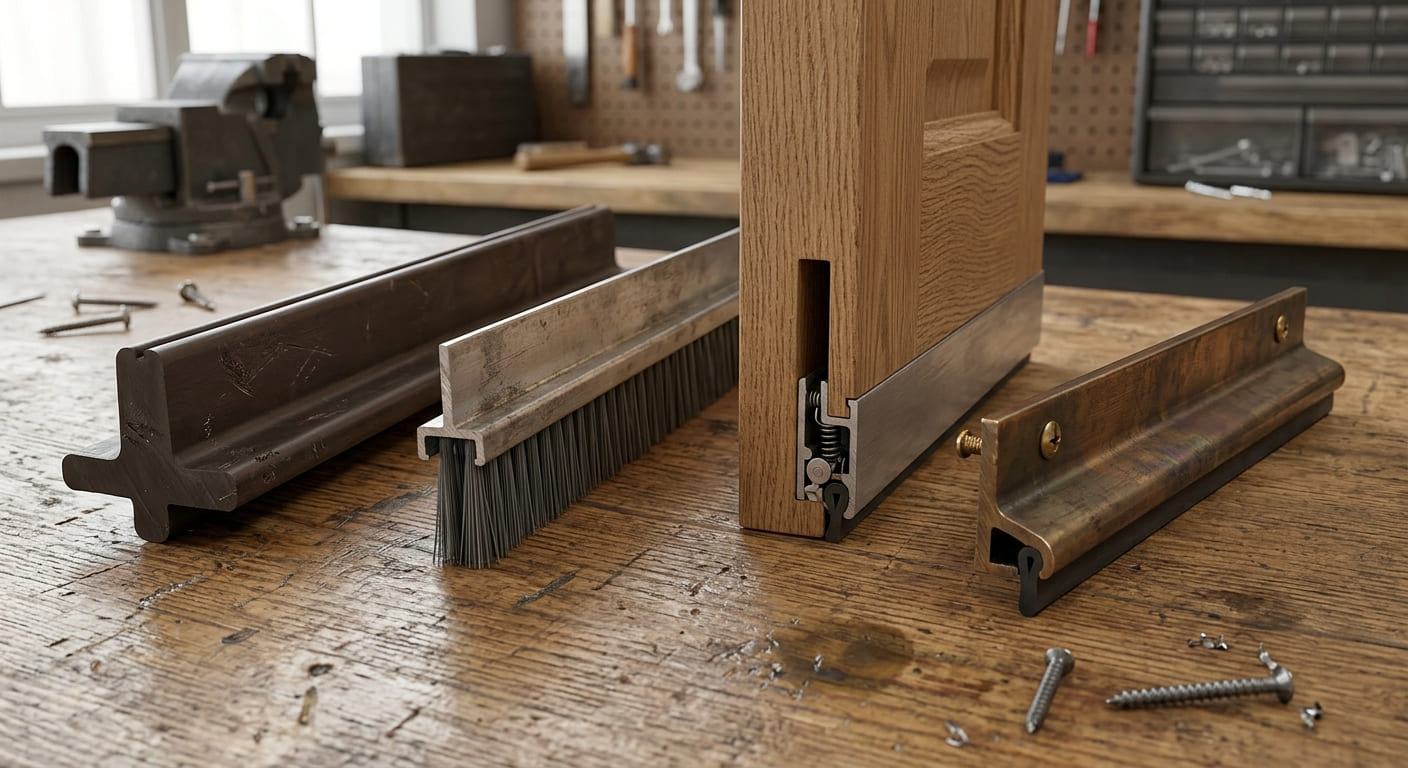

Identify the Door Sweep Material

The material can help narrow down the type of sweep you have, although material alone should not be used to select a replacement.

Rubber Door Sweep

Rubber sweeps use a flexible rubber sealing element to close the gap beneath the door. They are commonly used for exterior and commercial door applications where a flexible bottom seal is required.

Browse Rubber Door Sweeps at TM Hardware.

Brush Door Sweep

Brush sweeps use rows of flexible bristles rather than a solid rubber sealing strip. The bristles can conform to some uneven surfaces while maintaining a barrier beneath the door.

Browse Brush Door Sweeps to compare available brush-style options.

Bronze Door Sweep

Bronze door sweeps use bronze components or finishes and can provide a different appearance from standard aluminum and rubber configurations.

When replacing a bronze sweep, compare the existing mounting profile and dimensions rather than selecting a replacement based only on the finish.

Browse Bronze Door Sweeps at TM Hardware.

Mortised Door Sweep

Mortised sweeps are installed into a recessed area of the door. Because the mounting profile is part of the door's construction, accurate identification is especially important before ordering a replacement.

Browse Mortised Door Sweeps for compatible options.

Measure the Door Sweep Profile

After identifying the general profile, take measurements to confirm the replacement.

Important measurements can include:

• Overall sweep length
• Mounting channel width
• Mounting channel depth
• Seal height
• Seal thickness
• Overall sweep height
• Door thickness, where applicable
• Gap between the door and threshold

If you followed our guide on how to measure a door sweep for replacement, use those measurements together with the profile information you identify here.

Take a Photo of the Existing Door Sweep

When you are unsure about the profile, take several clear photographs before removing or discarding the old sweep.

Useful photos include:

• The full length of the installed sweep
• A close-up of each end
• The bottom edge of the door
• The mounting screws or channel
• The sealing material
• The cross-section or end profile after removal

A clear end-on photograph can be particularly useful because it shows the actual profile of the sweep rather than only its appearance from the front.

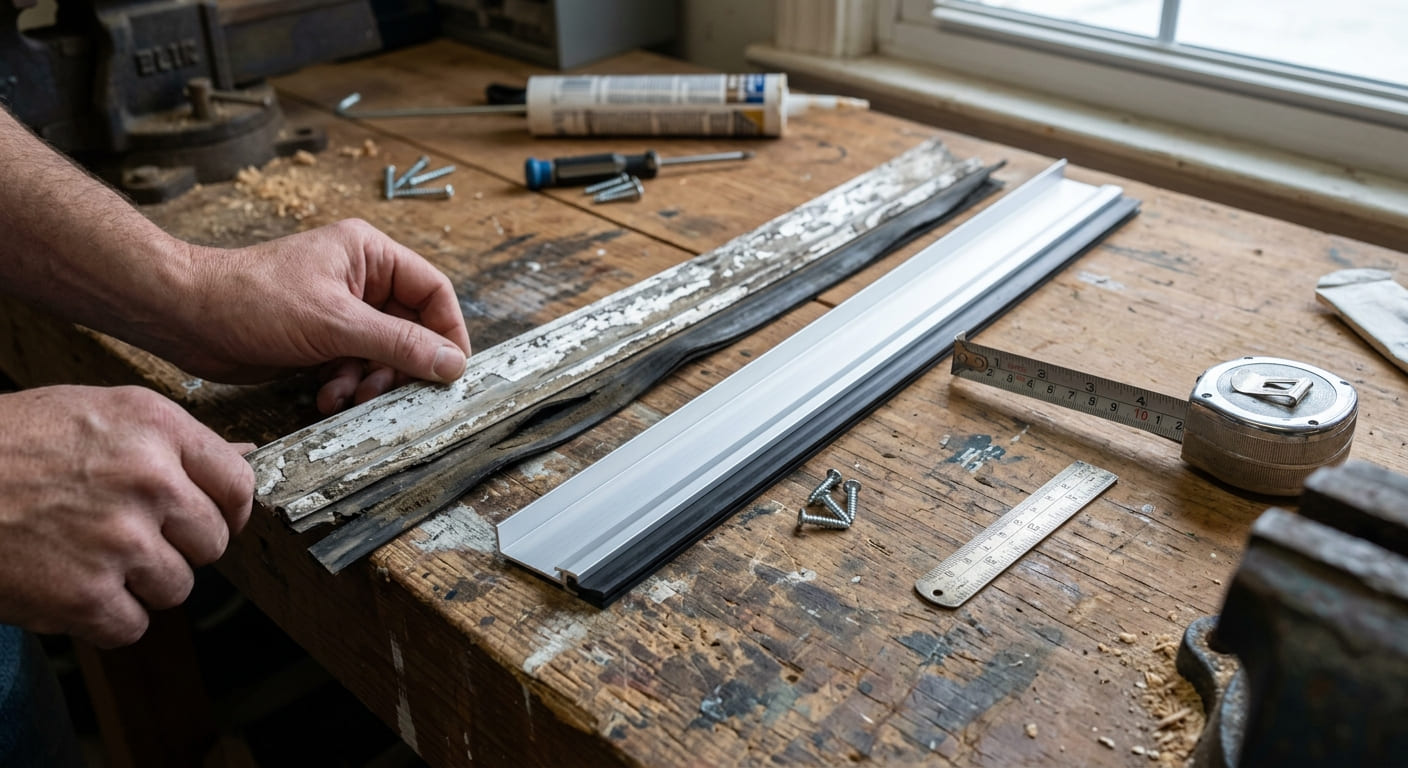

Compare the Existing Sweep With the Replacement

Once you have the measurements and photographs, compare them with the replacement product specifications.

Check the following before ordering:

Do Not Choose a Door Sweep by Length Alone

Length is one of the easiest measurements to take, but it does not tell you whether the sweep will actually fit the door.

For example, two 36-inch door sweeps may have completely different mounting profiles. One may be designed for surface mounting while another may fit into a mortised channel.

The sealing material can also differ. A rubber sweep and a brush sweep may both be 36 inches long but serve different applications.

Always compare the full product specifications before choosing a replacement.

How to Identify a Door Sweep When the Old One Is Missing

If the existing sweep has already been removed or discarded, start with the door rather than trying to identify the sweep itself.

Inspect the bottom of the door for:

• Screw holes
• Mounting channels
• Recessed grooves
• Tracks or carriers
• Existing mounting hardware
• Evidence of a previous mortised installation

Then measure the door width, bottom gap, door thickness where relevant, and any existing channel or mounting area.

If the door has a manufacturer name, model number, or other identifying information, record it as well. Some door systems use model-specific sweep designs, and manufacturer documentation may provide the correct replacement information.

Common Mistakes When Identifying a Door Sweep

Choosing Only by Door Width

A correct length does not guarantee that the mounting profile will fit.

Ignoring the Mounting Method

Check whether the existing sweep is surface mounted, mortised, channel mounted, or attached using another method.

Not Looking at the End Profile

The end of the sweep often provides the clearest view of its actual construction.

Discarding the Old Sweep Too Early

Keep the old sweep until you have identified the replacement. It can provide useful information about the mounting profile, material, dimensions, and sealing design.

Assuming Similar-Looking Sweeps Are Interchangeable

Two sweeps can look almost identical when installed but use different mounting dimensions. Always compare product specifications before ordering.

Which Door Sweep Profile Should You Choose?

The correct profile depends on your existing door construction, the mounting method, the bottom gap, threshold condition, and the type of seal required.

If you are replacing an existing sweep, matching the existing profile is usually the logical starting point. If you are changing to a different style, make sure the new sweep is designed for your door and installation method.

TM Hardware carries several door sweep categories to help you compare different configurations:

• All Door Sweeps
• Door Sweeps, Rubber
• Door Sweep, Brush
• Door Sweep, Mortised
• Door Sweep, Bronze

Final Checklist Before Ordering a Replacement Door Sweep

Before placing an order, confirm these details:

• Door width measured
• Bottom gap measured
• Existing sweep removed or inspected
• Mounting method identified
• Profile shape checked
• Seal material identified
• Mounting channel measured if applicable
• Door thickness checked if required
• Replacement product dimensions compared
• Threshold condition checked

Taking a few minutes to identify the existing profile can help you avoid ordering a replacement that has the correct length but the wrong mounting configuration.

Frequently Asked Questions

How do I identify a door sweep profile?

Inspect the bottom of the door and the existing sweep. Check how it attaches, then examine the end of the sweep to identify the shape of the mounting channel and sealing material. Measure the important dimensions and compare them with replacement product specifications.

What is a door sweep profile?

A door sweep profile is the physical shape and construction of the sweep, including its mounting section and sealing portion. The profile determines how the sweep attaches to the door and how it seals the gap beneath it.

Can I replace a door sweep with any sweep of the same length?

No. Two sweeps with the same length may have different mounting profiles, seal dimensions, or installation methods. Check the complete product specifications before choosing a replacement.

How can I identify a door sweep without removing it?

Start by examining the mounting method, visible screws, channel, seal material, and overall shape. Taking a clear photo of the installed sweep and its ends can also help with identification.

Should I keep my old door sweep when ordering a replacement?

Yes. If possible, keep the old sweep until you have identified and confirmed the replacement. The old part can help you compare the profile, mounting method, dimensions, and sealing material.

What if I cannot identify my door sweep?

Measure the door width, bottom gap, and any mounting channel, and take clear photographs of the existing sweep and door bottom. These details can help narrow down the correct replacement profile.
