How to Measure a Door Sweep for Replacement

Replacing a worn door sweep starts with getting the measurements right. A door sweep that is too short can leave gaps at the sides, while the wrong seal depth or mounting style may not properly close the space beneath the door.

Before ordering a replacement door sweep, measure the full width of the door, check the gap between the door and threshold, and identify how the existing sweep is attached. These measurements will help you choose a replacement that fits the door and provides the coverage you need.

What Measurements Do You Need for a Door Sweep?

For most door sweep replacements, start with these measurements and details:

• Full width of the door
• Gap between the bottom of the door and threshold
• Length of the existing door sweep
• Existing sweep profile or mounting style
• Door thickness, when required by the sweep design
• Type of seal, such as rubber, vinyl, brush, or another material

The exact measurements required can vary depending on whether the sweep is surface-mounted, mortised, kerf-mounted, slide-on, or another style. If you are replacing an existing sweep, keeping the old sweep available for comparison can make identification easier.

How to Measure a Door Sweep Step by Step

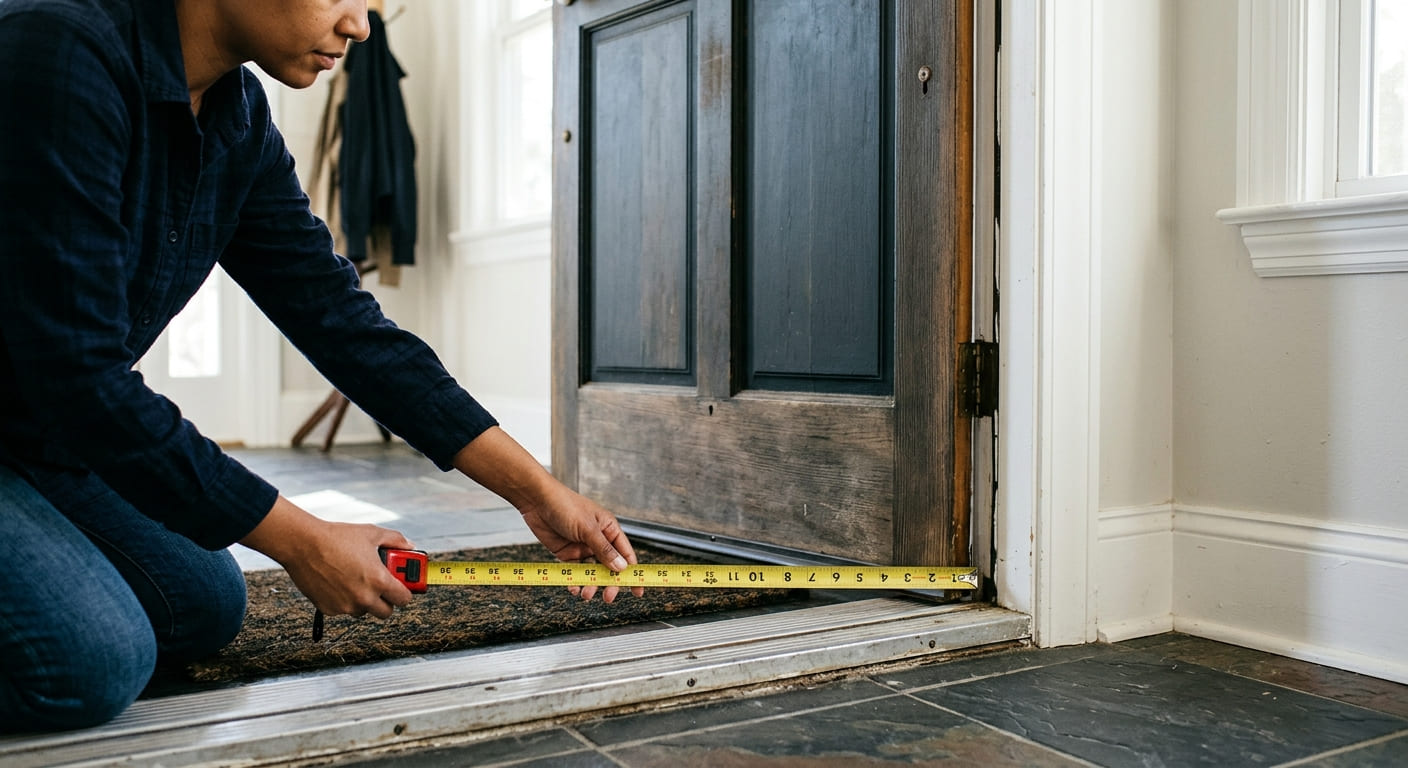

1. Measure the Full Width of the Door

Start by measuring the width of the door where the sweep will be installed. Measure the actual door slab rather than relying only on the nominal door size.

Place your tape measure across the bottom edge of the door and measure from one side to the other. Record the measurement in inches.

If you are replacing an existing sweep, you can also remove it and measure its total length. However, the door width should still be checked because the old sweep may have been cut incorrectly or may not have covered the entire door.

For many replacement sweeps, the new sweep is supplied in a longer standard length and can be trimmed to fit the door. Always check the product specifications before cutting.

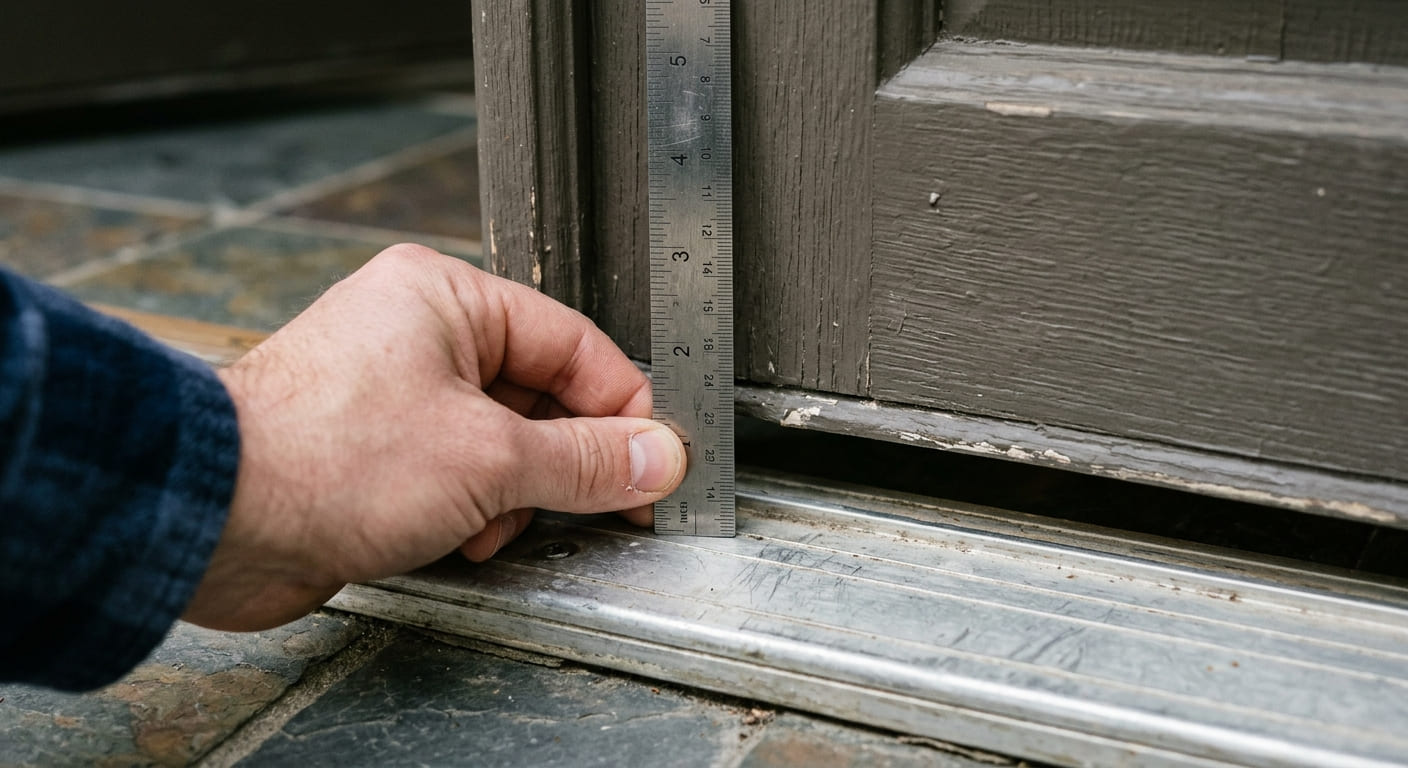

2. Measure the Gap Under the Door

Next, check the vertical space between the bottom of the door and the threshold.

Close the door and measure the gap at several points across the bottom. Check near the hinge side, center, and latch side.

This is important because the gap may not be exactly the same across the entire door. An uneven threshold or floor can create a larger gap in one area.

Record the measurements so you can compare them with the sweep's sealing range or drop length.

3. Check the Threshold

Look at the surface that the door sweep will contact when the door is closed. This may be a metal, wood, or other type of threshold.

A relatively even threshold may work well with a blade-style or flexible seal. If the surface is uneven or the gap varies considerably, a brush-style sweep may be more appropriate depending on the application.

The goal is to create a continuous seal without making the sweep so tight that it prevents the door from opening or closing properly.

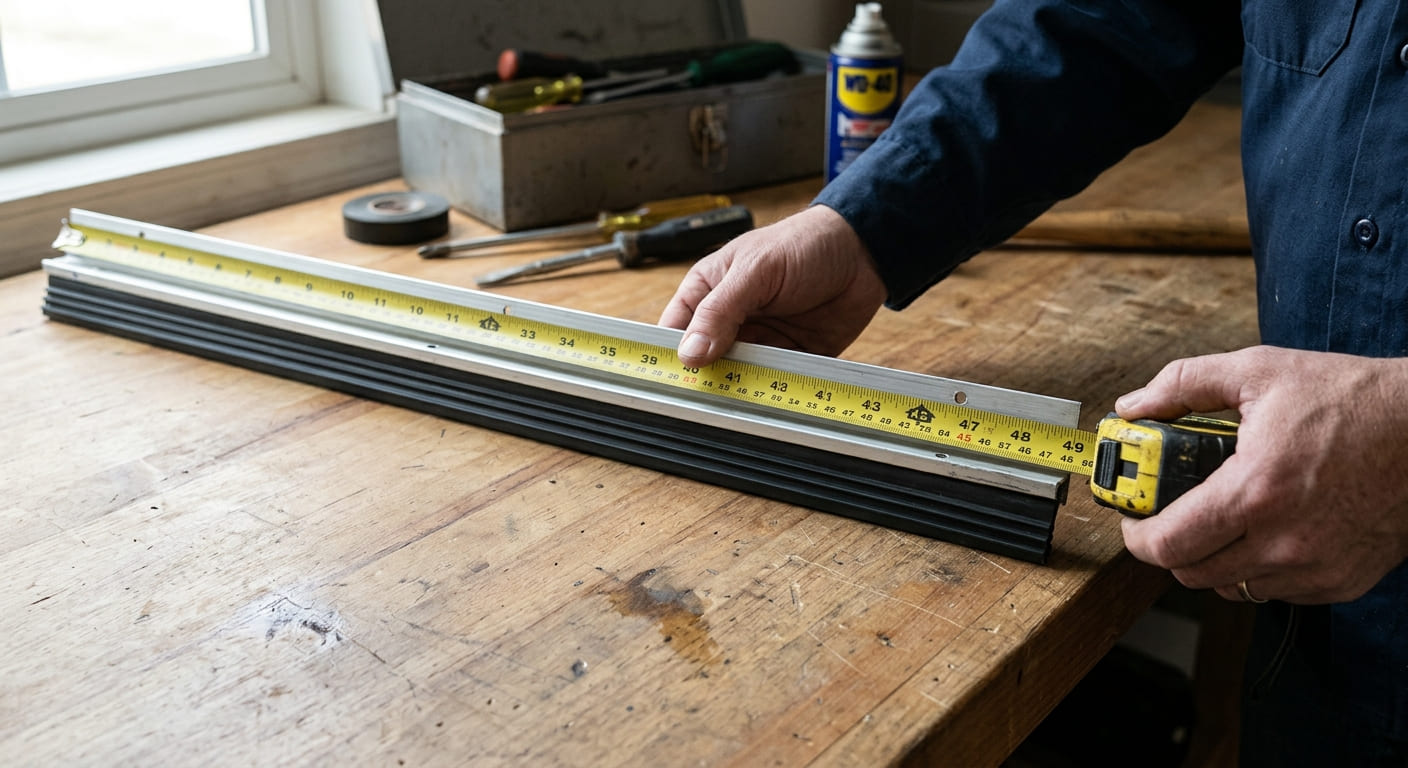

4. Measure the Existing Door Sweep

If you are replacing an existing sweep, remove it if possible and examine it closely.

Measure its:

• Total length
• Width or mounting dimensions
• Seal or insert depth
• Profile shape
• Mounting channel, if applicable

Also note whether the sweep attaches with screws, slides into a channel, fits into a kerf, wraps around the bottom of the door, or uses another mounting method.

Matching the existing profile can make replacement easier, but you can also use the replacement process as an opportunity to select a different sweep style if the door and application are compatible.

How to Measure a Door Sweep for Replacement

When replacing an existing door sweep, use this simple process:

1. Close the door.
2. Measure the full width of the door.
3. Measure the gap between the door bottom and threshold at several points.
4. Remove the existing sweep if practical.
5. Measure the old sweep and inspect its profile.
6. Identify the mounting method.
7. Check the replacement sweep's specifications before ordering.
8. Make sure the selected sweep is compatible with your door thickness and installation method.

Measuring the door and identifying the existing sweep before purchasing can help prevent ordering a product that is the wrong length, profile, or mounting style.

How to Measure the Bottom Gap for a Door Sweep

The bottom gap is the space that the sealing portion of the sweep needs to cover.

With the door closed, measure from the bottom of the door to the threshold. Take measurements at the left, center, and right sides.

If the measurements are different, do not assume the smallest measurement represents the entire opening. The largest gap is important because that is where an undersized seal may leave an opening.

At the same time, avoid choosing a sweep that is excessively long or deep simply to compensate for an uneven threshold. A sweep that drags heavily against the threshold can interfere with normal door operation and may wear faster.

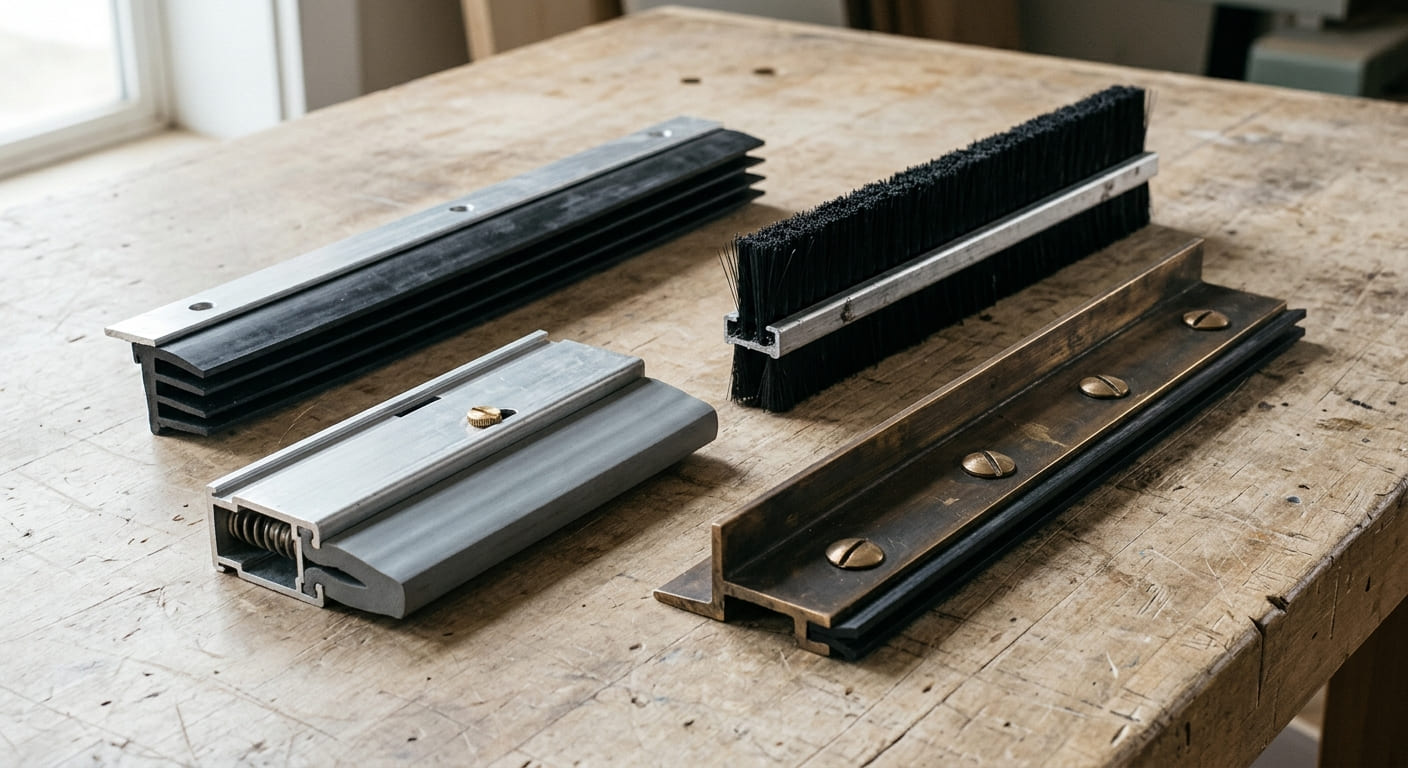

How to Identify the Type of Door Sweep You Need

Measurements are only part of the replacement process. You also need to identify the type of door sweep that fits your door.

Rubber Door Sweeps

Rubber sweeps use a flexible rubber sealing element to close the space beneath a door. They are commonly used where a flexible bottom seal is needed.

See Rubber Door Sweeps for available options.

Brush Door Sweeps

Brush sweeps use flexible bristles to cover the bottom gap. They can be useful where the surface beneath the door is uneven or where flexibility is important.

See Brush Door Sweeps for available options.

Mortised Door Sweeps

Mortised sweeps are designed to fit into a prepared groove or mortise in the bottom of the door. Because the mounting profile is different from a surface-mounted sweep, measure the existing channel and verify compatibility before ordering.

See Mortised Door Sweeps for available options.

Bronze Door Sweeps

Bronze door sweeps provide a different material and appearance from standard rubber or brush options. They can be used for applications where the sweep's finish is an important consideration along with its sealing function.

See Bronze Door Sweeps for available options.

All Door Sweeps

If you are not sure which type is appropriate, browse the full selection of Door Sweeps and Door Bottoms and compare the available profiles, materials, and installation styles.

What Size Door Sweep Do I Need?

The correct door sweep size depends on more than the width of the door.

First, the sweep needs to cover the full width of the door. Second, its sealing portion needs to be appropriate for the gap beneath the door. Finally, the mounting profile needs to match the door and installation method.

For example, a 36-inch-wide door does not automatically mean that every 36-inch door sweep will fit. The mounting configuration, seal depth, door thickness, and threshold condition can also affect compatibility.

Always compare your measurements with the manufacturer's product dimensions before purchasing.

Common Door Sweep Measurement Mistakes

Measuring the Door Frame Instead of the Door

The sweep is attached to the door, so the door slab measurement is usually the starting point. Do not substitute the overall frame or rough opening measurement.

Measuring Only One Point Under the Door

The gap can vary from one side of the door to the other. Check several points to understand the actual sealing condition.

Ignoring the Existing Profile

Two door sweeps can have similar overall dimensions but completely different mounting methods. Check the profile and attachment method before ordering a replacement.

Choosing a Sweep Only by Length

Length is important, but it is not the only specification. The sweep also needs to work with the door construction, mounting method, gap, and threshold.

Assuming a Larger Seal Is Always Better

A sweep should seal the bottom gap without creating excessive resistance when the door opens and closes. Follow the product specifications and check the finished installation for proper operation.

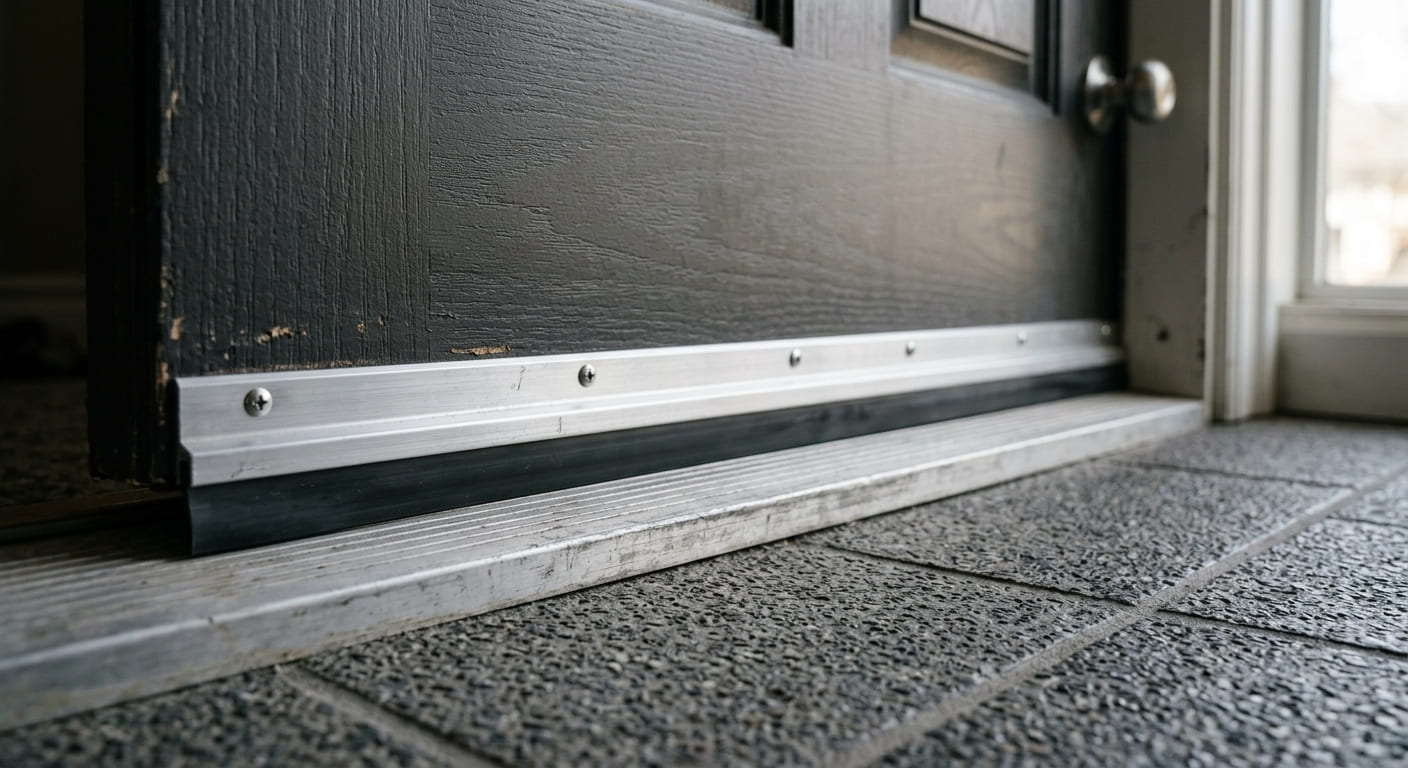

How to Check a New Door Sweep After Installation

After installing the replacement sweep, close the door and inspect the entire bottom edge.

Check for visible gaps between the sweep and threshold. Then open and close the door several times.

The sweep should maintain contact with the threshold as intended without preventing the door from closing or creating excessive drag.

If the sweep is adjustable, make small adjustments until you achieve the appropriate seal and normal door operation.

When Should You Replace a Door Sweep?

A door sweep may need replacement when the sealing material becomes worn, cracked, bent, compressed, or otherwise damaged.

You may also notice drafts, light showing beneath the door, dust or insects entering around the bottom, or a visible gap between the sweep and threshold.

If the existing sweep no longer provides the intended seal, measuring the door and identifying the correct replacement profile is a good place to start.

Find the Right Door Sweep at TM Hardware

Once you have measured your door, gap, and existing sweep profile, you can compare replacement options based on the required dimensions and installation style.

TM Hardware offers several types of door sweeps and door bottoms, including rubber, brush, mortised, and bronze options.

• All Door Sweeps
• Rubber Door Sweeps
• Brush Door Sweeps
• Mortised Door Sweeps
• Bronze Door Sweeps

Frequently Asked Questions

How do I measure a door sweep?

Measure the full width of the door where the sweep will be installed, then measure the gap between the bottom of the door and threshold at several points. If replacing an existing sweep, also measure its length and inspect its profile and mounting method.

Should I measure the door or the door frame for a sweep?

Start with the actual door slab where the sweep will be attached. The frame measurement does not necessarily represent the length required for the door sweep.

How do I measure the gap under my door?

Close the door and measure the distance between the bottom of the door and the threshold at multiple points. Record the measurements so you can select a sweep with an appropriate sealing range.

Can I cut a door sweep to fit?

Many door sweeps are supplied in lengths that can be trimmed to fit, but this depends on the product. Check the manufacturer's instructions before cutting the sweep.

How do I know which type of door sweep I need?

Identify the existing mounting method and profile, then consider the door, threshold, gap, and application. Rubber, brush, mortised, bronze, and other sweep styles are designed for different configurations.

What happens if a door sweep is too long?

A sweep that extends beyond the intended door width may interfere with the door frame or jamb. Measure the door carefully and follow the product's fitting instructions before trimming.

What happens if a door sweep is too short?

A sweep that does not cover the full width of the door can leave openings at the ends. Measure the full door width before selecting or cutting the replacement.
