What type of Door Weatherstripping is available?

Weatherstripping on doors plays an important part in energy efficiency, comfort and soundproofing of a room. We often overlook the simple task of weatherstripping our doors and windows, even though the right weatherstripping can make a noticeable difference in how well a door seals.

There are several types of door weatherstripping available, and the right option depends on the type of door, the size and location of the gap, the existing installation method and how much wear the seal will receive.

In this article, we'll explain the different types of door weatherstripping, door gasketing, door sweeps and door bottom seals so you can identify what you need and choose the right option for your door.

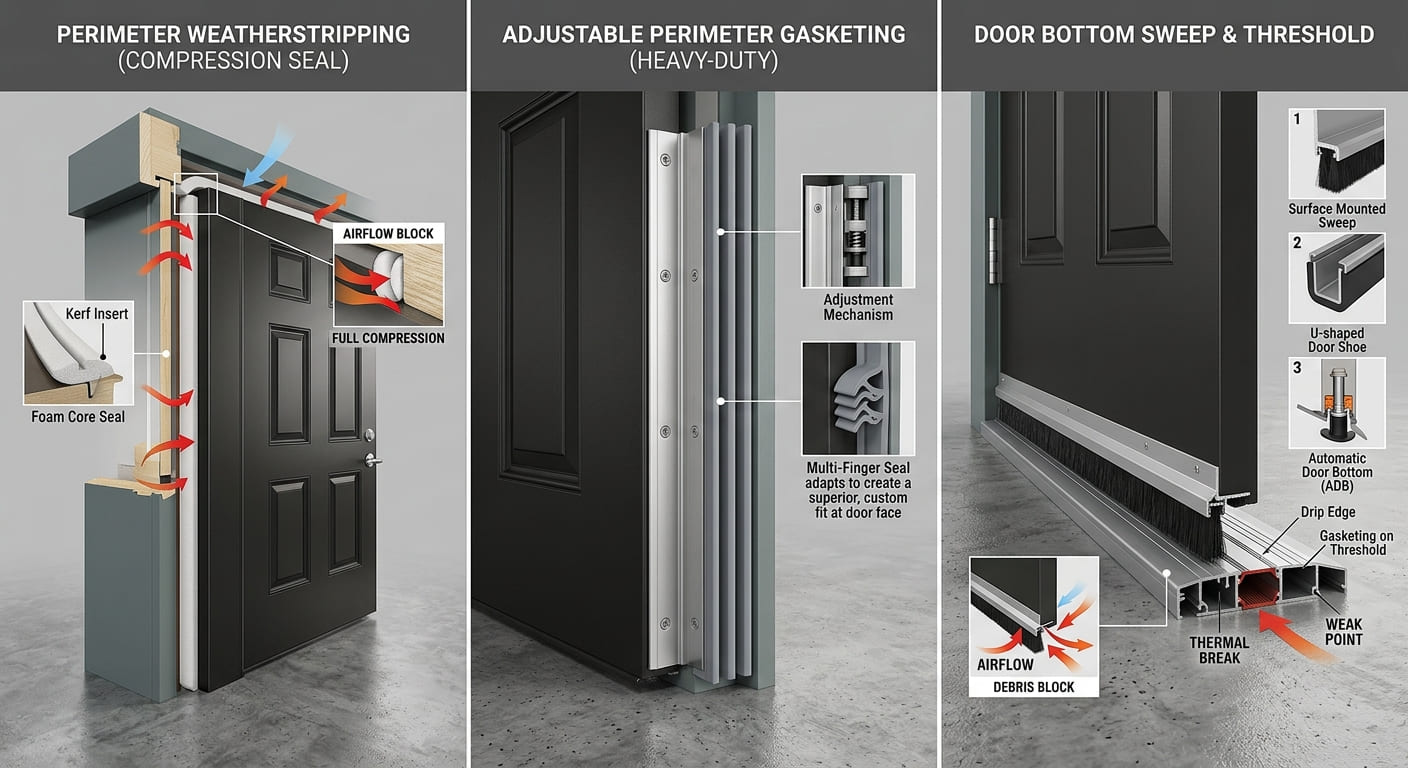

Weatherstripping vs. Door Gasketing vs. Door Sweeps

Before choosing a product, it is important to identify where the gap is around your door. There are three common ways to seal the gaps around a door: weatherstripping, gasketing and door sweeps.

Door Weatherstripping

Door weatherstripping is used around the sides and top of a door to help seal the gap between the door and frame. Weatherstripping is available in different materials and installation styles, including rubber, silicone, foam, metal and other flexible sealing materials.

The best type depends on the size of the gap, the door and frame construction, how often the door is used and how durable the seal needs to be.

Door Gasketing

Door gasketing serves a similar purpose to weatherstripping but is generally more robust. Many door gasketing systems use a durable aluminum housing or carrier with a flexible sealing material. This construction can provide a more substantial seal and is often suitable for doors that receive frequent or heavy use.

Door Sweeps

Door sweeps are designed primarily for the gap underneath a door. They can help reduce drafts and limit the entry of dust, light and pests through the bottom of the door.

Door sweeps are available with brush or rubber sealing materials and in different styles, including surface-mounted sweeps, mortised sweeps and door shoes. While weatherstripping and gasketing are normally used around the sides and top of the door, a sweep is used at the bottom.

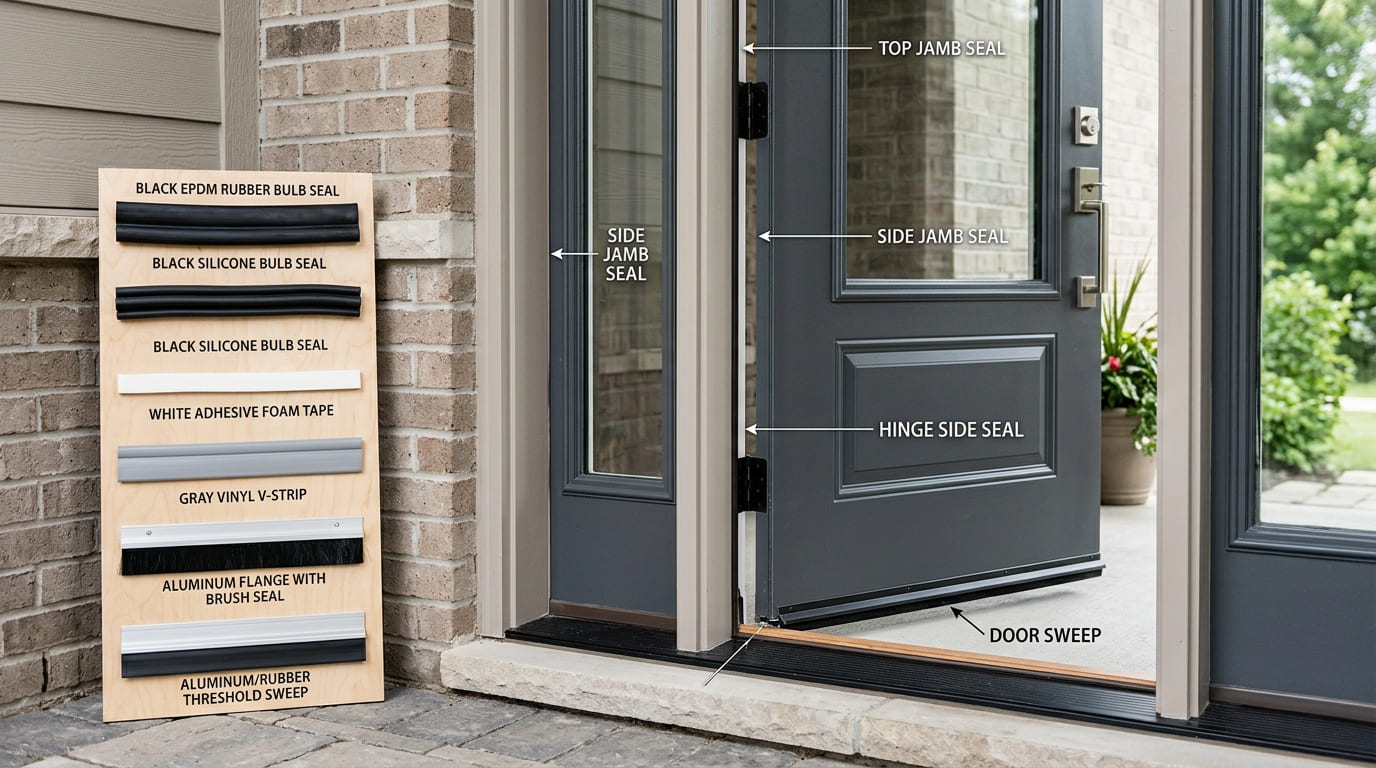

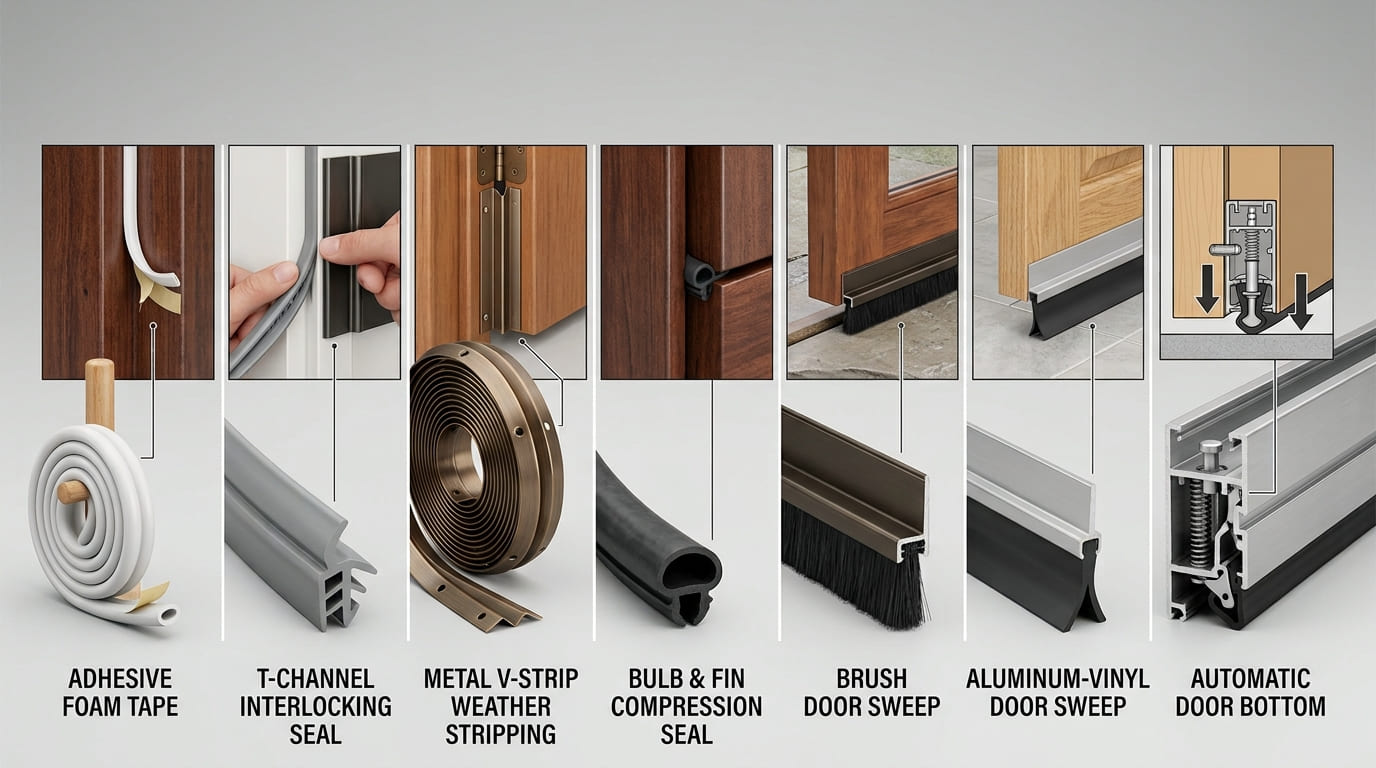

What Are the Main Types of Door Weatherstripping?

There are several types of weatherstripping for doors, and each is designed for different door and frame conditions. Common options include self-adhesive weatherstripping, kerf weatherstripping and metal weatherstripping. Depending on the application, rubber seals, door sweeps and automatic door bottoms can also be used to seal gaps around or underneath a door.

When choosing weatherstripping, the most important factors are where the gap is located, how large the gap is, how the existing seal is attached and how much wear the door receives.

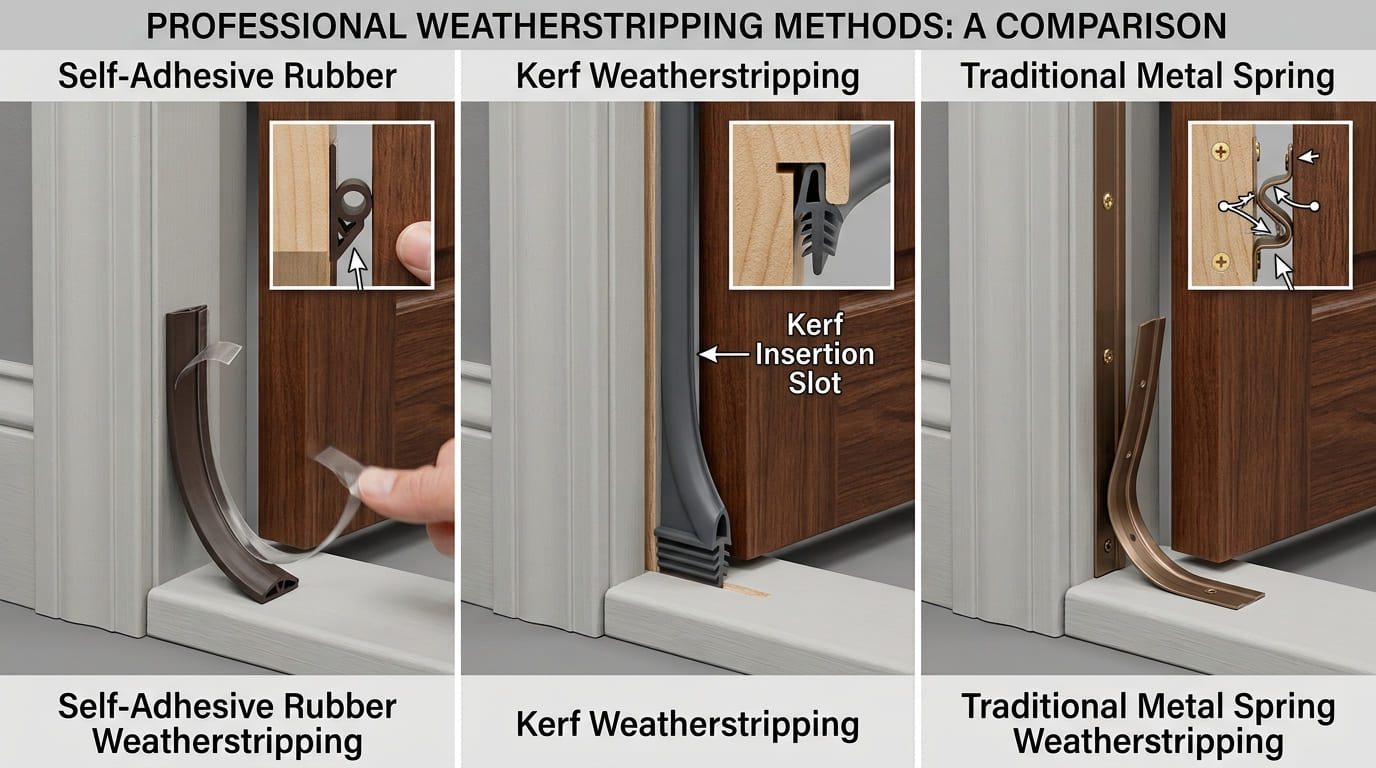

For the Door Frame There Are Options of Self-Adhesive, Kerf and Metal Weatherstripping

Self-Adhesive Weatherstripping

Self-adhesive weatherstripping is one of the simplest options to install. It has an adhesive backing that allows the material to be applied directly to a clean door frame without requiring screws or a special groove.

Self-adhesive weatherstripping can be useful when you need a straightforward replacement or when the door frame does not have a kerf channel. Different materials and thicknesses are available for different gap sizes and applications.

For larger gaps or applications that require a more durable seal, rubber and sponge neoprene weatherstripping can provide a stronger option than basic foam tape.

See our selection of self-adhesive rubber weatherstripping for door sealing applications.

Metal Weatherstripping

Metal weatherstripping is a traditional option for sealing gaps around doors. Spring bronze is one example of metal weatherstripping that has been used for many years in residential and other door applications.

Depending on the product, metal weatherstripping may be installed with fasteners or adhesive. It can provide a durable solution where a more traditional or long-lasting weatherstripping system is preferred.

See our metal weatherstripping for doors for available options.

Kerf Weatherstripping

Kerf weatherstripping is designed to fit into a narrow groove or channel in the door frame. Instead of using adhesive or exposed fasteners, the weatherstrip has a portion that fits into the kerf channel and holds the seal in place.

Many doors and frames are manufactured with a kerf channel already built into the frame. If your existing weatherstripping is a kerf-style seal, you normally do not need to create a new groove. The old weatherstrip can be removed and the replacement inserted into the existing channel.

Kerf weatherstripping is available in different profiles and sizes, so it is important to compare the replacement with the existing seal and measure the dimensions before ordering.

Browse our kerf frame weatherstripping for replacement options.

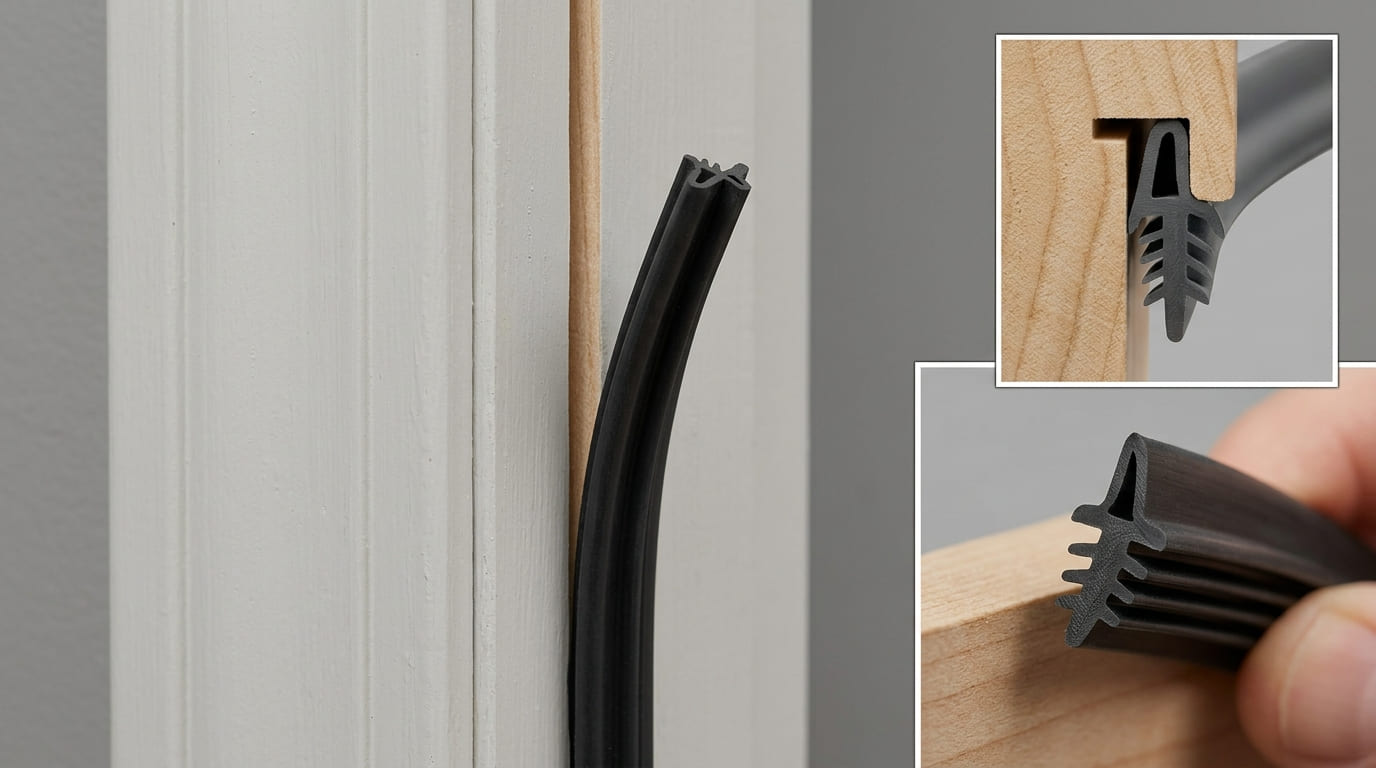

How Do You Identify Kerf Weatherstripping?

One of the easiest ways to identify kerf weatherstripping is to examine how the existing seal is attached to the door frame. If the weatherstrip fits into a narrow groove in the frame rather than being held on with adhesive or visible screws, it is likely a kerf-style weatherstrip.

Look for these characteristics:

• A narrow groove or channel running along the door frame.
• A small fin, barb or attachment section on the weatherstrip that fits into the channel.
• No large adhesive backing holding the weatherstrip to the frame.
• The existing weatherstrip can usually be pulled out of the channel when it needs to be replaced.

When replacing kerf weatherstripping, do not choose a product based only on its appearance. Compare the attachment method, profile, dimensions and sealing material with the existing weatherstrip. Measuring the old weatherstrip and the door frame can help you select a compatible replacement.

The Gap at the Bottom of the Door Can Use a Door Sweep or an Automatic Door Bottom

The bottom of a door needs a different type of sealing solution because the door must continue to open and close while maintaining a seal against the floor or threshold.

A door sweep is a common solution for sealing the gap underneath a door. Depending on the application, you can use a brush sweep, rubber sweep or door shoe.

For applications where the seal needs to retract when the door opens, an automatic door bottom can be used. An automatic door bottom lowers a sealing mechanism when the door closes and retracts it when the door opens.

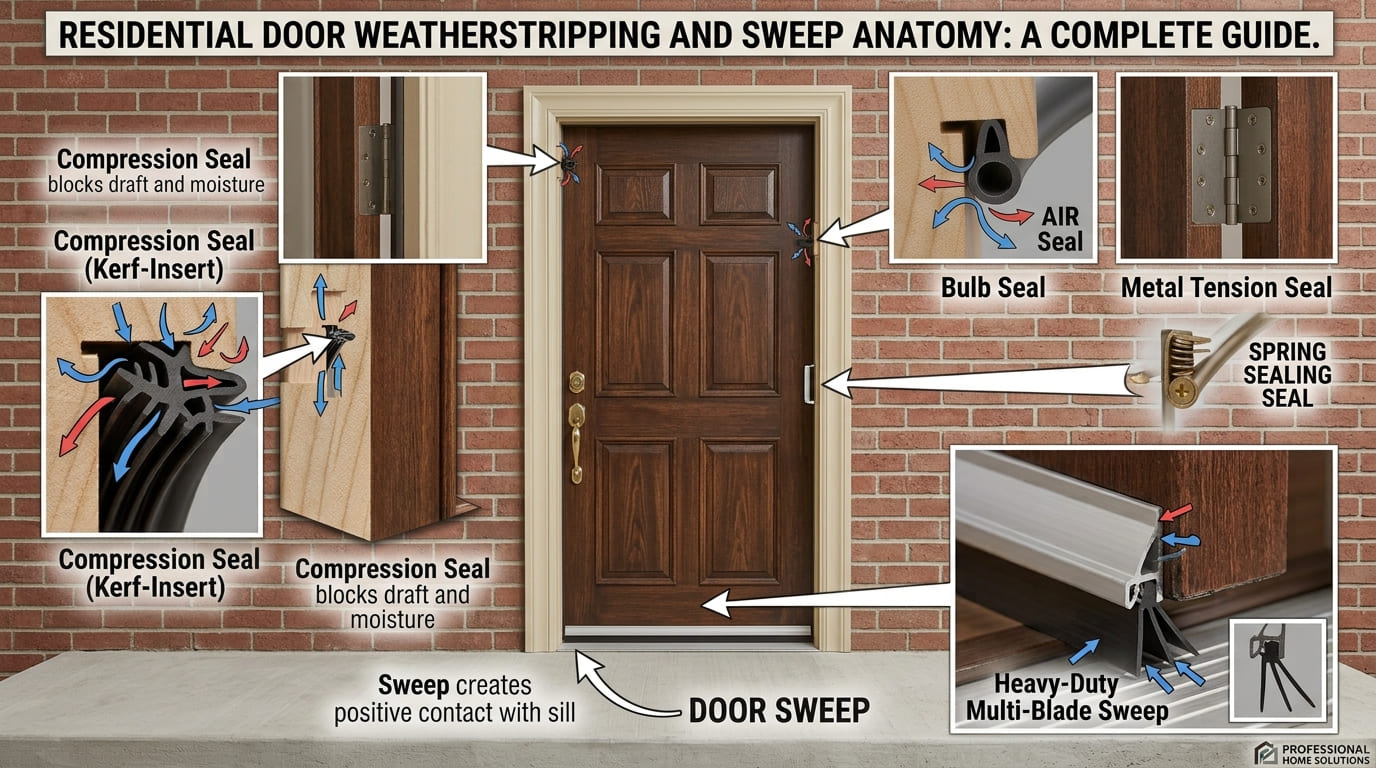

Door Sweep vs. Weatherstripping: What's the Difference?

Door weatherstripping and door sweeps both help seal a door, but they are designed for different areas.

• Weatherstripping: Generally installed along the sides and top of the door frame to seal the gap between the door and frame.
• Door sweep: Installed at the bottom of the door to seal the gap between the door and floor or threshold.

If you can see daylight around the sides or top of the closed door, the weatherstripping may need to be replaced or adjusted. If the gap is underneath the door, a door sweep or another type of door bottom seal may be the better solution.

In many cases, a door requires both frame weatherstripping and a bottom sweep to create a more complete seal.

When Should You Use a Brush Sweep, Rubber Sweep or Door Shoe?

Brush Door Sweeps

Brush sweeps use flexible bristles to seal the gap beneath a door. They can work well where the floor or threshold is uneven because the bristles can conform to changes in the surface.

Rubber Door Sweeps

Rubber sweeps use a flexible rubber seal along the bottom of the door. They can provide a tighter barrier against drafts, dust and light when the door and threshold have a relatively consistent gap.

Door Shoes

A door shoe is a bottom-sealing system that wraps around or attaches to the bottom edge of the door. Door shoes can provide a more substantial bottom seal and are available for different door constructions and applications.

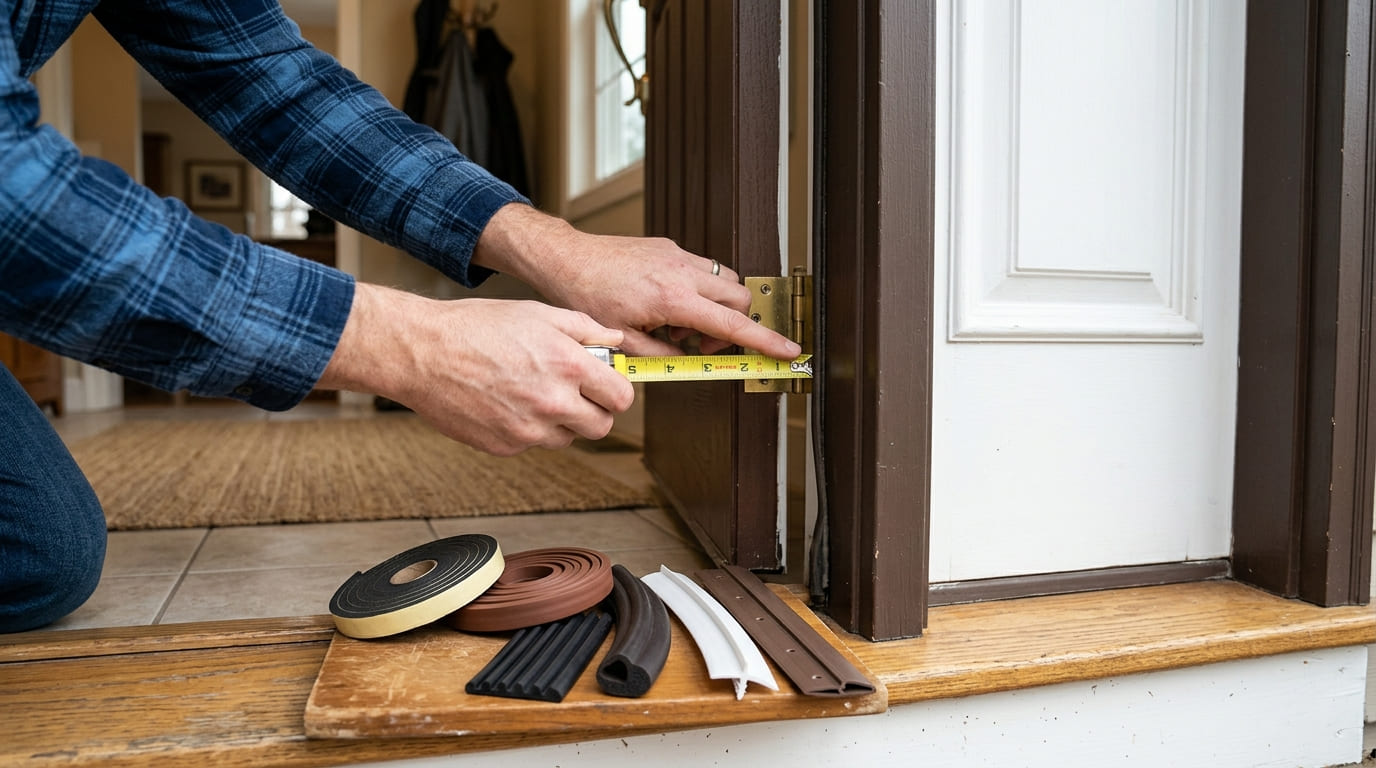

How to Choose the Right Weatherstripping for Your Door

Choosing the right weatherstripping starts with identifying the type of gap you need to seal. The appearance of the weatherstrip is important, but the installation method and dimensions are just as important when selecting a replacement.

1. Identify where the gap is.

   Check the sides, top and bottom of the closed door. Determine whether the problem is around the frame or underneath the door.

2. Check how the existing weatherstripping is installed.

   Look for adhesive backing, fasteners or a kerf channel in the frame. Matching the attachment method can make replacement much easier.

3. Measure the gap and existing weatherstrip.

   Measure the door frame and compare the dimensions of the existing seal. The replacement should seal the gap without making the door difficult to close.

4. Consider the amount of use.

   A frequently used exterior door may require a more durable weatherstripping material than a door that receives very little traffic.

5. Consider the door and frame.

   The material and construction of the door frame can help determine whether self-adhesive, kerf, metal or another weatherstripping system is appropriate.

If you are replacing an existing seal, keeping a sample of the old weatherstrip can also make it easier to compare the profile and attachment method before purchasing a replacement.

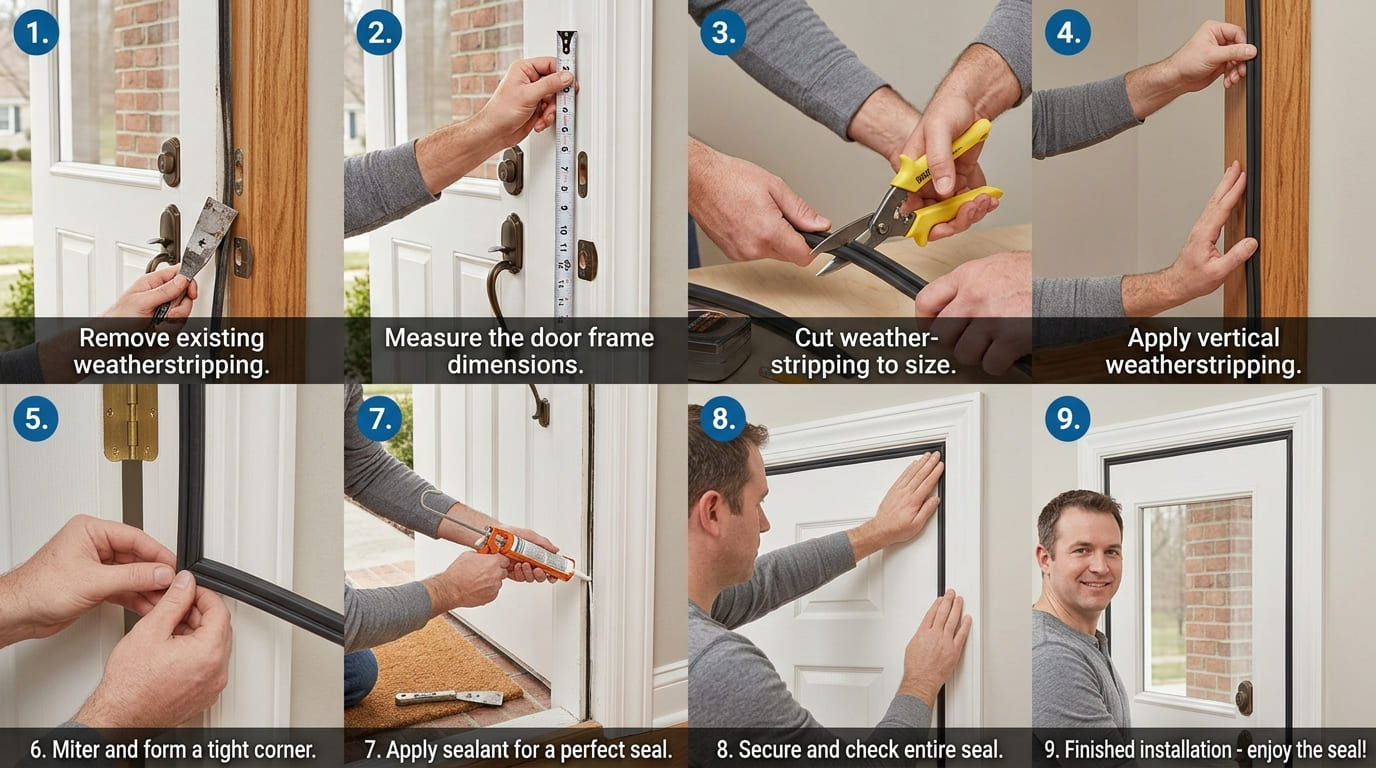

How to Install Door Weatherstripping

Installation depends on the type of weatherstripping you choose, but the basic process is straightforward.

1. Remove the old weatherstripping if it is damaged or worn.
2. Clean the installation surface so the new weatherstrip can attach securely.
3. Measure the door frame and determine the required length for each section.
4. Cut the weatherstripping to size when necessary.
5. Install the new weatherstripping using the appropriate adhesive, fasteners or kerf channel.
6. Close and operate the door to make sure the new seal makes contact without preventing the door from closing properly.

For frame weatherstripping, measure each side of the door and the top rather than assuming every section is exactly the same length. Proper measurement helps prevent gaps at the corners and reduces the chance of installing a seal that is too tight.

When Should You Replace Door Weatherstripping?

Weatherstripping can wear out over time, especially on doors that are opened and closed frequently. Inspect the seal if you notice drafts, visible daylight or a noticeable gap around the closed door.

Other signs that door weatherstripping may need replacement include:

• Cracked, torn or damaged sealing material.
• Weatherstripping that has become flattened or permanently compressed.
• Sections that have pulled away from the door frame.
• Gaps between the weatherstrip and the closed door.
• Increased drafts around the door.
• A door that no longer seals as well as it did previously.

Garage Door Bottom Seals Need to Be Heavy Duty

Garage doors have different sealing requirements from standard entry doors because the bottom seal must deal with movement, weather exposure and contact with the garage floor.

For garage doors, a heavy-duty bottom seal can provide a more durable solution than a basic vinyl seal. Depending on the application, garage door bottom seals may use durable rubber and aluminum housing to help create a stronger seal.

See our selection of garage door bottom seals for heavy-duty garage door applications.

Which Type of Weatherstripping Is Best for Your Door?

There is no single type of weatherstripping that is best for every door. The right choice depends on the location of the gap, the existing door frame and how the seal needs to be installed.

Find the Right Door Weatherstripping for Your Application

Once you know where the gap is and how your existing weatherstripping is installed, selecting a replacement becomes much easier. TM Hardware offers several types of weatherstripping and door sealing products for different door applications.

For frame applications, browse our door weatherstripping, self-adhesive rubber weatherstripping, kerf frame weatherstripping and metal weatherstripping.

For bottom-of-door applications, see our door bottom seals and door sweeps or automatic door bottoms.

For garage applications, see our garage door bottom seals.

Final Thoughts

Door weatherstripping comes in several styles, and the right choice depends on the door, frame, gap and installation method. Self-adhesive weatherstripping can be a convenient option for many applications, while kerf weatherstripping is designed for frames with an existing kerf channel. Metal weatherstripping can provide a traditional and durable solution, while rubber weatherstripping offers flexibility for different sealing applications.

For gaps underneath the door, a door sweep, door shoe or automatic door bottom may be more appropriate than frame weatherstripping.

The most important step is to identify where the air or light is getting through, measure the existing installation and select a weatherstripping product that fits the door and frame correctly.
