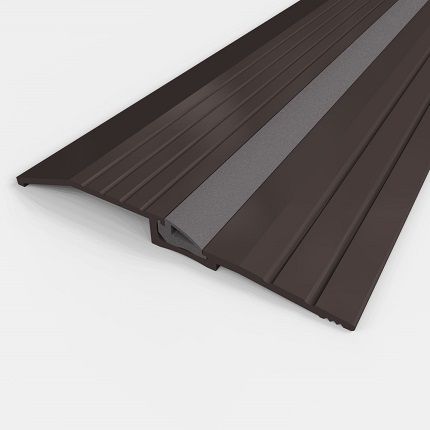

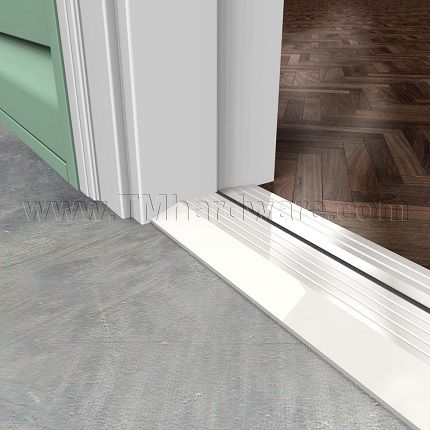

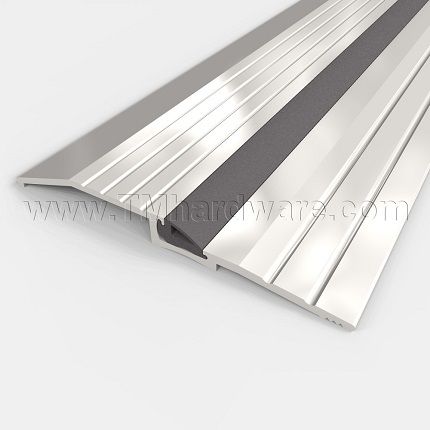

Pemko #2010PK Acoustic Threshold, 5" Aluminum with PemkoPrene Seal and Concealed Screws, .5" Height
This ADA Compliant, Acoustical Thresholds assists with sound attenuation, helping to muffle the sounds that travel through a closed door. It is fitted with a PemkoPrene seal. Made of high quality aluminum, is available with concealed fasteners and two different finish options. Length is custom cut to size.
PRICED PER FOOT
Acoustic Thresholds assist with sound attenuation, helping to muffle the sounds that travel through a closed door. Acoustic thresholds are especially useful in areas where noise levels are different, such as a door from a factory to a conference room, or from a music classroom or theater to the hallway. Also great for homes, on doors between bedrooms and living area.
Width: 5"
Interior Height: .25"
Exterior Height: .5"

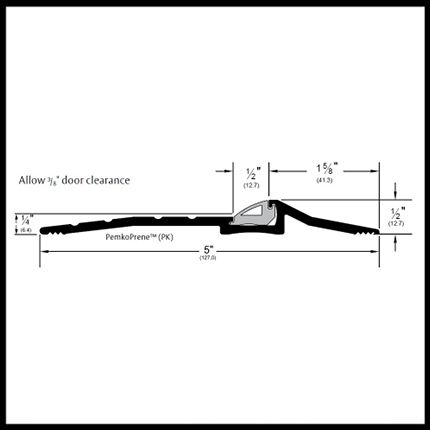

Recommended Door Clearance: 3/8"
Length:Â Custom cut to size up to 104" (larger sizes can be purchased through our office)
Seal: Fitted with an PemkoPrene Seal with great compression properties.
Compliance Details: UL GreenGuard Gold Compliant; Air, Sound, and Fire Rated; ADA Compliant and BHMA Certified. Pemkote Finish has non-slip ratings. See product data for more details.
Quality: Saddle is made of aircraft grade aluminum to ensure body will not buckle and warp, even through constant usage.

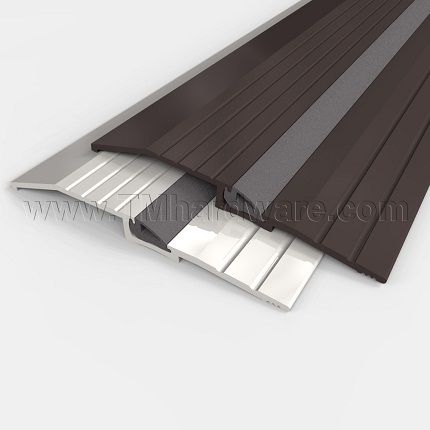

Available Finishes: Aluminum Mill Finish, Dark Bronze Anodized Aluminum.
Installation:Â Installation guide and screws provided. Screws are colored to blend unobtrusively with casing. If installing into concrete, Expansion Anchors are recommended (not included, can be purchased through our office)
Fasteners: Also available with Concealed Fasteners, select from options above. Concealed fasteners are drilled under the seal which prevent exposed mounting screws. Once threshold is installed, the seal can be easily slid above fasteners.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a similar latching panic exit threshold see our P2009PK - Aluminum Acoustic Threshold with PemkoPrene Seal.
-
QuickShipNo
-
ManufacturerPemko Manufacturing

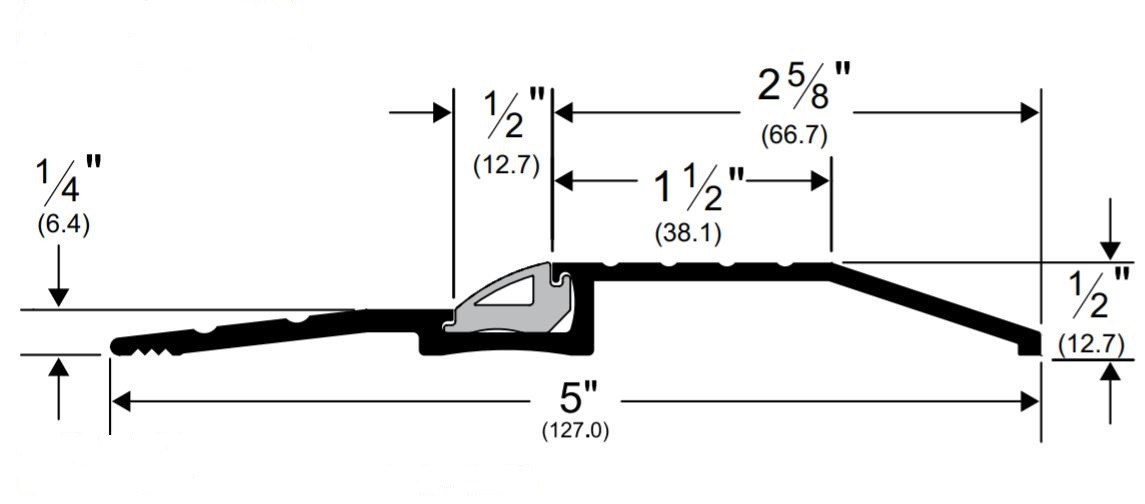

- Dimensions
-
Overall Height.5" Height
-
Interior Height.25" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Seal / Bumper Threshold
-
Seal TypePemkoPrene® Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Aluminum Mill Finish - US27 / 719
- Dark Bronze Anodized Aluminum - US10B / 710
