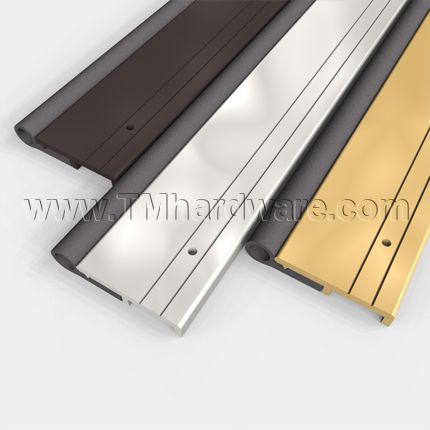

Pemko #319N Door Gasket, 1" Aluminum Casing with EPDM Ring Seal

This surface mounted head and jamb protection is fitted with an EPDM Ring Seal which compresses against the door to form a reliable protection. This gasketing weatherstrip is designed to seal gaps up to 1/16", though it can seal up to the depth of its seal. Casing is available in three anodized finishes and is custom cut to size.

PRICED PER FOOT.



See tabs below for additional information
    • SKU
      PK319CN
    • Market price:$16.80
      • save 15%
    • Starting price: Price: $14.28 per foot

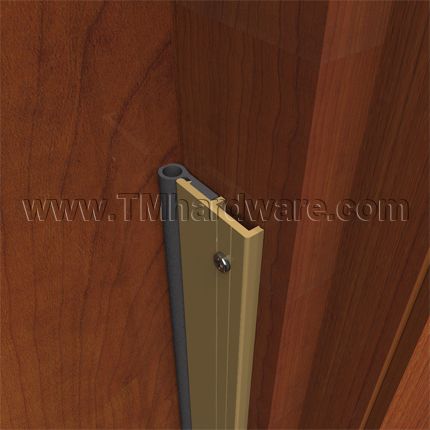

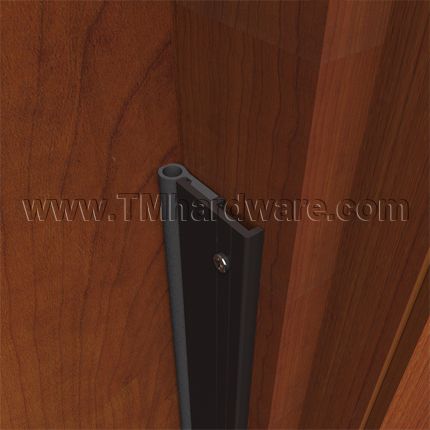

    This gasketing weatherstrip is applied along the header and jamb of a door frame to seal the gaps along the perimeter of the door. It is fitted with a high quality EPDM bulb seal which prevents infiltration of  fire, smoke, sound, drafts and light. Casing is available in three finishes and is custom cut to size.

    Key Features of this Product Include:

    Seal: Made of EPDM which is comparable to Sponge Neoprene, but is more eco-friendly and delivers overall better performance. Specifically, it has great sound control properties and is resistant to solvents.

    Gasket is designed to seal gaps of 1/16", however it can seal up the depth of its seal.

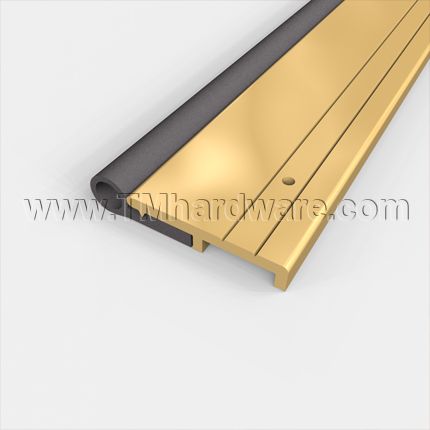

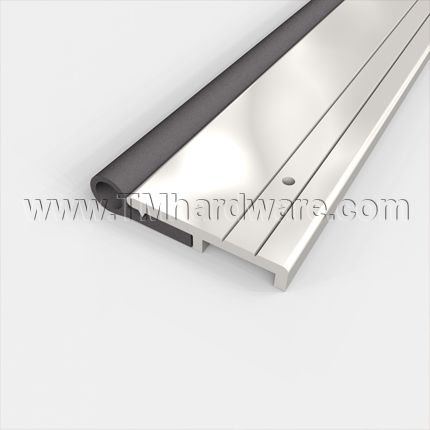

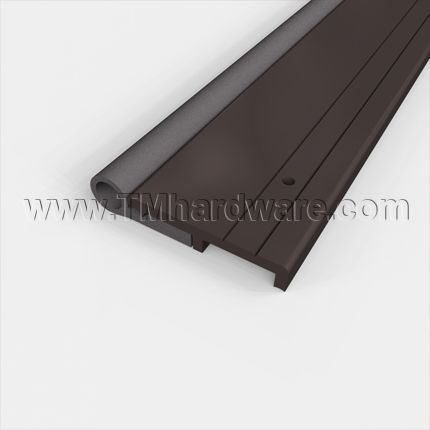

    Casing: The gasketing seal is housed in a high quality aluminum anodized casing which is surface mounted to the stop of the door. The casing is punched with elongated slots which allow for easy adjustments while installing. Casing has dimensions of 1" x .1875".

    Compliance: This door gasket is rated for Fire, Smoke and Air Infiltration, is BHMA Certified and UL Listed and is GreenGuard Gold compliant, too. See Product Specs tab for more information.

    Installation: Installation guide and screws are provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    To view a similar product, see our 1" Door Gasket with Sponge EPDM or Sponge Silicone Seal.

      • SKU
        PK319CN
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      319N
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

    Click to Print



    P319N Product Specs:

    Product Specs for Pemko 319N Door Gasket with EPDM Ring Seal

    Click to Print



    P319N Installation Guide:

    Installation Guide for Door Gasket with EPDM Ring Seal by Pemko

    Click to View Ratings Explained

    Compliance Details for Pemko 319N Door Gasket with EPDM Seal



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Clear Anodized Aluminum - US28 / 628
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688

    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Freight Items: Orders containing items sized 90" - 96" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 97" and above have an oversize surcharge of $250.00.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within ten (10) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
