Pemko #319RS Door Gasket, 1" Aluminum Casing with Sponge EPDM or Sponge Silicone Seal

Pemko #319RS Door Gasket, 1" Aluminum Casing with Sponge EPDM or Sponge Silicone Seal
Product Specs of Door Gasket #319R Clear Anodized Door Gasket Door Gasket with Sponge Rubber Seal Dark Bronze Door Gasket Door Gasket with Sponge Rubber Seal Gold Anodized with Sponge Rubber Seal Door Gasket with Sponge Rubber Seal
0.0

This surface mounted head and jamb protection is fitted with either a Sponge EPDM or Sponge Silicone seal. This gasketing weatherstrip is designed to seal gaps up to 1/16", though it can seal up to the depth of its seal. Casing is available in three anodized finishes and is custom cut to size.

PRICED PER FOOT.

Market price: $4.56
save 15%
Price: $3.88
Finish
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P319CR
Options Sponge EPDM Seal, Sponge Silicone Seal
Shipping See Shipping Tab Below
Description

This gasketing weatherstrip is applied along the header and jamb of a door frame to seal the gaps along the perimeter of the door. It is fitted with a high quality sponge seal which prevents infiltration of  fire, smoke, sound, drafts and light. Casing is available in three finishes and is custom cut to size.

Key Features of this Product Include:

Seal: Seal material is available in Sponge EPDM or Sponge Silicone. EPDM is comparable to Sponge Neoprene, but is more ecofriendly and delivers overall better performance. Specifically, it has great sound control properties and is resistant to solvents. Sponge Silicone is very resistant is harsh environments. See Understanding Rubber Seals for more information.

Gasket is designed to seal gaps of 1/16", however it can seal up the depth of its seal.

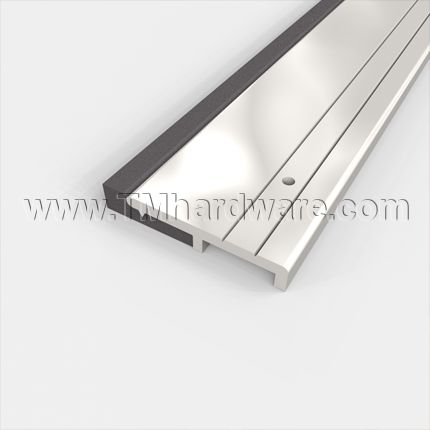

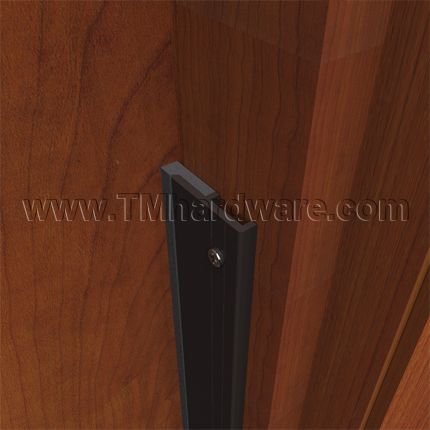

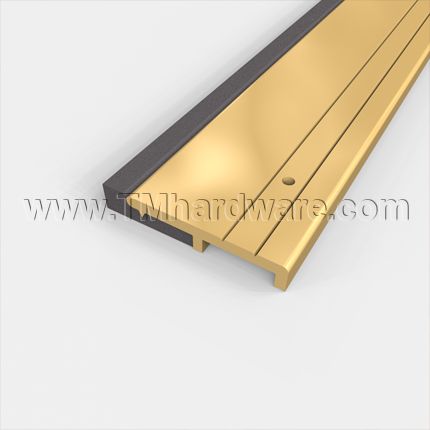

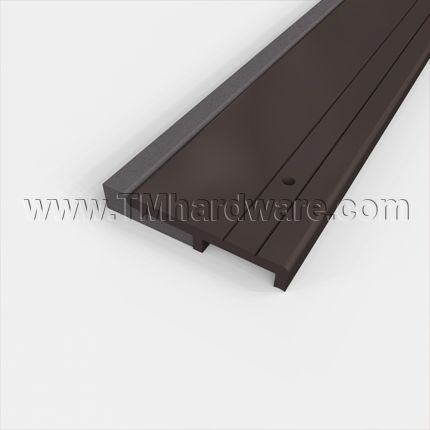

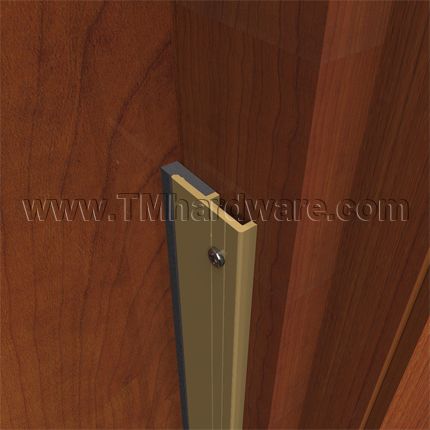

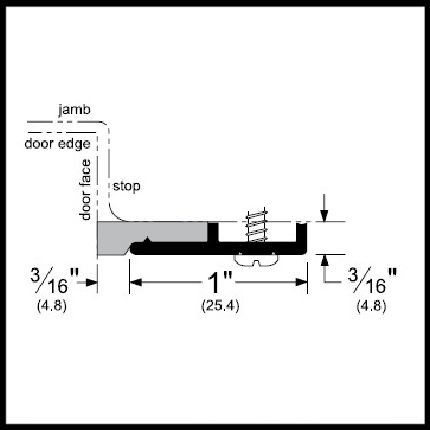

Casing: The gasketing seal is housed in a high quality aluminum anodized casing which is surface mounted to the stop of the door. The casing is punched with elongated slots which allow for easy adjustments while installing. Casing has dimensions of 1" x .187".

Compliance: This door gasket is rated for Fire and Air Infiltration. EPDM Seal has a GreenGuard gold compliance, too. See Product Specs tab for more information.

  • Fire and Air Infiltration Rated
  • Sponge EPDM or Sponge Silicone Seal
  • Header and Jamb Protection
  • Aluminum Anodized Casing
  • Applied Onto Stop
  • Custom Cut to Size

Installation Screws provided. Screws are colored to coordinate with color of casing.

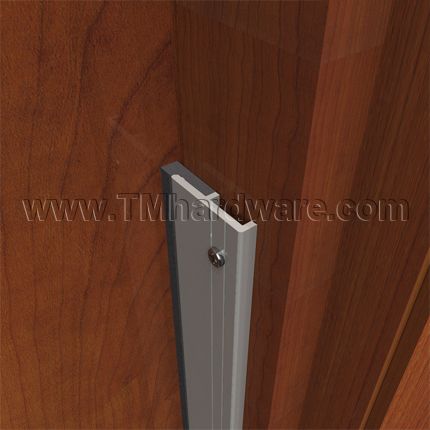

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

To view a similar product, see our 1" Door Gasket with EPDM Ring Seal.

Product Specs

Click to Print

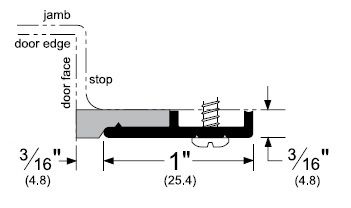

P319RS Product Specs:

Door Gasket for Header and Jamb with Sponge Neoprene Seal

Installation

Click to Print

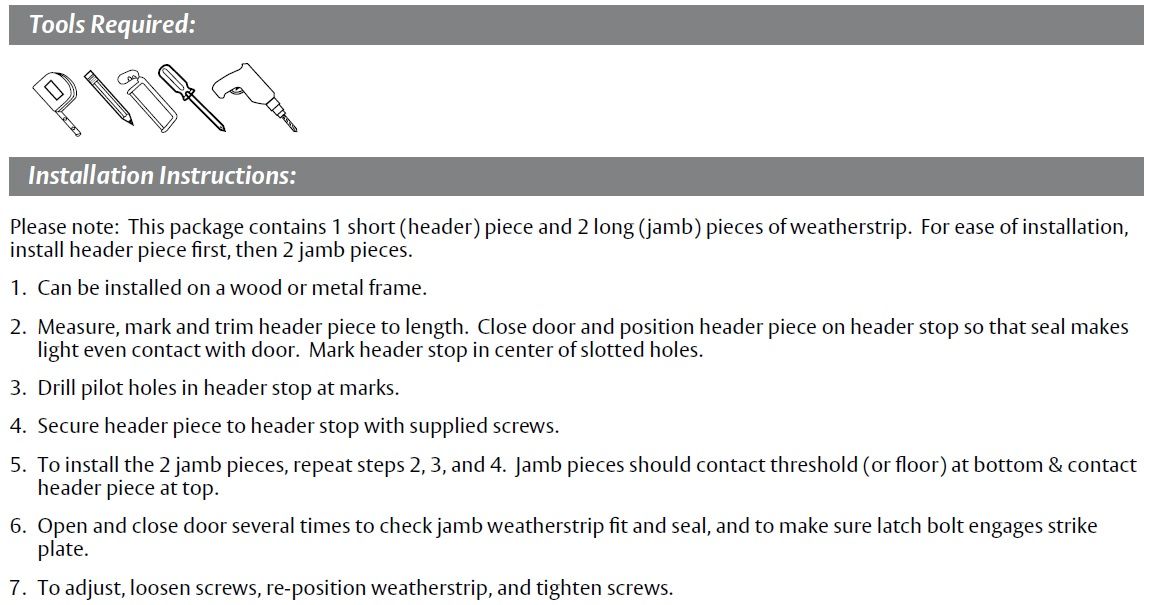

P319RS Installation Guide:

Installation Guide for Door Gasket with Sponge Rubber Seal

Compliance Details

Click to View Ratings Explained

Compliance Details for Door Gasket with Sponge Neoprene Seal



* GREENGUARD GOLD applies only to EPDM Sponge Seal.

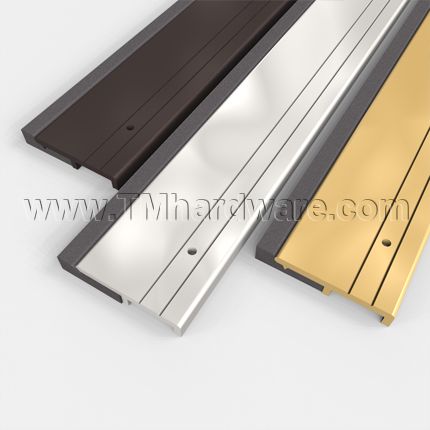

Finishes Comply with the Following ANSI / BHMA Codes:

  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
