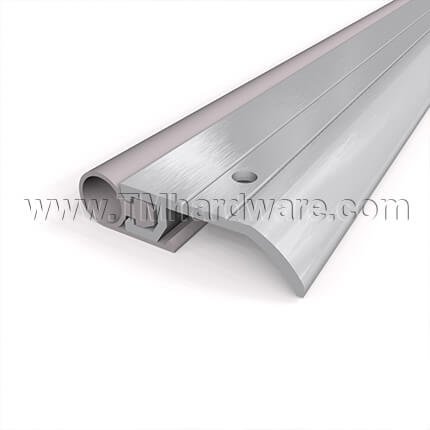

Pemko #297 Door Gasket or Meeting Stile, Aluminum with Rubber Bulb Seal .25"

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. It has a .25" rubber bulb seal which prevents infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes, various seals and mounting options.

Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #297 Door Gasket or Meeting Stile, Aluminum with Rubber Bulb Silicone Seal .25", Mill Finish Aluminum - QuickShip

PRICED PER FOOT

Reminder: If being purchased as a meeting stile for both doors, select quantity 2, or as needed.

See tabs below for additional information

Finish
Seal Type
Size

Quantity

Add to compare

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its .25" rubber bulb will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and with various rubber seals.

Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/4".

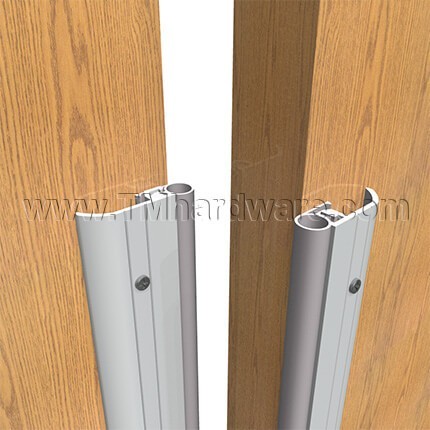

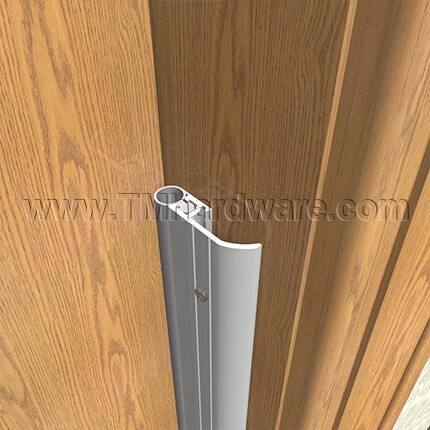

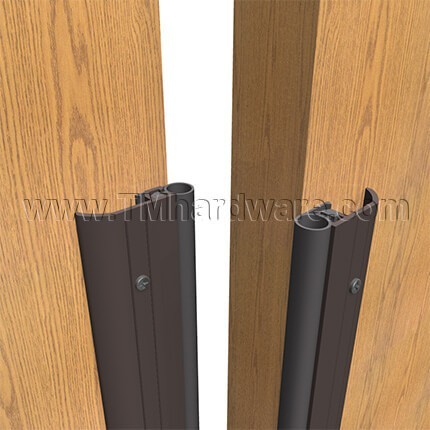

Meeting Stile: This is designed to be applied to a pair of double active doors. It is installed on the face of the door. It can fill gaps of approximately 1/4".

Seal Options: This product can be purchased with a PemkoPrene™, Silicone or Eco-V (Vinyl) Insert. Silicone has the best overall performance and should be used in high performance situations, especially those involving continuous exposure to extreme heat/cold or frequent cleaning with disinfectant. PemkoPrene™ can be applied to general gasketing situations, and locations with frequent use. Eco-V is comparable to vinyl (a lower grade rubber), though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. For more details see Understanding Rubber Seals.

Installation: Product is surface mounted in all applications. Installation holes are punched slotted for easy installation and adjustment.

Installation Instructions and screws provided. Screws are colored to blend unobtrusively with the casing.

Insert Colors: The following insert colors are available: Silicone- Black or White; Eco-V (Vinyl)- Gray, Black or White; PemkoPrene™- Gray or Black. Standard combinations are supplied. To request specific combination, contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5-year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Similar product can be purchased with an Adhesive Backing Option, click to view.

- SKU
  PK297AV
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
297S, 297V, 297PK
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Eco-V (Vinyl), PemkoPrene, Silicone
- Door Type
  Double Active Doors
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  1/4"
- Total Height
  1-1/16"
- Width
  1/4"

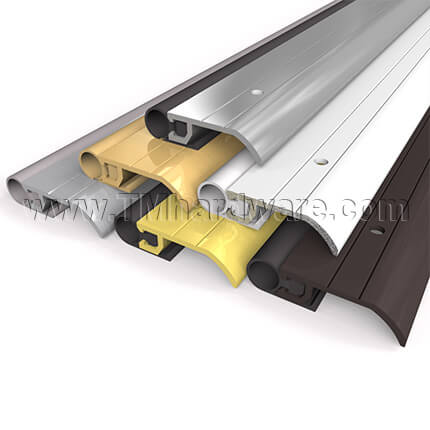

Finishes
- Finish
  Mill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat
Compliance Details
- Compliance Details
  Air Infiltration Rated, Fire Rated, BHMA Certified, UL Classified, GreenGuard Gold Certified
- ANSI Designation
  R3E734, R3E735
- Warranty
  1 Year Limited Warranty

Click to Print

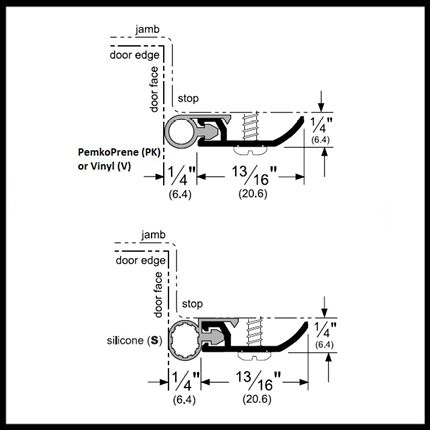

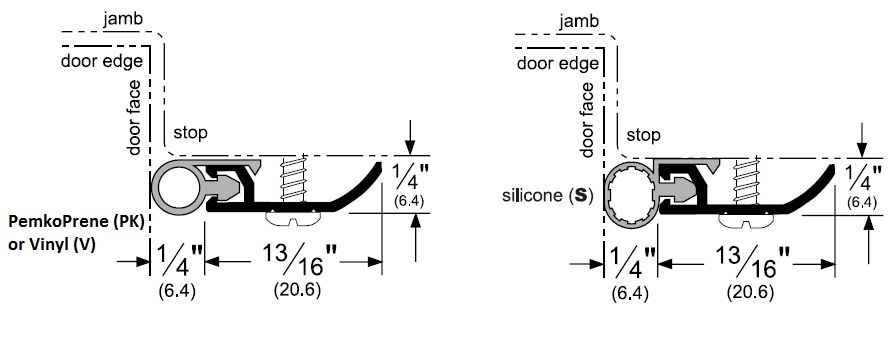

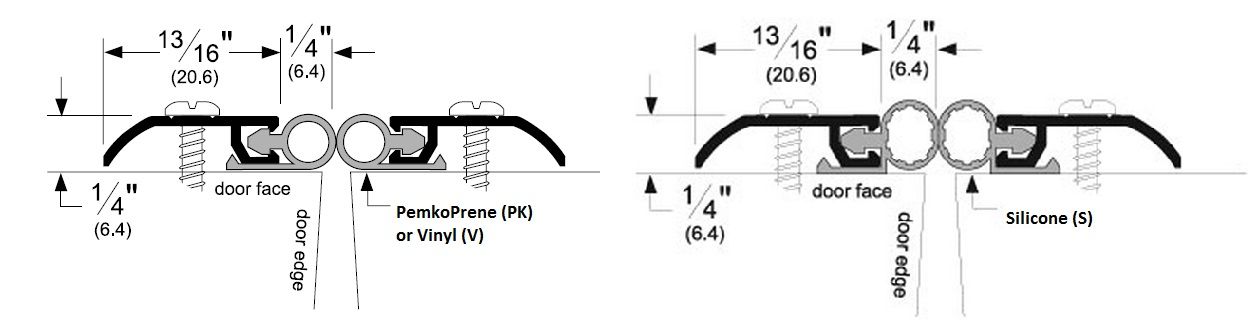

P297 Product Specs:

Door Gasket Application:

Meeting Stile Application:

Click to Print

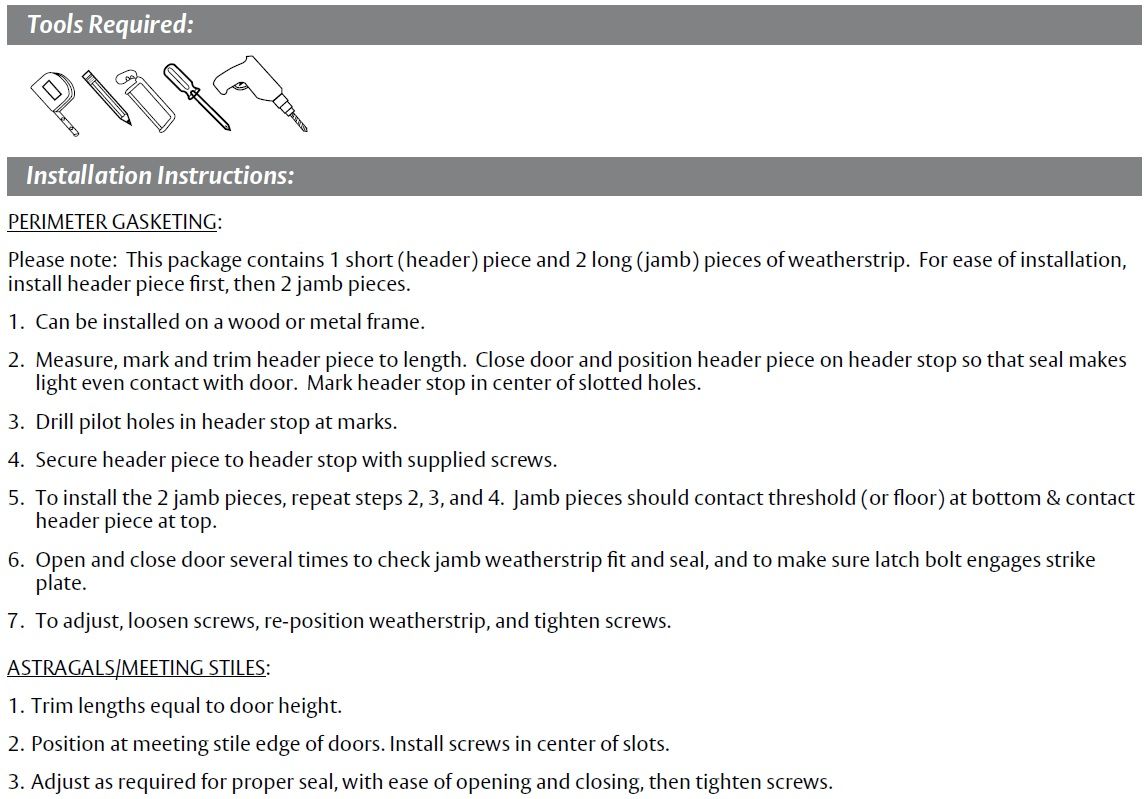

P297 Installation Guide:

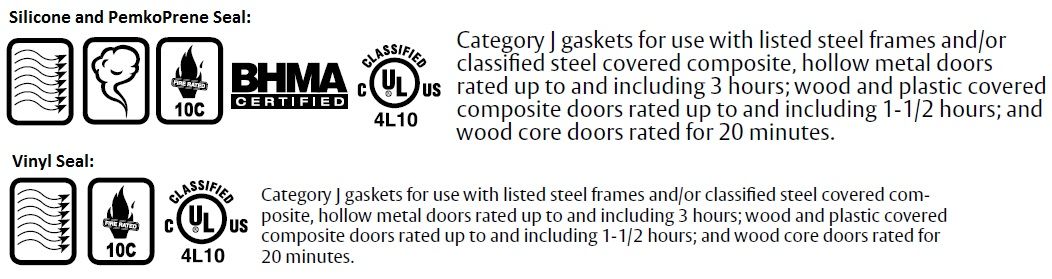

Click to View Ratings Explained

* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
