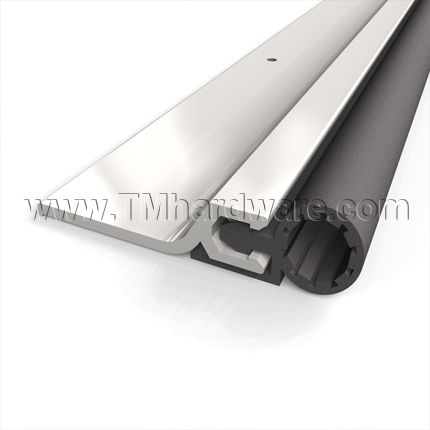

Pemko #303 Door Gasket or Meeting Stile, Aluminum with Rubber Bulb Seal .25"
This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. It has a .25" rubber bulb seal which prevents infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes, various seals and mounting options.
PRICED PER FOOT.
Reminder: If being purchased as a meeting stile for both doors, select quantity 2, or as needed.
This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its .25" rubber bulb will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and in various rubber seal types and mounting options.
Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses against the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/4".
Meeting Stile: This is designed to be applied to a pair of double active doors. It is installed on the face of the door. It can fill gaps of approximately 1/4".
Seal Options: This product can be purchased with a PemkoPrene™, Silicone or Eco-V (Vinyl) Insert. Silicone has the best overall performance and should be used in high performance situations, especially those involving continuous exposure to extreme heat/cold or frequent cleaning with disinfectant. PemkoPrene™ can be applied in general gasketing situations, and locations with frequent use. Eco-V is comparable to vinyl (a lower grade rubber), though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. For more details see Understanding Rubber Seals.
Installation Option: Mounting options include screws or adhesives. The screw option is supplied with stainless steel screws and casing is punched on 6" centers. Adhesive comes with two-sided tape applied to the back of casing, and is supplied with TEK screws. Casing is punched 3 holes per part. Holes are punched slotted for easy installation and adjustment.
Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing.
Insert Colors: The following insert colors are available: Silicone- Black or White; Eco-V- Gray, Black or White; PemkoPrene™- Gray or Black. Default coordinating combinations are supplied. To request specific combinations contact us or call us at 845-388-1300.
Reminder: If being purchased as a meeting stile for both doors, select quantity 2, or as needed.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy
Click here to return to the main door seals category.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN303PK, 303S, 303V
-
MountingScrews, Adhesive and Screws
- About This Product
-
Retainer MaterialAluminum
-
Seal TypeSilicone, PemkoPrene, Eco-V (Vinyl)
-
Door TypeDouble Active Doors, Single Door
-
MountingSurface Mounted
-
- Dimensions
-
Seal Height1/4"
-
Total Height1-1/8"
-
Width1/4"
-
Size (Feet)Custom Cut to Size
-
- Finishes
-
FinishMill Finish Aluminum (US27), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), White Painted Aluminum, Flat Black (US19)
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated, Fire Rated, Smoke Rated, BHMA Certified, UL Classified, GreenGuard Gold Certified
-
ANSI DesignationR3E734, R3E735
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.
- Aluminum Mill Finish - US27 / 719
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Bright Dip Gold Anodized Aluminum - US3 / 707
- Gold Anodized Aluminum - US4 / 688
- Satin Nickel Anodized Aluminum - US15 / 619
- Painted White Aluminum - 714
