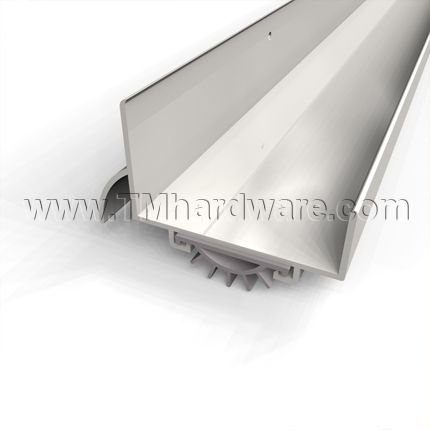

Pemko #216 Door Shoe Sweep, U Shaped Aluminum or Bronze Rain Drip Design with .5" Fingered Rubber
This fire and smoke rated U shaped door shoe can fill the gap under a door with minimal effect on the door's appearance. It is crafted from high quality material and fitted with durable fingered PemkoPrene™ or Eco-V™(Vinyl) insert. Can be purchased for 1.375" or 1.75" width doors. Available in choice of finishes and is custom cut to size
PRICED PER FOOT
Need it sooner? Stock sizes and finishes are available to ship within 1 business day. See our Pemko #216 Door Shoe Sweep - QUICK SHIP.
This fire and smoke rated U Shaped door shoe sweep is ideal for filling gaps under door and for protection for the bottom of the door while minimally affecting the overall appearance of the door. It is also complies with UL Green Guard Gold rating for low VOC Emission, see note. It is crafted from high quality material that will ensure long lasting usage.
The casing is designed with elongated slots of easy adjustments. It is available with either a PemkoPrene™ or Eco-V (Vinyl) insert. The PemkoPrene™ is a thermo-plastic elastomer, which stays flexible in temperatures from -70° to +250°F, making it an ideal cold weather seal, and ensures a longer lasting product than its vinyl counterpart. Eco-V™ is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information. The fingered design conforms well to surface irregularities to ensure a proper protection at all times.
This door shoe can fill gaps up to .5" and can be applied to door with a width of 1.375" or 1.75" (for doors of greater widths, see our Door Shoe Sweep, L Shaped Rain Drip). Addtionally, this door shoe has a rain drip design which deflects water from the door bottom, providing extra protection from the outdoor elements.
Installation instructions and screws provided. Screws are colored to coordinate with casing.
Insert Colors: Aluminum Mill Finish is supplied with a gray insert, Painted White Aluminum is supplied with a white Eco-V (Vinyl) insert or a black PemkoPrene™ insert.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For more door seals, see our Pemko #210 Door Shoe Sweep, L Shaped Aluminum Rain Drip Casing.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN216PK, 216V, 215PK, 215V
- About this Product
-
Door Shoe Retainer MaterialAluminum, Brass
-
Temperature Range-22°F to +220°F (PemkoPrene® Rubber Seal)
-4°F to +122°F (Eco-Vinyl Rubber Seal) -
Door TypeMetal Door, Wooden Door
-
Seal TypePemkoPrene® Rubber Seal, Eco-Vinyl Rubber Seal
-
MountingDoor Shoe Mount
-

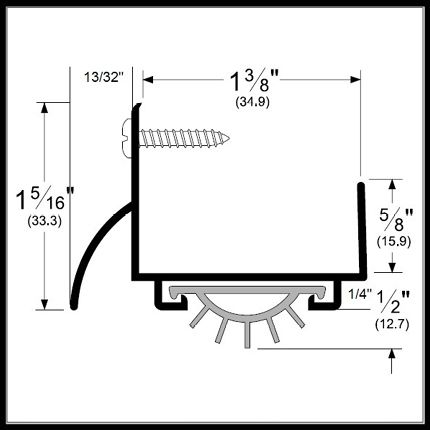

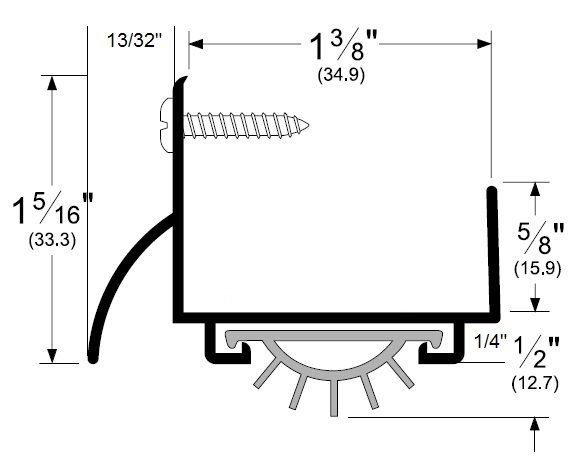

- Dimensions
-
Seal Height1/2" Height
-
Total Height1-5/16" Height
-
Additional DimensionsDoor seal is 1-3/4" thick
-
LengthCustom Cut to Size
-
Door Thickness1-3/4" Thick, 1-3/8" Thick
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation ScrewsScrews are provided
-
- Special Features
-
Rain Drip CapYes
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), White Suede Powder Coat, Black Suede Powder Coat, Flat Black (US19)
-
- Compliance Details
-
Compliance DetailsSmoke Rated, Fire Rated, BHMA Certified, UL Classified, GreenGuard Gold Certified
-
ANSI DesignationR3G514
-
Warranty5 Year Limited Warranty
-
This product can be purchased with a PemkoPrene™ or Vinyl Insert.
PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.
Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
Click Here to Print Product Specs
Click Here to Print Installation Instructions
1-3/8" Doors (1.375"):
1-3/4" Doors (1.75"):
Please contact us for details and availability on custom fabrications. Note, custom fabrications is only available on bulk purchases.
Full Notch includes removal of rain drip and front flange of door shoe to prevent interference with door stop and weatherstrip. Available in 1/2".
Half Notch includes removal of rain drip to prevent interference with door stop and weatherstrip. Available in 1/2".
Click to View Ratings Explained
* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.
Finishes Comply with the Following ANSI / BHMA Codes:
- Aluminum Mill Finish - US27 / 719
- Bronze Mill Finish (Brass) - US4 / 720
- Dark Bronze Anodized Aluminum - US10B / 710
- Bright Dip Gold Anodized Aluminum - US3 / 707
- Gold Anodized Aluminum - US4 / 688
- Satin Nickel Anodized Aluminum - US15 / 619
- Painted White Aluminum - 714
