Pemko #2211 Door Shoe Sweep, U Shaped, Aluminum with Rain Drip and 3" Kick-Plate and Fingered Rubber Seal

Pemko #2211 Door Shoe Sweep, U Shaped, Aluminum with Rain Drip and 3" Kick-Plate and Fingered Rubber Seal
Product Specs of Rubber Door Shoe #2211 Aluminum Mill Finish Door Shoe Sweep Dark Bronze Anodized Door Shoe Sweep Gold Anodized Door Shoe Sweep

This Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5". It combines a kick-plate and a Rain Drip Cap with the casing for extra protection from traffic abuse and to deflect water. It is rated for Fire, Smoke, Sound, Air Infiltration and Low VOC Emission (see below) and is compatible with doors of 1.75" thickness. Available in three aluminum finishes, two inserts and is custom cut to size.

PRICED PER FOOT.

Market price: $14.88
save 15%
Price: $12.65
Finish
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P2211AV
Options PemkoPrene or Eco-V (Vinyl) Seal
Shipping See Shipping Tab Below
Description

Door shoes are ideal for protecting the bottom of doors while only barely affecting its overall appearance. This U Shaped Door Shoe Sweep is rated for fire, smoke, air infiltration, sound and low VOC Emission. It combines a fingered seal, kick-plate and rain drip design for superior protection. Available in three aluminum finishes, two inserts and is custom cut to size.

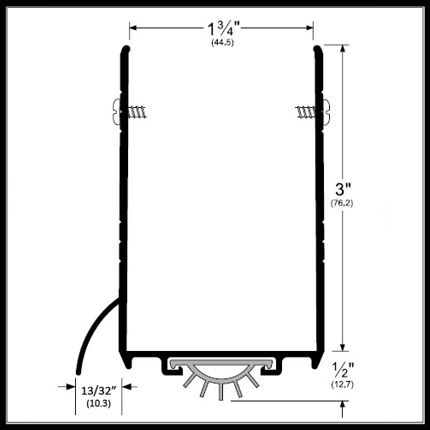

Casing: This door shoe sweep combines a kick-plate with its casing to provide extra protection to the door and prevent damage from occurring due to frequent traffic. It can also be applied to old doors that have been badly damaged and to restore the door to working condition, thus eliminating the need to replace the door. The sides of the casing extend up the face and back of the door 3" and can be applied to doors 1.75" width.

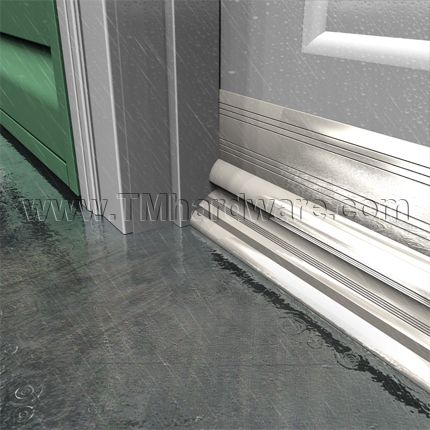

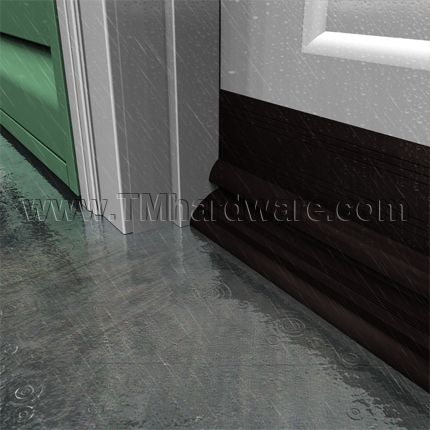

Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

Seal: This door bottom is fitted with either a PemkoPrene™ or Eco-V™ Fingered Seal which can fill gaps up to .5". The fingered design compensates for any misalignment on the floor and ensures a proper seal at all times. Additionally, it remains flexible in extreme weather to provide superior performance.

Installation: When installing a U-Shaped Door shoe, the door needs to be removed, however, it has the benefit of being sturdier and longer-lasting than its L-Shaped Door Shoe counterpart. This casing is punched with elongated slots to allow for adjustment once applied to the door.

Insert Options: This door hardware is available with PemkoPrene™ or Eco-V inserts. PemkoPrene™ is a thermo-plastic elastomer which stays flexible in temperatures between -70º and +250ºF, making it ideal for exterior doors and ensures a longer-lasting product than its vinyl counterpart. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information.

The insert is made of high quality material that will last through much usage, however, if needed, it can be replaced without removing the track. To purchase replacement, visit our Pemko Fingered Insert Replacement.

  • Fire, Smoke, Sound and Air Infiltration Rated
  • Eco-V is UL GREENGUARD Gold Classified
  • PemkoPrene™ or Eco-V™ Fingered Seal
  • Seals Gaps up to .5"
  • Compatible with 1.75" Doors
  • Kick-Plate Extends 3" on Face of Door for Extra Protection
  • Rain Drip Design Deflects Water to Prevent Seepage
  • Aluminum Mill and Anodized Aluminum Finishes
  • Length is custom cut to size

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Insert Colors: Aluminum Mill Finish is supplied with a Gray Insert. All other finishes are supplied with a Black Insert. Eco-V is also available in White.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a similar product see our U Shaped Door Shoe with Rain Drip Cap and Fingered Seal.

Insert Material

This product can be purchased with a PemkoPrene™ or Eco-V Insert.

PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for  PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.

Eco-V(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.

Door Shoe Fabrication Options

Contact us for pricing and availability on custom fabrications. Note, custom fabrications is only available on bulk purchases.



Full Notch includes removal of rain drip and front flange of door shoe to prevent interference with door stop and weatherstrip. Available in 1/2".

Half Notch includes removal of rain drip to prevent interference with door stop and weatherstrip. Available in 1/2".

Compliance Details

Click to View Ratings Explained

* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.

Finishes Comply with the Following ANSI / BHMA Codes:

  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
