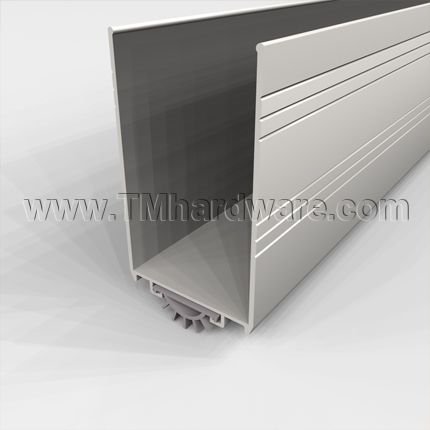

Pemko #221 U Shaped Door Shoe, 3" Kick Plate, .5" Fingered Seal - 36" Length - QUICKSHIP

Aluminum Mill Finish
Pemko Manufacturing

This Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5" at your door bottom.  It combines a kick-plate with the casing for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door.

  • Length: 36" Length
  • Finish: Aluminum Mill Finish
  • Door Thickness: 1.75" Thick

PRICED PER ITEM

This QuickShip item is available in stock sizes. For custom sizes and finishes, see our Pemko #221 Door Shoe and Kickplate.

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      PK221AV36
    • Market price:$60.56
      • save 10%
    • Starting price: Price: $54.51 per item


    Door shoes are ideal for protecting the bottom of doors while only barely affecting its overall appearance.

    Casing: This door shoe sweep combines a kick-plate with its casing to provide extra protection to the door and prevent damage from occurring due to frequent traffic. It can also be applied to old doors that have been badly damaged and to restore the door to working condition, thus eliminating the need to replace the door. The sides of the casing extend up the face and back of the door 3" and can be applied to doors 1.75" width.

    Seal: This door bottom is fitted with an Eco-V™ Fingered Seal which can fill gaps up to .5". The fingered design compensates for any misalignment on the floor and ensures a proper seal at all times. Additionally, it remains flexible in extreme weather to ensure  superior performance.

    Installation: When installing a U-Shaped Door shoe, the door needs to be removed, however, it has the benefit of being sturdier and longer-lasting than its L-Shaped Door Shoe counterpart. This casing is punched with elongated slots to allow for adjustment once applied to the door.

    The insert is made of high quality material that will last through much usage, however, if needed, it can be replaced without removing the track. To purchase replacement, visit our Pemko Fingered Insert Replacement.

    Installation Guide and screws provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For an upgraded product, visit our Door Shoe and Kick-Plate with Rain Drip Cap and Fingered Rubber Seal.

      • Weight
        4 lbs
      • SKU
        PK221AV36
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      221V
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -22°F to +220°F (PemkoPrene)
        14°F to +122°F (Vinyl)
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Eco-Vinyl Rubber Seal
      • Mounting
        Door Shoe Mount
    • Dimensions
      • Seal Height
        1/2" Height
      • Total Height
        3-1/2" Height
      • Additional Dimensions
        Door seal is 1-3/4" thick
      • Length
        36" Length
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, Air Infiltration Rated, Sound Rated, BHMA Certified, UL Classified
      • ANSI Designation
        R3D414, R3G414
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P221 Product Specs:

    Click to Print



    P221 Installation Guide:

    PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for  PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.

    Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
