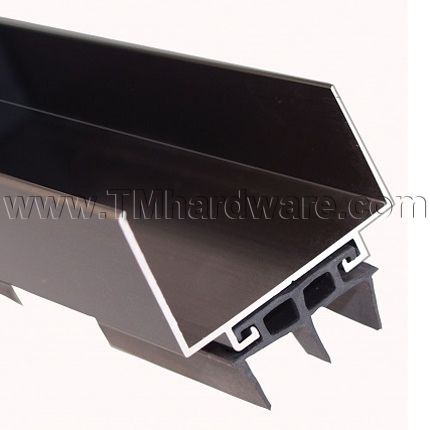

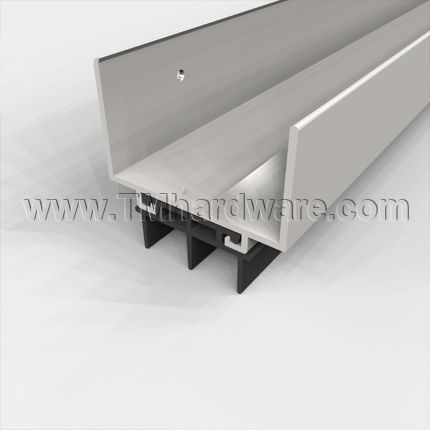

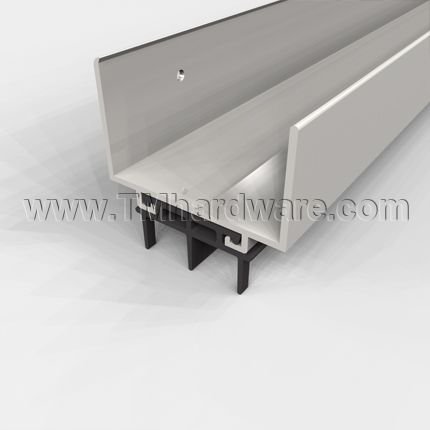

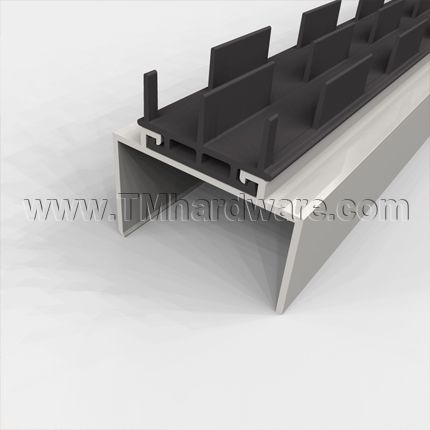

Pemko #2173 Door Shoe Sweep, U-Shaped Aluminum with .69" Notched Eco-V (Vinyl) Triple Fin Seal

A Door Shoe is ideal for protecting the bottom of your door while providing a solid seal. This door shoe is compatible with 1.75" thick doors. It is fitted with a black, pliable Eco-V (Vinyl) notched or standard seal, see below for details. Available in various aluminum finishes and is available in stock sizes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      PK2173AV36
    • Market price:$39.70
      • save 10%
    • Starting price: Price: $35.73 per item


    Door Shoe Sweeps can be applied to a door to prevent light, moisture, dust, drafts, air, sound, smoke and fire from infiltrating the gap under doors. The seal runs along the bottom of the door, rather than on the outside edge so installation may require removing the door. However, it creates a stronger and sturdier seal than a standard door bottom seal and is generally less visible.

    Key features of the door shoe include:

    Eco-V Seal: Door Shoe is fitted with a black, pliable, triple fin Eco-V (Vinyl) seal. Eco-V is comparable to vinyl, though it is a newer and more environmentally friendly version and surpasses the durability and quality of standard vinyl. It has Low VOC Emissions and can be used to achieving criteria in green building ratings programs. The Eco-V is made of pliable material which ensures a low closing force that will not impede on operation of door. See Understanding Rubber Seals for more information.

    Seal Design: Seal can be purchased notched or standard, select from options above. The seal can seal up to .69" and is very flexible to ensure great sealing properties with minimal closing force. Though the seal is designed to perform well through frequent usage, it can be easily replaced if wear is present over time.

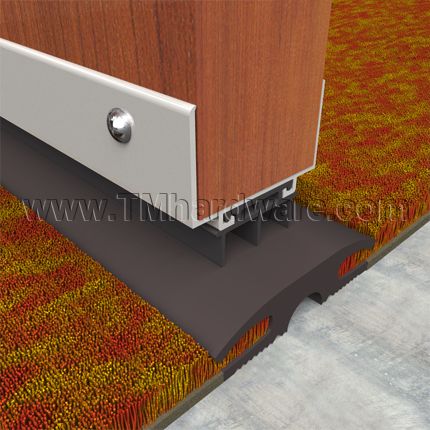

    The door sweep can be used directly over a floor surface or in conjunction with a doorway threshold. Pemko Vinyl Thresholds / Dividers are specifically designed to be compatible with this door sweep.

    Notched Seal: The notched seal has an alternating notched pattern allowing HVAC systems and bathroom fans to circulate under doors. It is ideal for hotels, dormitories or applications where air circulation is required, while preserving privacy and blocking light and sound. For Unnotched seal select checkbox in options above and seal will come without the notched pattern.

    Retainer: Insert is housed in an aluminum retainer that's compatible with 1.75" doors and has minimal effect on the appearance of the door.  It protects the bottom of the door from damage, thereby extending the life of the door. Retainer is punched with elongated slots for easy adjustments once applied. Available in various anodized aluminum finishes to coordinate with door color and other hardware on door.

    Installation guide and screws provided. Screws are colored to blend unobtrusively with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Product has a 5 year guarantee against defects in material and workmanship
     Click here to view our Full Warranty Policy.

    For a complete hospitality (light and sound reduction) system, also apply our Triple Fin SiliconSeal Adhesive Weatherstrip.

      • SKU
        PK2173AV36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      2173V, 2173VUN
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Eco-Vinyl Rubber Seal
      • Mounting
        Door Shoe Mount
    • Dimensions
      • Seal Height
        11/16" Height
      • Total Height
        1-10/16" Height
      • Additional Dimensions
        Door seal is 1-3/4" thick
      • Length
        36" Length, 48" Length
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided

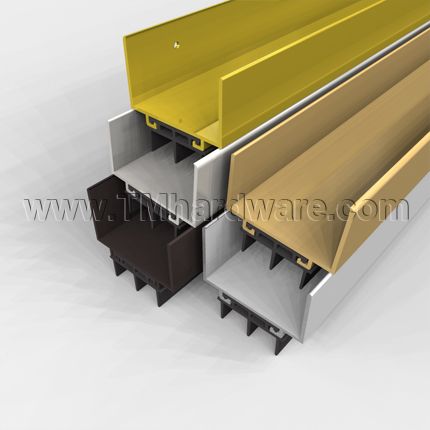

    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), White Painted Aluminum
    • Compliance Details
      • Compliance Details
        GreenGuard Gold Certified, Air Infiltration Rated, Fire Rated, Sound Rated
      • ANSI Designation
        R3D414, R3D415
      • Warranty
        5 Year Limited Warranty

    Click to Print

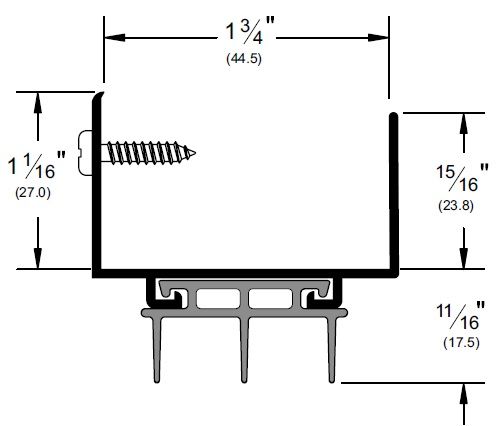

    P2173 Product Specs:

    Click to Print

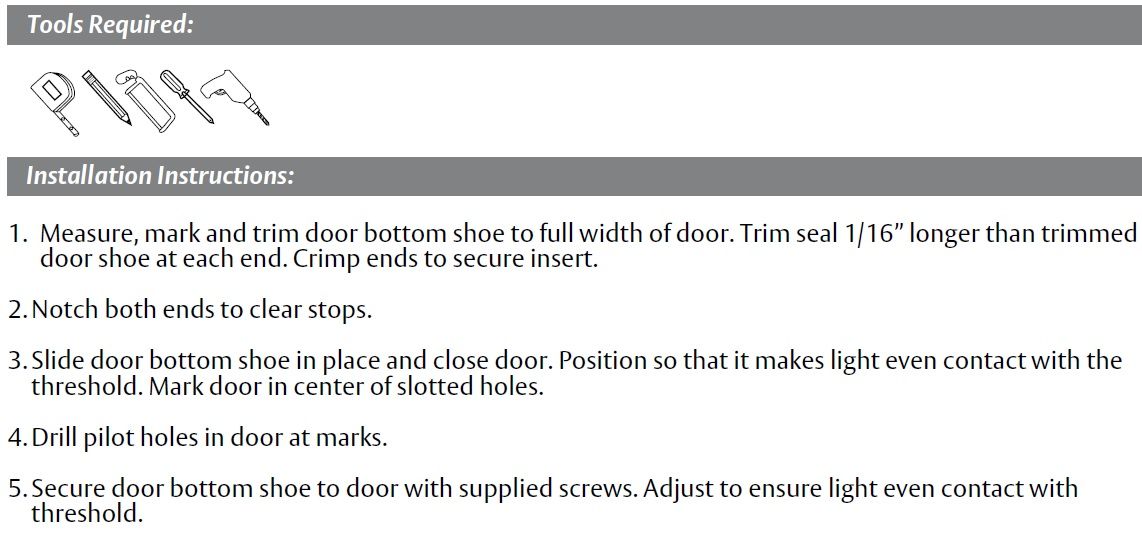

    P2173 Installation Guide:

    Click to View Ratings Explained




    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Bright Dip Gold Anodized Aluminum - US3 / 707
    • Gold Anodized Aluminum - US4 / 688
    • Painted White Aluminum - 714
