Pemko #29310P Meeting Stile or Door Gasket, Concealed Screws, Pile

Pemko #29310P Meeting Stile or Door Gasket, Concealed Screws, Pile
Product Specs with Door Gasket #29310 Meeting Stile with Pile Brush Seal Aluminum Mill Finish Pair of seals closes the gap Surface mounted with concealed screws Strong Aluminum Casing, Durable Pile Seal As a door gasket Dark Bronze Anodized and Pile Brush Seal Strong Aluminum Casing, Durable Pile Seal As a door gasket Gold Anodized Aluminum with Pile Brush Seal Pair of seals closes the gap Surface mounted with concealed screws As a door gasket
0.0

Stop unwanted drafts, dirt, insects, light, and sound from infiltrating past your doors with this easy-to-install door seal. A strong aluminum housing, designed to conceal all screws for an aesthetic upgrade, is equipped with a durable pile brush seal. Sealing the gap between and around doors decreases energy waste and helps you save money on utility bills. Fire rated and available in three aluminum finishes. Custom cut to size.

PRICED BY THE FOOT

How to Order: If required for both faces of a pair of double doors, select 'quantity 2' or as needed.

Market price: $6.00
save 20%
Price: $4.80
Finish
Size (Inches)
Qty
Save to wishlist
SKU P29310CP
Shipping See Shipping Tab Below
Description

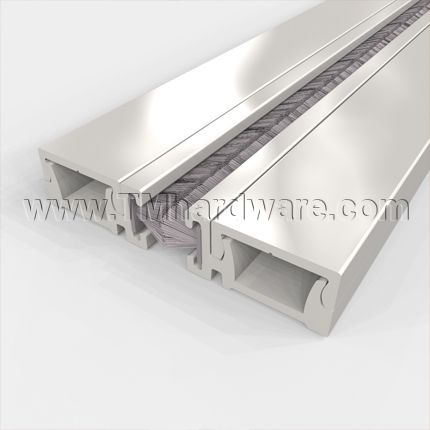

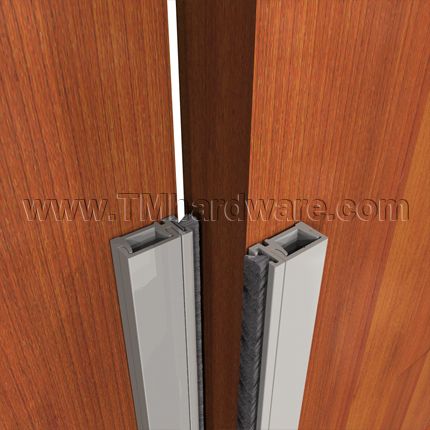

This aluminum and pile brush meeting stile or door gasket is surface mounted to the face of the door. As a meeting Stile, it seals the gap between apair of double doors. It can also be used as a door gasket to seal the perimeter of the door. Closing the gap between and around doors reduces energy waste and halts the passage of drafts, dirt, insects, light, and sound past your doors.

Key features of this product:

Ratings: This door seal is fire rated. Meeting Stiles with a fire rating may be mounted on pairs of doors that has a gap that meets the requirements of NFPA 80, 2-5.4.

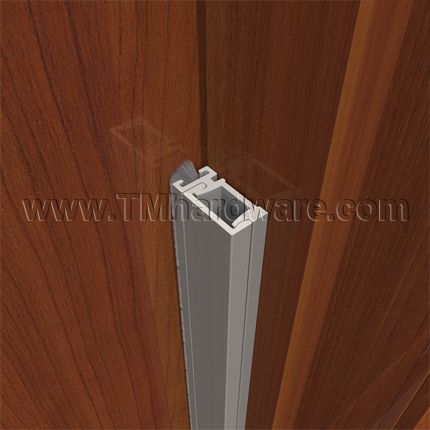

Applications: This door seal is surface mounted to the faces of a pair of double doors. Alternatively, it can be surface mounted around the perimeter of a door as a gasket. Surface mounted installations are quick and easy.

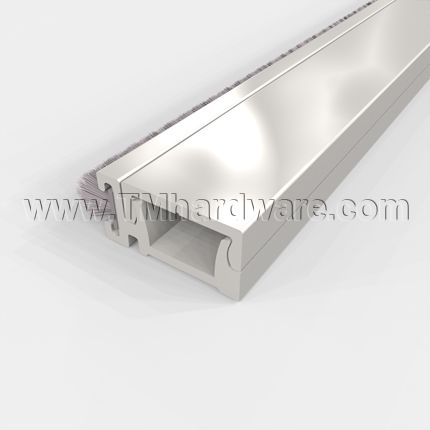

Design: The aluminum housing has a concealed screw compartment, which can help maintain the aesthetic, neat appearance of the doorway.

Dimensions: The aluminum housing measures .75” and the pile brush extends .1875” (see product specs). The total combined width is .9375”. Casing is raised from the door by .375”.

Finishes: Available in clear anodized aluminum, dark bronze anodized aluminum, and gold anodized aluminum.

  • Fire rated Meeting Stile or Door Gasket
  • Strong anodized aluminum with durable pile brush seal
  • Easy installation
  • Concealed Screw Compartement
  • .9375” Wide, .375” Depth
  • Custom cut to size

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For a Meeting Stile that is installed between the doors, see our Meeting Stile, Pile Brush, Surface or Mortised Mount, .344" Depth

Product Specs

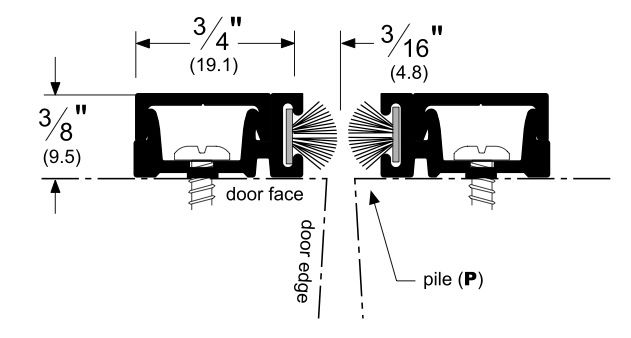

Meeting Stile Application

Click to Print Product Specs

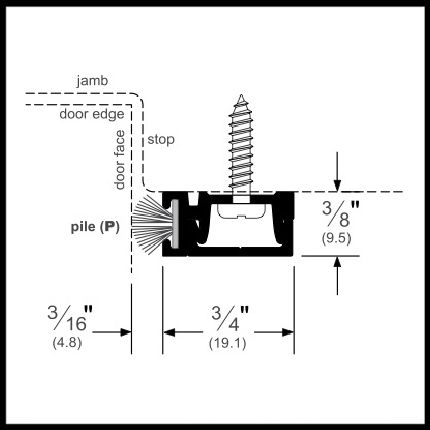

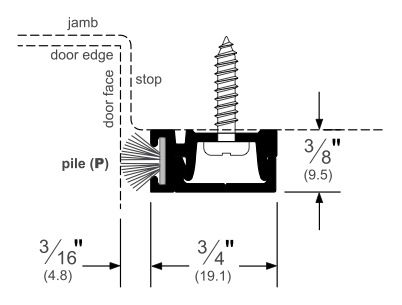

Door Gasket Application

Click to Print Product Specs

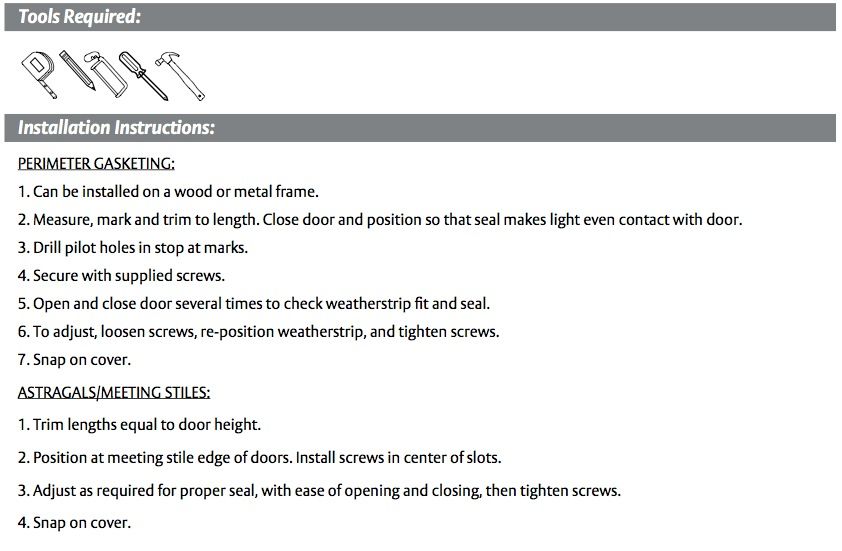

Installation
Compliance Details

Click to View Ratings Explained


Finishes Comply with the Following ANSI / BHMA Codes:
  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
