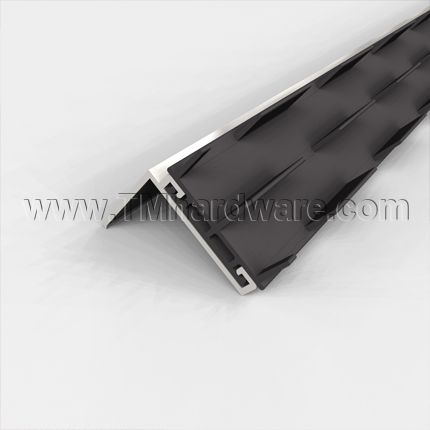

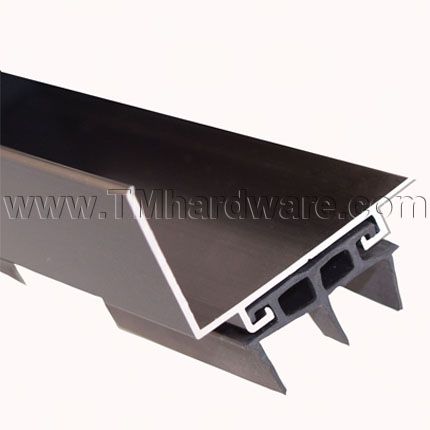

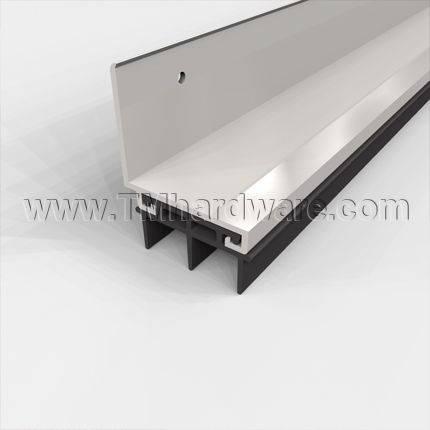

Pemko #2113 Door Shoe Sweep, L Shaped Aluminum with .69" Eco-V (Vinyl) Triple Fin Seal

Pemko #2113 Door Shoe Sweep, L Shaped Aluminum with .69" Eco-V (Vinyl) Triple Fin Seal
Product Specs of Rubber Door Shoe #211 Aluminum Mill Finish Un-Notched Seal Aluminum Mill Finish with Notched Seal Notched Seal Design Dark Bronze Anodized Un-Notched Seal Dark Bronze Anodized with Notched Seal Notched Seal Design Gold Anodized Un-Notched Seal Gold Anodized with Notched Seal Notched Seal Design

A Door Shoe is ideal for protecting the bottom of your door while providing a solid seal. This door shoe is compatible with doors of varying widths. It is fitted with a black, pliable Eco-V™ (Vinyl) or standard triple fin seal, see below for details. Available in various aluminum finishes and available in stock sizes.

Market price: $31.24
save 15%
Price: $26.55
Seal Type
Size (Inches)
Save to wishlist
SKU P2113AV36
Options Notched or Standard Seal
Shipping See Shipping Tab Below

Door Shoe Sweeps can be applied to a door to prevent light, moisture, dust, drafts, air, sound, smoke and fire from infiltrating the gap under doors. The seal runs along the bottom of the door, rather than on the outside edge which creates a stronger and sturdier seal than a standard door bottom seal and is generally less visible. It can be applied without removing the door.

Key features of the door shoe include:

Eco-V Seal: Door Shoe is fitted with a black, pliable, triple fin Eco-V™ (Vinyl) seal. Eco-V is comparable to vinyl, though it is a newer and more environmentally friendly version and surpasses the durability and quality of standard vinyl. It has Low VOC Emissions and can be used to achieving criteria in green building ratings programs. Vinyl retains its shape through temperatures above -4° up to 122° F. See Understanding Rubber Seals for more information.

Seal Design: Seal can be purchased notched or standard, select from options above. The seal can seal up to .69" and is very flexible to ensure great sealing properties with minimal closing force. Though the seal is designed to perform well through frequent usage, it can be easily replaced if wear is present over time.

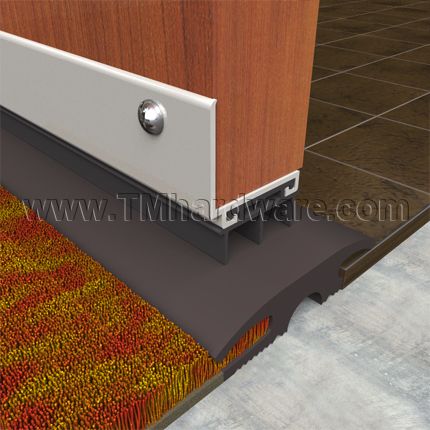

The door sweep can be used directly over a floor surface or in conjunction with a doorway threshold. A threshold is recommended as it provides a more reliable seal. Pemko Vinyl Thresholds / Dividers are specifically designed to be compatible with this door sweep.

Notched Seal: The notched seal has an alternating notched pattern allowing HVAC systems and bathroom fans to circulate under doors. It is ideal for hotels or applications where air circulation is required, while preserving privacy and blocking light and sound.

Retainer: Insert is housed in an aluminum L Shaped retainer that's compatible with doors of varying width over 1.3" and has minimal effect on the appearance of the door.  It protects the bottom of the door from damage, thereby extending the life of the door. Retainer is punched with elongated slots for easy adjustments once applied. Available in various anodized aluminum finishes to coordinate with door color and other hardware on door.

  • Fire, Sound and Air Infiltration Rated
  • Compatible with Various Width Doors
  • Pliable, Black, Eco-V Triple Fin Seal
  • Notched Seal Version Allows Airflow
  • Anodized Aluminum Casing
  • Can be Applied Without Removing the Door
  • Seals up to .69"

Installation guide and screws provided. Screws are colored to blend unobtrusively with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Product has a 5 year guarantee against defects in material and workmanship
Click here to view our Full Warranty Policy.

For a complete hospitality (light and sound reduction) system, also apply our Triple Fin SiliconSeal Adhesive Weatherstrip.

Product Specs

Click to Print

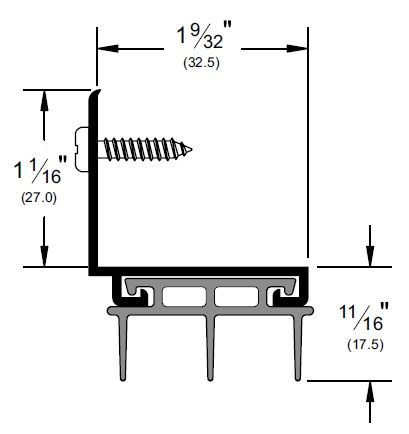

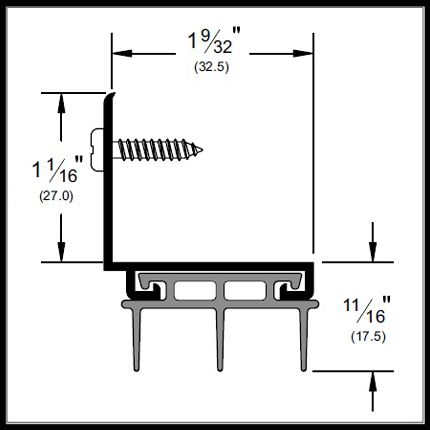

P2113 Product Specs:



Click to Print


P2113 Installation Guide:

Compliance Details

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:
  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
