Pemko #2343 Door Sweep, 1.188" Aluminum Casing with .69" Notched Triple Eco-V (Vinyl) Fin Seal

Pemko #2343 Door Sweep, 1.188" Aluminum Casing with .69" Notched Triple Eco-V (Vinyl) Fin Seal
Product Specs of Door Bottom 2343 Aluminum Mill Finish with Notched Seal Aluminum Mill Finish with Standard Seal Dark Bronze Anodized with Notched Seal Actual Image of Product Gold Anodized with Standard Seal
0.0

This model Door Sweep is mounted to the underside of the door to provide a solid seal, while not affecting the appearance of the face of the door. It can be applied to doors greater than 1.18" thick. It is fitted with a black, pliable Eco-V™ (Vinyl) notched or standard triple fin seal, see below for details. Available in various aluminum finishes and available in stock sizes.

PRICED PER ITEM

Market price: $22.51
save 15%
Price: $19.13
Finish
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P2343AV36
Options Notched or Standard Seal
Shipping See Shipping Tab Below
Description

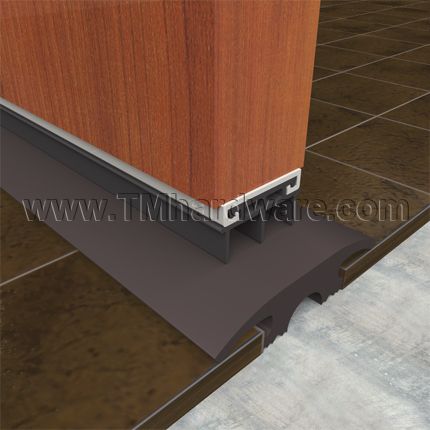

This model Door Sweep can be applied to a door to prevent light, moisture, dust, drafts, air, sound, smoke and fire from infiltrating the gap under doors. The casing and seal run along the underside of the door, rather than on the face which creates a stronger and sturdier seal than a standard door bottom seal and is not visible.

Key features of the door shoe include:

Eco-V Seal: Door Shoe is fitted with a black, pliable, triple fin Eco-V™ (Vinyl) seal. Eco-V is comparable to vinyl, though it is a newer and more environmentally friendly version and surpasses the durability and quality of standard vinyl. It has Low VOC Emissions and can be used to achieving criteria in green building ratings programs. The Eco-V is made of pliable material which ensures a low closing force that will not impede on operation of door. See Understanding Rubber Seals for more information.

Seal Design: Seal can be purchased notched or standard, select from options above. The seal can seal up to .69" and is very flexible to ensure great sealing properties with minimal closing force. Though the seal is designed to perform well through frequent usage, it can be easily replaced if wear is present over time.

The door sweep can be used directly over a floor surface or in conjunction with a doorway threshold. A threshold is recommended as it provides a more reliable seal. Pemko Vinyl Thresholds / Dividers are specifically designed to be compatible with this door sweep.

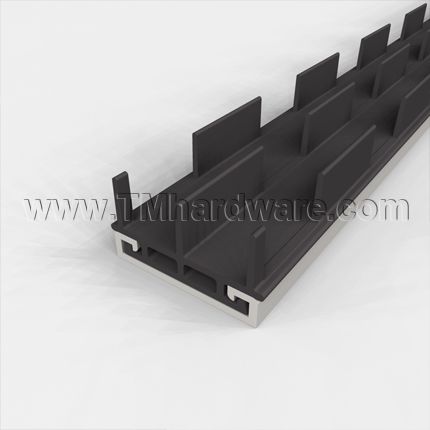

Notched Seal: The notched seal has an alternating notched pattern allowing HVAC systems and bathroom fans to circulate under doors. It is ideal for hotels, dormitories or applications where air circulation is required, while preserving privacy and blocking light and sound.

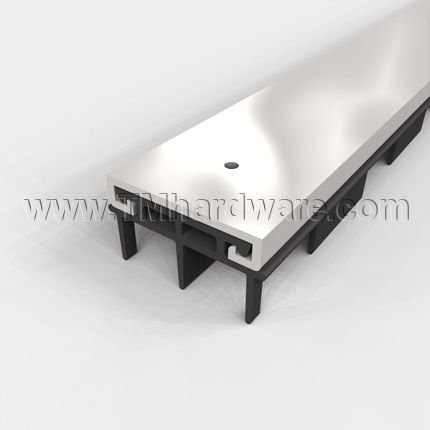

Retainer: Insert is housed in an aluminum that's compatible with doors with a thickness of at least 1.18" and has minimal effect on the appearance of the door.  It protects the bottom of the door from damage, thereby extending the life of the door. Retainer is punched with elongated slots for easy adjustments once applied. Available in various anodized aluminum finishes to coordinate with door color and other hardware on door.

  • Fire, Sound, Air Infiltration and UL Gold Green Guard Rated
  • Compatible with Door Thickness of 1.18" and above
  • Pliable, Black Eco-V Triple Fin Seal
  • Standard or Notched Design
  • Aluminum Anodized casing
  • Does not affect appearance of door
  • Seals up to .69"

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to view this product in an L Shaped Aluminum Casing.

Product Specs

Click to Print

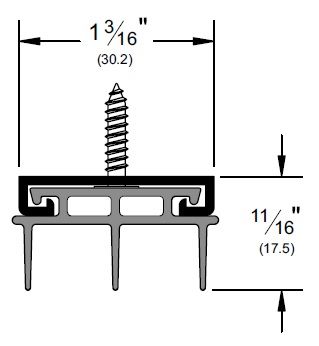

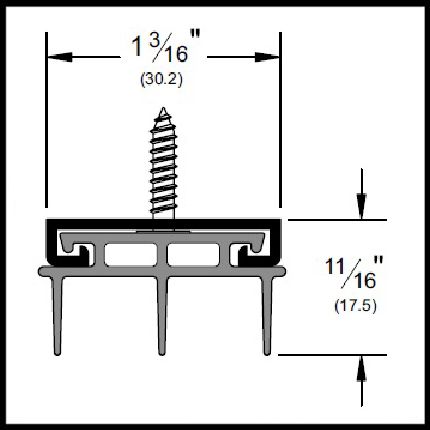

P2343 Product Specs:



Installation

Click to Print

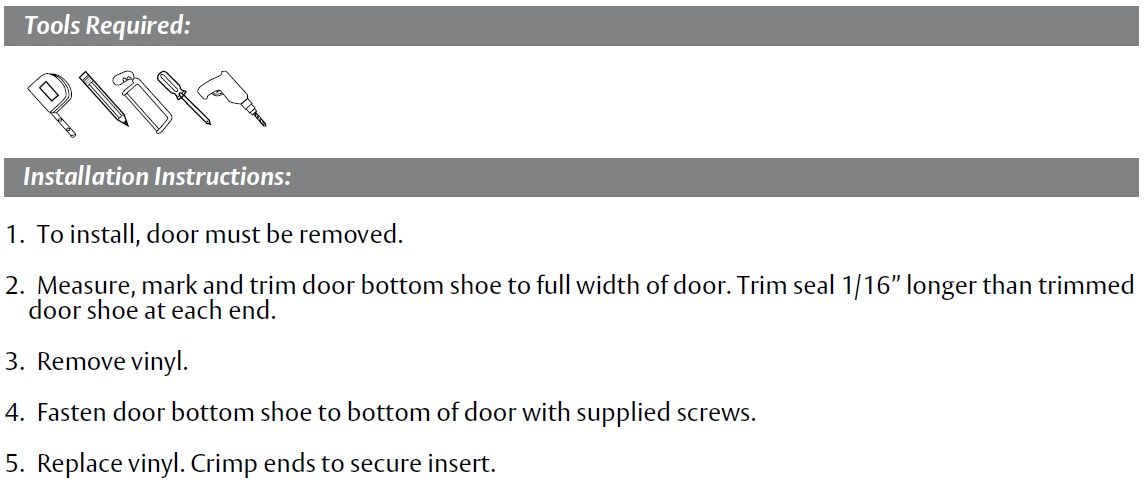

P2343 Installation Guide:

Compliance Details

Click to View Ratings Explained


Finishes Comply with the Following ANSI / BHMA Codes:
  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
