Pemko #234 Door Sweep, 1.186" Aluminum Track with .5" Rubber Fingered Seal

Pemko #234 Door Sweep, 1.186" Aluminum Track with .5" Rubber Fingered Seal
Product Specs of Door Bottom 234

This door bottom sweep is applied to the underside of the door to create a strong seal against smoke, fire, dust, drafts and light without compromising on the appearance of the door. The aluminum track is fitted with a .5" (H) fingered PemkoPrene or Eco-V (Vinyl) seal and can be applied to doors with a minimum thickness of 1.125". Available in various finishes to coordinate with door color and length is custom cut to size.

SOLD BY THE FOOT.

Market price: $3.48
save 15%
Price: $2.96
Finish
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P234AV
Options PemkoPrene or Eco-V (Vinyl) Seal
Shipping See Shipping Tab Below
Description

A door bottom sweep is a simple way to fill gaps under doors and prevent infiltration of smoke, fire, dust, drafts and light. This door bottom sweep is applied to the underside of the door to create a proper seal while maintaining the look of the door. Key features of this model include:

Track: Aluminum track can be applied to door with a minimum thickness of 1.125". Available in various finishes to coordinate with the color of the door and additional door hardware. The track does not compromise on the appearance of the door.

Seal: Fitted with a PemkoPrene™ or Eco-V™ (Vinyl) fingered seal. The fingered design conforms well to surface irregularities, and remains flexible in extreme temperatures, ensuring a proper seal at all times. The seal can fill gaps up to .5" and is smoke and fire rated. Seal is made of high quality material designed to last through many usage, however, if necessary, it can be easy replaced without removing the track.

See 'Insert Material' tab for information regarding PemkoPrene vs. Eco-V (Vinyl).

Installation: For proper installation, door must be removed. Track is punched with elongated slots to allow for easy adjustment after installation.

  • Fire and Smoke Rated
  • Fingered Eco-V (Vinyl) or PemkoPrene Seal
  • Fills Gaps up to .5"
  • Compatible with Doors at least 1.125" Thick
  • Conforms well to surface irregularities
  • Will not affect appearance of door
  • Length is custom cut to size

Installation guide and screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

To view a comparable product, see our 1.375" Track with Fingered Vinyl Seal Door Bottom.

Insert Material

This product can be purchased with a PemkoPrene™ or Vinyl Insert.

PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for  PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.

Eco-V™(Vinyl)This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.

Product Specs

Click to Print

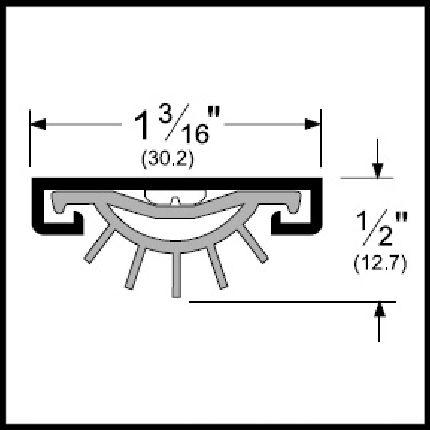

P234 Product Specs:

Installation

Click to Print



P234 Installation Guide:

Compliance Details

Click to View Ratings Explained

* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.

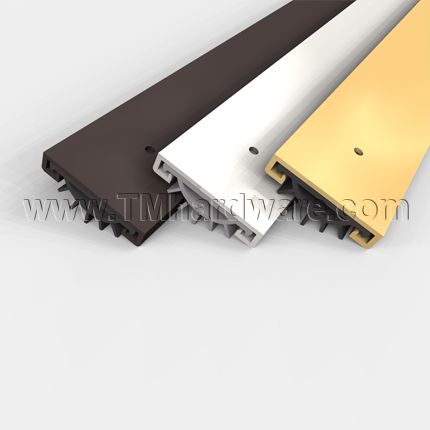

Finishes Comply with the Following ANSI / BHMA Codes:

  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
