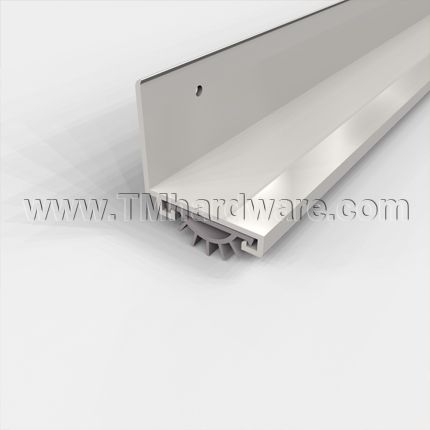

Pemko #211 Door Shoe Sweep, L Shaped Aluminum with .5" Rubber Fingered Seal
This Aluminum Surface Mounted L-Shaped Door Shoe Sweep is fitted with either a Eco-V™(Vinyl) or PemkoPrene™ fingered insert. This design is compatible with doors at least 1.25" thick and can fill gaps up to .5 inches. It is fire and smoke rated, and has low VOC Emission (see note below), available in various finishes, two inserts and is custom cut to size.
PRICED PER FOOT.
See tab below for details on the various inserts.
Door shoes are used to seal the area under a door with minimal effect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door. Key features include:
Retainer: The casing is compatible with doors at least 1.25" thick. It is made of commercial grade aluminum that will ensure long-lasting performance and protect the bottom of the door from traffic abuse. The casing extends 1.125" along the face of the door. The L-Shaped retainer is not as sturdy as the U-Shaped Version for 1.75" Doors, however it has the advantage of being able to be installed without removing the door.
Seals: This model is available with either a PemkoPrene or Eco-V (Vinyl) Fingered seal. The PemkoPrene™ is a thermo-plastic elastomer, which stays flexible in extreme temperatures, making it an ideal cold weather seal, and ensures a longer lasting door bottom than the Vinyl insert. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information. The fingered design conforms well to surface irregularities, ensuring a proper seal at all times. Can fill gaps up to .5"
Replacement: The seal is made of high quality material that is made to last through frequent usage, however, if needed it can be easily replaced without removing the retainer. Insert replacement can be purchased by visiting our Fingered Insert Rubber Replacement for Pemko Door Bottom.

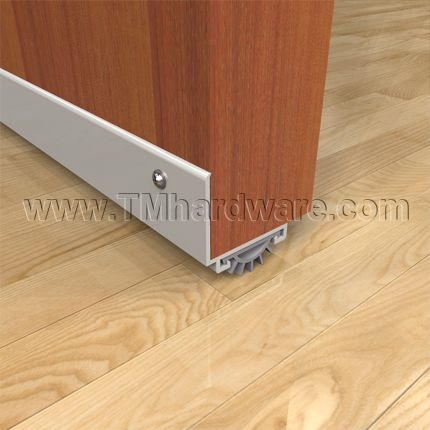

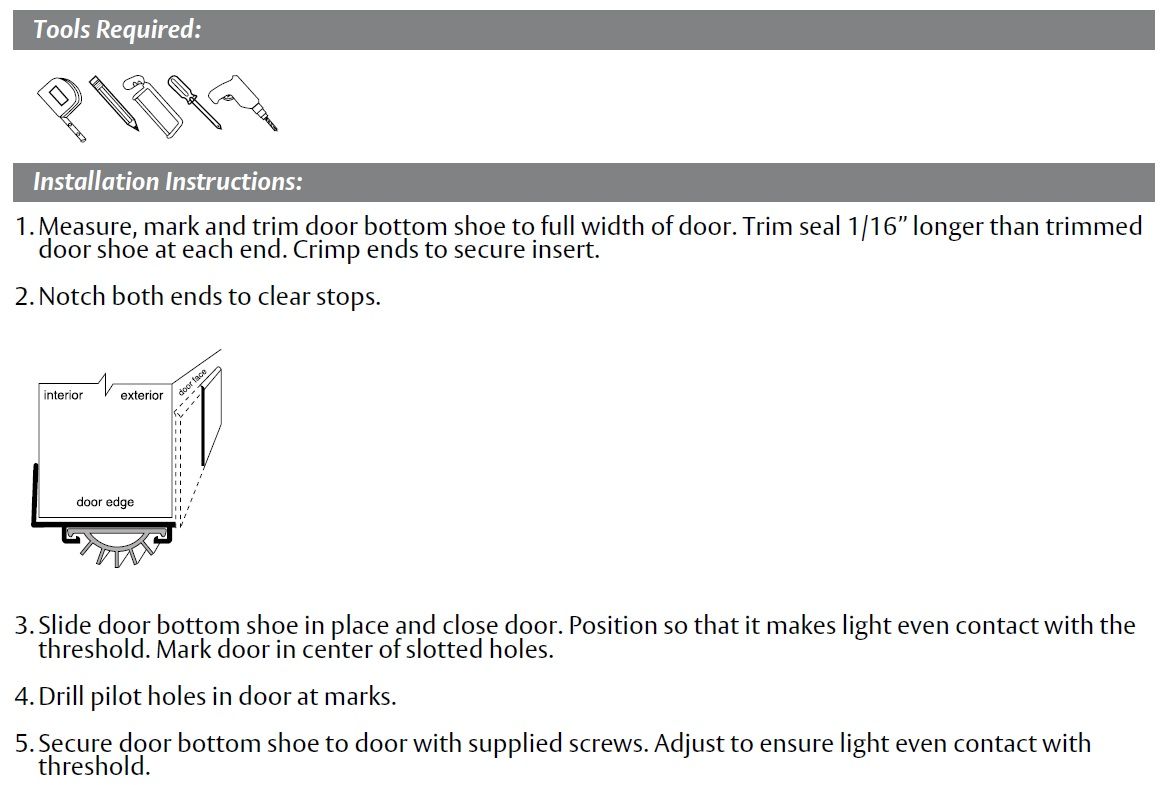

Installation: This L-Shaped Door Shoe can be applied without removing the door. The casing is punched with elongated slots to allow for slight adjustment when installing.
Installation Guide and screws provided. Screws are colored to blend unobtrusively with casing.
Inserts: Aluminum Mill Finish is supplied with Gray Insert. All other finishes are supplied with a Black Insert. For alternate combinations, contact us or call us at 845-388-1300.

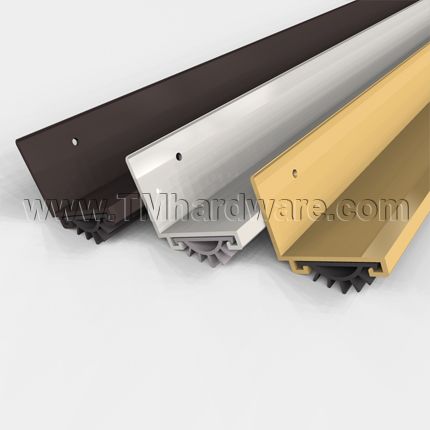

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
To view version with Rain Drip, see our L-Shaped Door Shoe with Rain Drip and Rubber Fingered Seal.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN211PK, 211V
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-22°F to +220°F (PemkoPrene)
-4°F to +122°F (Vinyl)
-
Door TypeWooden Door, Metal Door
-
Seal TypePemkoPrene® Rubber Seal, Eco-Vinyl Rubber Seal
-
MountingDoor Shoe Mount
-

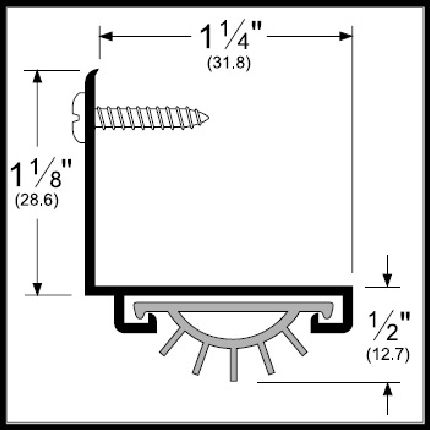

- Dimensions
-
Seal Height1/2" Height
-
Total Height1-5/8" Height
-
Additional DimensionsDoor seal is 1-1/4" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-

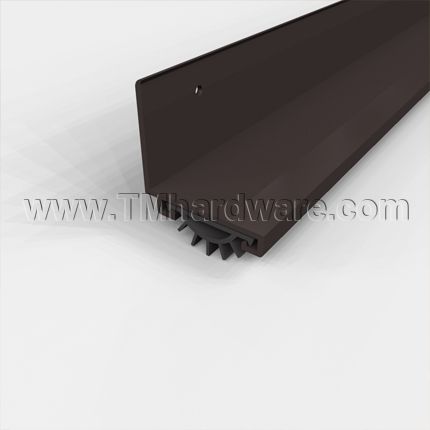

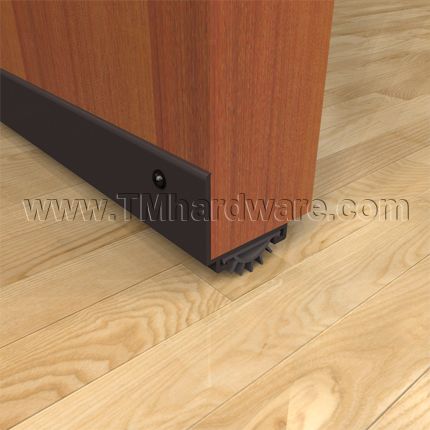

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsSmoke Rated, Fire Rated, GreenGuard Gold Certified, UL Classified
-
ANSI DesignationR3D414, R3G414
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.
Finishes Comply with the Following ANSI / BHMA Codes:
- Aluminum Mill Finish - US27 / 719
- Dark Bronze Anodized Aluminum - US10B / 710

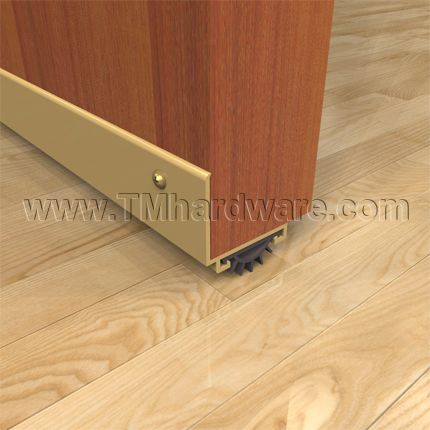

- Gold Anodized Aluminum - US4 / 688
This product can be purchased with a PemkoPrene™ or Vinyl Insert.
PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.
Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
