Pemko #2230NB Door Shoe Sweep, L Shaped Aluminum with Rain Drip and .69" Nylon Brush Seal

Pemko #2230NB Door Shoe Sweep, L Shaped Aluminum with Rain Drip and .69" Nylon Brush Seal

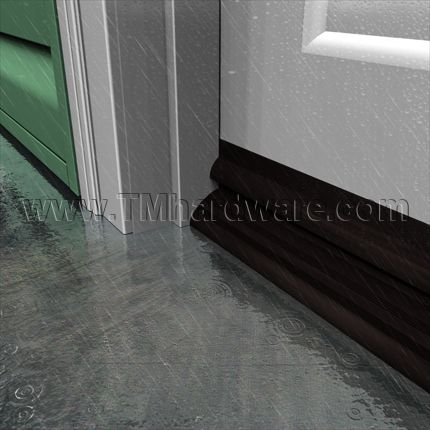

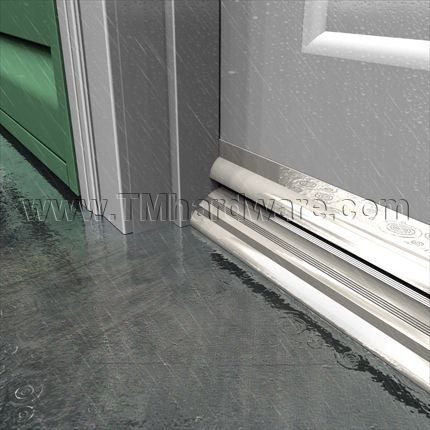

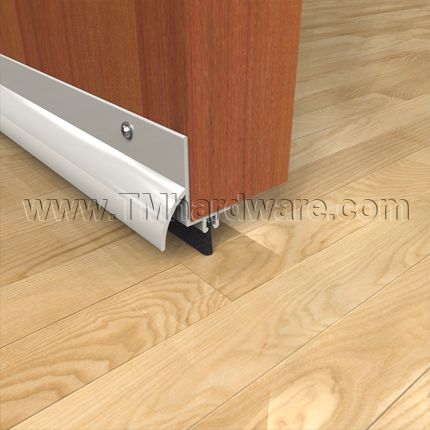

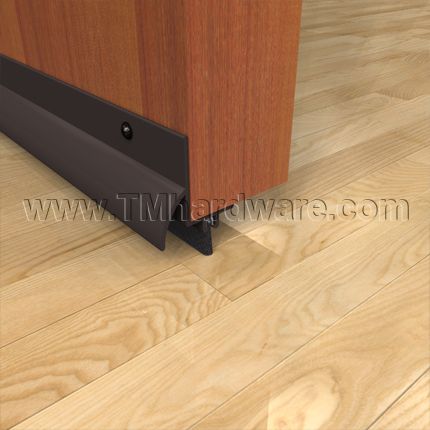

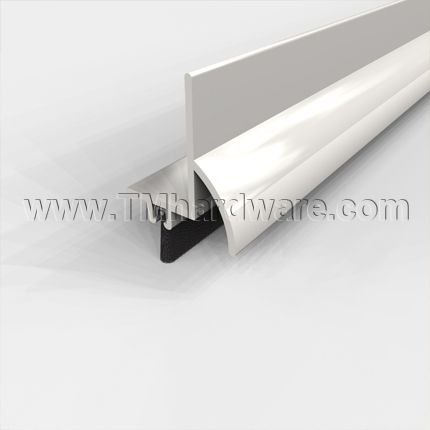

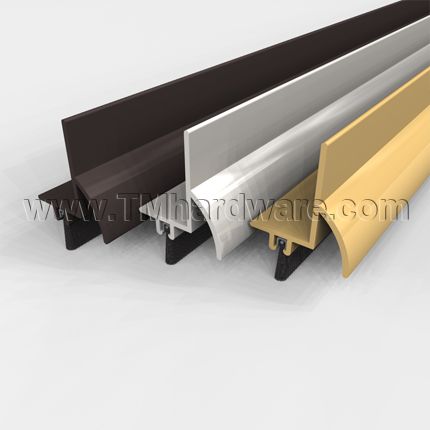

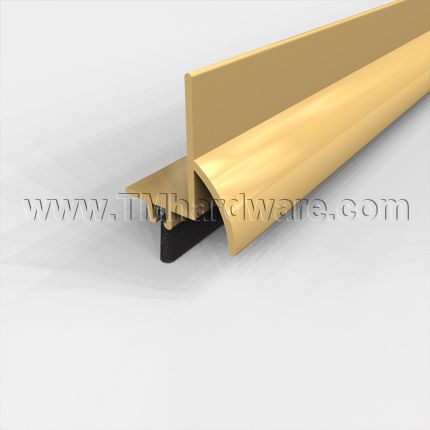

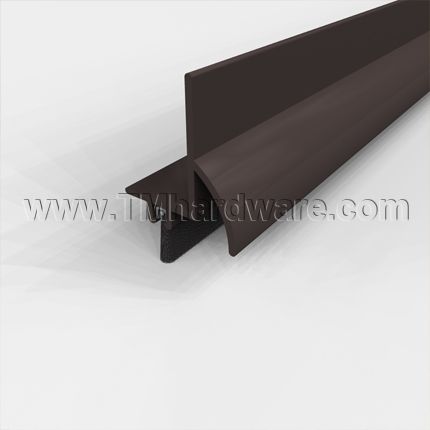

Product Spec of Brush Door Sweep 2230 Aluminum Mill Finish Door Shoe Dark Bronze Anodized Door Shoe Gold Anodized Door Shoe

This L-Shaped Door Shoe Sweep is fitted with a Nylon Brush insert that can fill gaps up to .69”. It also has a rain drip to deflect water and prevent seepage. It is available in 3 aluminum finishes and is custom cut to size. Rated for fire and air infiltration, too.

PRICED PER THE FOOT

Market price: $5.64
save 20%
Price: $4.51
Finish
Size (Inches)
Qty
Save to wishlist
SKU P2230ANB
Shipping See Shipping Tab Below
Description

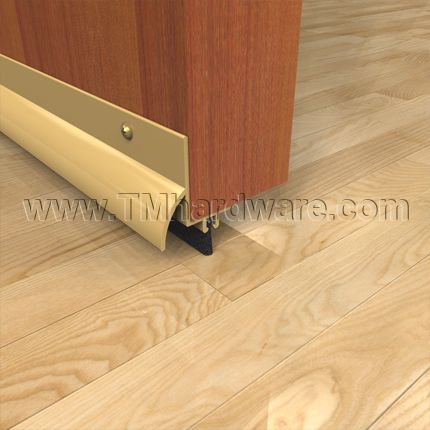

Door shoes are used to seal the area under a door with minimal effect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door.

Seal: This door shoe sweep consists of an aluminum channel with a Nylon Brush insert. The brush insert seals gaps up to .69” and conforms well to surface irregularities, making it a great option over uneven floors, such as tiles and stone. The bristles remain flexible in extreme weather to ensure a proper seal through all conditions.

Casing: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door. It is an L Shaped design, which has more stability than a standard door bottom, and the door need not be removed when door shoe is applied. The case is punched with elongated slots for easy adjustments when applying.

Compliance: Rated for Fire and Air Infiltration.

  • Nylon Brush Insert - Conforms well to surface irregularities
  • L Shaped Casing - Door does not need to be removed when applying
  • Rain Drip Cap - Deflects water to prevent seepage
  • Can be fabricated to be compatible with weatherstripping
  • Length is custom cut to size

Installation screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to view all our Brush Door Shoes.

Product Specs

Click to Print

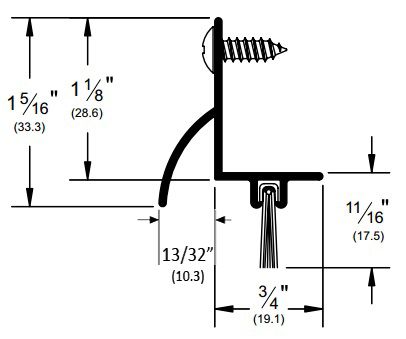

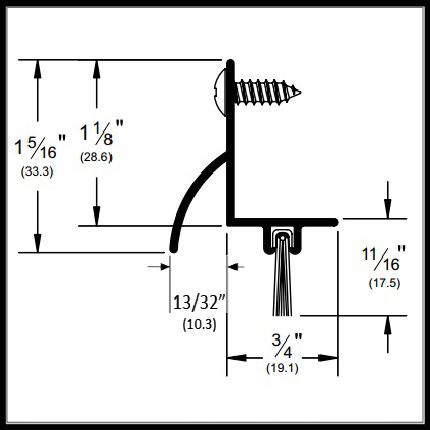

P2230NB Product Specs:

Installation

Click to Print

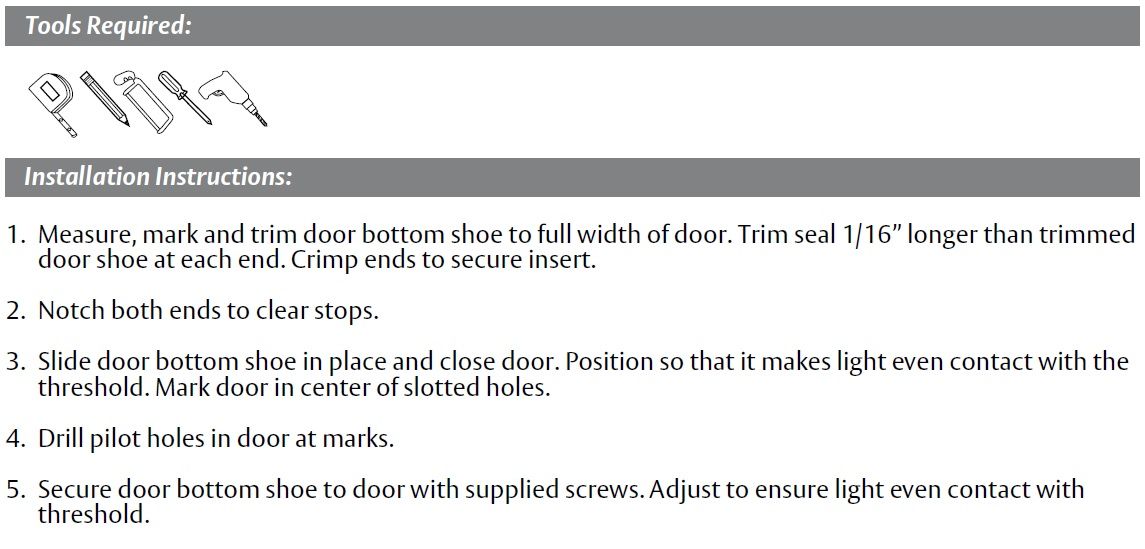

P2230NB Installation Guide:

Door Shoe Fabrication Options

Please contact us for pricing and availability on custom fabrications. Note, custom fabrications is only available on bulk purchases.



Full Notch includes removal of rain drip and front flange of door shoe to prevent interference with door stop and weatherstrip. Available in 1/2".

Half Notch includes removal of rain drip to prevent interference with door stop and weatherstrip. Available in 1/2".

Compliance Details

Click to View Ratings Explained


Finishes Comply with the Following ANSI / BHMA Codes:
  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
