Zero #Z49 Easy Access Steel Brackets for Mortised ZERO Automatic Door Bottom

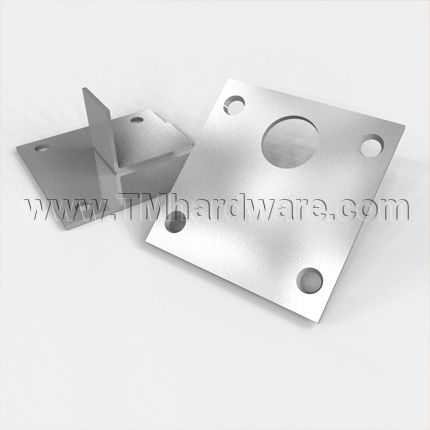

These Zero #Z49 Easy Access Brackets are designed to secure Mortised Automatic Door Bottoms to the door without using bottom screws, enabling easy access for repairs and maintenance and for the unit's insert to be removed without taking the door off the frame. The brackets also conceal the automatic door bottom, providing an aesthetic upgrade. Made of powder coated steel.
Brackets are sold as a set. Only compatible with specific Mortised Automatic Door Bottoms made by Zero, see list below.
See tabs below for additional information
Easy Access Brackets are mounted on both ends of a mortised automatic door bottom. The steel brackets are designed to secure Automatic Door Bottoms to the door using no bottom screws. The unit can then be removed from either end without taking the door off the frame. This permits easy access to the door bottom's insert for repairs and maintenance.
Ideal for Hospitals and health care centers where the rubber insert must be removed periodically for cleaning purposes. The brackets also conceal the automatic door bottom, providing an aesthetic upgrade.

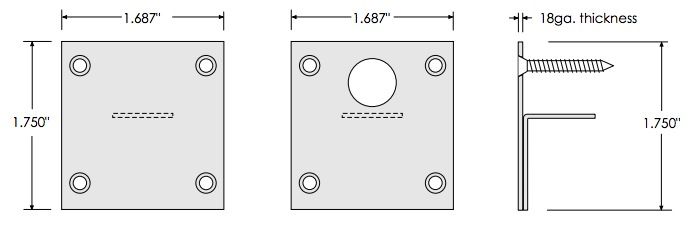

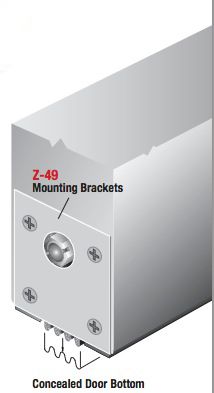

Bracket plates measure 1.687” (W) X 1.750” (H). They are made of sturdy steel prime, 18 gauge (see product specs). There are four screw holes in each plate, with an additional large hole in the plate that is mounted over the brass adjusting nut that activates the drop seal of the automatic door bottom (see application tab to the right).
Brackets are sold as a set. Only compatible with the following Mortised Automatic Door Bottoms made by Zero:
Zero International #364 Automatic Door Bottom, Mortised, Heavy Duty with Neoprene Bulb Seal, 1" Drop
Zero International #364FS Automatic Door Bottom, Mortised Aluminum and Neoprene with INTUMET
Zero International #369 Automatic Door Bottom, Mortised, Heavy Duty, Double Neoprene Seal, 1" Drop
Installation screws provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
The Automatic Door Bottom in the detailed image is our Zero International #360 Automatic Door Bottom, Mortised, Heavy Duty with Sponge Neoprene Seal, 1" Drop
