Zero #360, Automatic Door Bottom, Mortised, Heavy Duty with Sponge Neoprene Seal, 1" Drop

 Zero #360, Automatic Door Bottom, Mortised, Heavy Duty with Sponge Neoprene Seal, 1" Drop

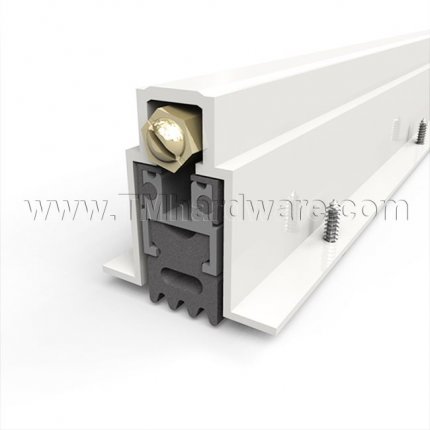

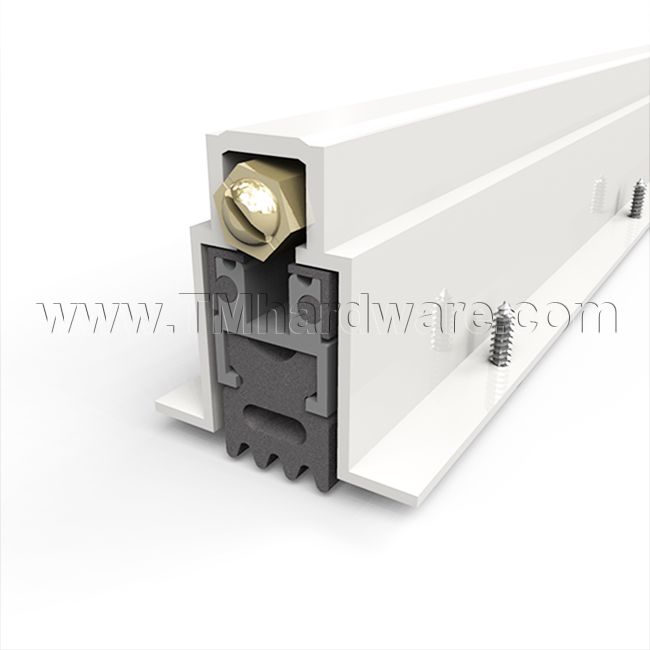

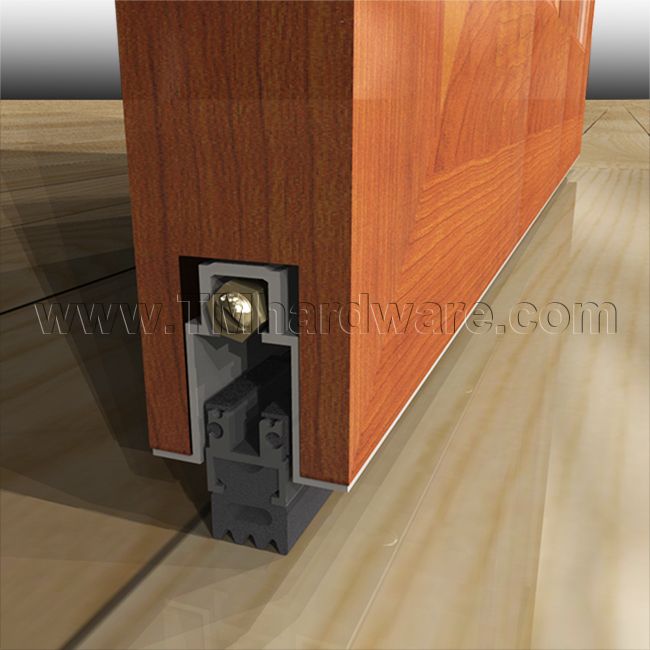

Product Specs of Mortised Automatic Door Bottom #360 Clear Anodized Aluminum Mortised Automatic Door Bottom #360 Mortised Automatic Door Bottom #360 Applied on Interior Wooden Door In Closed Position Mortised Automatic Door Bottom #360 Applied on Interior Wooden Door In Opened Position Easy Access End Brackets For Applying Automatic Door Bottom Easy Access End Brackets For Applying Automatic Door Bottom

This Zero International #360, Fully Mortised, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels, and will prevent infiltration of lights, drafts and more. Fitted with a sponge neoprene drop seal and high quality mechanism that has been successfully tested through 5 million cycles! Rated for fire, smoke and sound infiltration. Length is custom cut to size. View more details in tabs below.

This product is priced per range with 18-1/4" - 36" being the lowest priced range. To determine size needed see How to Measure for an Automatic Door Bottom.

Price: $101.02
Size Range
Exact Length
Qty
Save to wishlist
Bestseller
SKU Z360AA|18
Shipping See Shipping Tab Below
Description

The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors retain their clean, unobtrusive look.

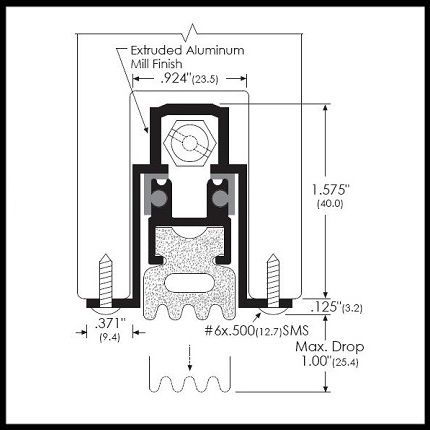

Dimensions: Body measures 1.575" H x .924" W. Extended flanges on both sides measure .371" W. Total width is 1.6". Compatible with doors with a thickness of 1.75". Length is custom cut to size.

Suggested Door Cutout: 1" x 1-5/8"

Seal: Closed cell sponge neoprene rubber seal. Seal has a maximum effective drop of 1".

Available Finishes: Clear Anodized Aluminum - Anodized to 204!

Compliance Details: Smoke rated, fire rated and is UL Listed (see product data tab for more details).

Handing:  Can be used on both right handed and left handed doors.

Installation:  Installation instructions and screws provided.

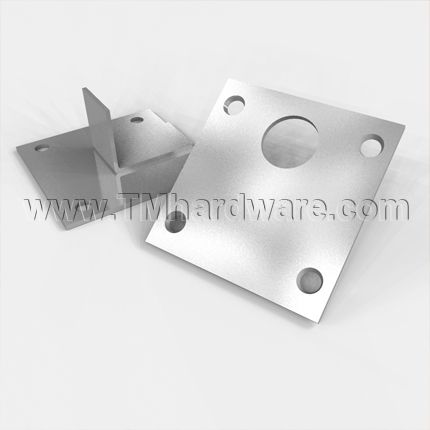

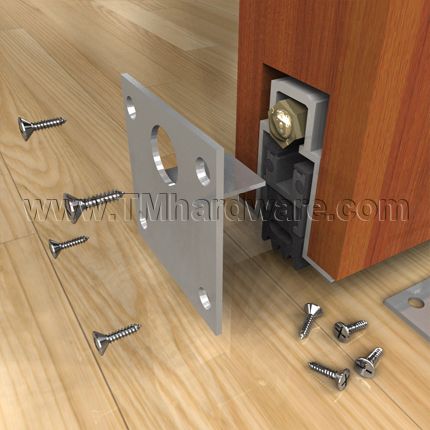

Additional Options - Easy Access Brackets: This product comes with standard end caps. Easy Access End Cap brackets can also be purchased by selecting link. Easy Access Brackets are designed to secure Mortised Automatic Door Bottoms to the door without using bottom screws, enabling easy access for repairs and maintenance and for the unit to be removed without taking the door off the frame.

Sizing: To determine sizing, see How To Measure For An Automatic Door Bottom.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

See also our Zero International #360 Heavy Duty Mortised Automatic Door Bottom with Solid Neoprene Bulb Seal.

Product Data

Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

See also About Automatic Door Bottoms.

Product Specs
Installation

Click here for a Printable Copy of How to Install a Mortised Automatic Door Bottom.

Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting.

STEP 1: PREPARE YOUR DOOR BOTTOM

How to Install a Mortised Automatic Door Bottom - Preparing Your Door Bottom

Remove door and cut mortise in bottom of door as per the dimensions of the provided product specs.

NOTE: If a door is fire labeled or of special construction, mortise preparation must be done by the door manufacturer.

STEP 2: MEASURE AND TRIM YOUR DOOR BOTTOM

How to Install a Mortised Automatic Door Bottom - Measure Your Door

Measure your door from side to side. That will determine the length required for your Door Bottom.

How to Install a Mortised Automatic Door Bottom - Trim Your Door Bottom

Once you have you determine the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut.

Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB). You can trim from the edge up to one inch of the screw on the side wall of the ADB.



STEP 3: APPLY YOUR AUTOMATIC DOOR BOTTOM

How to Install a Mortised Automatic Door Bottom - Apply Your Automatic Door Bottom

With door removed from opening, install the door bottom with plunger at the hinge side, fasten with screws provided and install door in opening.

STEP 4: ADJUSTING YOUR AUTOMATIC DOOR BOTTOM

How to Install a Mortised Automatic Door Bottom - Adjust Your Automatic Door Bottom

Screw the actuating plunger in or out as required until the gasketing just touches the sealing surface when the door is closed.

It is not necessary to squash the gasket to provide an effective seal.

Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom.

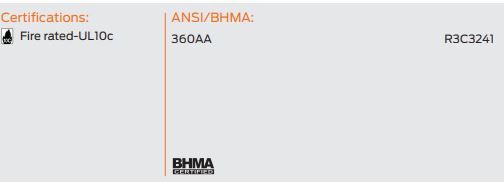

Compliance Details



Compliance Details for Z360

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 2-3 weeks to ship
    • *Similar or equivalent products from other manufacturers may be available to ship sooner. For expedited processing please contact our customer service department.
    • EXCEPTIONS: Gold Anodized Aluminum and Black Anodized Aluminum Products require 2-6 week processing time.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
