Zero #362, Automatic Door Bottom, Heavy Duty Semi-Mortised, Sponge Neoprene Seal, 1" Drop

Zero #362, Automatic Door Bottom, Heavy Duty Semi-Mortised, Sponge Neoprene Seal, 1" Drop
Zero International

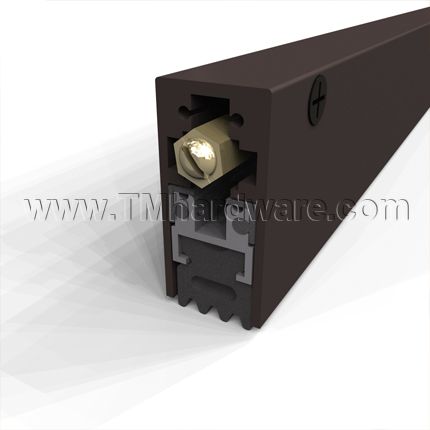

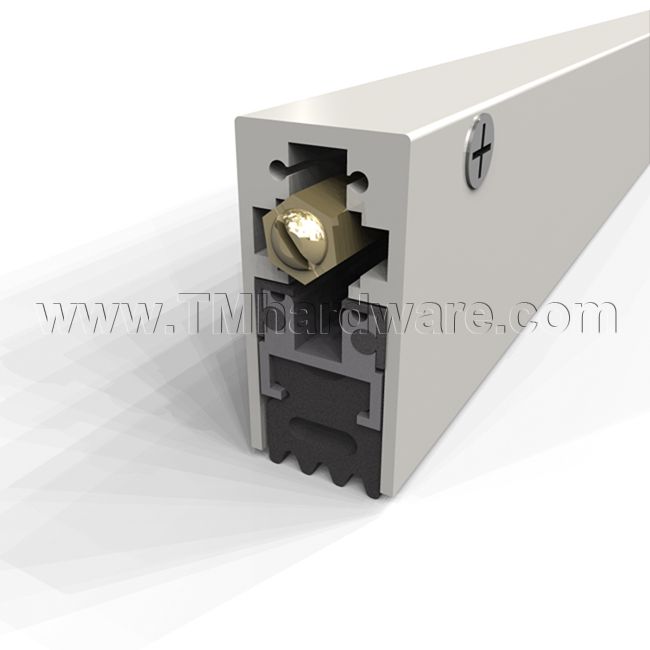

This Zero International #362, Semi Mortised, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels and will prevent infiltration of light, drafts and more. Fitted with a high quality closed-cell sponge neoprene seal and high quality mechanism that has been successfully tested through 5 million cycles. Rated for fire, smoke and sound. Available in various anodized finishes and is custom cut to size.

How to Order: Selecting Finish and Exact Size will determine your total price. Note, product is priced per range with 18.25" - 36" being the lowest priced range. To determine sizing, see How To Measure For An Automatic Door Bottom.



See tabs below for additional information
    • SKU
      ZR362AA|36
    • Market price:$118.00
      • save 5%
    • Starting price: Price: $112.10 per item


    This Zero International #362, Semi Mortised, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels and will prevent infiltration of light, drafts and more.

    It is fitted with a high quality closed-cell sponge neoprene seal and high quality mechanism that has been successfully tested through 5 million cycles.

    About Light Spring Strength: Light Spring Strength requires less operating force to activate than standard Strength. Light Spring is compatible with ADA Compliant Doors and can be easily used by those with limited mobility. Casing dimensions remain the same. To purchase, select from options above.

    Installation: Casing is designed to be applied in Semi-Mortised mount into face of door. Installation instructions and screws included. Screws are colored to coordinate with casing.

    Sizing: To determine sizing, see How To Measure For An Automatic Door Bottom.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See our Zero International #368 High Sound Semi-Mortised Automatic Door Bottom for even higher sound control.

      • SKU
        ZR362AA|36
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      362
    • Product Design
      • Mounting Type
        Semi-Mortised
      • Door Type
        Wooden Door
    • Dimensions
      • Casing Dimensions

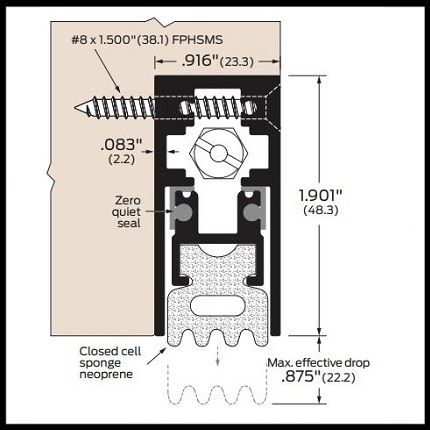

        Casing measures 1.901" by .916" with .083" thick aluminum casing.
      • Length
        Custom Cut to Size
      • Drop Size
        Up to 1" Drop
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Special Features
      • Compatible Insert Replacement
        #363N Sponge Neoprene Replacement
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)

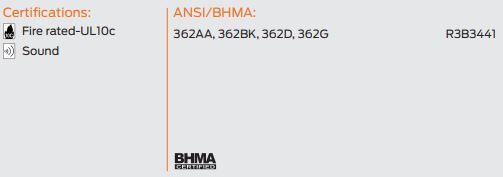

    • Compliance Details
      • Compliance Details
        Fire Rated, Sound Rated, BHMA Certified
      • ANSI Designation
        R3B3441
      • Warranty
        1 Year Limited Warranty

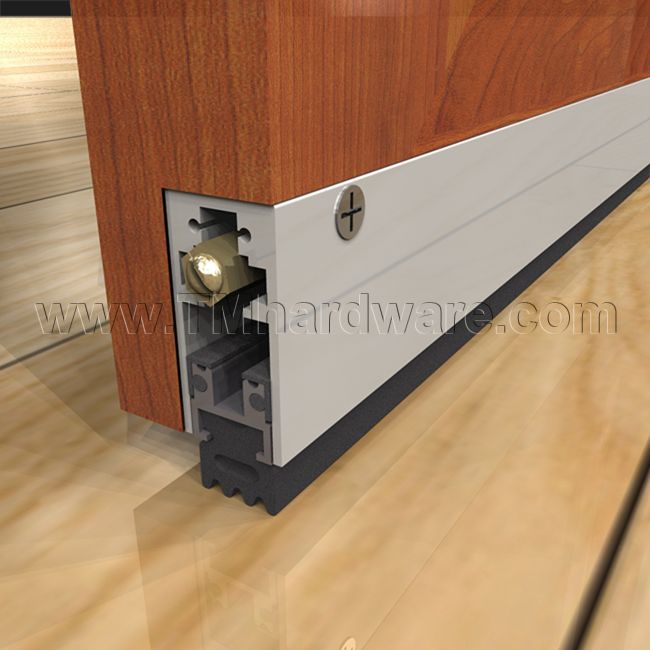

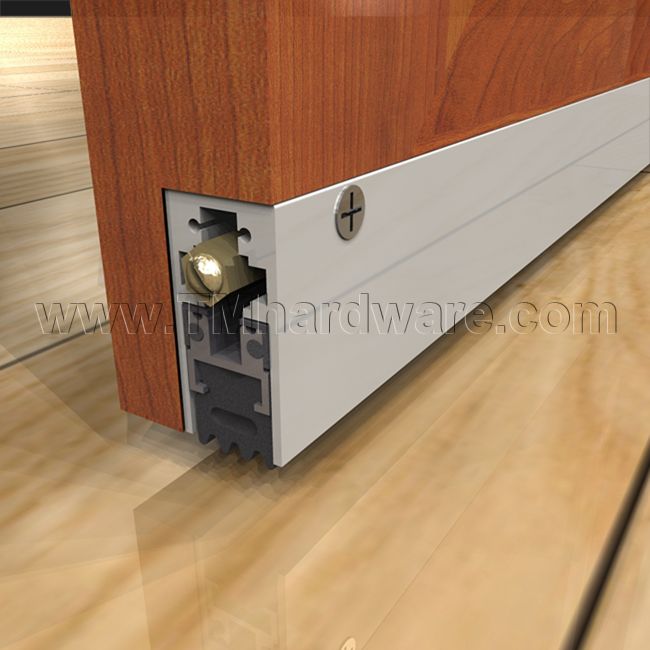

    Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

    See also About Automatic Door Bottoms.

    Click here for a Printable Copy of How to Install an Automatic Door Bottom.

    Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting.

    STEP 1: SIZING YOUR DOOR BOTTOM

    Once your door is ready for installation you need to determine the size required for your door bottom:

    • For a Surface Mounted Application: Measure the distance between the two stop moldings, or if a perimeter door gasket is applied, measure the distance between the two installed gaskets, then minus 1/8-1/4"” (.125”) from the total distance. That is the size needed for your door bottom.

    • For a Semi-Mortised and Fully Mortised Application: Measure your door from side to side; that is the measurement needed for your automatic door bottom.

    For visual presentation see How to Measure for an Automatic Door Bottom.

    How to Install an Automatic Door Bottom- Figure 1

    Once you have determined the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut.

    Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB).



    How to Install an Automatic Door Bottom- Figure 1You can trim from the edge up to one inch of the screw in the side wall of the ADB.


    STEP 2: PREP FOR ATTACHING AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 3Surface Mounted and Semi-Mortised models need to be applied to the push side of the door only (the side with the door stops). The actuating plunger needs to be applied to the hinge side of the door for all applications.

    Place the automatic door bottom against the door

    Once you have the automatic door bottom leveled and positioned correctly, with a pencil or marker mark where the attachment screws need to be drilled.

    STEP 3: ATTACHING THE AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 4

    To make installation easier you can drill a pilot hole which will ensure you attach the door bottom to the correctly marked spot. With the screws provided, screw in the automatic door bottom.

    In some models, a plate is provided for the hinge side of the frame. This will protect the door frame from getting worn down by the actuating plunger. If provided, attach to corresponding point on the frame.


    STEP 4: TESTING YOUR AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 5Now that the door bottom is attached, test the door bottom by opening and closing the door to ensure there is a full seal. If the seal does not come down far enough twist the brass nut out, if it seals too tight twist the brass nut in.

    Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom.
