Zero #770 Door Gasket, Heavy Duty with Adjustable Neoprene Seal

Zero #770 Door Gasket, Heavy Duty with Adjustable Neoprene Seal
Product Specs of Door Gasket Seal #770 Clear Anodized Gasket Dark Bronze Anodized Gasket Steel Primed Gasket Stainless Steel Gasket

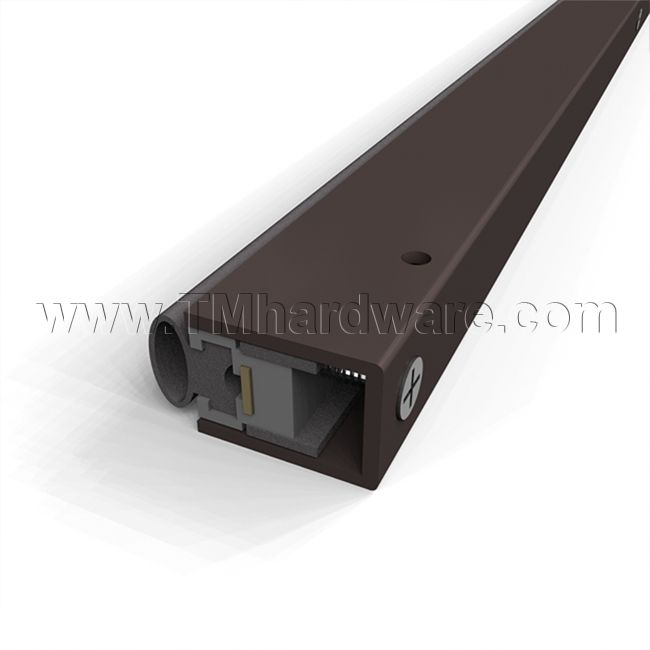

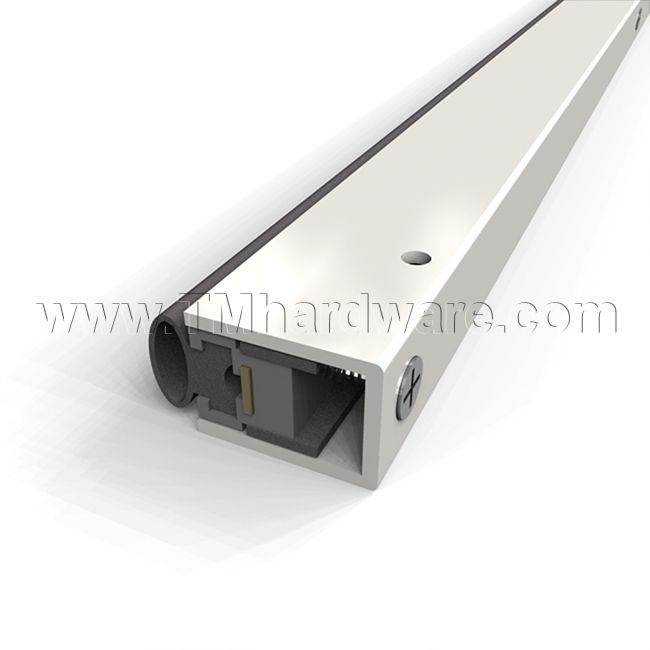

Zero #770 is Our Best Selling Heavy Duty Adjustable Door Gasket. This high quality gasket provides consistent head and jamb protection. The solid neoprene bulb seal and neoprene interior create a high sound rated door gasket / weatherstripping product. The seal is easily adjusted with a screwdriver if the door or frame shifts over time. Available in four finishes and is custom cut to size, with an option of straight or mitered edges.

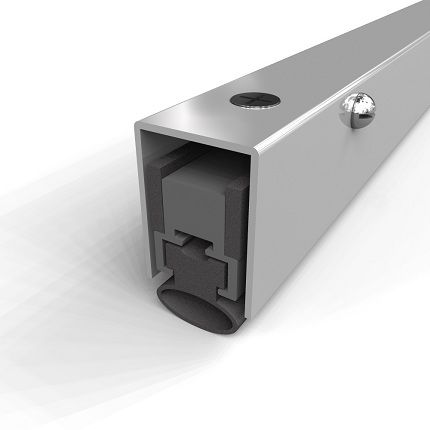

Available in Stainless Steel which is very popular in Cleanrooms and other sterile applications.

PRICED PER FOOT - See full product details and specs in the tabs below

Stock sizes - Sets of 36" Header and 84" Jambs are available to ship within 1 business day. Click here for our Quick Ship TMH Door Gasket Heavy Duty with Adjustable Neoprene Seal

Price: $27.48
Metal / Finish
Size (Inches)
Edge Design
Qty
Save to wishlist
Bestseller
Made in USA
SKU Z770AA
Options Mitered or Straight Edges
Shipping See Shipping Tab Below
Description

Our highest quality, sound control door gaskets with adjustable solid neoprene bulb seal. Adjusting Screws are tapped and drilled (not stripped) allowing it to be used as the door stop itself.

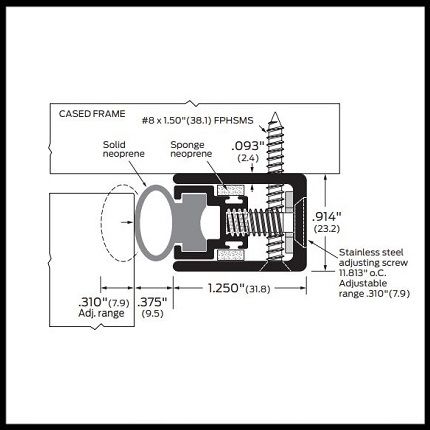

Dimensions: Retainer measures .914" x 1.25". Length is custom cut to size.

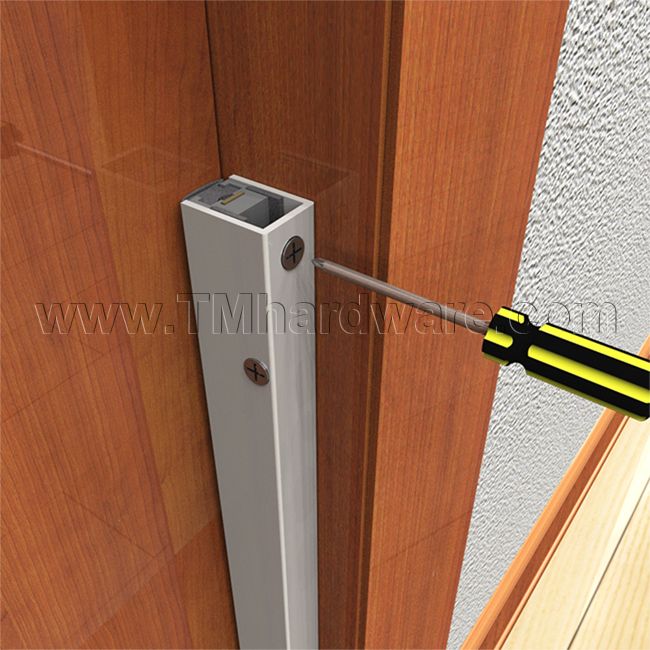

Adjustable: A heavy duty adjustable door gasketing is designed to give a consistent seal at all times. When clearance increases with natural shifting, all it takes is a few turns of a screwdriver to restore a proper seal. It has an adjustable range of .3 inches.

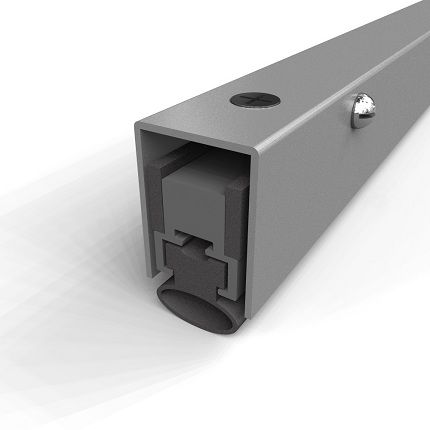

Seal: It is fitted with a high quality solid neoprene seal and a neoprene interior for added protection. Solid neoprene seal is water and weatherproof and remains flexible in extreme temperatures. It has strong compression properties and will retain its shape through many usages.

(It is also available with INTUMET™ Fire Stop feature, see our Adjustable Neoprene Sealing System FS).

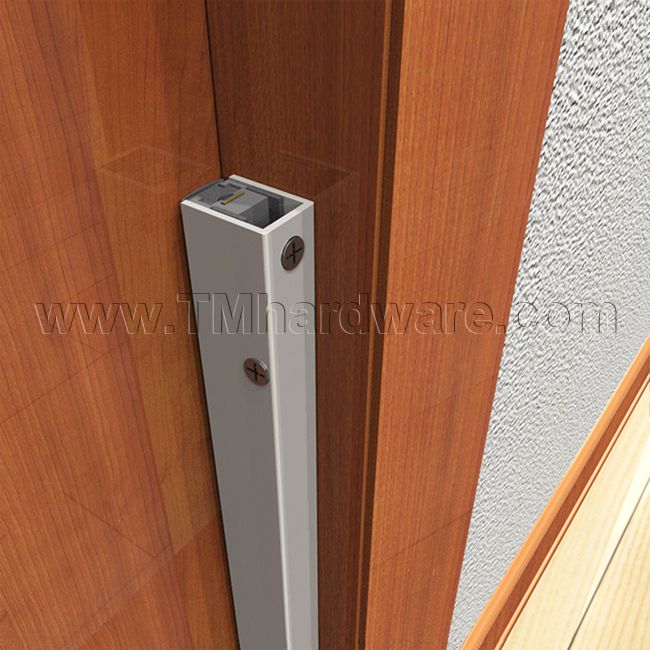

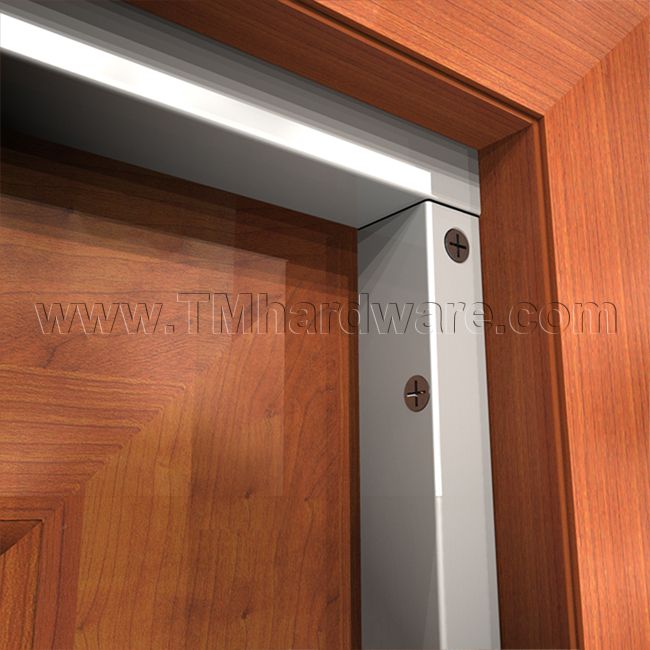

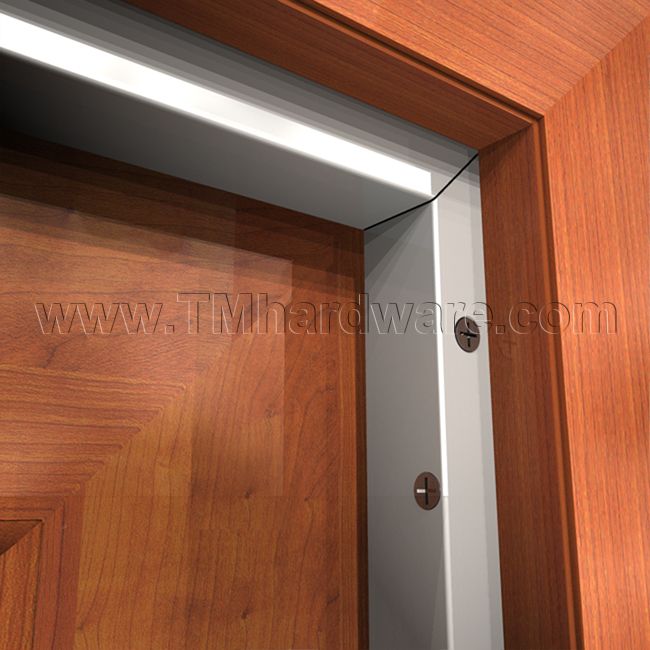

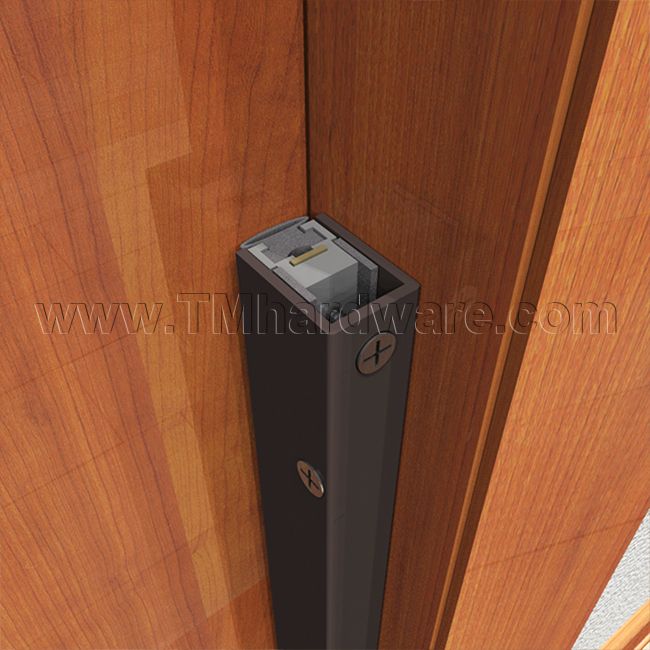

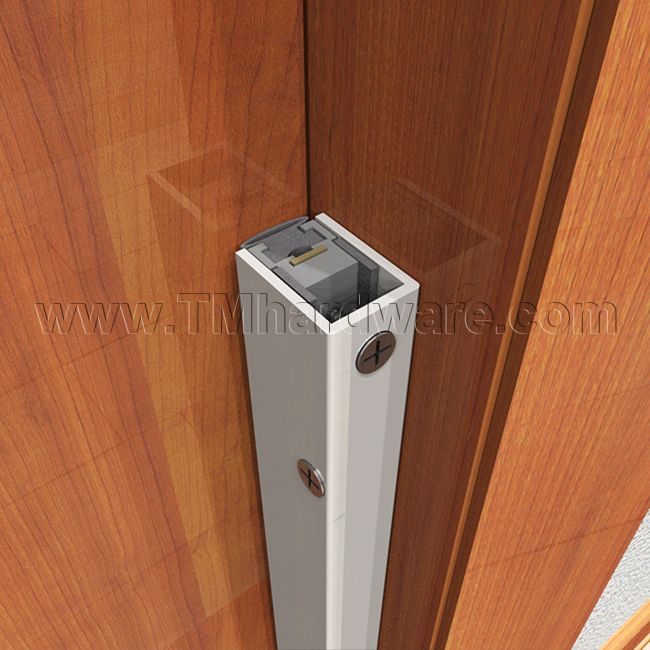

Mitered Edge Design: Due to the size of this casing, the edge can be mitered, which ensures a stronger seal over straight edges. Another great advantage is that this gasket can be applied as a door stop (and replace your stop molding) or onto an existing stop. We recommend using it as a door stop itself. As a door stop it will run along the length of your door frame to the bottom of your door and will be compatible with a Surface Mounted Automatic Door Bottom.

MITERED EDGE IMPORTANT NOTE: Mitered edge will only be provided if quantities and sizes purchased form a set, such as (1) 36" and (2) 84". If irregular quantities are purchased this may be provided as a straight edge.

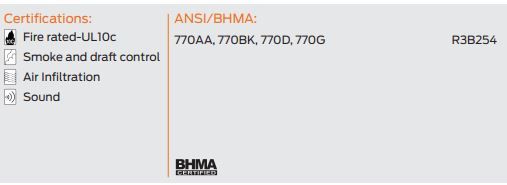

Compliance: Fire Rated ULC10c, Smoke and Draft Control, Air Infiltration, Sound Rated. 20 min fire rating when applied as a stop, 180 min when applied to a stop, BHMA Certified.

Heavy Duty: This particular door gasket is one of our most popular products in high sound protection areas as in recording studios, hotels, etc. The stainless steel version is also used frequently in cleanrooms and sterile environments.

Strike Mounting Bracket: This product can be applied with a door closer or a strike plate when applied with our specialized Door Closer or Strike Plate Mounting Bracket.

InstallationInstallation instructions and screws included. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Product Specs
Compliance Details

compliance details

Installation Guide
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 2-3 weeks to ship
    • *Similar or equivalent products from other manufacturers may be available to ship sooner. For expedited processing please contact our customer service department.
    • EXCEPTIONS: Gold Anodized Aluminum and Black Anodized Aluminum Products require 2-6 week processing time.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
