PemkoHinge™ #SPFM_SLF, Full Mortised for Special Application with Flush Short Leaves Continuous Hinge

This Special Application Full Mortised Continuous PemkoHinge is designed mainly for new door applications where the hinge leaf may interfere with the weatherstrip, thermal break or applied stop of the frame. The hinge leaves are flush, ideal for bifold applications. This model is availble in Standard Duty and Heavy Duty Grade 1 or 3. Also available with electric modification, additional options and many anodized finishes.

Sizes: Length is custom cut to size. Custom cut sizes have a minimal cutting fee (included in price below). Stock sizes of 83", 85" and 95" does not include a cutting fee.

How to Order: Select finish and size range required. Then select exact size hinge should be cut down to and options required.

See tabs below for additional information
    • SKU
      PKCSPFM83SLF
    • Market price:$206.25
      • save 23%
    • Starting price: Price: $159.00 per item

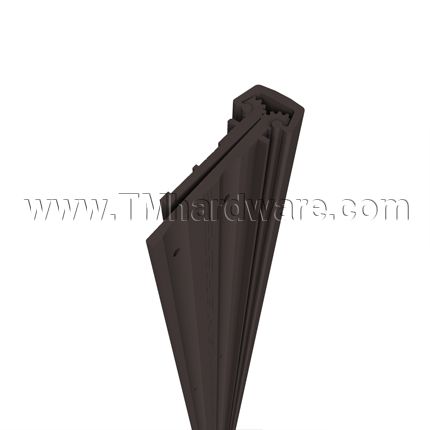

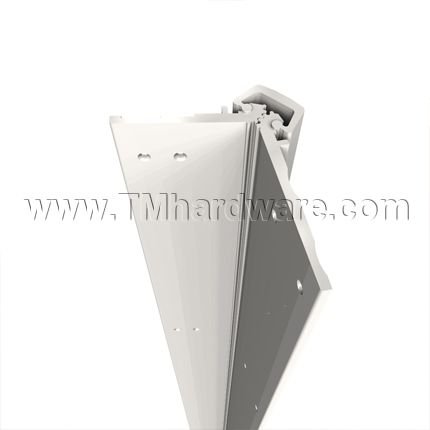

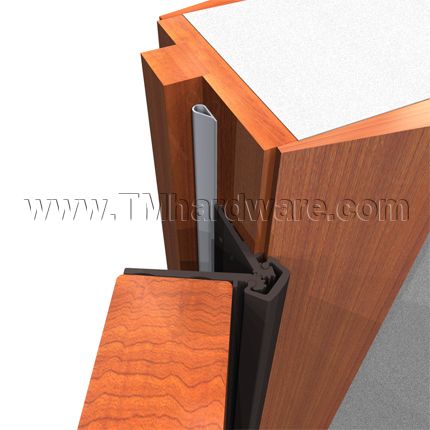

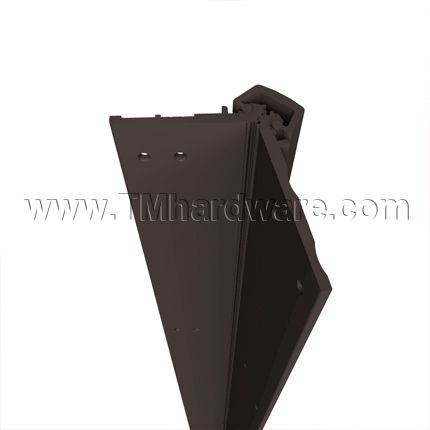

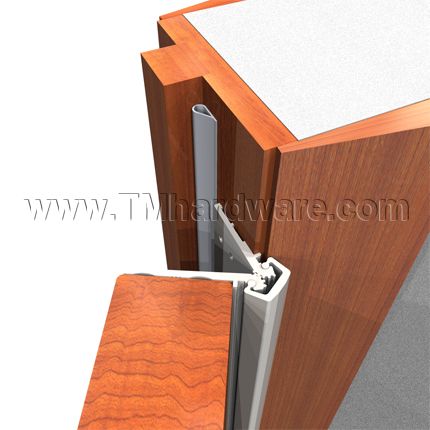

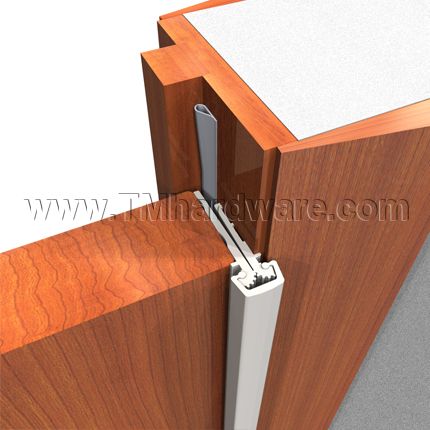

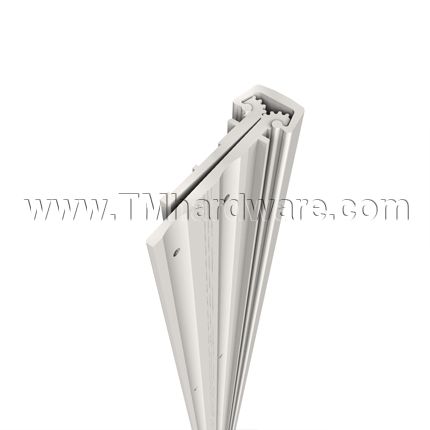

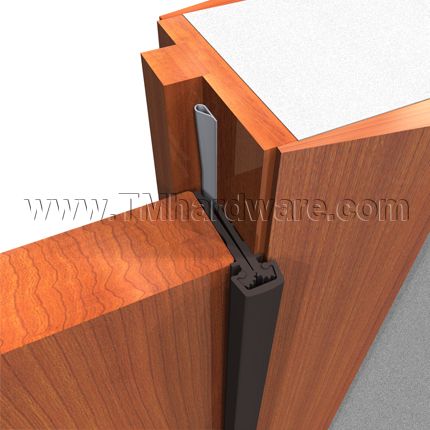

    This Special Application Full Mortised Continuous PemkoHinge is designed mainly for new door applications where the hinge leaf may interfere with the weatherstrip, thermal break or applied stop of the frame. The hinges has flush, short leaves which is ideal for bifold applications, where the faces of the doors need to remain flush. The hinge is applied to the frame rabbet and the edge of the door with the leaves concealed.

    This model is availble in Standard Duty and Heavy Duty Grade 1 or 3, see chart below for bearings and weigth capability.

    Size, Bearings and Weight Recommendations for Full Mortised Standard Duty Hinge            Size, Bearings and Weight Recommendations for Full Mortised Heavy Duty Hinge

    About Specialty Hinges:

    • Specialty Hinges are Tested and certified with the best warranty in the industry.
    • No restrictions on frame gauge and wall conditions.
    • No restriction on cutting hinges in field.
    • No special cutting instructions or voided warranties.
    • No special door and frame preps up to and including 90 minute doors.

    Attributes:

    • Efficiency: With a continuous hinge, typical alignment problems (such as door sag and binding) are eliminated.
    • Uniformity: The continuous hinge distributes load stress uniformly along the full length of the door and frame.
    • Durability: The gear design of the continuous hinge ensures symmetrical operation of each leaf which extends the life of the hinge and door.
    • Low Operating Force: 1⁄2 lb. or less operating force required to operate most doors, regardless of size.
    • Code Compliance: Low operating force feature makes continuous hinges ideal for doors used by the physically challenged.
    • Steel Frame Compatibility: The continuous hinge, when installed on standard steel doors and frames, requires no additional reinforcement. However, hinge preps must have fillers installed for proper operation.
    • Security: A high degree of security can be achieved for exterior openings or restricted spaces by using a continuous hinge. With the geared construction and the full-length channel cap, the common gap between the door and frame is sealed, which provides security against prying.
    • Safety: In addition, the continuous full-height hinge cap protects against pinching fingers in doors in public areas, particularly those where children are present.
    • Privacy: Sight proof design of the continuous hinge provides privacy for lavatories, executive offices, or file rooms.

    Design Features:

    • PemkoHinge™ has increased critical stress points of the hinge leaf extrusions providing additional strengths and rigidity to the completed product.
    • PemkoHinge™ bearing design eliminates premature wear, guarantees proper alignment, and requires fewer bearings to carry more weight. The bearing is produced for the manufacturer using a chemical composition and injection process that provides a stronger, more accurately formed bearing.
    • PemkoHinge™ is designed with inter-meshing gear segments in the hinge which provide 50% more bearing surface resulting in less wear.
    • PemkoHinge™ goes through the anodizing process after completing all machining. This means the machined aluminum surfaces that are in direct contact with the bearing have a smoother, harder surface, thereby reducing wear.
    • PemkoHinge™ maintains uniform bearing spacing for the full length of the hinge even when lengths exceed 10'.
    • PemkoHinge™ uses #12-24 size fasteners instead of #10. (#12 Tek fasteners available upon request through our office).
    • PemkoHinge™ commercial models are ideal for use on lead lined doors (i.e. hospital X-ray rooms), without requiring special screw locations.

    Additional Options Available - See Options Tab for more details:

    • Hospital Tip
    • FirePins for Fire Rated Assemblies

    Stock SizesStock sizes include 83", 85" and 95"- these sizes will not be charged a cutting fee. If required select from options above.

    Custom Sizes: Can be purchased in custom sizes up to 104" through our website.  Sizes up to 120" can be purchased through our office. A minimal cutting fee will be charged, included in price above. Please contact us or call us at 845-388-1300 for pricing and shipping information.

    Available Finishes: Can be purchased in anodized variations through our website. Black Anodized Aluminum may also be available for an additional 20% of the Dark Bronze Anodized price. Please contact us or call us at 845-388-1300 to confirm availability and details.

    Note Regarding Strengths: This product is available in Standard Duty or Heavy Duty variations. If the required strength is unavailable at time of purchase manufacturer will substitute a higher grade model at no additional cost.

    Fasteners: Supplied with standard fastener kit for metal doors. Replacement Kit or individual screws can be purchased through our office. TEK / TORX screws can also be purchased through the office. Note, if screws for wooden doors are required, specify in customer comments upon ordering.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Heavy Duty Grade 1 Hinges are GUARANTEED FOR LIFE OF THE OPENING against defects in material and workmanship.
    Standard Duty and Heavy Duty Grade 3 Hinges are guaranteed for 10 years.

    Hinges with Electrical Modification have a limited warranty of 5 years.
    Click to view our Full Warranty Policy.

    For a similar product see our Full Mortised Special Application with Inset.

      • SKU
        PKCSPFM83SLF
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      SPFM_SLF, SPFM_SLF-HD3, SPFM_SLF-HD1
    • Strength
      Standard Duty - Bearings @ 6", HeavyDuty Grade3-Bearings @ 3", HeavyDuty Grade1-Bearings @ 3"
    • Hospital Tip
      Not Required, Hospital Tip Required
    • Fire Pins
      Not Required, Zinc, for 80" - 95" Hinges, Zinc, for 96" - 120" Hinge
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

    Printable Documents

    Click to Print Product Specs

    Click to Print Standard Duty Stock Sizes Template

    Click to Print Heavy Duty Stock Sizes Templates

    Click to Print Required Clearances for Full Mortised Hinge

    Click to Print Installation Guide

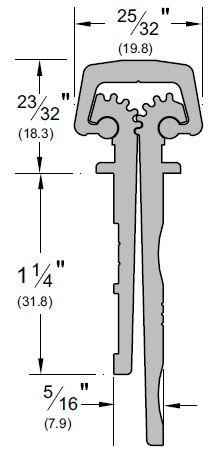

    Product Specs

    Product Specs for Full Mortised Continuous Hinge by Pemko           Product Specs for Full Mortised Continuous Hinge by Pemko



    Amount of Bearings and Weight Capabilities:

    Size, Bearings and Weight Recommendations for Full Mortised Standard Duty Hinge       Size, Bearings and Weight Recommendations for Full Mortised Heavy Duty Hinge

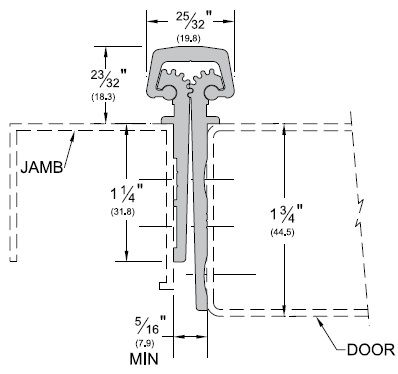

    Required Clearances for Full Mortised Hinges:
