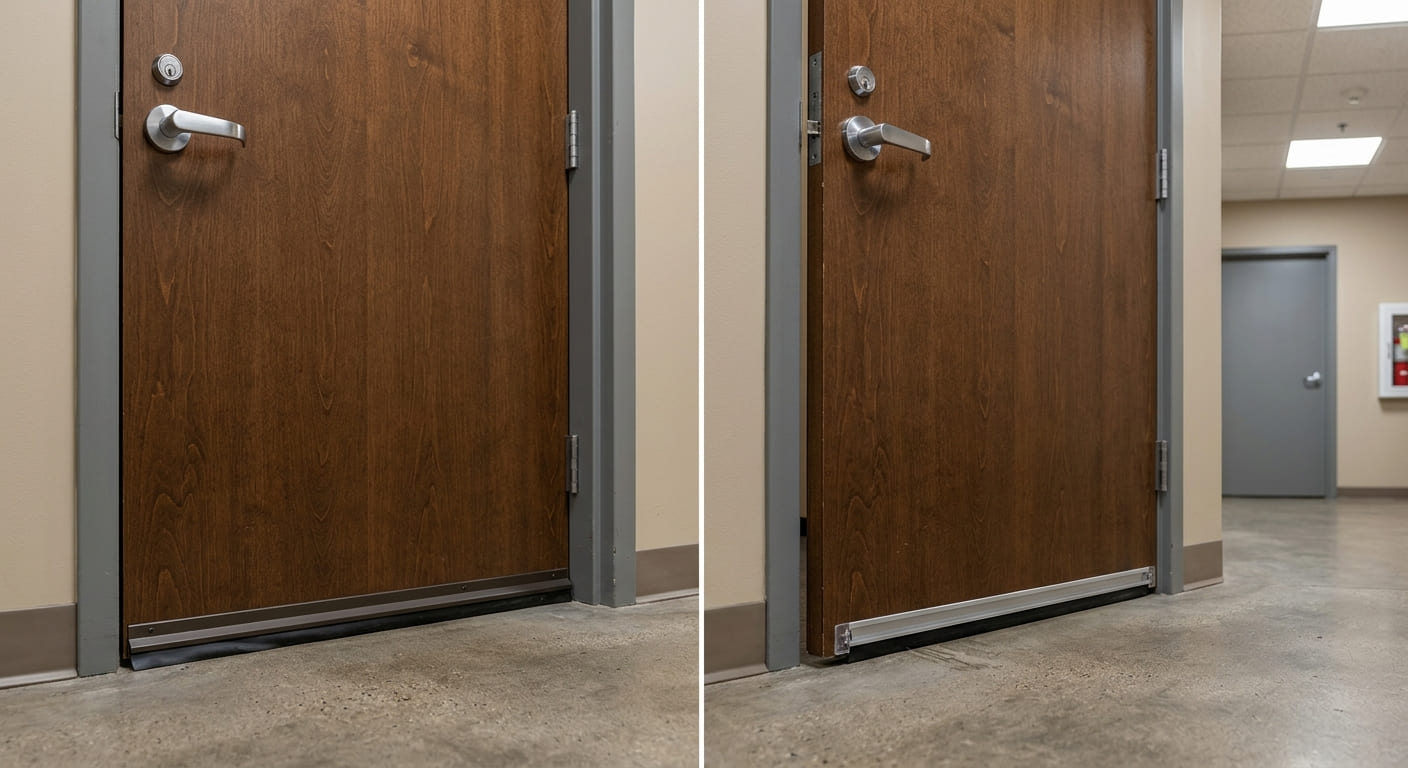

Automatic Door Bottom vs. Door Sweep: What’s the Difference?

When you need to seal the gap beneath a door, a standard door sweep and an automatic door bottom can both be useful options. However, they work differently and are suited to different door and floor conditions.

A standard door sweep stays in contact with the floor or threshold as the door opens and closes. An automatic door bottom, sometimes called an automatic door sweep or retractable door seal, uses a mechanism that retracts the seal when the door opens and lowers it when the door closes.

Understanding this difference can help you choose the right solution for controlling drafts, air, light, dust and sound beneath a door.

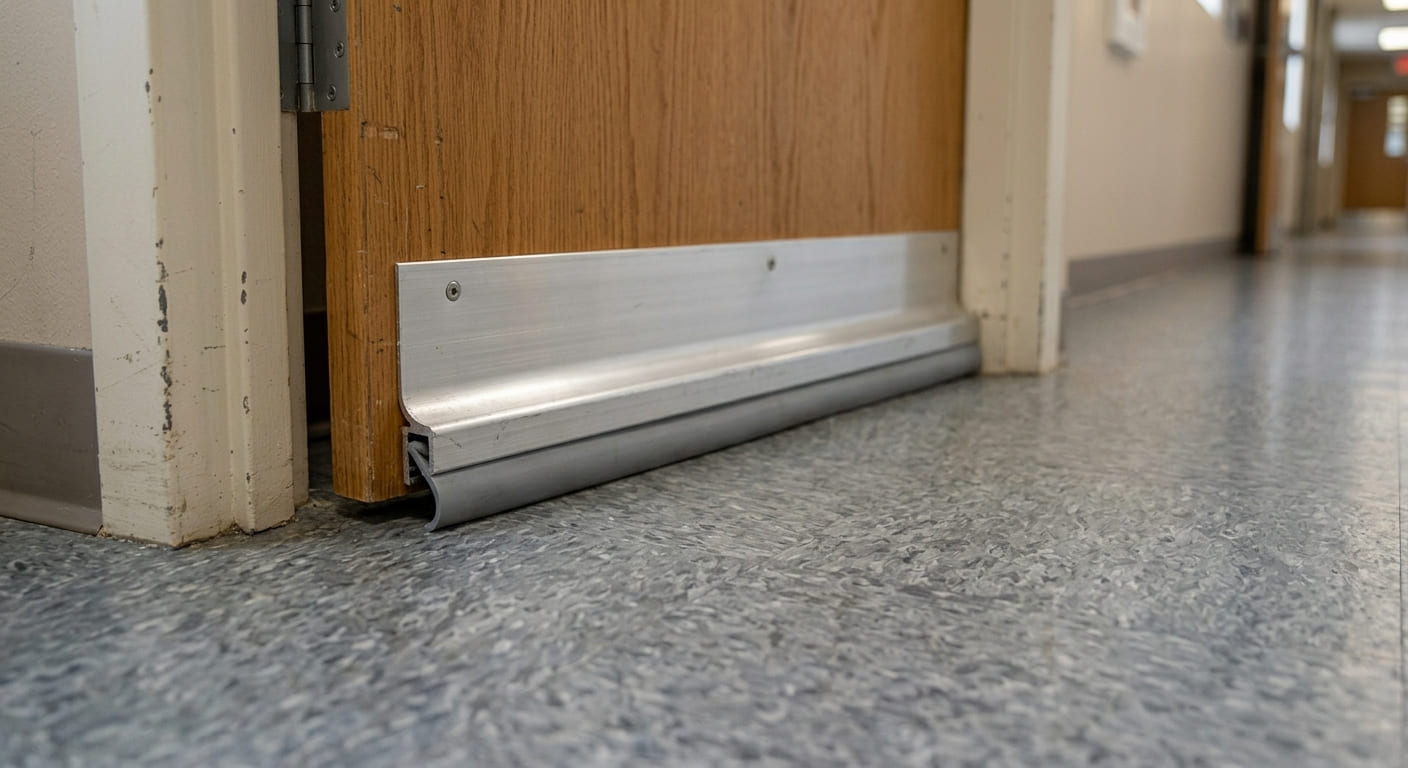

What Is a Door Sweep?

A door sweep is a sealing component installed along the bottom of a door. Depending on the design, it may use a rubber, vinyl or brush seal that remains in contact with the floor or threshold when the door moves.

Door sweeps are commonly used to close the gap beneath exterior and interior doors. They can help reduce drafts, dust, light and other air movement through the bottom of the opening.

Because the seal stays in contact with the surface, the floor or threshold condition is an important consideration when selecting a door sweep. The sweep needs to make sufficient contact to close the gap without creating unnecessary resistance when the door opens and closes.

What Is an Automatic Door Bottom?

An automatic door bottom is a retractable door seal installed at the bottom of a door. Instead of dragging continuously across the floor, the sealing element drops into position when the door closes and retracts when the door opens.

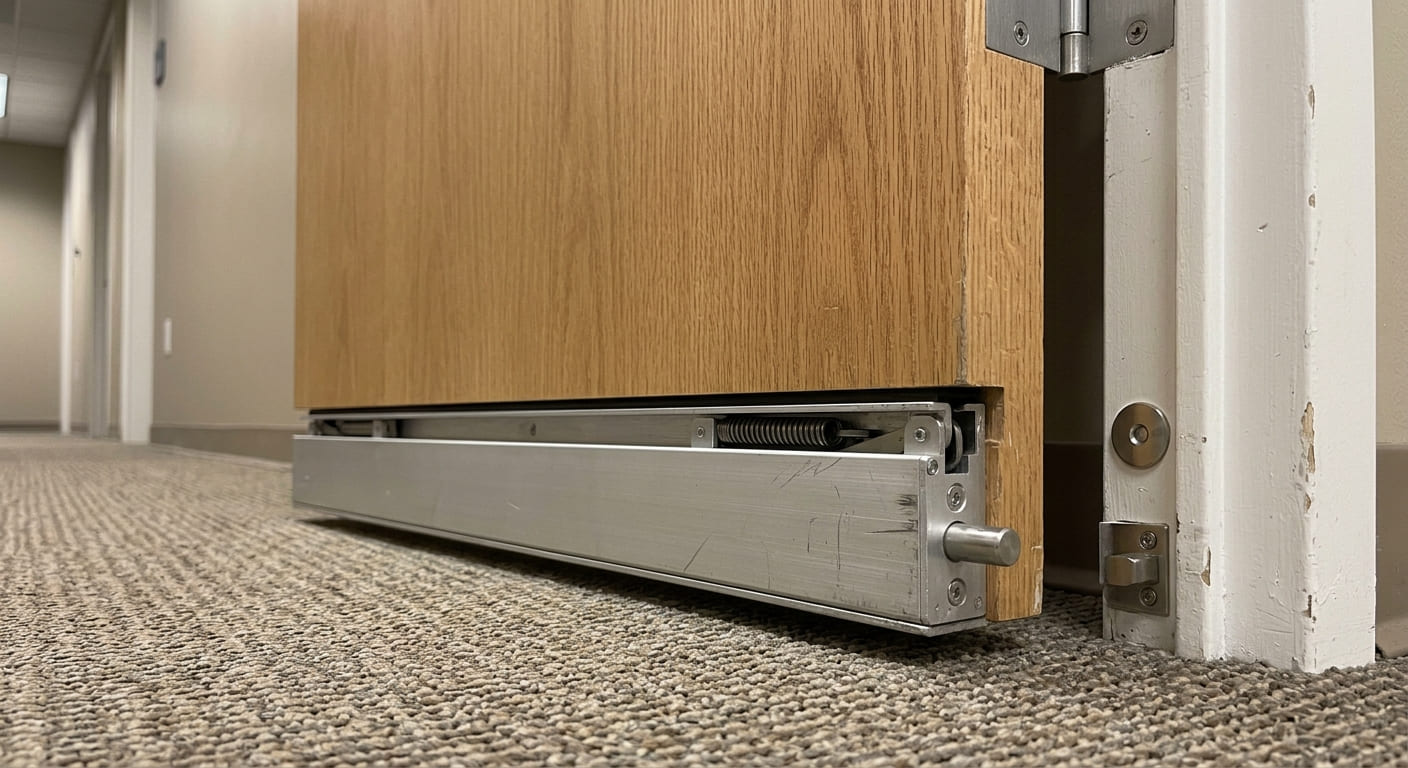

Many automatic door bottoms use a jamb-contacting plunger to activate the internal mechanism. As the door closes, the plunger contacts the frame and activates the drop-bar seal. When the door opens, the seal retracts back into the housing.

This drop-on-close and lift-on-open action is the main feature that separates an automatic door bottom from a conventional fixed door sweep.

Automatic Door Bottom vs. Door Sweep: The Main Difference

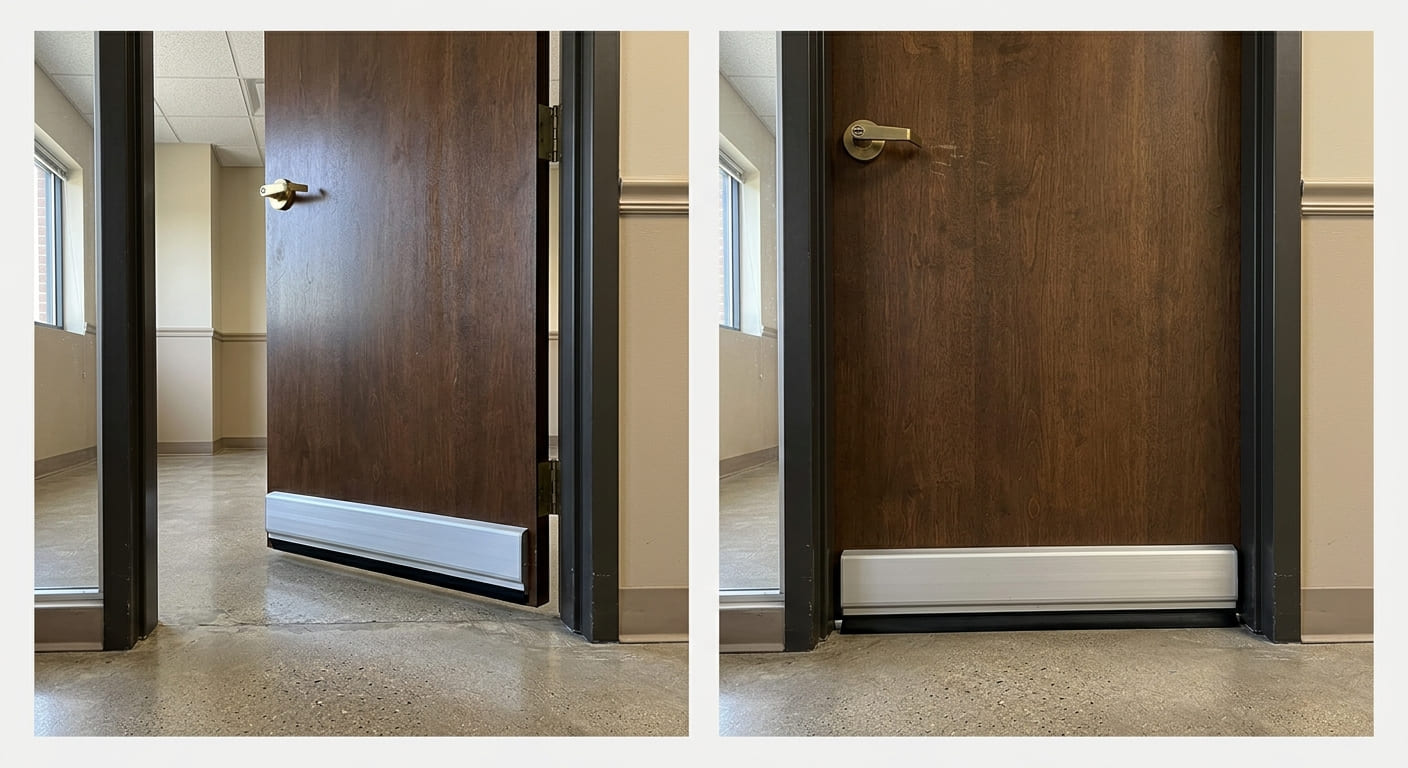

How Does an Automatic Door Bottom Work?

The operating principle is relatively simple:

1. The door is open: The sealing element is raised inside the automatic door bottom housing.
2. The door starts closing: The activation mechanism approaches the door frame.
3. The plunger contacts the frame: The contact activates the internal mechanism.
4. The seal drops: The sealing element moves downward into the gap beneath the door.
5. The door is closed: The seal remains against the floor or threshold to close the bottom gap.
6. The door opens: The mechanism releases and retracts the seal so it does not continuously drag across the floor.

The exact mechanism varies between products, so the manufacturer's installation instructions and specifications should always be checked before installation.

Automatic Door Sweep vs. Automatic Door Bottom: Are They the Same?

The terminology can be confusing because manufacturers, distributors and customers may use terms such as automatic door sweep, automatic door bottom, automatic door seal, drop down door seal and retractable door sweep for similar products.

The important feature to look for is the retractable mechanism. An automatic door bottom is designed to lower the seal when the door closes and raise it when the door opens.

For product selection, focus less on the name and more on the actual installation method, door construction, seal dimensions, bottom gap, floor or threshold condition and the sealing requirements of the opening.

What Are the Benefits of a Standard Door Sweep?

A standard door sweep can be a practical solution when you need a straightforward way to close the gap beneath a door.

• Simple installation: Many door sweeps attach directly to the bottom or face of the door.
• General gap sealing: Sweeps can help reduce air movement, drafts, dust and light beneath a door.
• Different seal materials: Depending on the product, sweeps may use rubber, vinyl or brush-style sealing elements.
• Good for basic applications: A fixed sweep can be appropriate when continuous contact with the floor or threshold is not a concern.
• Multiple installation options: Different sweep designs are available for different door and threshold configurations.

What Are the Benefits of an Automatic Door Bottom?

Automatic door bottoms are useful when you need a seal beneath the door without having the sealing element continuously drag across the floor.

• Retractable sealing: The seal rises when the door opens and drops when the door closes.
• Reduced dragging: The seal is not designed to remain against the floor throughout the door's movement.
• Sound control: Closing the gap beneath the door can help reduce sound transmission through the opening when used as part of a suitable door assembly.
• Air and draft control: The bottom gap can be sealed when the door is closed.
• Light control: A properly selected seal can close the visible gap beneath the door.
• Commercial applications: Automatic door bottoms are commonly used in commercial and architectural door openings where controlled sealing is important.

For specific fire, smoke or acoustic applications, always verify that the selected automatic door bottom has the required product rating or specification for the complete door assembly.

When Should You Choose a Door Sweep?

A standard door sweep may be the better choice when you need a simple bottom seal for a relatively straightforward application.

Consider a standard door sweep when:

• The door has a relatively consistent gap beneath it.
• Continuous contact with the floor or threshold is acceptable.
• You need a basic solution for drafts, dust or air movement.
• The installation needs to remain simple.
• The floor surface is suitable for the selected sweep material.

For example, a conventional sweep may be sufficient for a door where the main objective is to reduce a small draft or close the visible gap at the bottom.

When Should You Choose an Automatic Door Bottom?

An automatic door bottom becomes more useful when continuous contact between the seal and floor is undesirable or when the opening has more demanding sealing requirements.

Consider an automatic door bottom when:

• You want the seal to retract when the door opens.
• Dragging across carpet or finished flooring is a concern.
• Sound control is an important part of the application.
• You need to control light, air or drafts beneath a closed door.
• The door is part of a commercial or architectural opening.
• You need a surface-mounted, semi-mortised or fully mortised installation.
• The opening requires a product with specific fire, smoke or acoustic performance.

The correct product still depends on the door construction, gap beneath the door, floor or threshold and the specifications required for the application.

Automatic Door Bottoms for Sound Control

The gap beneath a door can be an important path for sound to pass through an opening. Closing that gap can therefore improve the overall sealing of the door assembly.

Automatic door bottoms are available for applications where sound control is important. Some products are specifically designed and tested for acoustic openings, while others are intended for general sealing applications.

It is important to understand that an automatic door bottom does not make a door completely soundproof by itself. The door slab, frame, perimeter seals, threshold and surrounding construction all affect the acoustic performance of the opening.

For sound-sensitive applications, select an automatic door bottom based on the requirements of the complete door assembly rather than choosing a product based only on the term "soundproof."

Automatic Door Bottoms and Carpet

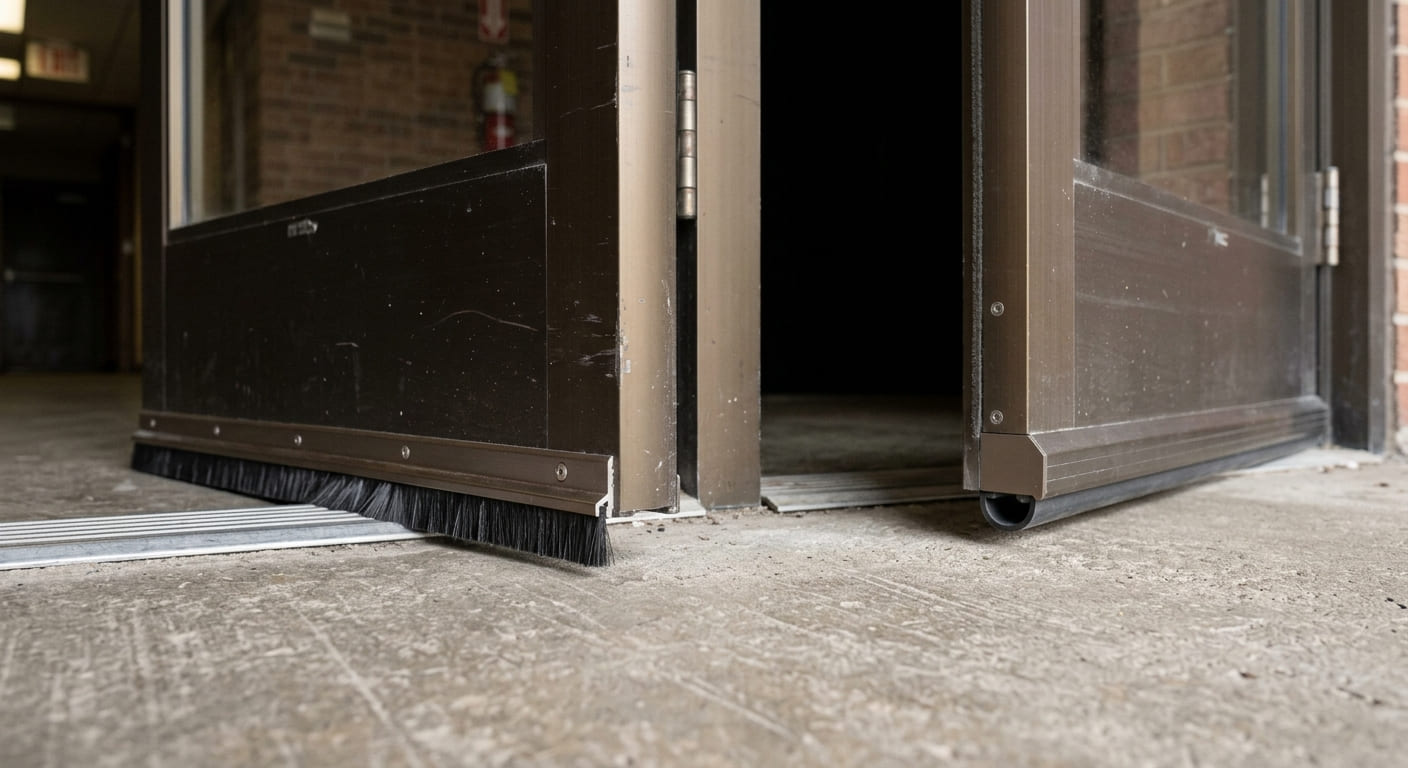

Flooring is one of the important differences to consider when comparing a fixed door sweep with an automatic door bottom.

A fixed sweep remains in contact with the floor while the door moves. Depending on the seal material and floor surface, this can create more friction and wear.

An automatic door bottom retracts as the door opens, allowing the seal to clear the floor while the door is moving. Some automatic door bottoms use brush seals that can conform to irregular surfaces such as carpet, stone and grout lines.

Before selecting a product, measure the actual bottom gap and check the manufacturer's specified drop range and seal type.

Surface-Mounted vs. Mortised Automatic Door Bottoms

Automatic door bottoms are available in different installation configurations. The three common options include surface-mounted, semi-mortised and fully mortised designs.

Surface-Mounted Automatic Door Bottom

A surface-mounted automatic door bottom attaches to the door without requiring the entire mechanism to be recessed into the door. This can make it useful for certain retrofit and installation situations.

View Surface Mounted Automatic Door Bottoms

Semi-Mortised Automatic Door Bottom

A semi-mortised automatic door bottom is partially recessed into the door while remaining suitable for applications where a full mortise is not required.

Shop Semi-Mortised Automatic Door Bottoms

Mortised Automatic Door Bottom

A fully mortised automatic door bottom is installed within a routed channel in the bottom of the door. This allows the hardware to sit more discreetly within the door construction.

View Mortised Automatic Door Bottoms

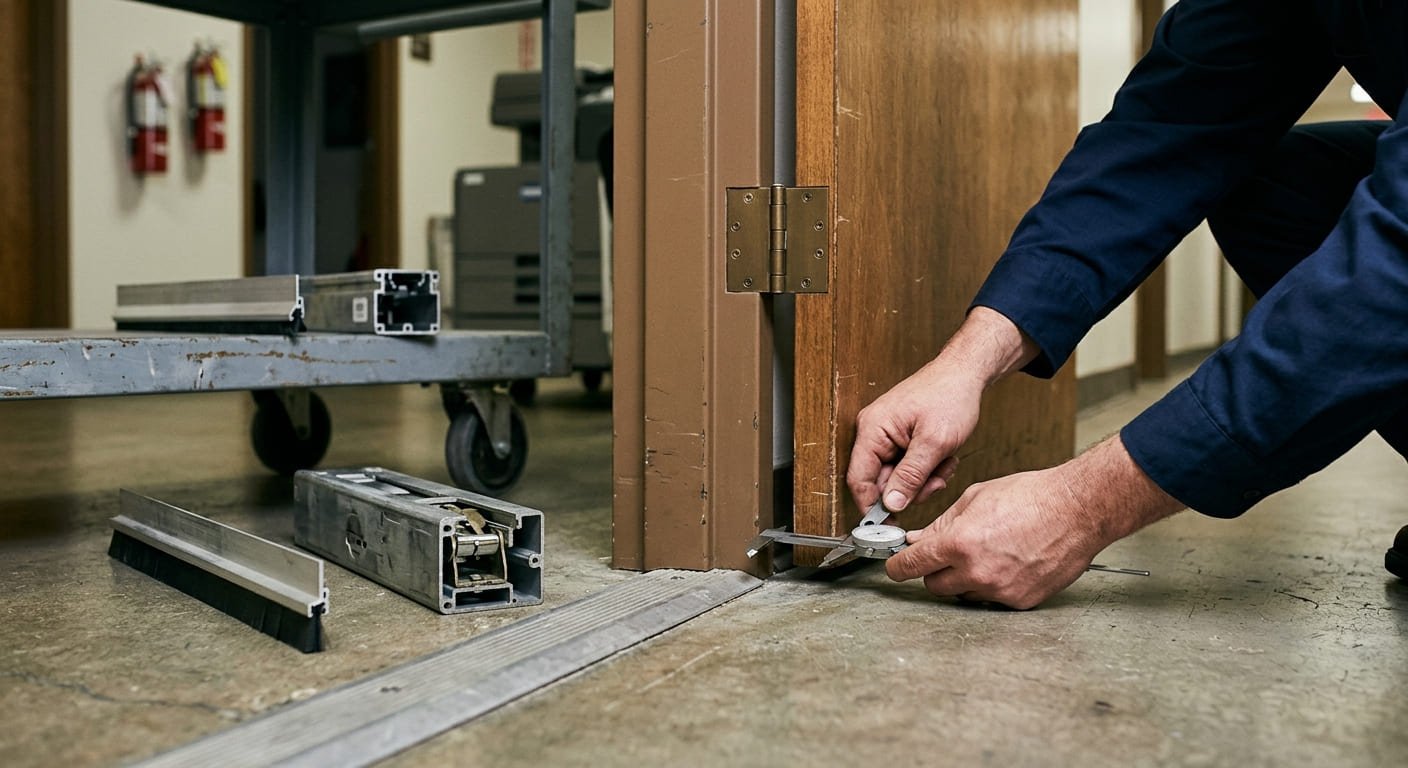

How to Choose Between an Automatic Door Bottom and Door Sweep

Start with the requirements of the opening rather than the product name. These questions can help narrow down the right type of door seal:

1. How large is the gap? Measure the gap beneath the door at several points.
2. What is the floor surface? Check whether the door closes over carpet, tile, wood, stone or a threshold.
3. Does the seal need to retract? If continuous contact with the floor is undesirable, an automatic door bottom may be a better option.
4. What needs to be controlled? Consider sound, air, drafts, light, dust, moisture, smoke or other requirements.
5. How is the door constructed? Door thickness and construction can affect the appropriate installation method.
6. Is a specific rating required? For fire, smoke or acoustic applications, verify the product's applicable specifications and the requirements of the complete assembly.

For more detailed guidance, see our Automatic Door Bottom selection guide and Automatic Door Bottom measuring guide.

Where Can You Buy Automatic Door Bottoms?

Trademark Hardware offers automatic door bottoms in different installation configurations and from several manufacturers. The right product depends on your door, installation method, bottom gap and sealing requirements.

Shop All Automatic Door Bottoms

You can also browse automatic door bottoms by manufacturer:

• Barzen Automatic Door Bottoms
• TMH Automatic Door Bottoms
• Zero Automatic Door Bottoms
• Pemko Automatic Door Bottoms

Frequently Asked Questions

What is the difference between an automatic door bottom and a door sweep?

A standard door sweep generally remains in contact with the floor or threshold as the door moves. An automatic door bottom retracts when the door opens and lowers the seal when the door closes.

Is an automatic door sweep the same as an automatic door bottom?

The terms are sometimes used interchangeably for retractable door-bottom sealing products. When shopping, focus on the actual mechanism, installation method, seal dimensions and product specifications rather than the name alone.

Does an automatic door bottom touch the floor?

Yes. When the door closes, the sealing element drops into the gap and contacts the floor or threshold. When the door opens, the seal retracts so it does not remain in continuous contact with the surface.

Are automatic door bottoms better than door sweeps?

Neither is automatically better for every application. A standard sweep can be a practical choice for basic gap sealing, while an automatic door bottom can be more suitable when retractable sealing, sound control or reduced floor contact is important.

Can an automatic door bottom help with soundproofing?

An automatic door bottom can help reduce sound transmission through the gap beneath a door. However, overall acoustic performance also depends on the door, frame, perimeter seals, threshold and surrounding construction.

Can a door sweep be used on carpet?

Some door sweeps can be used on carpet, but the seal material and carpet height should be considered. A fixed sweep may drag as the door moves, while an automatic door bottom retracts when the door opens.

What should I measure before buying an automatic door bottom?

Measure the door width, bottom gap and floor or threshold condition. You should also check the door construction and the installation method required for the automatic door bottom.

See our Automatic Door Bottom Measuring Guide before selecting a product.

Automatic Door Bottom or Door Sweep: Which One Is Right for You?

A standard door sweep is a straightforward option for sealing the gap beneath a door when continuous contact with the floor or threshold is acceptable. An automatic door bottom provides a different approach by retracting the seal when the door opens and lowering it when the door closes.

The right choice depends on the door construction, bottom gap, floor condition, installation method and the level of sealing required. If you need a retractable seal for a commercial or specialized application, start by reviewing the available Automatic Door Bottoms and use the Automatic Door Bottom selection guide to narrow down the options.
