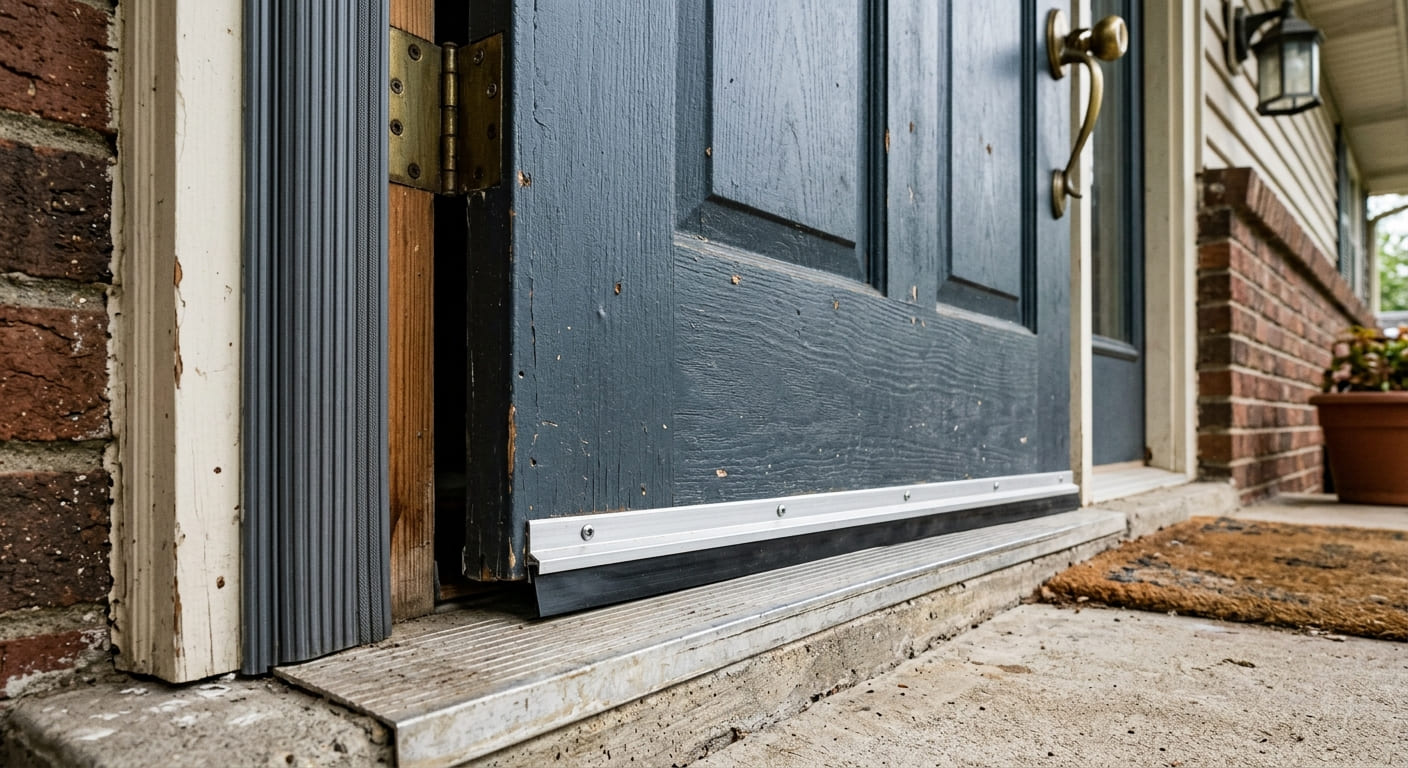

Door Sweep vs. Weatherstripping: What’s the Difference?

Door sweeps and weatherstripping are both used to seal gaps around doors, but they do different jobs. A door sweep is designed to seal the gap underneath the door, while weatherstripping is generally installed along the sides and top of the door where the door meets the frame.

If you are trying to stop drafts, reduce air leakage, keep out dust and insects, or improve the seal around an exterior door, knowing the difference between a door sweep and weatherstripping will help you choose the right product.

In many cases, you do not have to choose between the two. A properly sealed exterior door may need door weatherstripping around the frame and a door sweep or bottom seal underneath the door.

What Is the Difference Between a Door Sweep and Weatherstripping?

The easiest way to understand the difference is to look at where the gap is located.

So, if you feel air coming from underneath the door, start by checking the door sweep, door bottom, threshold and bottom gap. If air is coming through the sides or top when the door is closed, inspect the weatherstripping around the frame.

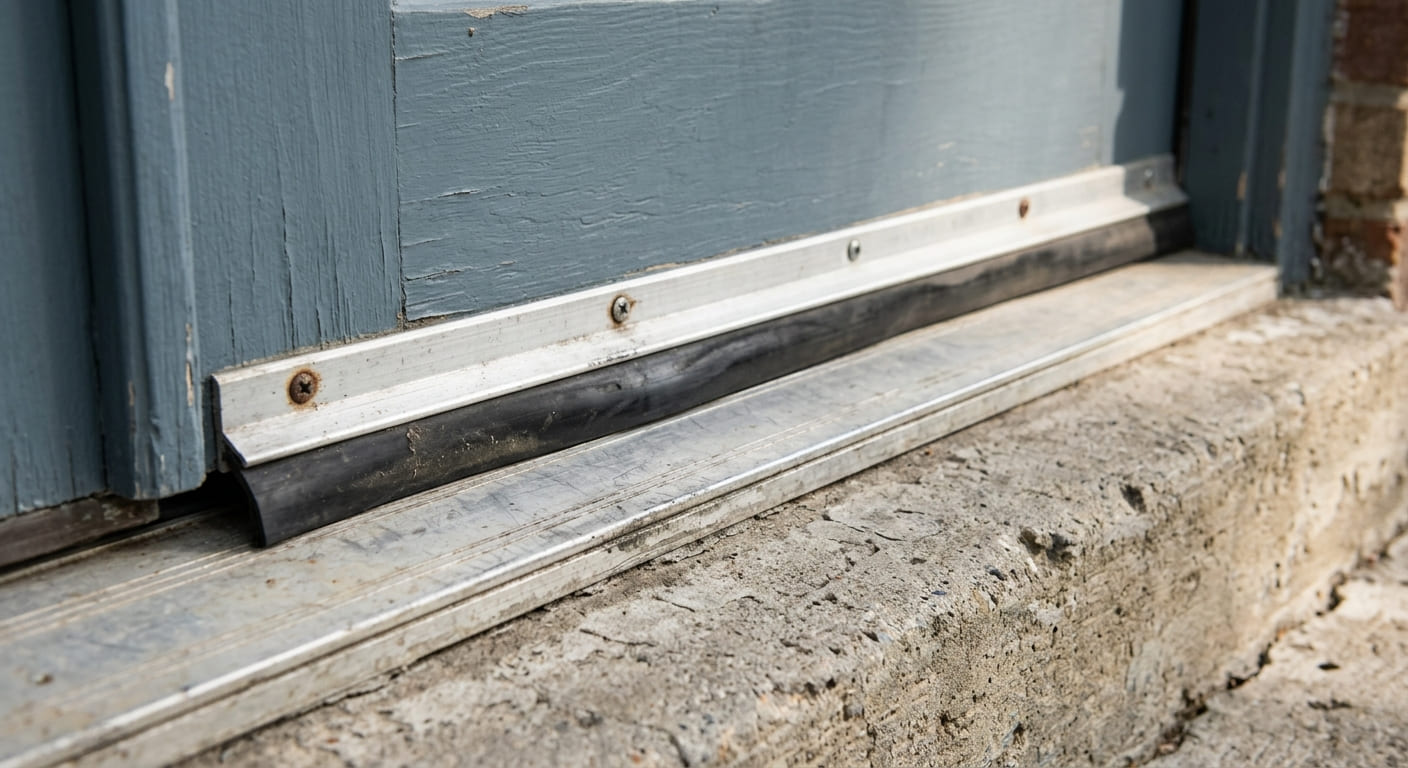

What Is a Door Sweep?

A door sweep is a sealing component installed along the bottom edge of a door. It bridges the space between the door and the threshold or floor when the door is closed.

Door sweeps are commonly made with materials such as rubber, vinyl, silicone or brush bristles and may use a metal or plastic mounting strip. Depending on the design, a sweep can be surface-mounted, inserted into a channel or incorporated into a door bottom system.

The main purpose is to close the gap underneath the door without preventing the door from opening and closing normally.

Explore door sweeps for bottom-of-door sealing solutions, including rubber, brush, mortised and bronze options.

What Does a Door Sweep Seal?

A door sweep is specifically intended for the bottom portion of the doorway. It can help reduce:

• Air drafts underneath the door
• Dust and dirt entering at floor level
• Insects entering through the bottom gap
• Moisture and wind-driven debris
• Air leakage around the threshold area

For exterior doors, the sweep works together with the threshold and the rest of the door sealing system. A sweep alone will not seal gaps around the sides and top of the door.

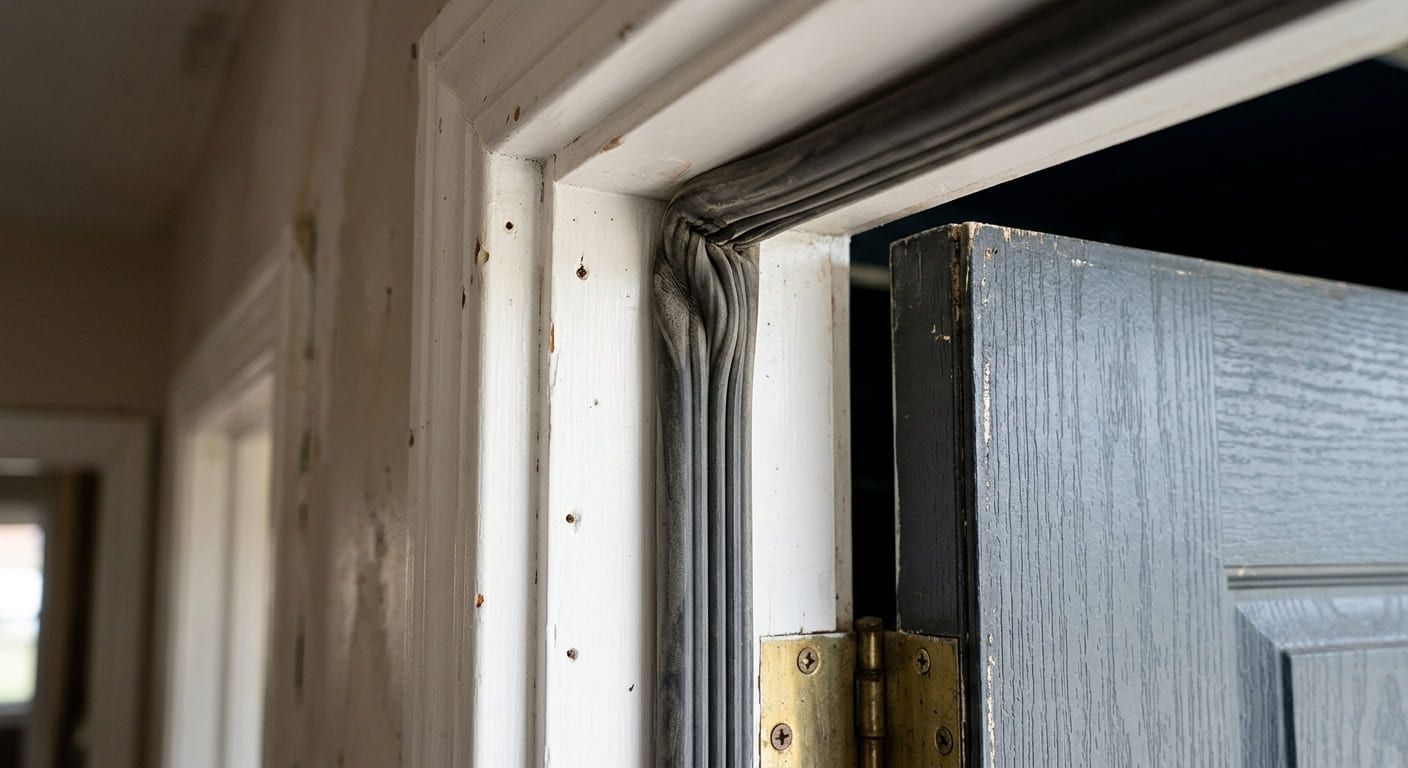

What Is Door Weatherstripping?

Door weatherstripping is material designed to seal the gaps between a closed door and its frame or jamb. It is normally installed along the sides and top of an exterior door opening.

Weatherstripping comes in several designs and materials. Depending on the door and frame, you may find self-adhesive rubber, foam, kerf-style weatherstripping, metal weatherstripping and other compression or flexible sealing systems.

The correct weatherstripping should create a seal when the door is closed without putting excessive pressure on the door or making it difficult to operate.

What Does Door Weatherstripping Seal?

Weatherstripping is mainly used to close the perimeter gaps between the door and frame.

• Gaps along the hinge side of the door
• Gaps along the latch side of the door
• The gap across the top of the door
• Small irregular gaps between the door and jamb
• Air leaks around the perimeter of an exterior door

The U.S. Department of Energy recommends measuring the sides and top of the doorway, fitting the weatherstripping snugly, fastening it securely and checking that the door continues to operate smoothly after installation.

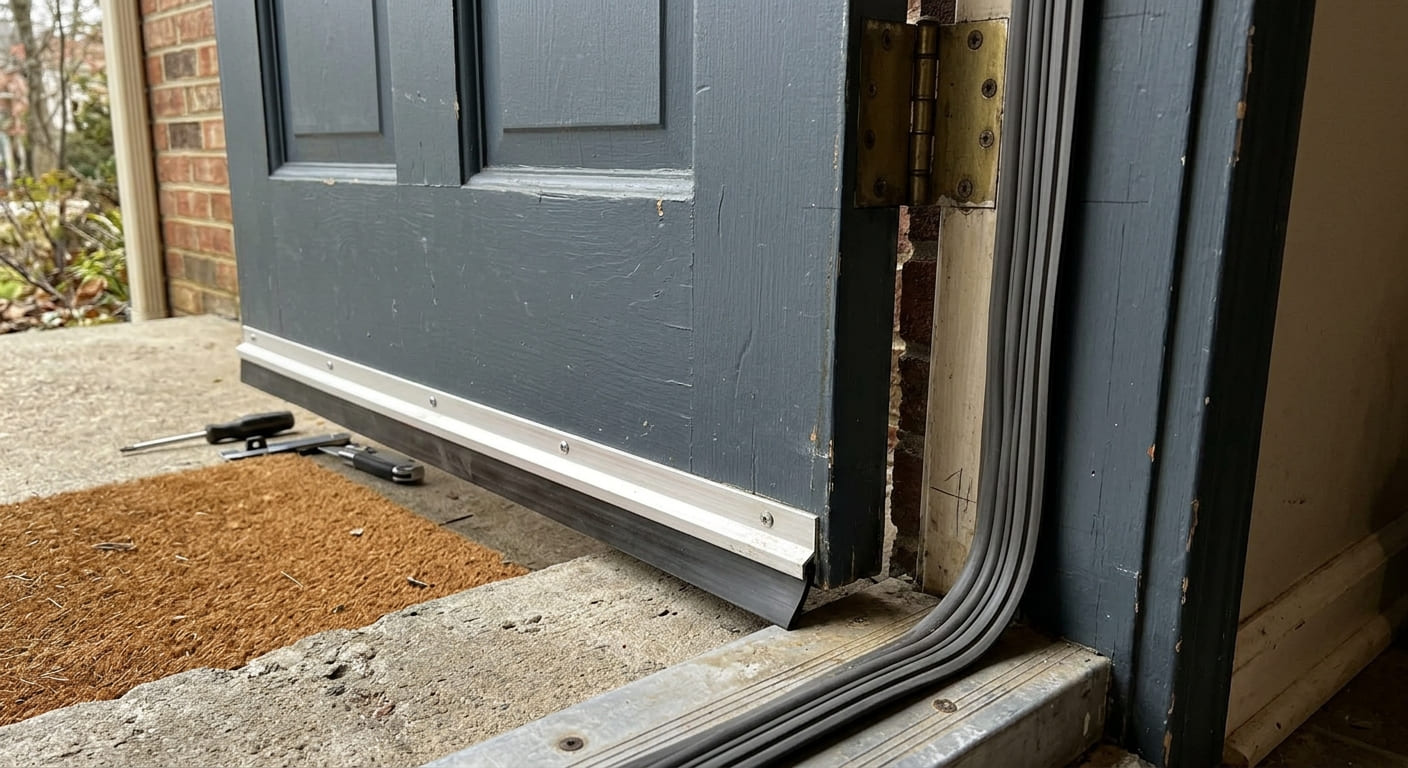

Door Sweep vs. Weatherstripping: Where Does Each One Go?

The simplest way to remember the difference is:

Weatherstripping seals the frame. A door sweep seals the bottom.

On a typical exterior door, weatherstripping runs along the two vertical sides and across the top. The door sweep is installed along the bottom edge of the door to seal against the threshold.

This creates a more complete sealing system around the door. Industry and energy-efficiency guidance similarly treats the two components as complementary: weatherstripping addresses the sides and top, while a sweep or door bottom addresses the bottom gap.

Do You Need a Door Sweep or Weatherstripping?

Look at where the air or light is getting through.

If the Draft Is Coming From Under the Door

If you can feel air underneath the door or see daylight between the door bottom and threshold, check the door sweep first.

You may need a replacement sweep, door bottom seal or another bottom-of-door sealing solution depending on the door and threshold configuration.

See door bottoms, seals and door bottom sweeps for bottom-of-door sealing options.

If the Draft Is Coming From the Sides

If the door is closed but you can feel air entering along the hinge or latch side, inspect the weatherstripping around the frame.

Worn, compressed, missing or incorrectly sized weatherstripping can leave gaps between the closed door and jamb.

Depending on the frame, you may need self-adhesive rubber weatherstripping, kerf weatherstripping or another compatible profile.

If the Draft Is Coming From the Top

A gap across the top of the closed door is another weatherstripping issue rather than a door-sweep problem.

Check the condition of the existing seal and make sure the replacement weatherstripping is appropriate for the size of the gap and the way the existing product is installed.

If You Have Gaps in Multiple Areas

If you are getting drafts from underneath the door as well as around the sides or top, replacing only one component may not solve the problem.

A complete exterior door sealing system commonly combines perimeter weatherstripping with a bottom seal or door sweep.

Can a Door Sweep Replace Weatherstripping?

No. A door sweep cannot replace weatherstripping around the sides and top of the door.

A sweep is designed for the bottom gap. Weatherstripping around the frame is designed for the perimeter gaps between the door and jamb.

Installing a new sweep may stop a draft underneath the door, but it will not seal a gap along the latch side or across the top. Likewise, replacing the weatherstripping around the frame will not necessarily close a large gap underneath the door.

When both areas are leaking, both components may be needed.

Can Weatherstripping Be Used Under a Door?

Some door sealing products can be used at the bottom of a door, but it is important to distinguish between general weatherstripping and products specifically designed for the bottom edge.

The bottom of a door has different requirements because the seal needs to move across or interact with the threshold while the door opens and closes. A product that works well along the jamb may not be appropriate underneath the door.

For bottom-of-door applications, consider products specifically designed as door sweeps, door bottoms, door shoes or automatic door bottoms.

For more specialized applications, see automatic door bottoms.

Door Sweep vs. Door Bottom: Are They the Same?

Door sweep and door bottom are sometimes used interchangeably, but the actual construction can vary.

A basic door sweep may attach directly to the bottom face of the door and use a flexible rubber, vinyl or brush seal. A door bottom can be a more complete assembly designed specifically for the bottom edge of the door.

Some door bottoms contain replaceable seals or use a channel-mounted design. Automatic door bottoms are another option that lowers a seal when the door closes and retracts it when the door opens.

The important consideration is not simply the name of the product. The replacement needs to match the door construction, threshold, clearance and existing installation method.

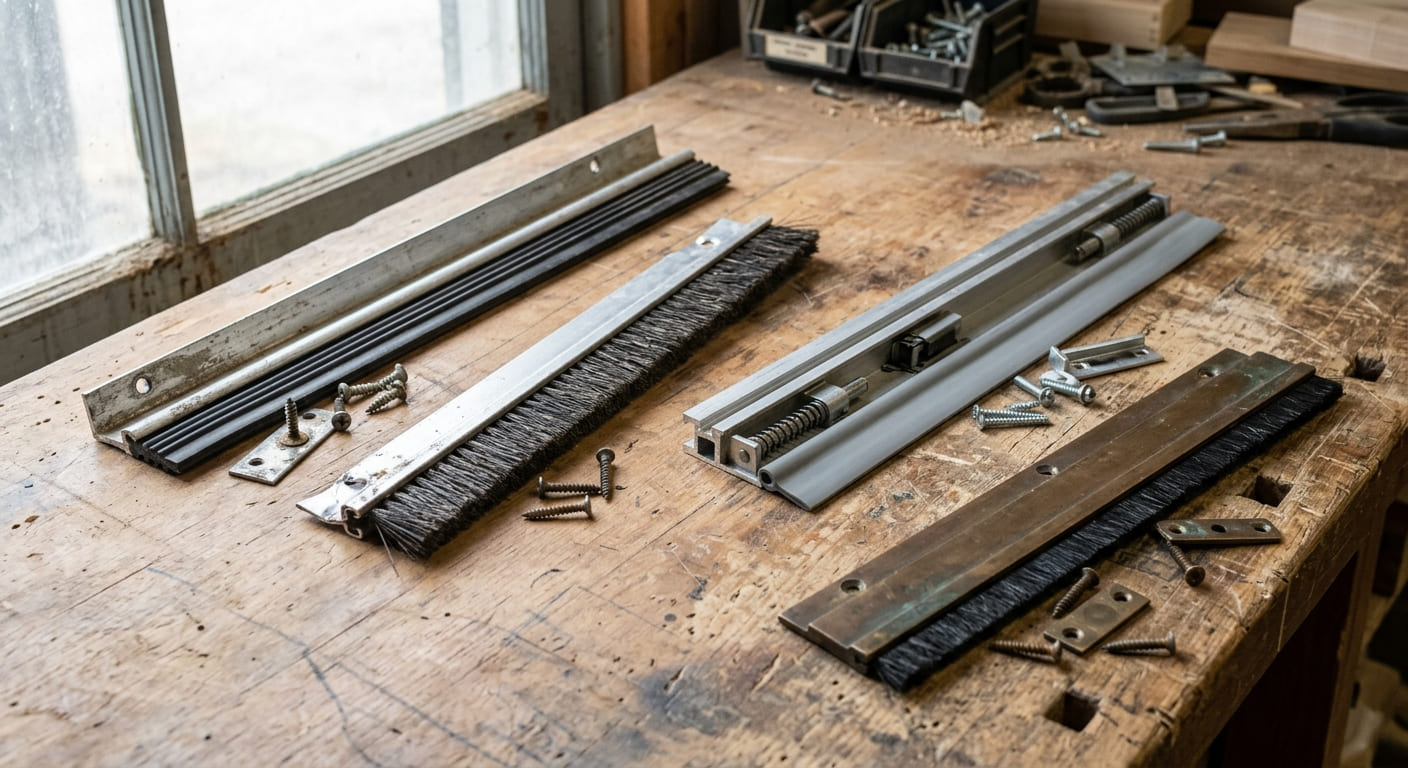

What Types of Door Sweeps Are Available?

Door sweeps come in different designs and materials depending on the door, threshold and type of seal you need. TM Hardware offers several door sweep options for residential and commercial door applications.

All Door Sweeps

If you are not sure which style of sweep you need, start with the all door sweeps category. It includes different sweep designs and configurations for various door and threshold applications.

Rubber Door Sweeps

Rubber door sweeps use a flexible rubber sealing element to close the gap between the bottom of the door and the threshold. They are a common choice when you need a flexible bottom seal that can make consistent contact with the threshold.

Brush Door Sweeps

Brush door sweeps use flexible bristles instead of a solid rubber sealing edge. The bristles can accommodate some unevenness at the floor or threshold, making this style useful for applications where a rigid sealing edge may not be ideal.

Mortised Door Sweeps

Mortised door sweeps are designed for applications where the sweep is recessed or fitted into the bottom of the door. This can provide a cleaner installation and is useful when the door construction is designed to accept a mortised bottom seal.

Bronze Door Sweeps

Bronze door sweeps provide a durable metal-based option for door bottom applications. Bronze can also be selected when the appearance of the door hardware is important in addition to sealing performance.

The right sweep depends on more than the material. Before choosing one, check the door construction, available clearance, threshold, mounting method and size of the bottom gap.

What Types of Weatherstripping Are Available?

Weatherstripping for the sides and top of a door is available in different installation methods and materials.

Self-Adhesive Weatherstripping

Self-adhesive weatherstripping uses an adhesive backing to attach to a clean door frame. It can be a convenient option for certain applications where a simple installation is appropriate.

See self-adhesive rubber weatherstripping for one common type of door sealing application.

Kerf Weatherstripping

Kerf weatherstripping is designed to fit into a narrow groove, or kerf, in the door frame. Many replacement door systems use this installation method.

If your existing weatherstripping pulls out of a slot in the frame, you may have a kerf-style system.

See kerf frame weatherstripping for replacement options.

Metal Weatherstripping

Metal weatherstripping is another option for door frames and can provide a durable sealing solution for the right application.

It may use a metal strip with a flexible sealing component and is installed differently from adhesive-backed products.

Explore metal door weatherstripping for this type of application.

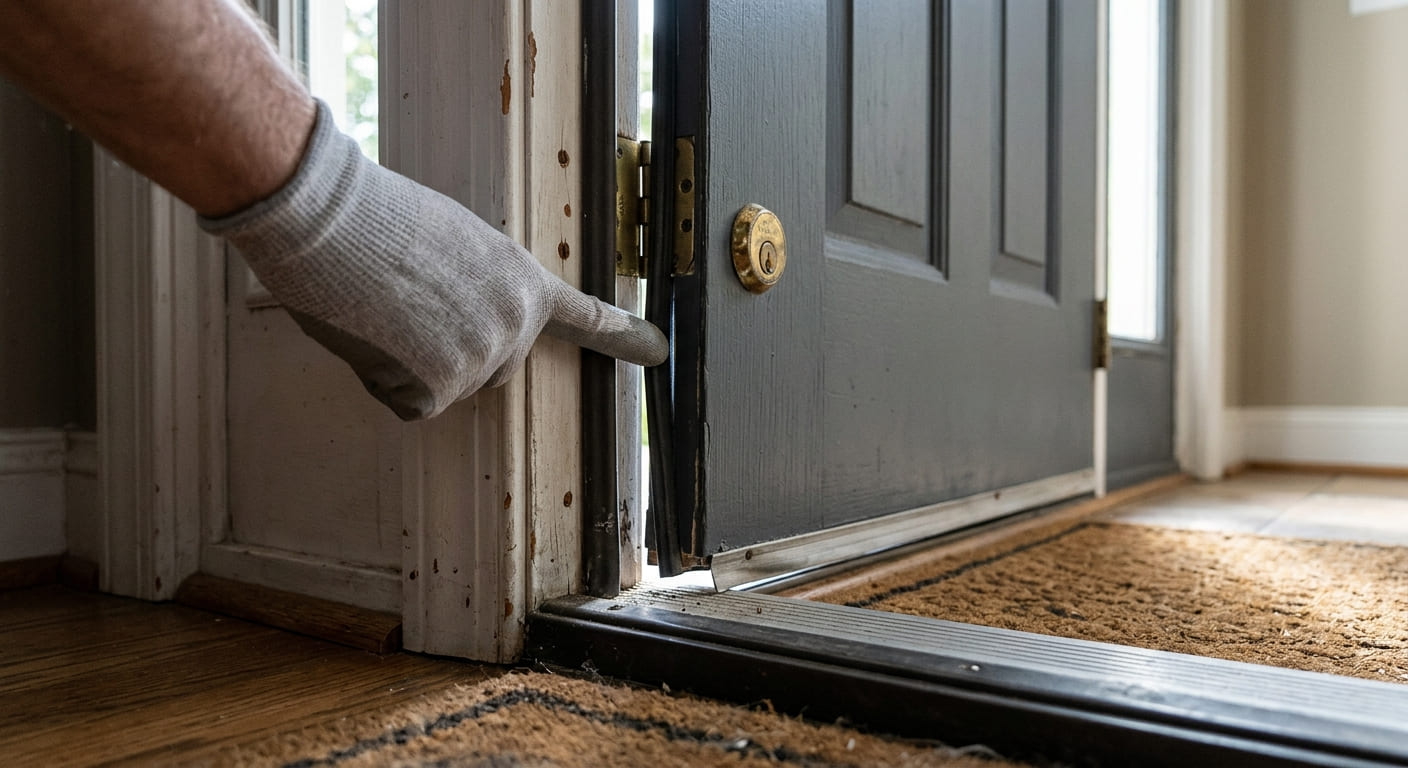

How Do You Know Which One You Need?

Before buying anything, inspect the entire closed door rather than focusing on only one section.

1. Close the door completely.
2. Look for visible daylight around the door.
3. Check the sides of the door for gaps.
4. Check the top of the door for gaps.
5. Look underneath the door for daylight.
6. Feel around the perimeter for moving air.
7. Inspect the existing sweep and weatherstripping for cracking, compression or damage.

If the problem is around the sides or top, focus on weatherstripping. If the problem is underneath, focus on the sweep, door bottom and threshold. If you find gaps in both areas, plan on addressing both.

How to Check Whether Your Door Sweep Is Working

Close the door and inspect the bottom edge. The sweep should create a seal against the threshold without making the door difficult to open or close.

If you can see daylight underneath the door, the sweep may be worn, incorrectly positioned or not suitable for the size of the gap.

A sweep that is pressing too hard against the threshold can also cause problems. The door should continue to operate smoothly after installation.

How to Check Whether Your Weatherstripping Is Working

Close the door and inspect the contact between the door and frame. Look for visible gaps, damaged material or sections where the weatherstripping no longer makes proper contact.

You can also check for drafts around the sides and top of the closed door. If air is moving through these areas, the weatherstripping may be worn, incorrectly installed or the wrong size for the gap.

Natural Resources Canada recommends selecting weatherstripping based on factors such as gap size, durability, installation and appearance, while also making sure the material does not interfere with door operation.

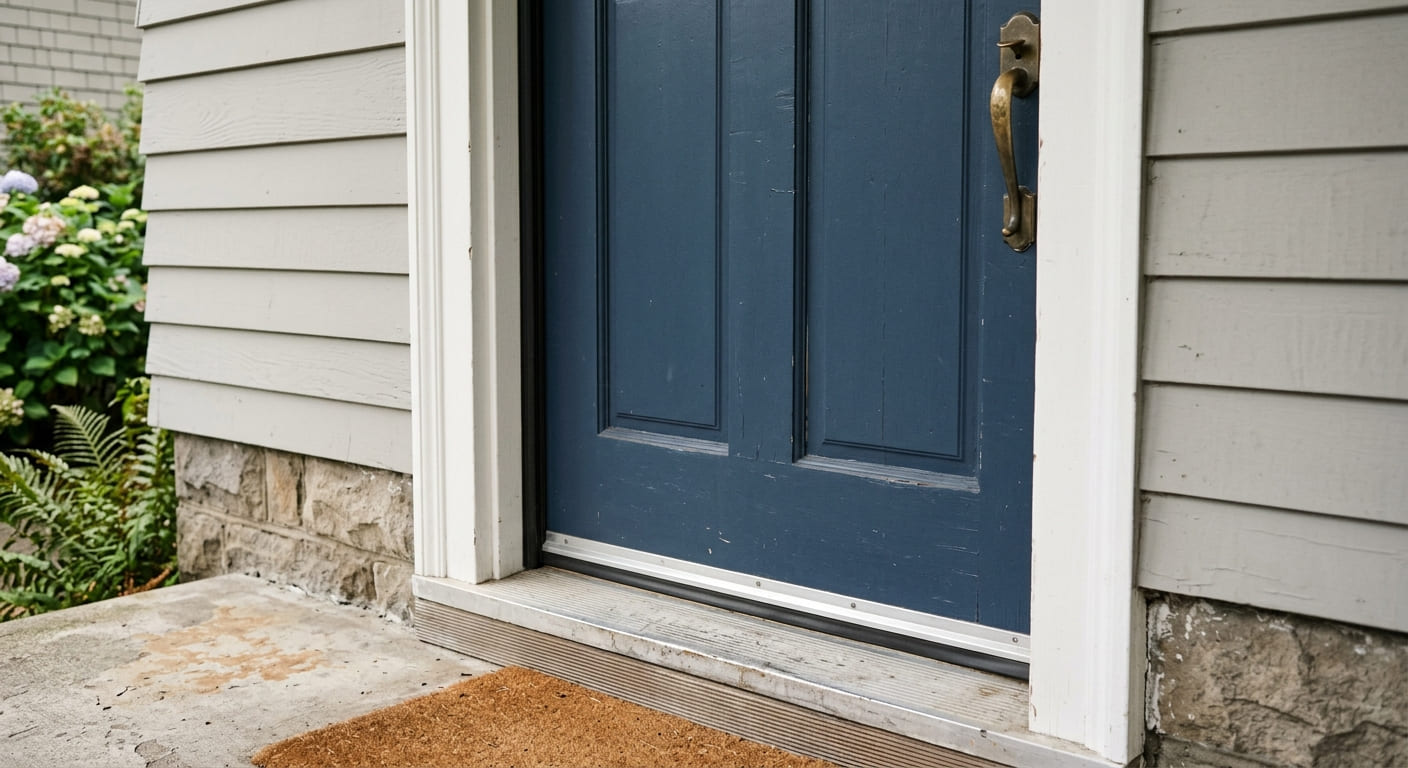

Do You Need Both a Door Sweep and Weatherstripping?

For many exterior doors, the answer is yes.

Think of the door as having several separate sealing points. Weatherstripping handles the gaps around the frame, while the door sweep handles the bottom. One product cannot effectively seal every part of the doorway.

A properly sealed door may therefore use:

• Weatherstripping along the hinge side
• Weatherstripping along the latch side
• Weatherstripping across the top
• A door sweep or door bottom along the bottom edge
• A properly adjusted threshold underneath the door

This approach addresses the different gaps instead of trying to force one type of seal to do every job.

Common Mistakes When Choosing Between a Door Sweep and Weatherstripping

Replacing the Wrong Section

One of the most common mistakes is replacing the sweep when the actual leak is around the sides or top of the door, or replacing the perimeter weatherstripping when the problem is underneath.

Always locate the gap first.

Choosing Based Only on Appearance

Two weatherstripping products may look similar but use different installation methods or be designed for different gap sizes. Check the existing installation and measure the application before ordering.

Installing a Sweep Too Low

A sweep should seal the bottom gap without preventing the door from operating normally. If it creates excessive friction against the threshold, it may be positioned incorrectly or may not be the right product for the application.

Ignoring the Threshold

The sweep and threshold work together. If the threshold is damaged, badly worn or incorrectly adjusted, replacing the sweep alone may not provide the expected seal.

Using the Same Product Everywhere

The sides, top and bottom of a door have different sealing requirements. A product designed for a narrow frame gap is not automatically suitable for the bottom of the door.

Door Sweep or Weatherstripping: Quick Decision Guide

How to Choose the Right Door Seal

Once you know where the gap is, choosing the right product becomes much easier.

For the sides and top of the door, consider the existing installation method, gap size, material and frequency of use. For the bottom, consider the clearance between the door and threshold, the threshold surface, exposure to weather and how frequently the door is operated.

If you are replacing an existing product, matching the original installation style can also make the replacement process much simpler.

For a broader look at the available options, read What Types of Door Weatherstripping Are Available?.

Door Sweep vs. Weatherstripping: The Bottom Line

A door sweep and weatherstripping are not competing products. They solve different sealing problems.

Door sweeps seal the gap underneath the door. They work with the threshold to reduce drafts, dust, moisture and other intrusion at floor level.

Weatherstripping seals the sides and top of the door. It closes the space between the door and frame to reduce air leakage around the perimeter.

If your door has gaps in both areas, you may need both. Start by identifying exactly where air, light or moisture is getting through, then choose a sealing product designed for that location.
