Retractable Door Seals: How They Work & When to Use Them

A retractable door seal is designed to close the gap beneath a door without remaining in contact with the floor while the door is opening or closing. The seal retracts when the door opens and moves into position when the door closes.

Retractable door seals are commonly used for controlling air movement, drafts, sound, light, dust and other gaps beneath doors. One of the most common types is an automatic door bottom, also known as an automatic door bottom seal, automatic drop seal or retractable door sweep.

Understanding how these seals work and where they are appropriate can help you choose the right solution for your door, floor and sealing requirements.

What Is a Retractable Door Seal?

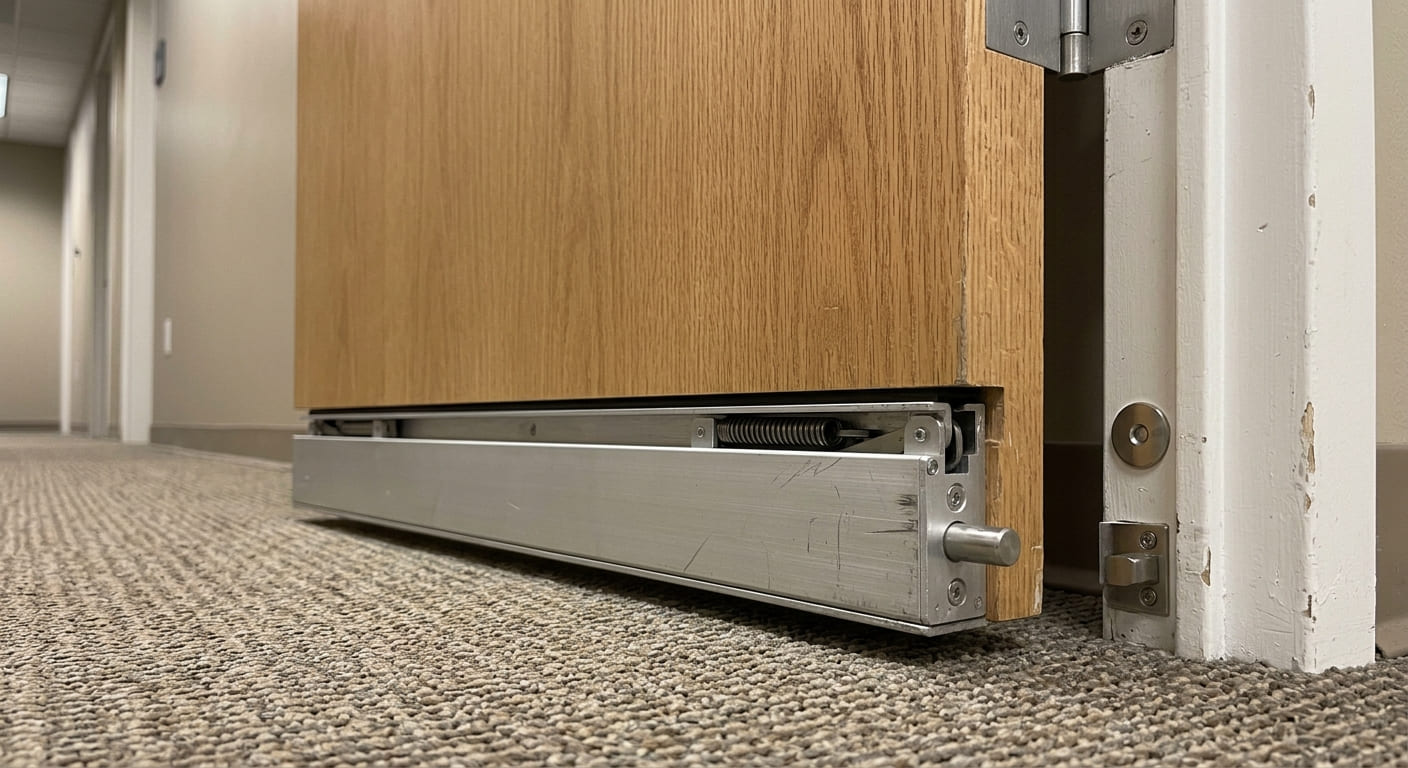

A retractable door seal is a sealing device that moves out of the way when the door is open and engages when the door is closed. Unlike a fixed door sweep that normally stays against the floor, a retractable seal is designed to clear the floor during door operation.

For door-bottom applications, the seal is typically housed inside or along the bottom of the door. When the door closes, a mechanical mechanism activates the seal and lowers it toward the floor or threshold. When the door opens, the seal retracts.

This design allows the bottom gap to be sealed when the door is closed while reducing continuous contact between the seal and floor.

Is a Retractable Door Seal the Same as an Automatic Door Bottom?

In many door hardware applications, an automatic door bottom is a type of retractable door seal.

The terminology can vary between manufacturers and searches. You may see products or information described as:

• Retractable door seal
• Retractable door bottom seal
• Retractable door sweep
• Automatic door bottom
• Automatic door bottom seal
• Automatic door sweep
• Automatic drop seal
• Drop down door seal

The key feature is the same: the sealing element retracts when the door opens and extends or drops into position when the door closes.

For product selection, it is more important to check the actual mechanism, installation method, seal type, dimensions and application requirements than to rely on the product name alone.

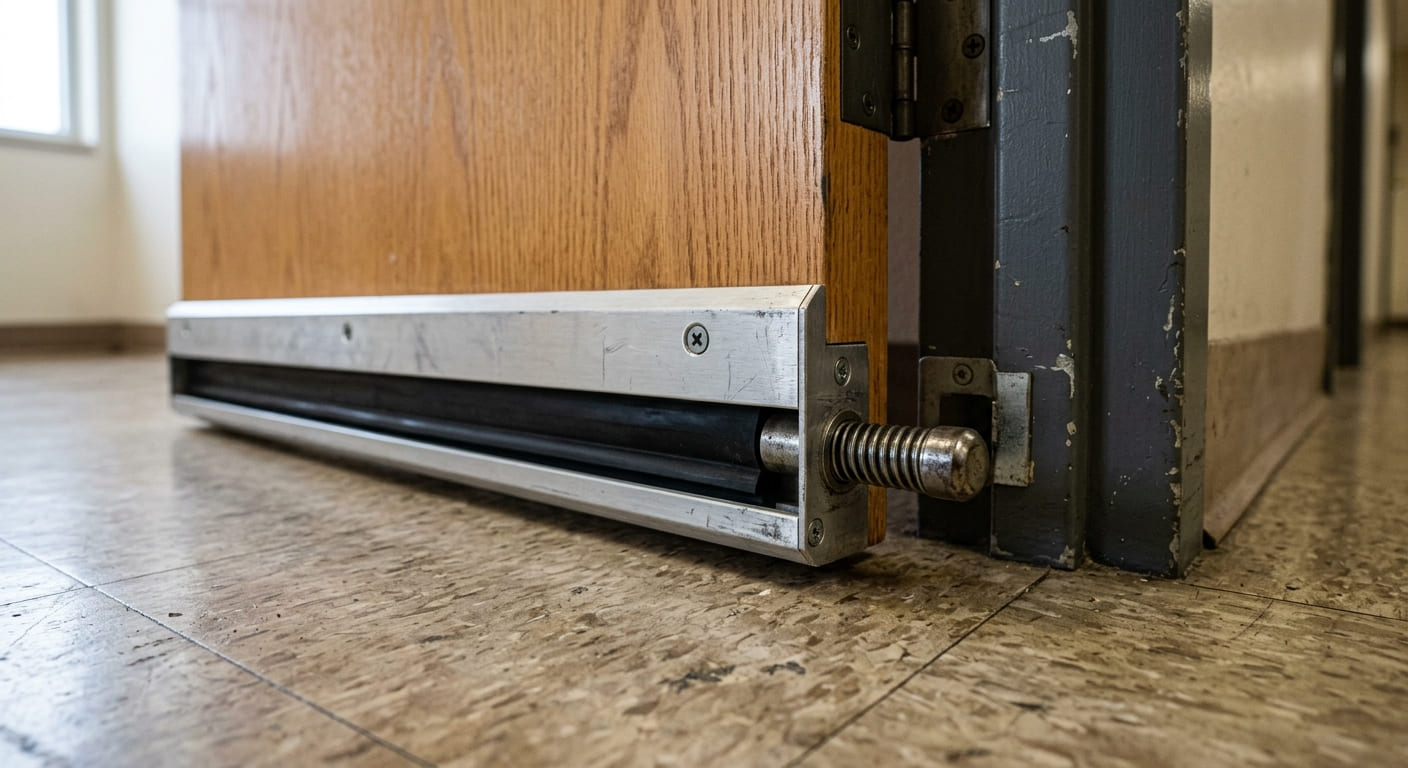

How Does a Retractable Door Seal Work?

Most automatic retractable door bottom systems use the movement of the door to operate the sealing mechanism.

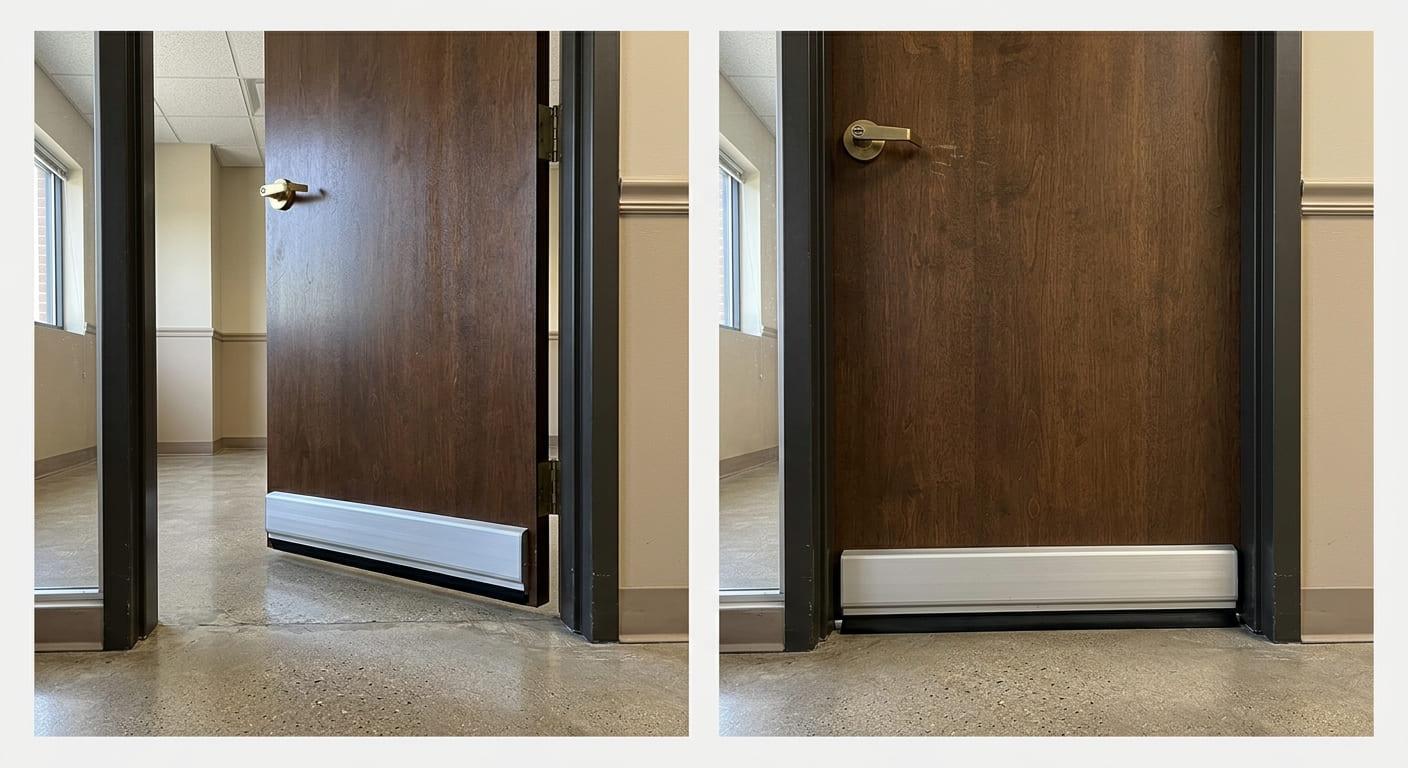

1. The door is open: The seal remains retracted inside or against the bottom of the door.
2. The door begins to close: The activation mechanism moves toward the door frame.
3. The mechanism is activated: A plunger or similar mechanism contacts the frame and activates the internal mechanism.
4. The seal lowers: The sealing element moves downward toward the floor or threshold.
5. The door closes: The seal makes contact with the floor or threshold and closes the bottom gap.
6. The door opens again: The mechanism releases and retracts the seal.

This mechanical operation means the seal does not need to remain continuously pressed against the floor while the door is moving. Manufacturer designs vary, so the exact mechanism and adjustment method depend on the specific automatic door bottom.

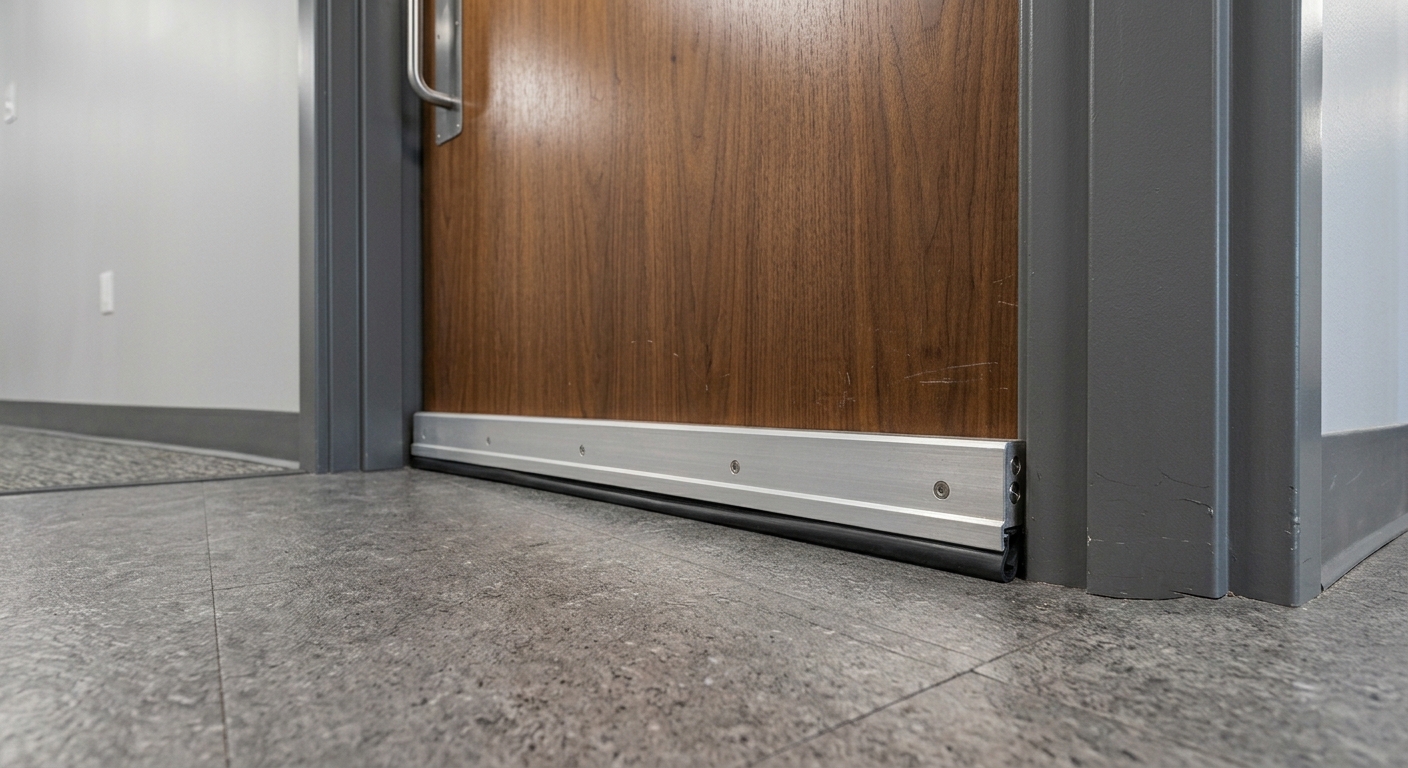

Retractable Door Seal vs. Fixed Door Sweep

The main difference is how the sealing element interacts with the floor.

If you are deciding between the two, see our guide on Automatic Door Bottom vs. Door Sweep for a more detailed comparison.

What Does a Retractable Door Seal Do?

The main purpose of a retractable door seal is to close the space beneath a door when the door is closed. Depending on the specific product and application, this can help control several types of unwanted passage through the bottom gap.

Controls Air and Drafts

Gaps beneath doors can allow air to move between spaces. A suitable retractable door seal can close this gap when the door is shut and help reduce unwanted drafts.

For exterior applications, the appropriate product should be selected based on the door construction, threshold, floor condition and environmental requirements.

Helps Control Sound

The gap beneath a door can provide a path for sound to travel between rooms. A properly selected automatic door bottom can close this opening and form part of an acoustic door sealing system.

However, an automatic door bottom does not make an entire door assembly soundproof by itself. The door slab, frame, perimeter seals, threshold and surrounding construction also affect acoustic performance.

Blocks Light

Visible light beneath a closed door is often an indication that there is an open gap. A retractable door seal can help close that gap when the door is shut.

Helps Reduce Dust and Infiltration

Depending on the seal material and application, an automatic door bottom can help reduce the movement of dust and other particles through the bottom of a closed door.

Supports Weather Sealing

Some retractable door seals are used as part of weather-sealing systems. They can help close the bottom gap and reduce unwanted air movement beneath exterior doors.

For weather-exposed openings, check the individual product specifications before selecting a retractable weather seal. Not every automatic door bottom is intended for every exterior condition.

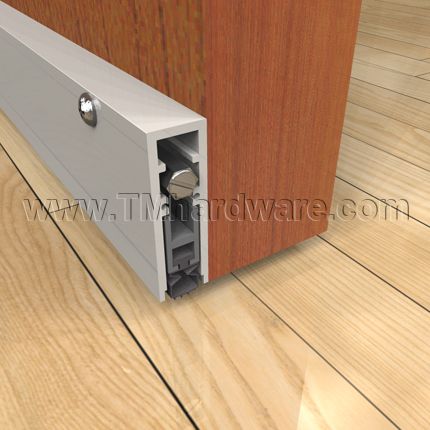

What Is Retractable Weather Stripping?

Retractable weather stripping is a general term used for sealing systems that move out of the way when an opening is operated and engage when it is closed.

For doors, a retractable weather strip can refer to a door-bottom sealing system that lowers against a floor or threshold when the door closes and retracts when the door opens.

This is different from conventional fixed weather stripping that remains in a set position throughout the operation of the door.

When searching for retractable weather stripping or a retractable weather strip, look at the actual product design and installation requirements. For bottom-of-door applications, the product may be categorized by the manufacturer as an automatic door bottom rather than using the term "retractable weather stripping."

Where Are Retractable Door Seals Used?

Retractable door seals can be useful in a variety of interior and exterior door applications where the bottom gap needs to be sealed without using a fixed sweep that continuously contacts the floor.

Commercial Buildings

Offices, commercial facilities and other buildings may use automatic door bottoms where controlled sealing is important.

Acoustic Rooms

Recording rooms, conference rooms, studios and other sound-sensitive spaces may use automatic door bottoms as part of a larger acoustic sealing system.

Hotels and Hospitality

Guest rooms and other hospitality spaces may require controlled sealing beneath doors for sound, light, air or privacy-related reasons.

Institutional Buildings

Schools, healthcare facilities and other institutional buildings can use different automatic door bottom configurations depending on the door construction and performance requirements.

Exterior Doors

Suitable automatic door bottoms can also be used for certain exterior applications where controlling air movement and weather infiltration beneath the door is important.

The appropriate product depends on the actual opening. Always verify the manufacturer's specifications for the intended application.

Types of Retractable Door Bottom Seals

Automatic door bottoms are available in several installation configurations. The right type depends on the door construction, available space, installation requirements and desired appearance.

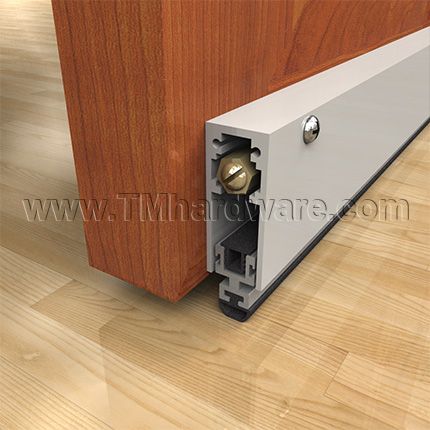

Surface-Mounted Automatic Door Bottoms

A surface-mounted automatic door bottom attaches to the door without requiring a full channel to be routed into the bottom of the door. This can make surface-mounted designs useful for certain retrofit and installation situations.

View Surface Mounted Automatic Door Bottoms

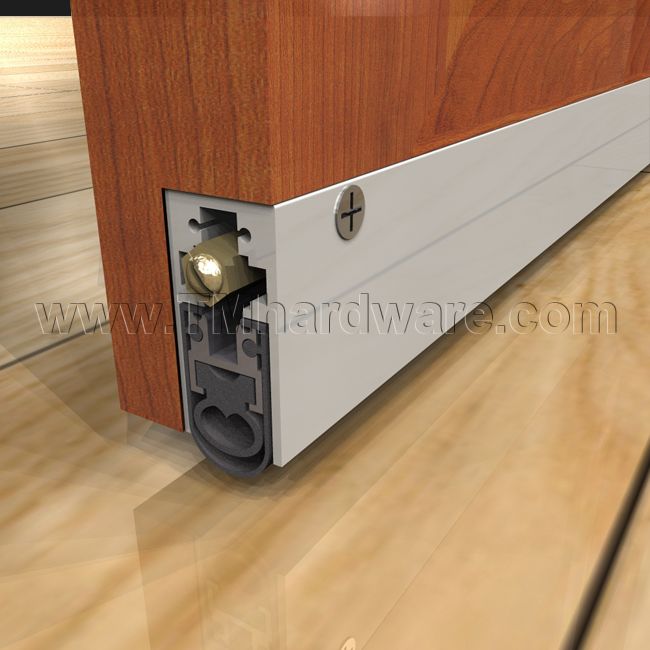

Semi-Mortised Automatic Door Bottoms

A semi-mortised automatic door bottom is partially recessed into the door. This provides an installation option between a fully surface-mounted unit and a fully mortised design.

View Semi-Mortised Automatic Door Bottoms

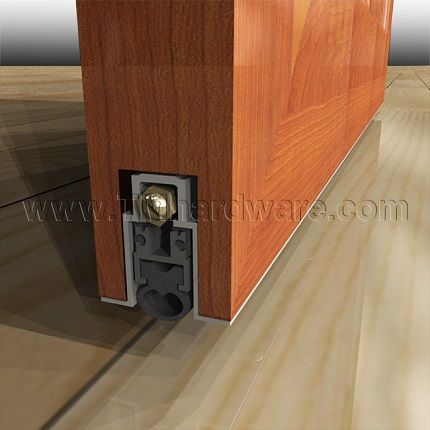

Mortised Automatic Door Bottoms

A mortised automatic door bottom is recessed into a channel prepared in the bottom of the door. This allows the sealing mechanism to sit within the door construction rather than being fully exposed on the surface.

View Mortised Automatic Door Bottoms

Retractable Door Seals and Carpet

Floor type is an important consideration when selecting a retractable door seal.

A fixed door sweep remains in contact with the floor as the door opens and closes. On carpet or other surfaces, that continuous contact can create additional friction and wear depending on the sweep design.

An automatic door bottom retracts as the door opens and engages when the door closes. Some seal options are designed to conform to irregular surfaces such as carpet, stone and grout lines.

Before selecting a product, measure the bottom gap and review the manufacturer's specified drop and seal configuration.

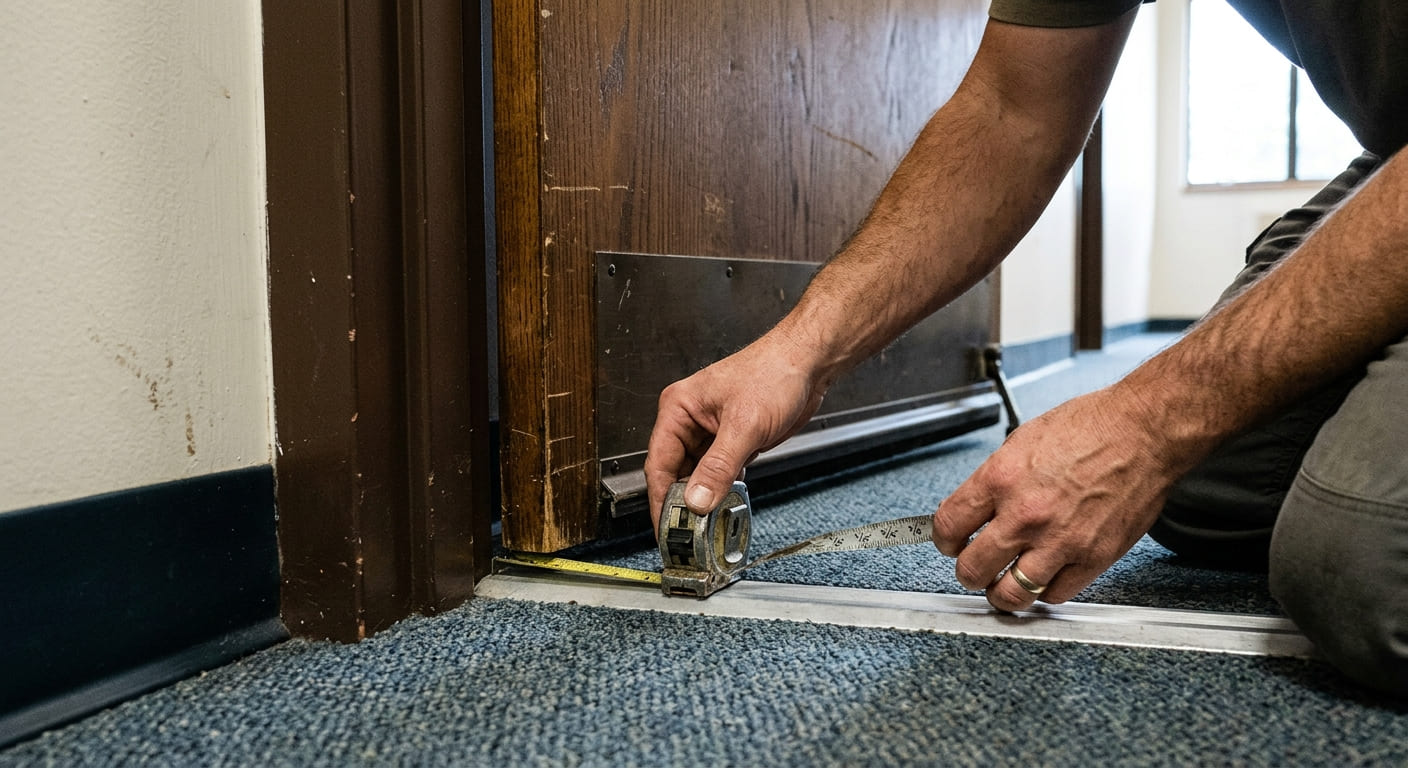

How to Choose a Retractable Door Seal

The best retractable door seal depends on the door and the conditions around the opening. Before purchasing one, consider the following:

1. Measure the door width: Confirm the required length of the automatic door bottom.
2. Measure the bottom gap: Determine how far the seal needs to drop to reach the floor or threshold.
3. Check the floor or threshold: Identify whether the door closes over carpet, tile, wood, concrete, stone or a threshold.
4. Check the door construction: Door thickness and construction can affect the appropriate automatic door bottom.
5. Choose the installation type: Decide whether a surface-mounted, semi-mortised or mortised unit is appropriate.
6. Identify the sealing requirement: Consider whether the main concern is sound, air, light, dust, weather or another type of infiltration.
7. Check product specifications: For fire, smoke, acoustic or exterior applications, verify that the specific product is suitable for the intended use.

For more detailed guidance, use our Automatic Door Bottom Measuring Guide or Automatic Door Bottom Selection Guide.

Retractable Door Seal Installation Considerations

Installation requirements vary depending on the type of automatic door bottom.

Surface-mounted models generally attach to the door without requiring a full mortise. Semi-mortised and mortised models require different levels of door preparation.

The seal also needs to be adjusted correctly so that it reaches the floor or threshold when the door closes without creating unnecessary pressure that interferes with normal door operation.

Always follow the installation instructions provided with the specific automatic door bottom. Incorrect installation or adjustment can affect sealing and door operation.

Retractable Door Seal vs. Retractable Weather Strip

These terms can overlap, but they do not always describe exactly the same type of product.

A retractable door seal is commonly used to describe a seal that moves between an open and engaged position. When the application involves the bottom of a door, this is often an automatic door bottom.

Retractable weather strip and retractable weather seal are broader terms that may refer to products intended to control air and weather infiltration.

If you are looking specifically for a sealing product beneath a door, search for automatic door bottoms and compare the available seal types, installation methods and dimensions.

Where Can You Buy Retractable Door Seals?

Trademark Hardware offers automatic door bottoms that provide retractable sealing beneath doors. Options are available for different door constructions, installation methods and sealing requirements.

Shop All Automatic Door Bottoms

You can also browse automatic door bottoms by manufacturer:

• Barzen Automatic Door Bottoms
• TMH Automatic Door Bottoms
• Zero Automatic Door Bottoms
• Pemko Automatic Door Bottoms

Frequently Asked Questions About Retractable Door Seals

What is a retractable door seal?

A retractable door seal is a sealing device that moves out of the way when the door opens and engages when the door closes. For bottom-of-door applications, an automatic door bottom is a common type of retractable seal.

How does a retractable door seal work?

A typical automatic door bottom uses a mechanical mechanism that activates as the door closes. The sealing element drops toward the floor or threshold. When the door opens, the seal retracts.

What is a retractable weather seal?

A retractable weather seal is a sealing system designed to move into position when an opening is closed and retract when it is opened. For doors, retractable weather seals can be used to help close gaps beneath the door and reduce air or weather infiltration.

Is a retractable door seal the same as an automatic door bottom?

An automatic door bottom is one common type of retractable door seal. The terminology varies, so check the actual product mechanism and specifications when selecting a product.

Can retractable door seals help with sound?

Yes. An automatic door bottom can help close the gap beneath a door, which can reduce one path for sound transmission. Overall acoustic performance depends on the complete door assembly, including the door, frame, perimeter seals and surrounding construction.

Can a retractable door seal be used on carpet?

Some automatic door bottoms are designed to work with carpet and other irregular floor surfaces. The appropriate seal depends on the floor condition, required drop and manufacturer's specifications.

Do retractable door seals stop drafts?

A suitable retractable door bottom can help reduce air movement and drafts through the gap beneath a closed door. For exterior applications, select a product specifically suited to the door and environmental conditions.

What should I measure before buying a retractable door seal?

Measure the door width, bottom gap and floor or threshold condition. You should also check the door construction and determine whether a surface-mounted, semi-mortised or mortised installation is appropriate.

Choosing the Right Retractable Door Seal

A retractable door seal can provide a practical way to close the gap beneath a door without using a fixed sweep that remains against the floor throughout the door's movement.

For bottom-of-door applications, automatic door bottoms are available in different installation styles, seal materials, sizes and configurations. The right choice depends on the door, floor or threshold, required drop and the type of sealing needed.

If you are looking for a retractable door bottom seal, start with our Automatic Door Bottoms and use our selection guide and measuring guide to find the appropriate option.
