What Is a Drop Down Door Seal? How It Works & Where to Use It

A drop down door seal is a mechanical door seal that automatically closes the gap beneath a door when the door is shut. It lowers into contact with the floor or threshold when the door closes and retracts when the door opens.

Drop down door seals are also commonly called automatic door bottoms, automatic door bottom seals, automatic drop seals, or drop down door sweeps. They are used when you need to seal the gap beneath a door without having a fixed sweep continuously drag across the floor.

Depending on the application, an automatic door bottom can help control sound, air movement, drafts, light, dust, smoke, and moisture through the gap beneath a door.

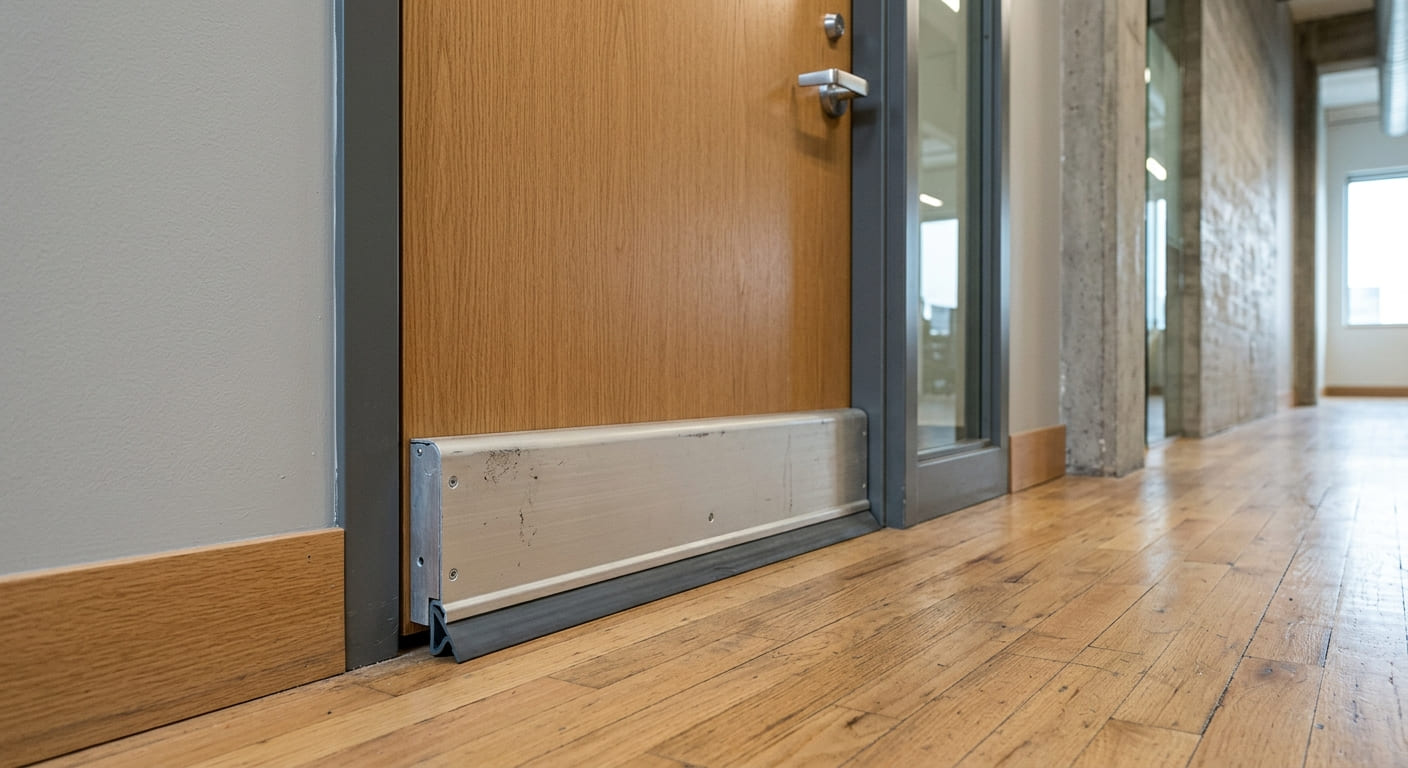

What Is a Drop Down Door Seal?

A drop down door seal is installed along the bottom of a door. Unlike a conventional door sweep that stays in contact with the floor, a drop seal is designed to retract when the door is open and extend when the door closes.

This makes the seal useful for doors where you need a reliable bottom seal but do not want the sealing material rubbing against the floor during every opening and closing cycle.

The term automatic door bottom is commonly used for this type of hardware. The product can be installed on the surface of the door or inside a recessed channel, depending on the door construction and the specific automatic door bottom.

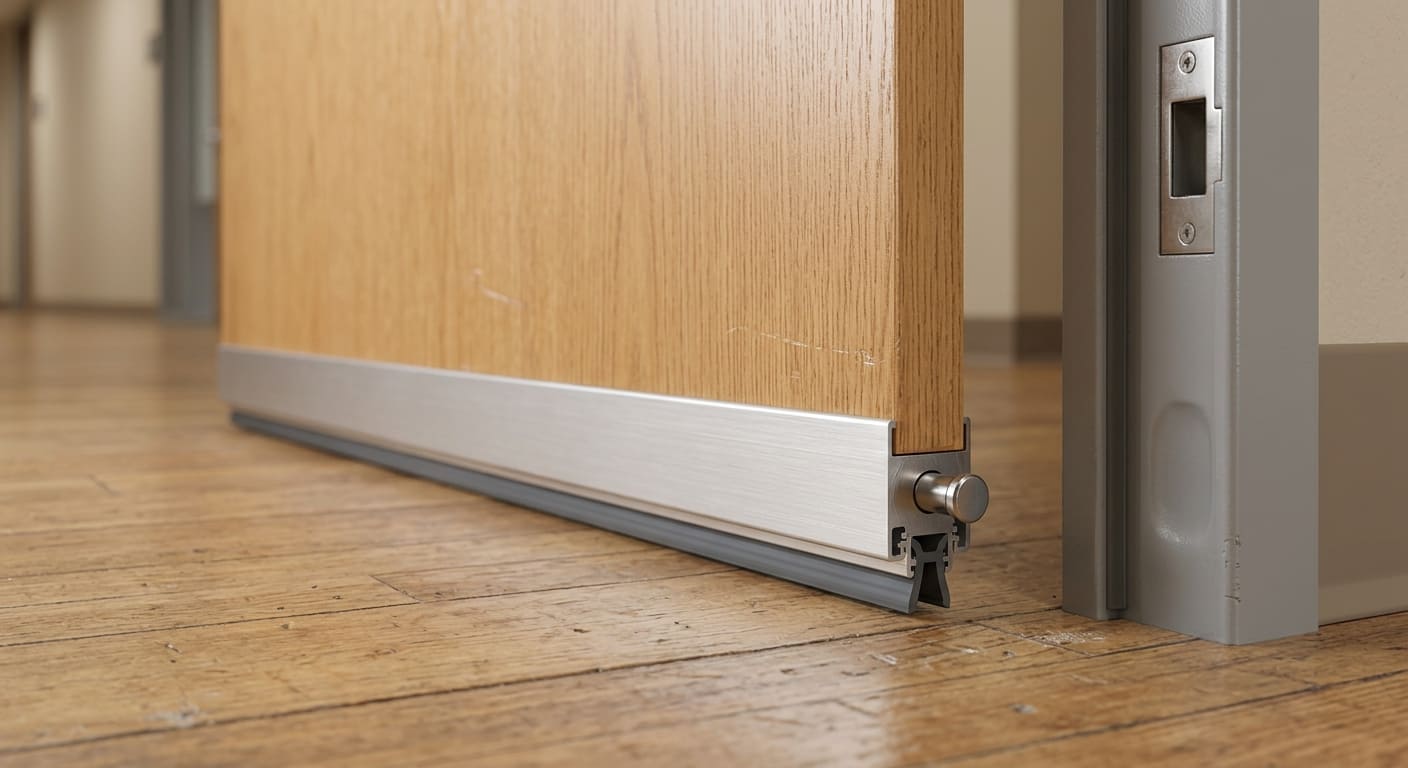

How Does a Drop Down Door Seal Work?

Most automatic drop down door seals operate through a mechanical activation mechanism. They do not require electricity for normal operation.

1. The door is open: The sealing strip remains retracted above the floor or threshold.
2. The door closes: An actuator or plunger contacts the door frame or stop.
3. The mechanism activates: The internal mechanism moves the sealing strip downward.
4. The door is fully closed: The seal contacts the floor or threshold and closes the gap beneath the door.
5. The door opens: Pressure on the actuator is released and the seal retracts back into its housing.

The main advantage is simple: the seal contacts the floor when the door is closed, but clears the floor when the door is opened.

What Does a Drop Down Door Seal Do?

The gap underneath a door can allow air, sound, light, dust and drafts to pass between spaces. A drop down door seal helps close this opening when the door is shut.

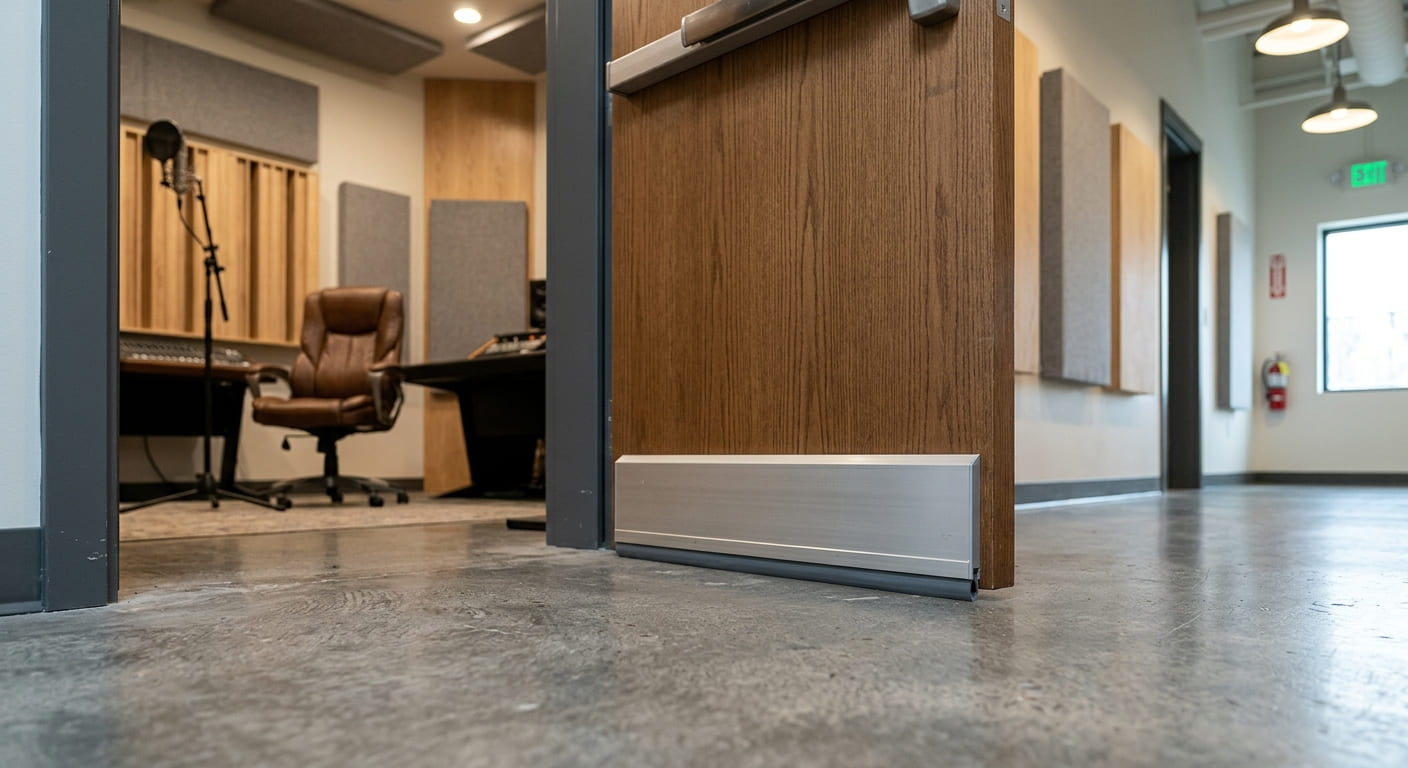

Sound Control

A gap beneath a door can reduce the effectiveness of an otherwise well-sealed room. An automatic door bottom helps close this gap and can be used as part of a larger door assembly designed for sound control.

For acoustic applications, the automatic door bottom should be considered together with the door, frame, perimeter seals, threshold and other components of the opening. The bottom seal alone does not determine the overall acoustic performance of the door assembly.

Air and Draft Control

A drop down door seal can reduce unwanted air movement through the gap beneath a door. This can be useful for interior spaces as well as certain exterior door applications where controlling drafts and air infiltration is important.

Light Control

Visible light underneath a closed door is often an indication that there is an open gap beneath the door. An automatic door bottom can close that gap when the door is shut.

Dust and Other Infiltration

Depending on the seal material and application, an automatic door bottom can also help limit the movement of dust and other unwanted material through the space beneath the door.

Smoke and Fire Door Applications

Some automatic door bottoms are designed and tested for specific fire or smoke-control applications. However, not every drop down door seal has the same rating.

If the door is part of a fire-rated or smoke-rated assembly, always verify that the specific automatic door bottom is approved for the required application and is compatible with the complete door assembly.

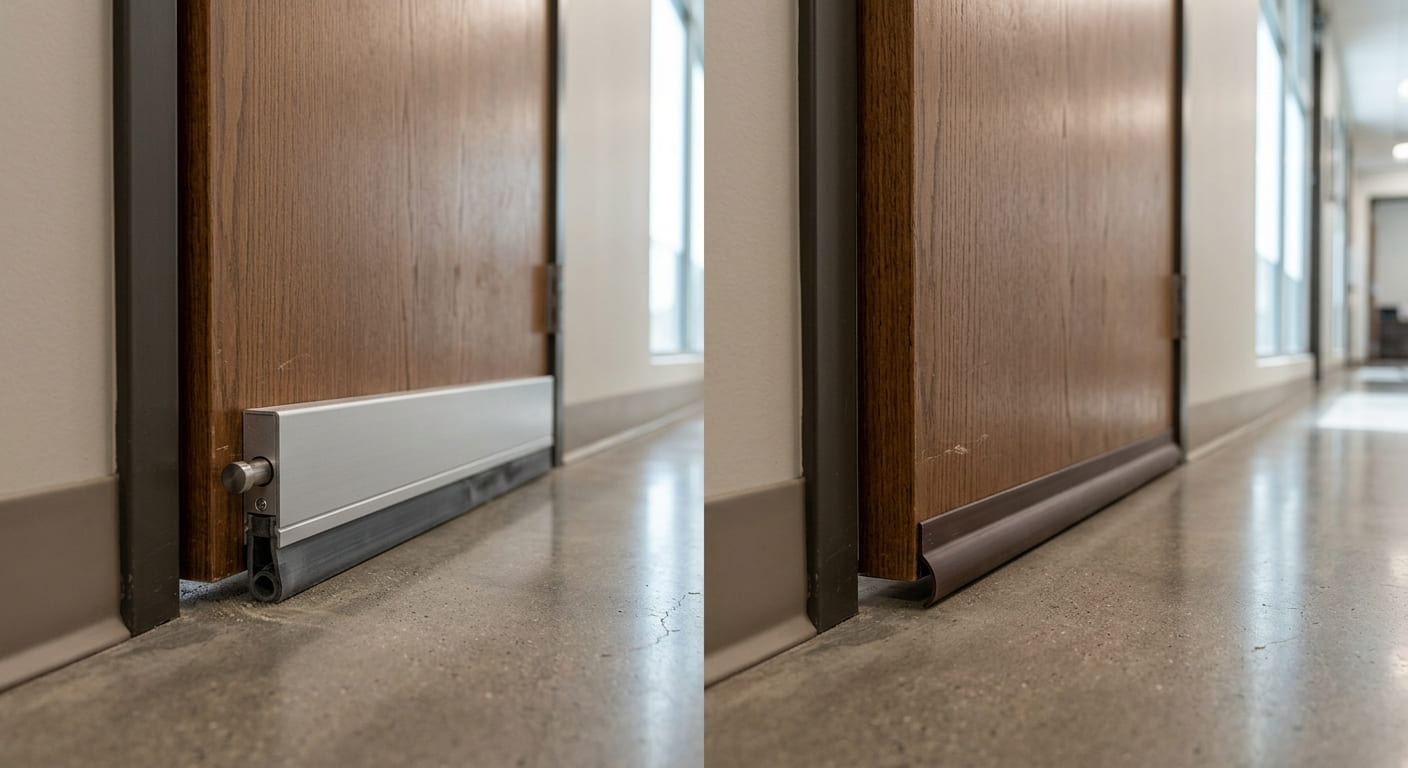

Drop Down Door Seal vs. Standard Door Sweep

The main difference is how the sealing element interacts with the floor.

A drop down door seal can be particularly useful when continuous contact with the floor would create unnecessary friction, drag or wear.

Where Are Drop Down Door Seals Used?

Drop down door seals are used in many commercial, institutional and residential door applications where the gap beneath the door needs to be controlled.

• Commercial offices
• Conference and meeting rooms
• Healthcare facilities
• Schools and educational buildings
• Hotels and hospitality spaces
• Industrial and commercial facilities
• Acoustic or sound-control rooms
• Interior doors requiring better draft control
• Doors where light control is important
• Selected fire- and smoke-rated door assemblies

The correct product depends on the door construction, floor condition, gap beneath the door, required sealing function and installation method.

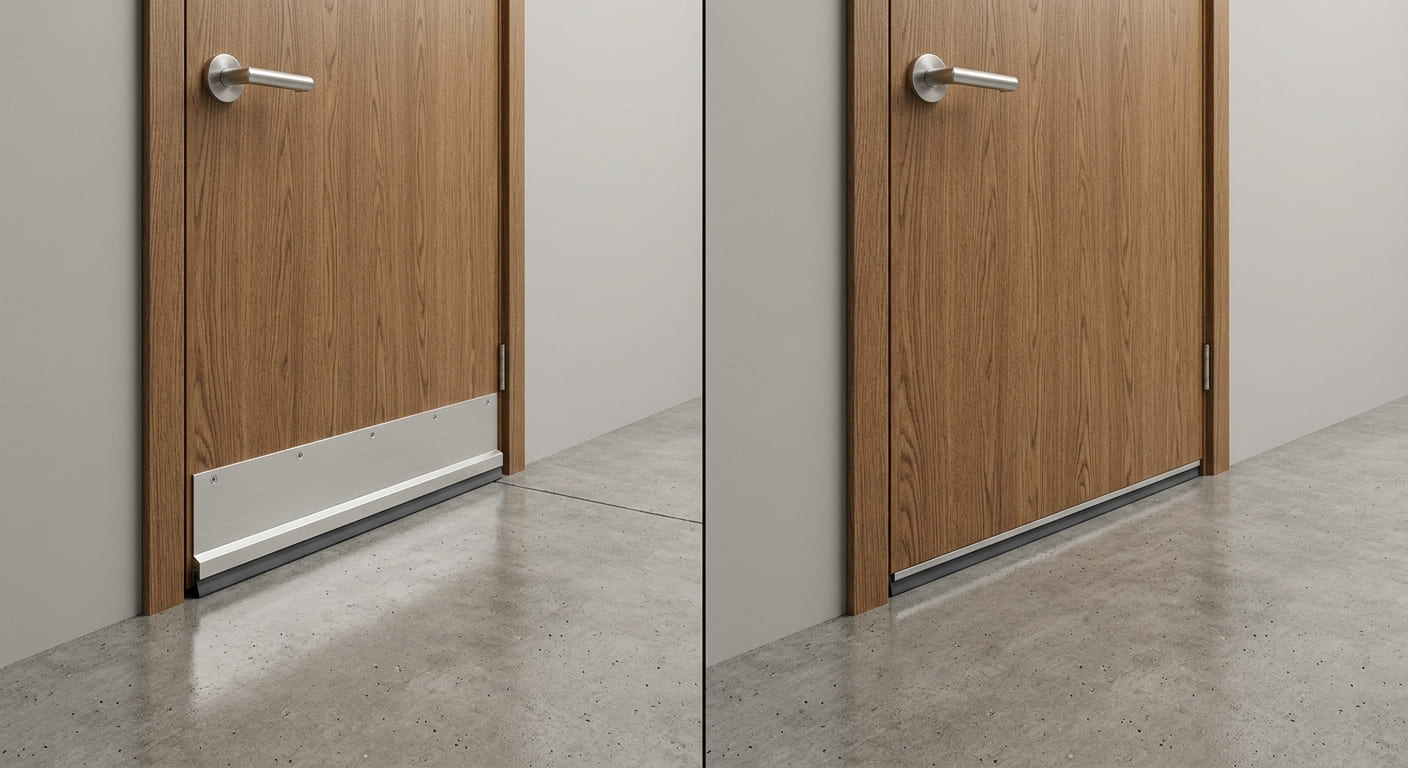

Types of Drop Down Door Seals

Automatic door bottoms are available in different configurations. The two common installation approaches are surface-mounted and mortised or recessed.

Surface-Mounted Drop Down Door Seals

A surface-mounted automatic door bottom is attached to the face or bottom area of the door. Because it does not require the same recessed installation as a mortised unit, it can be useful for many retrofit applications.

Surface-mounted models are often considered when an existing door needs an automatic bottom without creating a full-length recessed channel in the door.

See our Surface Mounted Automatic Door Bottoms for available options.

Mortised Drop Down Door Seals

A mortised automatic door bottom is installed inside a channel or recess created in the bottom of the door. This provides a more concealed installation and can be appropriate when appearance and a lower-profile installation are important.

Mortised installations require the door to be prepared correctly for the hardware, so the door construction and installation requirements should be checked before ordering.

You can also review our Mortised Automatic Door Bottoms for this type of installation.

Semi-Mortised Drop Down Door Seals

Semi-mortised automatic door bottoms are partially recessed into the door, providing a middle ground between surface-mounted and fully mortised installation.

They can provide a cleaner appearance than a fully surface-mounted unit while requiring a different installation approach from a fully mortised automatic door bottom.

See our Semi-Mortised Automatic Door Bottoms for this installation type.

How to Choose a Drop Down Door Seal

Before selecting an automatic door bottom, check the door and opening rather than choosing based only on the product name.

1. Measure the Door Width

The automatic door bottom needs to match the width of the door and the available installation area. Some products can be cut or ordered to a specific size, while others have specific sizing requirements.

See our guide on How to Measure for an Automatic Door Bottom before ordering.

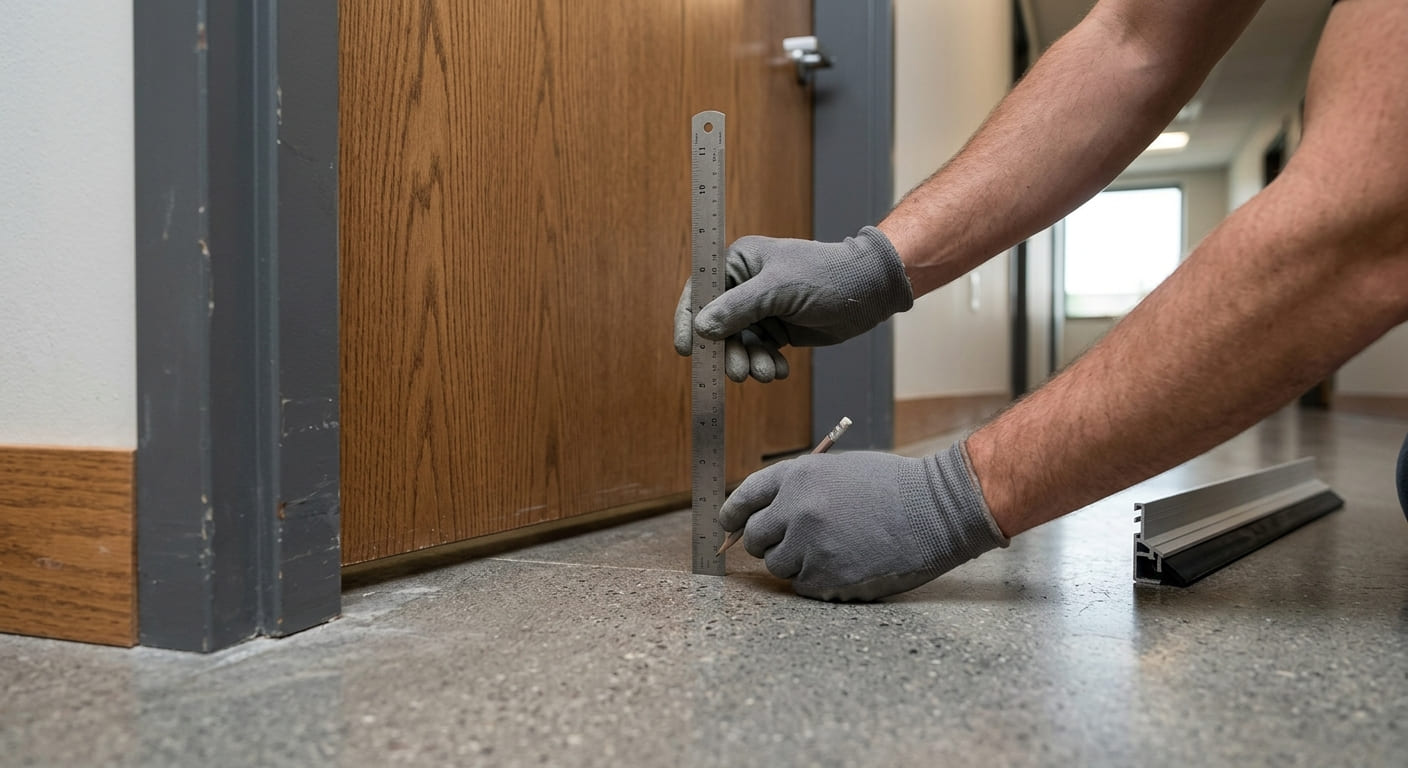

2. Measure the Gap Beneath the Door

The distance between the bottom of the door and the floor or threshold is one of the most important measurements. The seal needs enough drop to close the gap while still retracting correctly when the door opens.

3. Check the Floor or Threshold

Look at what the seal will contact when the door closes. The floor may be hard flooring, carpet, or a threshold. The condition and height of the surface can affect which automatic door bottom is appropriate.

4. Choose the Installation Type

Determine whether the door can accept a surface-mounted, semi-mortised or mortised automatic door bottom. Existing doors may have different limitations from new doors being prepared during manufacturing or installation.

5. Consider the Main Sealing Requirement

Decide what you are trying to control beneath the door. Your application may prioritize sound, air, light, drafts, dust, weather, smoke or a combination of these requirements.

6. Check Compatibility for Rated Applications

For fire-rated, smoke-rated or acoustically rated openings, do not assume that every automatic door bottom provides the required performance. Check the product documentation and the requirements of the complete door assembly.

Do Drop Down Door Seals Work on Carpet?

They can be used in carpeted applications, but the specific automatic door bottom must be suitable for the gap and floor condition.

Because the sealing element retracts when the door opens, it does not need to continuously drag across the carpet in the same way as a fixed sweep. However, the available drop and seal design still need to match the actual installation.

If the door has a threshold beneath it, measure the threshold height as part of the installation requirements.

Are Drop Down Door Seals Good for Soundproofing?

A drop down door seal can help with sound control by closing the gap beneath the door. This is important because even a small opening can allow sound to pass between rooms.

For a sound-control application, the automatic door bottom should be treated as one part of the complete door assembly. Door construction, perimeter gasketing, frame conditions and other gaps also affect the final result.

Drop Down Door Seal Terminology

You may see several different terms used for the same general type of product. When researching or shopping for a replacement, these terms can help you find the correct product:

• Drop down door seal
• Automatic door bottom
• Automatic door bottom seal
• Automatic drop seal
• Drop down door sweep
• Automatic door sweep
• Retractable door seal
• Door bottom seal
• Drop seal for doors

Although these terms are closely related, product construction, installation method, seal material and application can vary. Always review the actual product specifications before selecting a replacement.

Where Can I Buy Automatic Door Bottoms?

Trademark Hardware carries automatic door bottoms in different installation types and from multiple manufacturers. You can browse the full selection on our Automatic Door Bottoms category.

You can also compare automatic door bottoms by manufacturer:

• Barzen Automatic Door Bottoms
• TMH Automatic Door Bottoms
• Zero Automatic Door Bottoms
• Pemko Automatic Door Bottoms

Frequently Asked Questions About Drop Down Door Seals

What is a drop down door seal?

A drop down door seal is a mechanical seal installed at the bottom of a door that automatically lowers when the door closes and retracts when the door opens.

Is a drop down door seal the same as an automatic door bottom?

In most door hardware terminology, a drop down door seal and an automatic door bottom refer to the same general type of retractable bottom door seal. Product design and installation methods can vary between manufacturers.

How does an automatic door bottom work?

An automatic door bottom uses a mechanical actuator or plunger to activate the seal. When the door closes, the actuator contacts the frame or stop and causes the sealing strip to drop. When the door opens, the seal retracts.

Does a drop down door seal touch the floor?

Yes. The seal is designed to contact the floor or threshold when the door is closed. It retracts when the door opens so it does not continuously drag across the floor.

Can a drop down door seal reduce sound?

Yes. By closing the gap beneath the door, an automatic door bottom can reduce one path through which sound can travel. Overall acoustic performance depends on the complete door assembly.

Can an automatic door bottom stop drafts?

An automatic door bottom can help reduce air movement and drafts through the gap beneath a closed door. The effectiveness depends on the seal, door, threshold and surrounding conditions.

What should I measure before buying an automatic door bottom?

Measure the door width, the gap beneath the door, and the height or condition of any threshold. You should also identify the door construction and determine whether a surface-mounted, semi-mortised or mortised installation is appropriate.

What is the difference between a drop down seal and a door sweep?

A drop down seal retracts when the door opens and extends when the door closes. A conventional door sweep normally remains in contact with the floor throughout the door's movement.

Final Takeaway

A drop down door seal is a practical way to close the gap beneath a door without requiring a fixed seal to drag across the floor every time the door moves. Its retractable operation makes it useful for sound control, draft reduction, light control and other sealing applications.

The right automatic door bottom depends on the door width, bottom gap, floor or threshold, installation method and the purpose of the seal. If you are ready to compare options, start with our Automatic Door Bottoms collection or use our Which Automatic Door Bottom Is Right for Me? guide.
