Hettich SlideLine M 9156338 Sliding Door Hardware for Overlay Doors up to 66 Lbs.

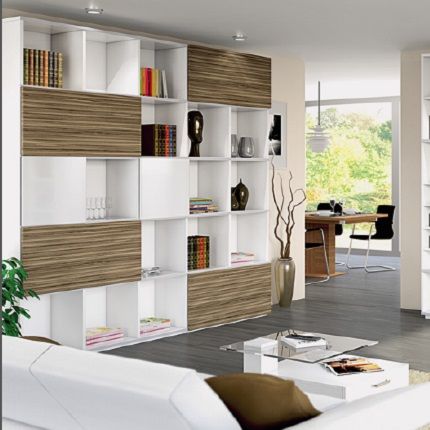

Sliding Door Hardware Set for SlideLine M Systems, see video tab below. Turns simple shelf units into attractive pieces of furniture with doors that can be positioned as desired to create open and closed elements. For wooden and aluminum framed doors, up to 66.14 Lbs. Set is for 1 door panel installed in overlay position with bottom running hardware.
Slideline M Profile Track not included, sold separately.Â
PRICED PER SET - See product details and specs in the tabs below.
Click to view and print Hettich SlideLine M Full Line Catalog.

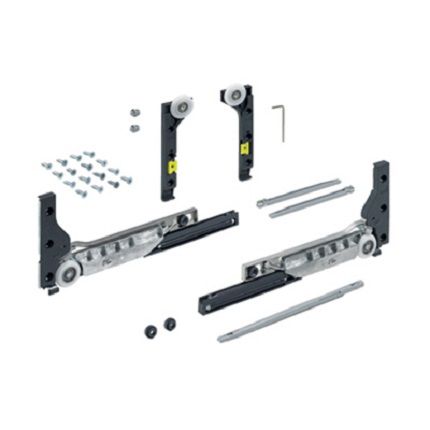

SlideLine M Fitting Set for Overlay Sliding Cabinet Doors.
Set includes :Â
- (2 ea.) running components with Silent System
- (2 ea.) guide components
- (2 ea.) activators
- (2 ea.) end stops, top
- (2 ea.) guide bushes
- (1 ea.) Â Silent System in colliding direction
- (1 ea.) 1.5 mm hexagon socket spanner
- Fixing screws for wooden doors
Silent System: This product is available with or without Silent System. Silent System includes soft close, soft open and soft collide. Activation point for soft close can be positioned wherever chosen.Â
Track:Â
- Profile Track sold separately.Â
- Option to use with Double Runner Profile or Mortised Single Runner Profile for Inset Doors.Â
Door Type:Â
- Wood DoorsÂ
- 2.17" (55 mm)Â aluminum framed door (hardware not included, sheet metal screws can be ordered separately)
Maximum Door Weight: 66.14 Lbs. (30 kg.)
Door Width: Minimum - 17.7" (450 mm) Maximum - 70.87" (1800 mm)
Door Height: Door height may be no higher than twice the door width for quality and safety purposes. Sliding doors can be perfectly aligned with the integrated height adjuster (+/- 2mm). See compliance details for further information.

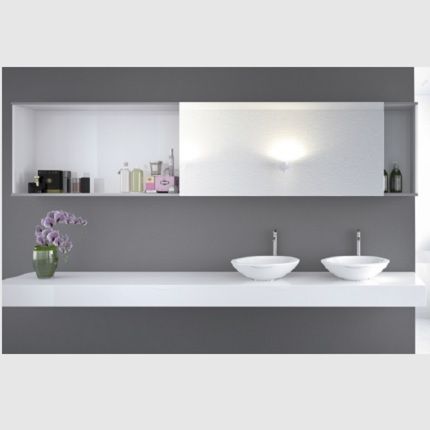

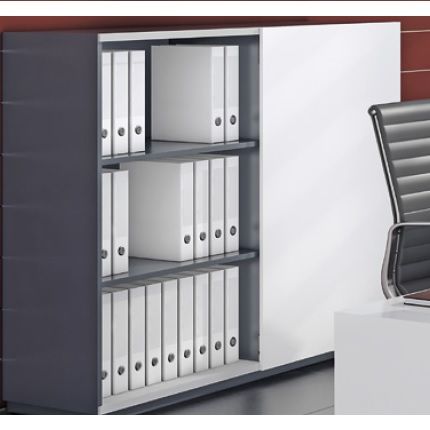

Applications: Â For interior furniture overlay sliding doors. Provided with bottom running components.
Installation: Runner profiles simply screw into place. After pulling the guide component down by means of a spring mechanism, it can be inserted and engaged in the top profile without the need for tools. Runner and guide components simply screw into place, no special work needs to be carried out on the front.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click to view our Hettich TopLine M 9133612 Sliding Door Hardware.
-
QuickShipNo
-
ManufacturerHettich
-
MPN9156338; 9156339
-
Product OptionsWith Silent System #9156338, Without Silent System #9156339
Click to view Hettich SlideLine MÂ 9156338 Installation Instructions.
Tested to EN 15706, Level 1 or 3
When constructing furniture it is important to note that the sliding door must be no higher than twice its width. Up to this relative height, SlideLine M meets the above stated quality and safety requirements for DIN EN 15706. If the specified maximum relative height is exceeded, the furniture construction must undergo a function and safety test as defined in the relevant furniture standard.
Under DIN EN 15706 Level 1, the version of the fitting without Silent System is approved for use if it passes the 2 kg closing test provided for there. If a higher loading capacity is to be reached, e.g. on the grounds of requirements defined in a relevant furniture standard, this must be ensured by the fabricator in terms of furniture design (e.g. inset installation.)
