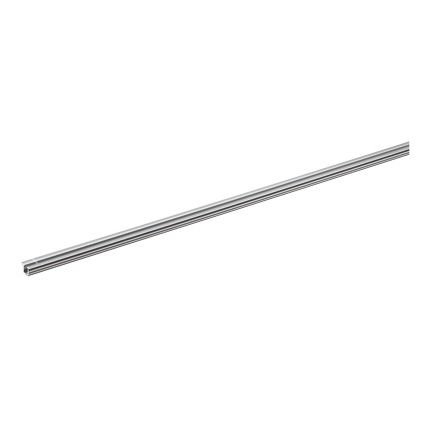

Hettich SlideLine M 9227188 One Track Runner Profile, 98.43" Track, Press In Application
Hettich 9227188 One Track Mortise Runner Profile for use with SlideLine M 9156338 and 9156339 Door Hardware for Inset Wooden Doors. 98.43" (2500 m) Length Silver Anodized Aluminum Track for 2 to 3 door cabinets. Easy press-in installation into prepared groove.
Please note: Four runner profiles needed per 2 door or 3 door cabinet.
PRICED PER PIECEÂ - See Product Details and Specs in the tabs below.
Click to view and print Hettich SlideLine M Full Line Catalog.
Hettich 9227188 One Track Mortise Runner Profile for sliding furniture hardware.
Finish: Silver Anodized Aluminum
Door Type: For wood doors.
Applications: For inset, bottom running doors. Used in conjunction with Hettich SlideLine M 9156338 and 9156339 Door Hardware.
Design: One Track runner profile used for 2-3 door cabinets.
Length: 98.43" (2500 mm). Can be cut down to size on the field.
Width: 2 7/16" WideÂ
Height: 11/32" High
Maximum Door Weight: 66.14 Lbs (30 kg.)
Door Width: Minimum - 11.8" (300 mm) Maximum - 70.87" (1800 mm).
Door Height: 78.74" (2000 mm) Maximum. Door height may be no higher than twice the door width for quality and safety purposes. Sliding doors can be perfectly aligned with the integrated height adjuster (+/- 2mm). See compliance details for further information.
How to Order: Four runner profiles needed per 2 door or 3 door cabinet. Used as top and bottom runners. Profiles are provided as 98.43" (2500 mm) length track and can be cut to length.
Installation: Quick and easy press in installation. Adhesive Runner Profiles and Screw On Runner Profiles available.Â
Compliance Details: Tested to EN 15706, Level 3
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.Â
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click to view our Hettich 9209230 SlideLine M Profile for Overlay Doors.
Tested to EN 15706, Level 1 or 3
When constructing furniture it is important to note that the sliding door must be no higher than twice its width. Up to this relative height, SlideLine M meets the above stated quality and safety requirements for DIN EN 15706. If the specified maximum relative height is exceeded, the furniture construction must undergo a function and safety test as defined in the relevant furniture standard.
Under DIN EN 15706 Level 1, the version of the fitting without Silent System is approved for use if it passes the 2 kg closing test provided for there. If a higher loading capacity is to be reached, e.g. on the grounds of requirements defined in a relevant furniture standard, this must be ensured by the fabricator in terms of furniture design (e.g. inset installation.)
