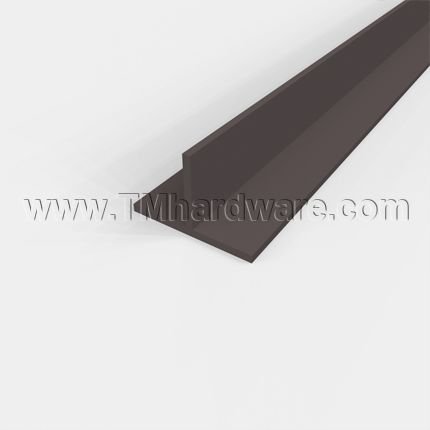

Pemko #S771 Adhesive Weatherstrip, .438" Silicone 'T' Shaped Seal for Meeting Stile
If QuickShip logo is displayed near price, this product is in stock, ready to ship! Factory lead times will apply to options that do not display the QS Logo.
This Self-Adhesive 'T' Shaped Weatherstrip can be installed on virtually any pair of doors where sound attenuation is required. It is also great for sealing the opening to prevent heat loss, retard the passage of smoke, and act as a weatherization product. The seal is made of high quality silicone which can withstand temperature extremes.
SOLD IN PRECUT STRIPS - Strips can be easily resized with household scissors.
See tabs below for additional information
This 'T' Shaped Self-Adhesive Silicone Weatherstrip can be installed on virtually any pair of doors where sound attenuation is required. It is also great for sealing the opening to prevent heat loss, retard the passage of smoke, and act as a weatherization product, great for hotels and dormitory condos. Available in five silicone colors and is sold in pre-cut strips.
Silicone Rubber: This silicone door gasket is extruded from high temperature silicone rubber, which is effective between -58°F and 450°F, making it ideal for an exterior door. It is self-extinguishing, non-toxic, is unaffected by ozone, ultraviolet rays and sunlight and is impervious to mildew and fungus. The silicone shape has excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time.

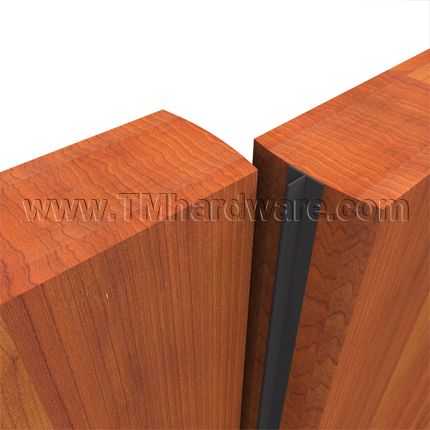

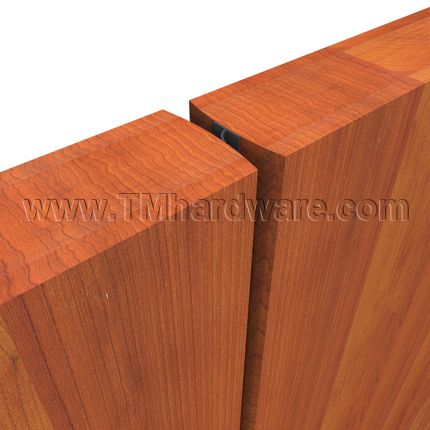

Design: This seal is designed to be applied between a set of double doors as a meeting stile. It can be applied to single or double active doors, see Product Specs. The flexible T Fin maintains a low closing force and will not impede on proper operation of door.

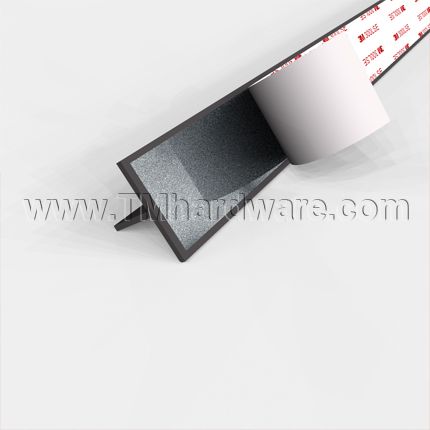

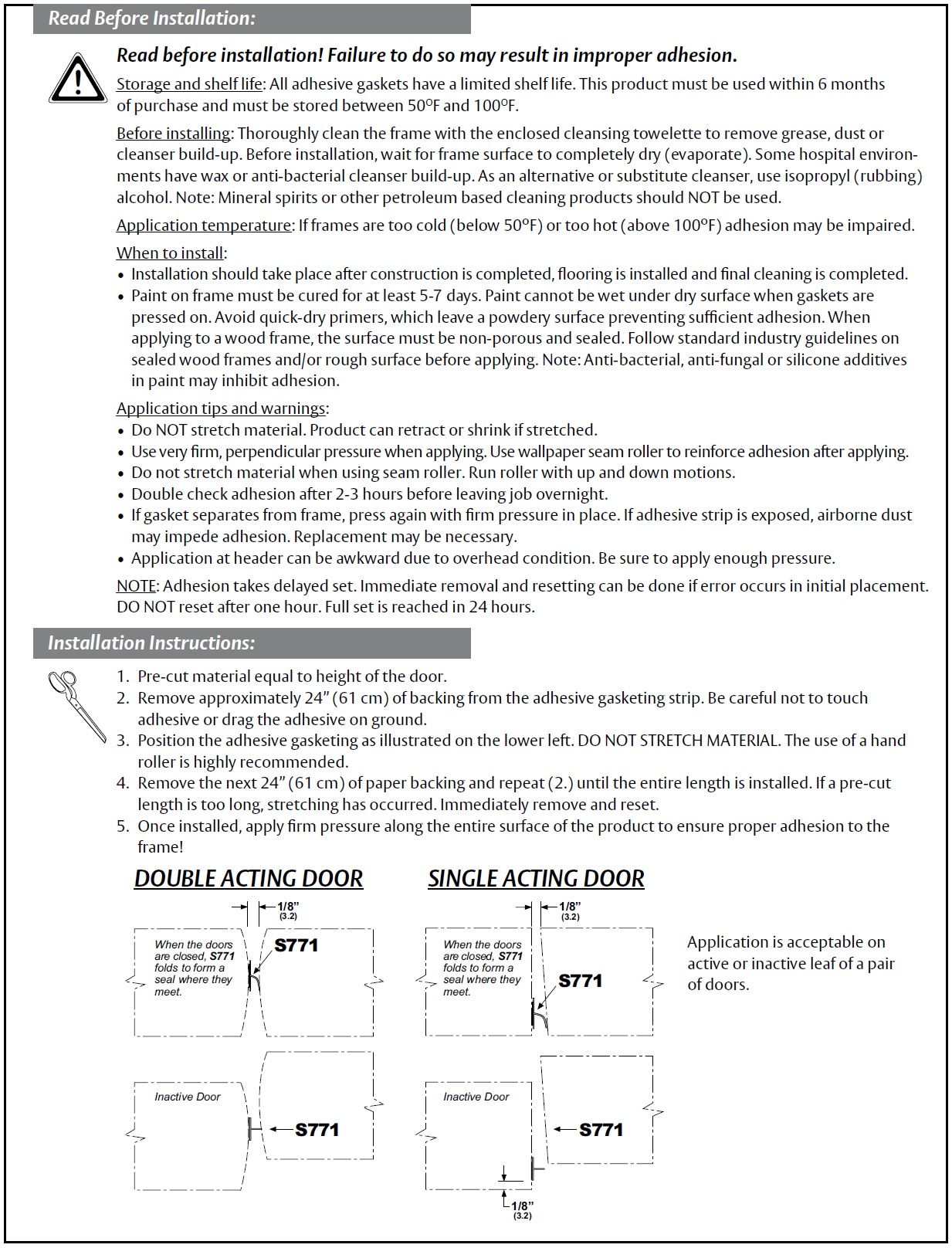

Installation: The gasket is easily installed with a high quality self-adhesive backing, which is a great option for glass doors. Please note, this product has a limited shelf life. Product must be used within 6 months of purchase and must be stored between 50°F and 100°F.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
To view a similar product, see our Double Fin Silicone Self-Adhesive Weatherstrip.
-
QuickShipYes
-
ManufacturerPemko Manufacturing
-
MPNS771
-
Size7' Length, 8' Length, 9' Length, 10' Length
- About This Product
-
Seal TypeSilicone
-

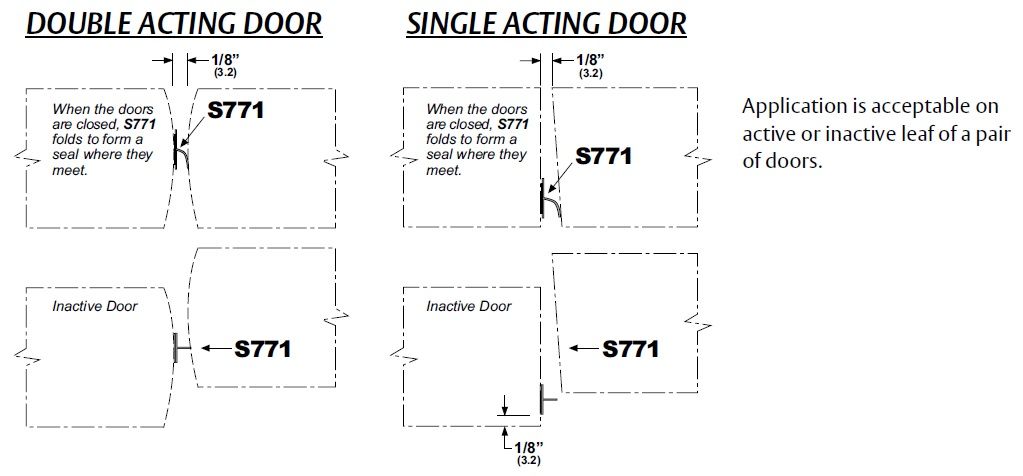

Door TypeDouble Active Doors, Single active door in a double door set
-
Temperature Range-58°F to 450°F
-
- Dimensions
-
Seal Height7/16"
-
Width9/32"
-
- Installation
-
Installation ScrewsSelf-adhesive backing provided
-
- Finishes
-
FinishDark Brown, Clear, White, Gray, Black
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated, Sound Rated, Smoke Rated, Fire Rated, BHMA Certified, UL Classified
-
ANSI DesignationR0E154, R0E155, R0E754, R0E755
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
- Category H gaskets for use with listed steel frames and/pr classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame asembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II.
- Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door.
- Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
