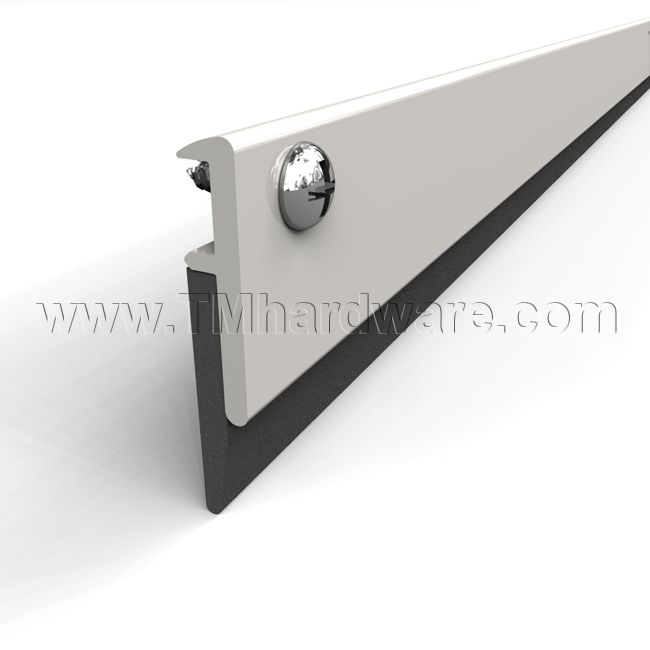

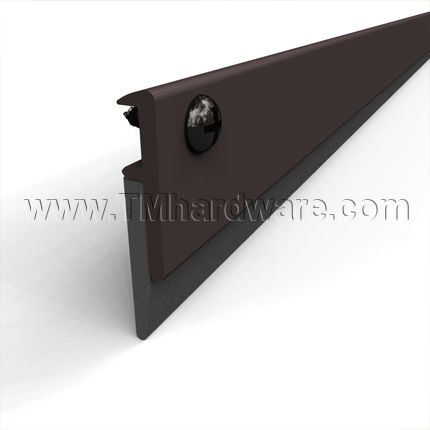

Zero #329 Door Bottom, Aluminum or Bronze Casing with .440" Neoprene Seal

This Zero #329 high quality door bottom sweep is fitted with a durable beveled neoprene seal. The seal provides sill protection from drafts, sound, dust, moisture and is smoke rated. This door bottom can fill gaps up to .4".  Comes in a variety of colors and can be custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information
    • SKU
      ZR329D
    • Market price:$8.60
      • save 5%
    • Starting price: Price: $12.98 per foot

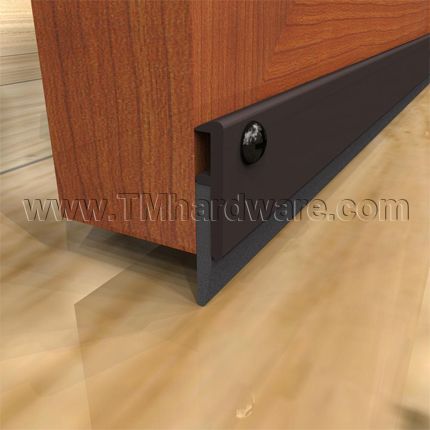

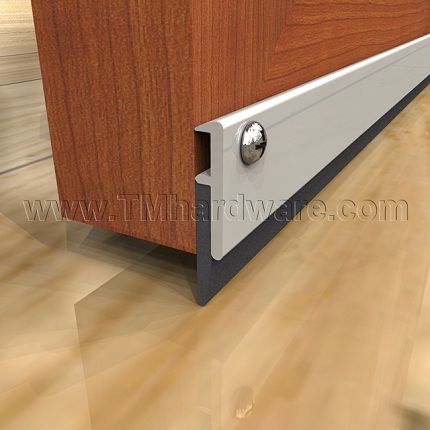

    This door bottom is effective in sealing gaps under doors. It can fill gaps up to .4 inches . It is fitted with a solid neoprene seal that is smoke rated and is an effective barrier for drafts, sound, dust, moisture and smoke. The door bottom's aluminum casing gets surface mounted to the door and it lends a sleek and neat look. Its durable high quality neoprene seal is built to last through many usages and provides a smooth open and close.

    Installation instruction and screws included. Screws are colored to blend unobtrusively with casing.

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Zero's anodized products are anodized to 204 (dipped four times)!

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary and size may be enlarged to show detail. See our product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.


    For larger gaps see our Zero Internation #39 .5" Smoke and Fire Door Bottom.

      • SKU
        ZR329D
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      329
    • About this Product
      • Door Shoe Retainer Material
        Aluminum, Bronze
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Surface Mounted

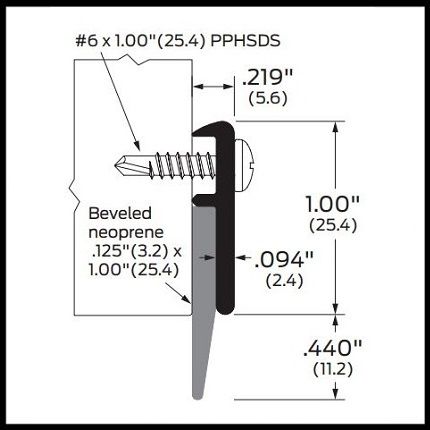

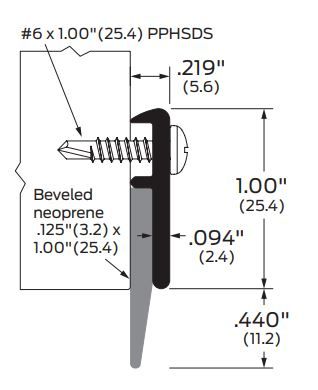

    • Dimensions
      • Seal Height
        .440" Height
      • Total Height
        1.440" Height
      • Additional Dimensions
        Door seal is .219" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Bronze Mill Finish (Brass), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        Fire Rated, BHMA Certified
      • ANSI Designation
        R3B434
      • Warranty
        1 Year Limited Warranty

    compliance details for z329
