PC Henderson H800S Heavy Duty Steel Sliding Door, Overhead or Sidewall, 800 Lbs.

PC Henderson H800S Heavy Duty Steel Sliding Door, Overhead or Sidewall, 800 Lbs.
PC Henderson

H800S Heavy Duty Galvanized Steel Track Sliding Door System capable of holding heavy door panels up to 800 lbs. in a single or bi-parting configuration. Choose from overhead or sidewall mounts.

PRICED PER SET -  See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      PHH800S-SW/6
    • Market price:$666.66
      • save 15%
    • Starting price: Price: $566.66 per set


    Key Product Features:

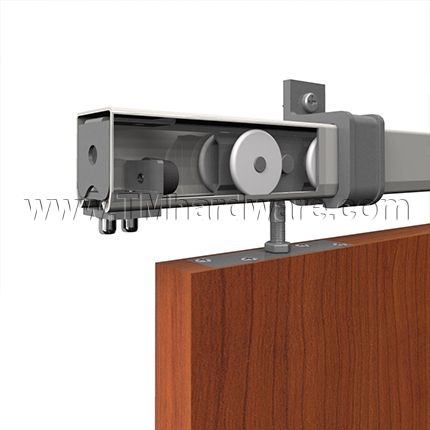

    • Sliding Door System with Galvanized Steel Track
    • 800 Lb. Door Panels
    • Overhead or Side wall Mounting Brackets
    • Steel Hanger and ball bearing nylon wheels
    • Zinc coated steel pendant bolt

    Included Parts:

    • See product specs and detailed images for visual aid.
    • Overhead Mount: Aluminum Alloy Overhead Mount Track Brackets. One bracket at each end and no more than three feet in between.
    •  Side Wall Mount: Aluminum Alloy Side Wall Mount Track Brackets. One bracket at each end and no more than three feet in between.

    Materials: A galvanized steel track is held up with aluminum alloy mounting brackets. A steel hanger body with nylon ball bearing wheels, and a steel pendant bolt ensure strength, smooth operation and durability. Galvanization is the process of applying a protective zinc coating to steel or iron, to prevent rusting.

    Configurations:

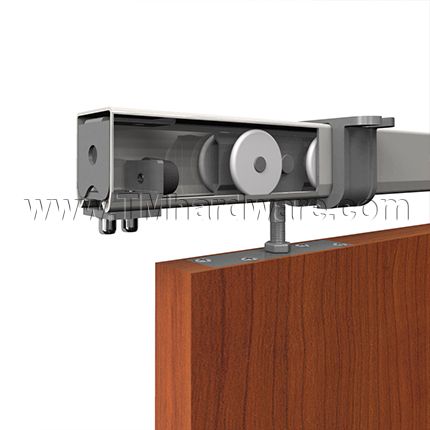

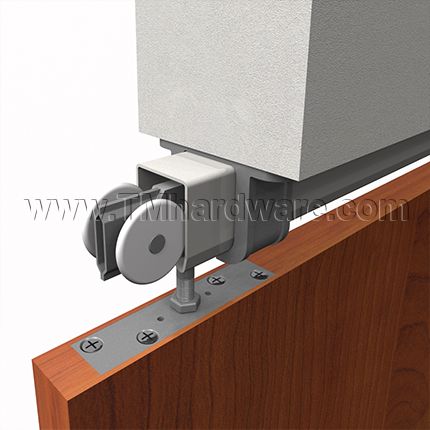

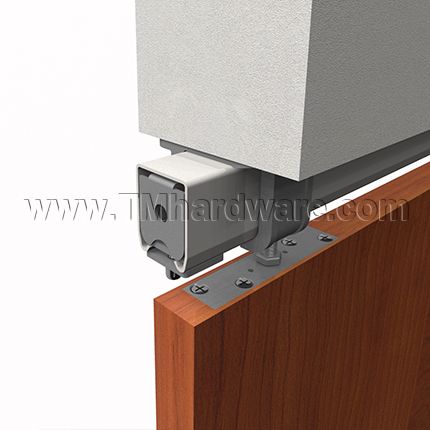

    • Overhead Mount

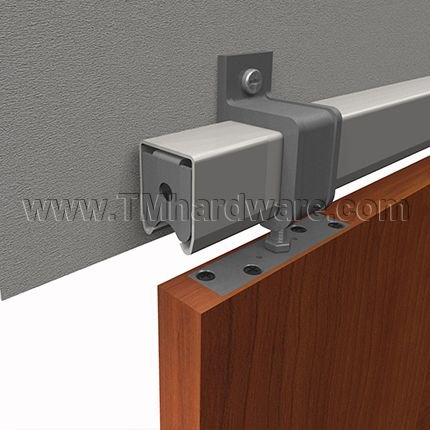

    • Side Wall Mount
    • Single Door Panel
    • Bi-parting Door Panels - Additional hardware required when using bi-parting installation. To order please contact us or call (845) 388-1300.

    Dimensions and Installation Information: See product specs and installation instructions for overhead mounting and sidewall mounting in tabs to the right.

    Additional Customization Options: Including dual bottom guide, roller guide, guide channel and surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    Many variations of sliding doors are available. See our Heavy Duty Sliding Door System with Aluminum Track for  440 Lb. Panels

      • SKU
        PHH800S-SW/6
    • QuickShip
      No
    • Manufacturer
      PC Henderson
    • MPN
      H800S-OH, H800S-SW
    • About This Product
      • Mounting Type
        Sidewall Mount, Overhead Mount
      • Door Mount
        Surface Mount
      • Track Type
        Box Track
      • System Type
        Single Sliding

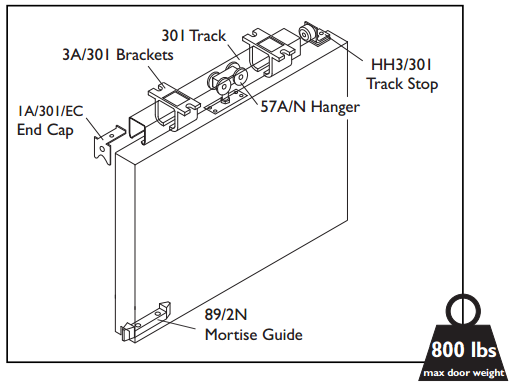

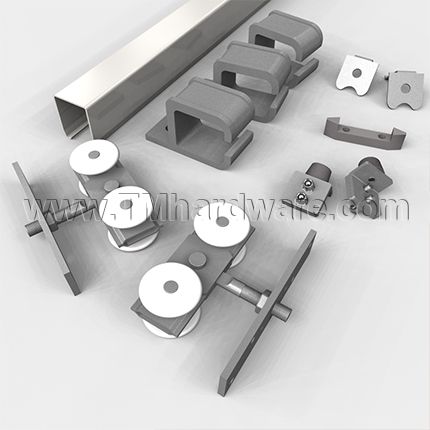

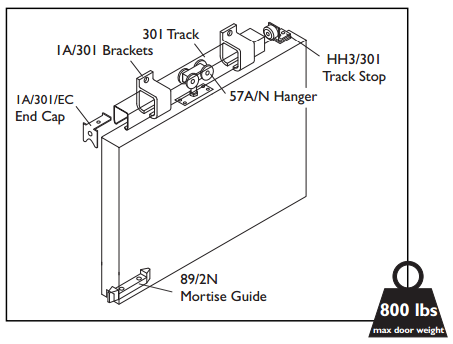

      • Included Parts
        Galvanized Steel Track – 301 (1 ea.)
        Aluminum Alloy End Caps - 1A/301/EC (2 ea.)
        Hangers - Zinc coated, steel bodied hanger, zinc coated steel pendant bolt, and steel ball bearing wheels - 57A/N (2 ea.)
        Steel in-track clip stop - HH3/301 (2 ea.)

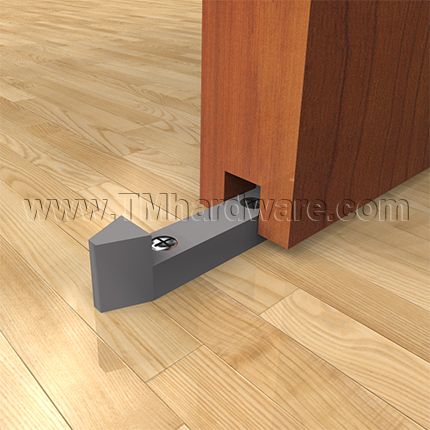

        Grey nylon mortise guide - 89/2N (1 ea.)
        Overhead Mount: 3A/301 (3 ea.) Aluminum Alloy Overhead Mount Track Brackets.
        Side Wall Mount: 1A/301 (3 ea.) Aluminum Alloy Side Wall Mount Track Brackets.
      • Material
        Steel
    • Dimensions
      • Door Panel Weight
        800 Lb Doors
      • Track Length
        72" Length, 96" Length, 120" Length, 144" Length
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to print Product Specs.

    Product Specs for H800S Overhead Mount  Product Specs for H800S SW

    Mounting Options:

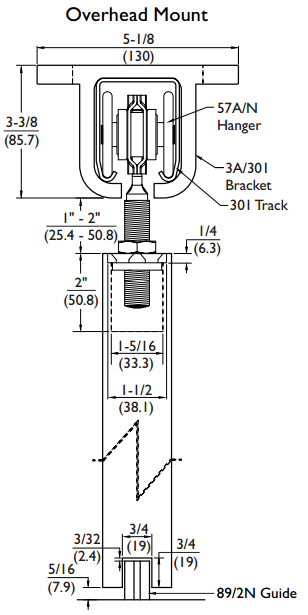

    Overhead Mount:                                                                               Sidewall Mount:

    H800 heavy duty sliding door   H800 side wall havu duty sliding door

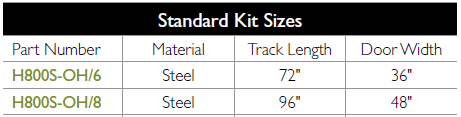

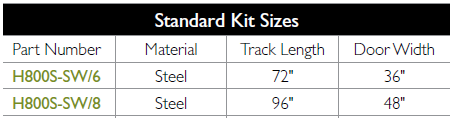

    Kit Sizes:
    Sidewall Mount:                                                                                         Overhead Mount:



    Click Below to Print Installation Guide.

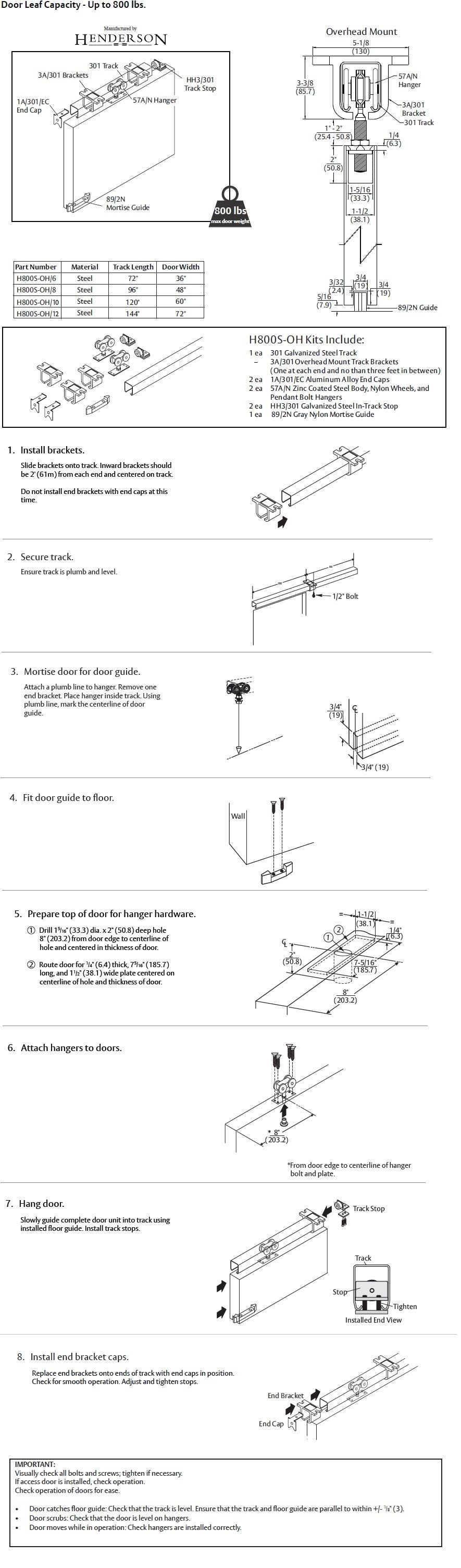

    PH800S Sliding Door Hardware Installation

     To order any of these options, please contact us or call us at (845) 388-1300.

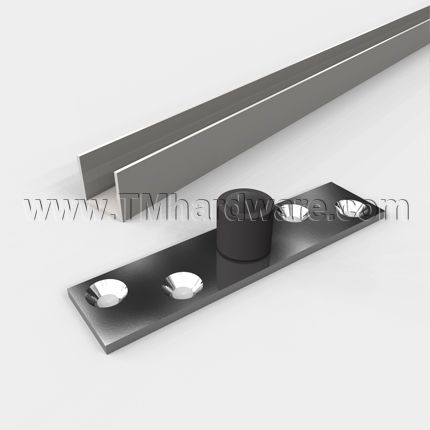

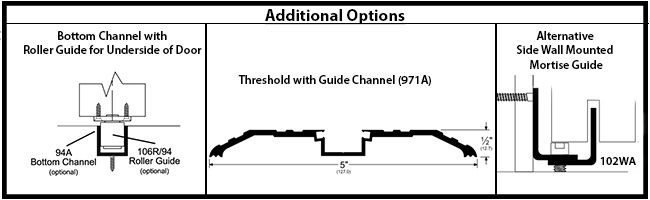

    1. Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).

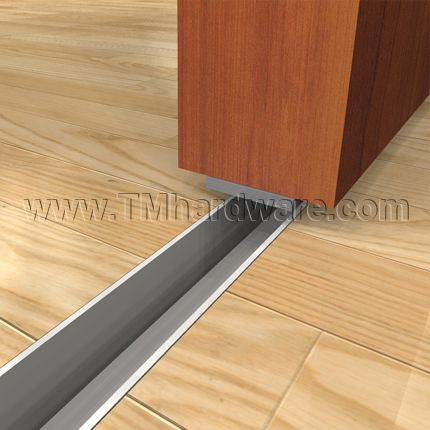

    2. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).

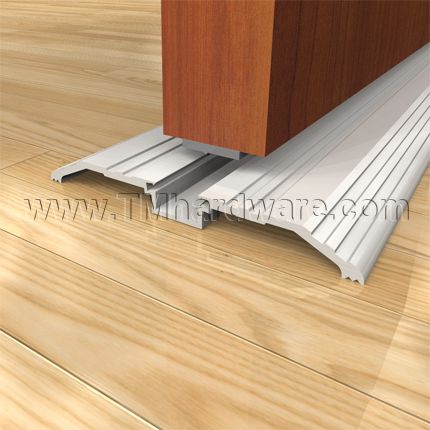

    3. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.

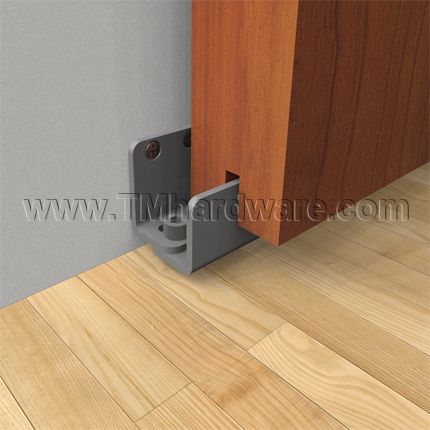

    4. White Nylon Side Wall Bottom Mortise Guide on Zinc Plated “L” Metal: A side wall bottom mortise guide which allows carpet or tile to be replaced without removing the door. (102N)
