Activar Door Louver 900FPL, Galvanized "Z" Blades, Bird Screen, Self-Attaching Frame, For 1-3/4" Doors, up to 3' x 7'

Activar Door Louver 900FPL, Galvanized "Z" Blades, Bird Screen, Self-Attaching Frame, For 1-3/4" Doors, up to 3' x 7'
Activar Air Louvers

This model is a self-attaching door louver with galvanized "Z" blades and a bird screen, and has a free flow area of 50%. The product is a 20 gauge frame with 18 gauge blades and comes in a powder coat gray finish. The louver is compatible with 1-3/4" thick doors, and is suitable for exterior applications where maximum weather resistance is required. Available in many sizes, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AC900FPL 1212
    • Market price:$600.00
      • save 20%
    • Starting price: Price: $480.00 per item


    Door Louvers provide ventilation and air flow while still maintaining the privacy of a closed door. This self-attaching louver has galvanized "Z" blades and a bird screen, and is suitable for exterior applications where maximum weather resistance is required.

    Material: 20 gauge frame and 18 gauge blades are galvanneal sheet metal for maximum weather resistance for exterior applications

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 10"-36"
    • Available heights: 10"-84"

    How to Order: Order size is the Door Cut-out Dimensions. See Product Specs for details.

    Finish: Gray powder coat finish

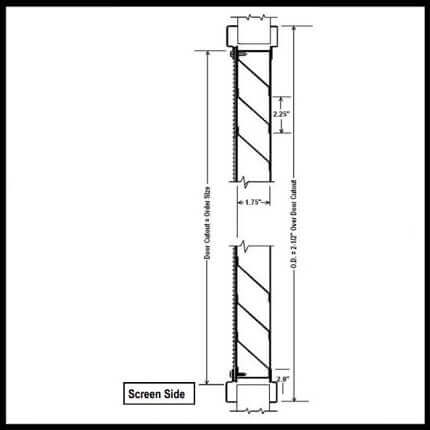

    Construction: The louver has "Z" blades with 2-1/4" blade spacing that are attached by interlocking construction to the 1-3/4” deep, welded frame. This is a non-vision construction. The frame has a 2" trim with mitered and welded corners. Screws fasten through the frame into the louver core, leaving the exterior side of the frame free of fasteners.

    Door Type: For 1-3/4" thick doors.

    Fasteners Included: Phillips head screws #8 x 3/4” to match finish.

    Free Flow Area: 50% free area

    Screen: Standard bird screen on the interior side of the louver

    Additional Options: Custom options are available, please contact us for details and pricing.

    • 16 gauge galvanneal steel
    • Torx fasteners
    • 18x14 mesh insect screen installed with rivets or screws. Available in aluminum, bronze, fiberglass and stainless. See our Options for Insect Screens.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Activar Door Louver 700TL, Inverted Split "Y" Blades, Flush Mounted for Transoms.

      • SKU
        AC900FPL 1212
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      900FPL
    • Size (W" X H")
      12" W X 12" H, 12" W X 18" H, 18" W X 12" H, 15" W X 80" H, 18" W X 60" H, 18" W X 64" H, 18" W X 72" H, 20" W X 64" H, 20" W X 80" H, 24" W X 24" H, 24" W X 60" H, 24" W X 64" H, 24" W X 72" H, 24" W X 80" H, 36" W X 60" H, 36" W X 64" H, 36" W X 72" H, 36" W X 76" H, 36" W X 84" H
