Activar Vision Lite VWL, Wood Veneer Frame, For 1-3/4" Doors, For 3/16" to 1/4" Glass, up to 5' x 6'-5"

Activar Vision Lite VWL, Wood Veneer Frame, For 1-3/4" Doors, For 3/16" to 1/4" Glass, up to 5' x 6'-5"
Activar Air Louvers

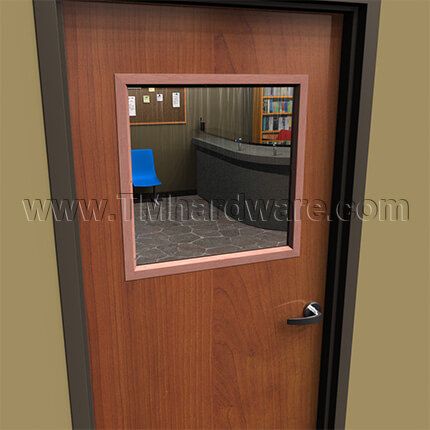

This model is a slimline, beveled, wood veneer vision lite compatible with 1-3/4" thick doors. The vision lite is a 20 gauge CRS frame and is for 3/16" to 1/4" thick glass (glass is not included). Available in many sizes and wood veneer finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ACVWL 1212MA
    • Market price:$292.50
      • save 20%
    • Starting price: Price: $234.00 per item

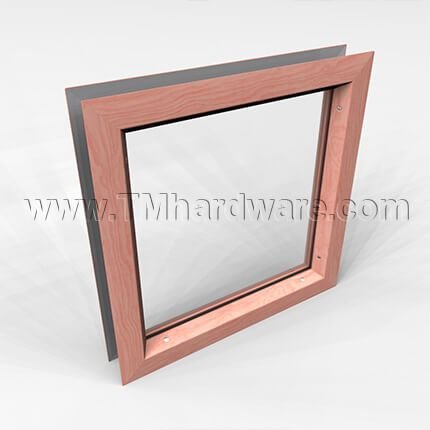

    This slimline, wood veneer vision lite is for 3/16" to 1/4" thick glass.

    Material: 20 gauge CRS frame with wood veneer (thin layer of wood) finish

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 3"-60"
    • Available heights: 3"-77"

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details.

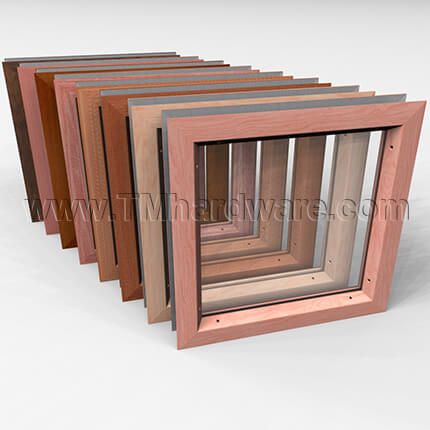

    Available Finishes: Selection of wood veneer as a finish. See our Wood Selection for Woodlite Vision Kit.

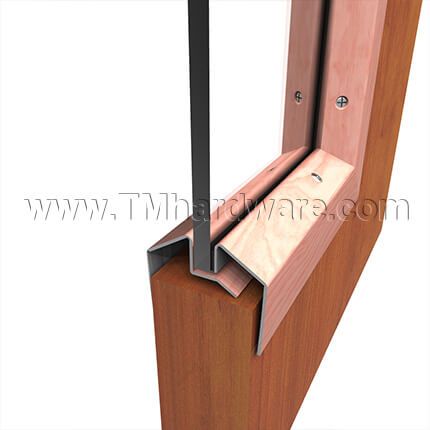

    Construction: 1-1/4” trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.

    Door Type: For 1-3/4" thick doors.

    Fasteners Included: #8 x 1” flathead phillips SMS. Woodlite has wood veneer plugs covering screw heads.

    Glass Compatibility: 3/16” to 1/4” thick glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2” under rough opening size. Glass size is 1” under order size.

    Please note, glazing material is not supplied with this frame, and can be purchased separately through our website.

    Compliance Details: When installed in a properly rated and approved door, ratings up to 90 minutes can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Additional Options: Custom options are available, please contact us for details and pricing.

    • PAK - includes vision lite, glass sized to fit, applied glazing tape for UL10B installations, securely packaged individually
    • VWLIG - VWLIG frame for thicker glass (5/16" to 1") or thicker doors (UL listing for 1-3/8 to 2-1/2” and WHI listing for 1-3/4”).
    • UBC 7-2 Installation: Additional intumescent tape for Positive Pressure UL10C 20 minute combustible core wood doors installation
    • Torx Fasteners

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Activar Vision Lite Kit VISTAMATIC, Privacy Glazed Secure Vision Panel.

      • SKU
        ACVWL 1212MA
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VWL
    • Wood Veneer
      Maple, White Birch, Cherry, Fir-Vertical Grain, Red Oak, Mahogany-African Ribbon Striped, Red Oak-Rift, Walnut
    • Size (W" X H")
      5" W X 20" H, 5" W X 35" H, 6" W X 24" H, 6" W X 26" H, 6" W X 27" H, 6" W X 30" H, 6" W X 36" H, 7" W X 22" H, 8" W X 18" H, 8" W X 30" H, 8" W X 32" H, 8" W X 36" H, 12" W X 12" H, 18" W X 32" H, 24" W X 24" H, 24" W X 30" H, 24" W X 32" H, 24" W X 34" H, 24" W X 36" H, 24" W X 60" H, 24" W X 64" H

    Click to Print

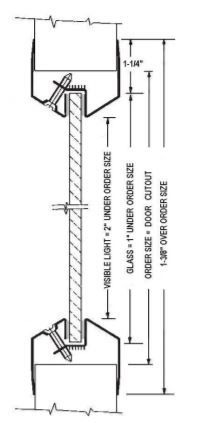

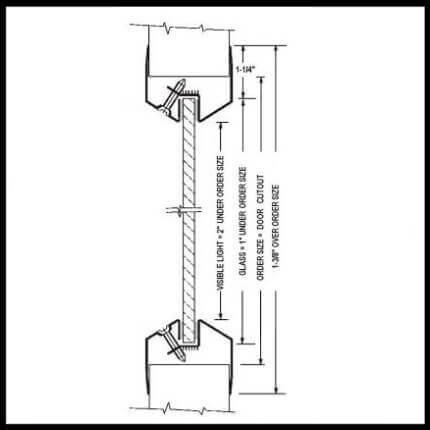

    CVWL Product Specs:

    VWL Product Specs

    When installed in a properly rated and approved door, ratings up to 90 minutes can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.
